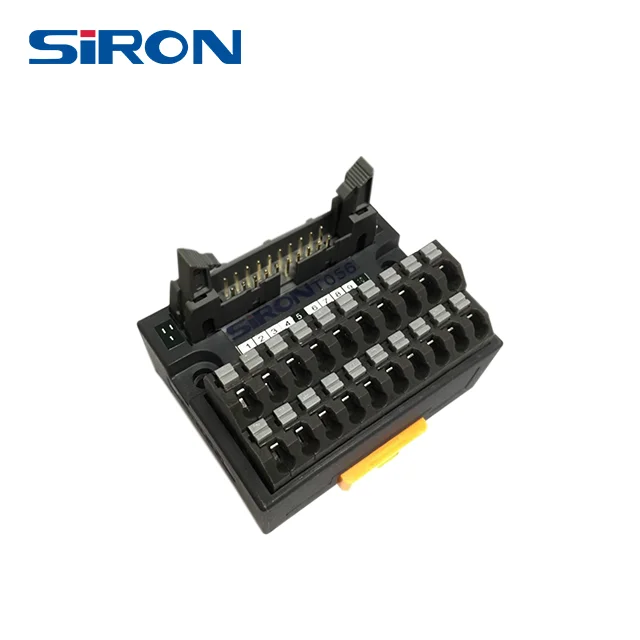

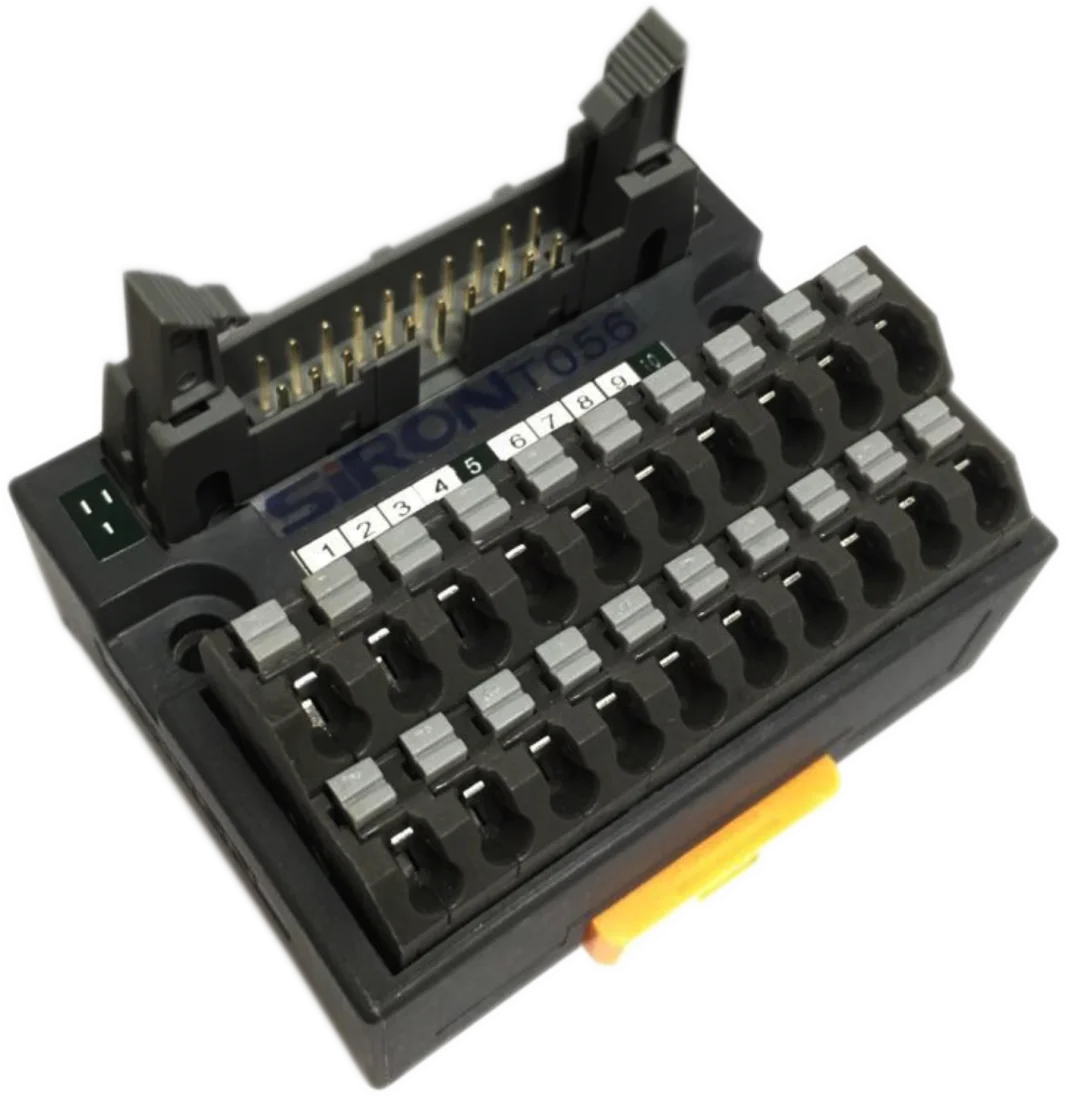

SiRON T056 spring Terminal Block Breakout Board 20P
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (11000005856579):
Product Overview
Description
Our company's product categories are very rich
Features

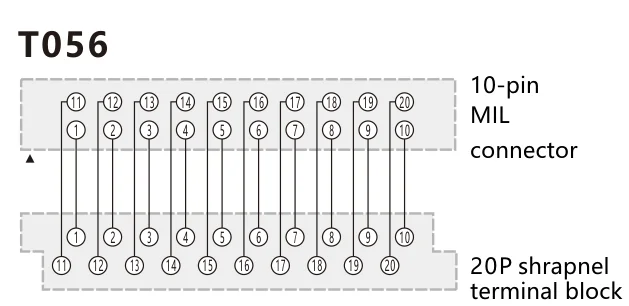

1.TT056 is a 20pin terminal connection for 20pin connector, suitable to all
PLC connections with 20pin MIL plug on the market.2.The product are minimum space design of the Intra-industry.
Precautions：
Before ordering，please confirm the PLC pin definition,choose the suitable terminal.When PLC connection,please be sure to use the company developed and the corresponding special cable.

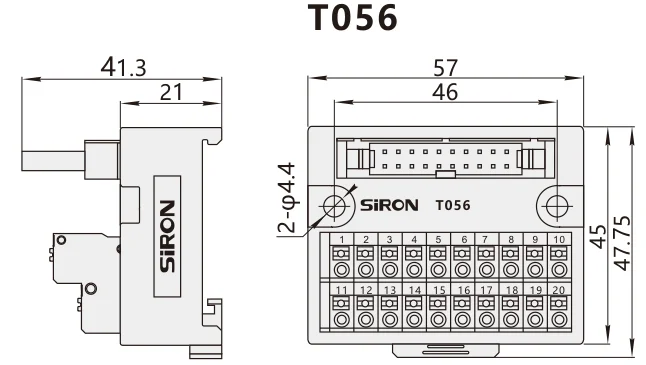

Screw Mounting:use M4*16 screw,screw hole depth≥3mm.
DIN Rail Mounting:Standard 35mm DIN RAIL.
Screw Mounting:use M4*16 screw,screw hole depth≥3mm.
DIN Rail Mounting:Standard 35mm DIN RAIL.
Specifications
input | Nominal operating current ：1A |
Nominal coil voltage：DC24V | |
Corresponding output Devices | Servo Motor control signal line circuit |
Installation method | DIN Rail |
Connection mode of terminal board | screw |
Suitable cable | X200-2 X210-2 X218-1 X218-9 (For detail ,please refer to the directory cable series |
Suitable PLC(In addition to the listed products, other same number PLC module can also be corresponding.) | OMRON： CJ1W-MD232 CJ1W-MD233 |
MISUBISHI： FX1NC-16MT FX2NC-16EXL-C FX1NC-32MT FX2NC-16EYT FX2NC-16MT FX2NC-17EYT-C FX2NC-32MT FX2N-10PG FX3UC-32MT FX2N-10GM FX2NC-16EX FX2N-20GM FX2NC-16EX-C | |
Suitable wire | 1m㎡Following /AWG17 |
Products Description
Recommend Products
Company Profile
Certifications
Delivery
FAQ
1.What type of company are you?
We are a manufacturer, we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor,
Control Power Box Body, Push Button, Switch, and Auxiliary
Equipment, Human Machine Interface, Frequency Converter, Servo
Motor, Module, Reducer and Other Industrial Automation Control Products.
We are a manufacturer, we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor,
Control Power Box Body, Push Button, Switch, and Auxiliary
Equipment, Human Machine Interface, Frequency Converter, Servo
Motor, Module, Reducer and Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the
certification of CE, CCC, UL, and RoHs etc.
we could send the certification test of our company to you.
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South
Kore.a... and we do hope you become our agent in the future,
welcome to discuss the deep details with us.
3.How about the quality of the products?
We can provide one year warranty for you and we have the
certification of CE, CCC, UL, and RoHs etc.
we could send the certification test of our company to you.
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South
Kore.a... and we do hope you become our agent in the future,
welcome to discuss the deep details with us.
