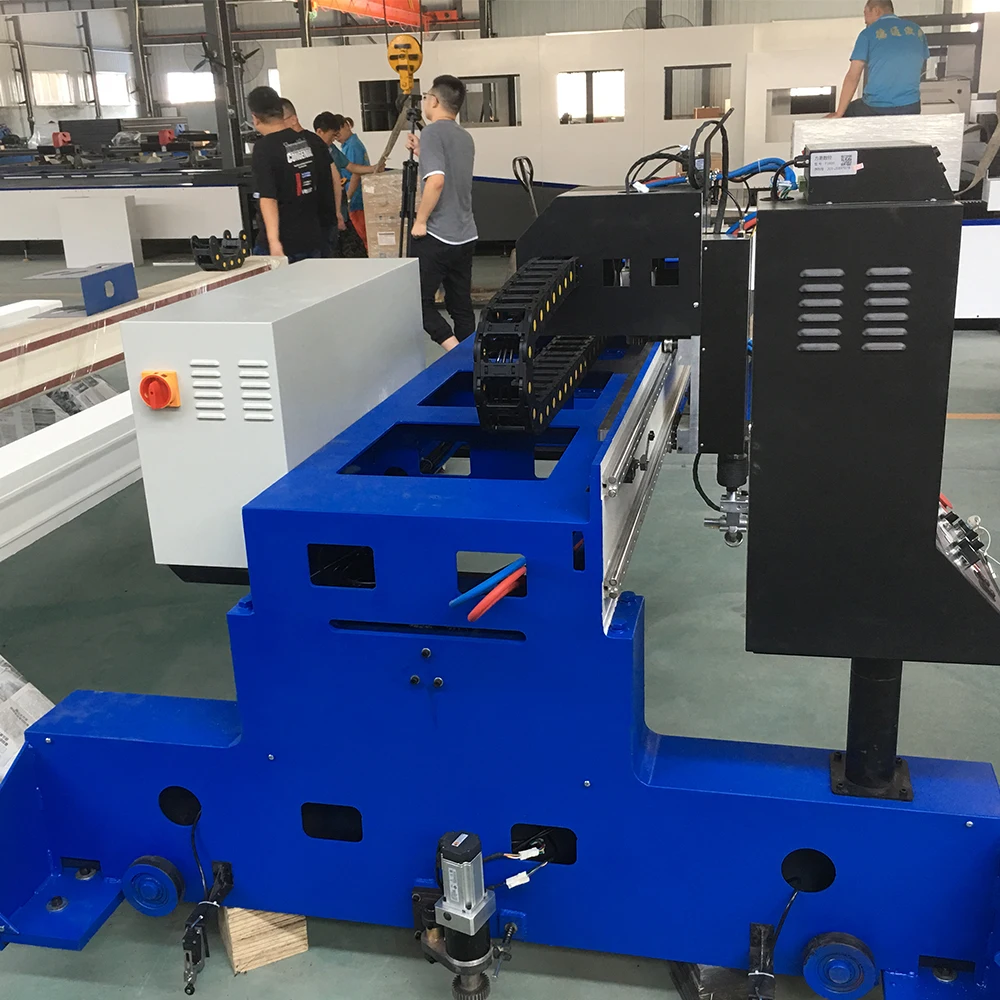

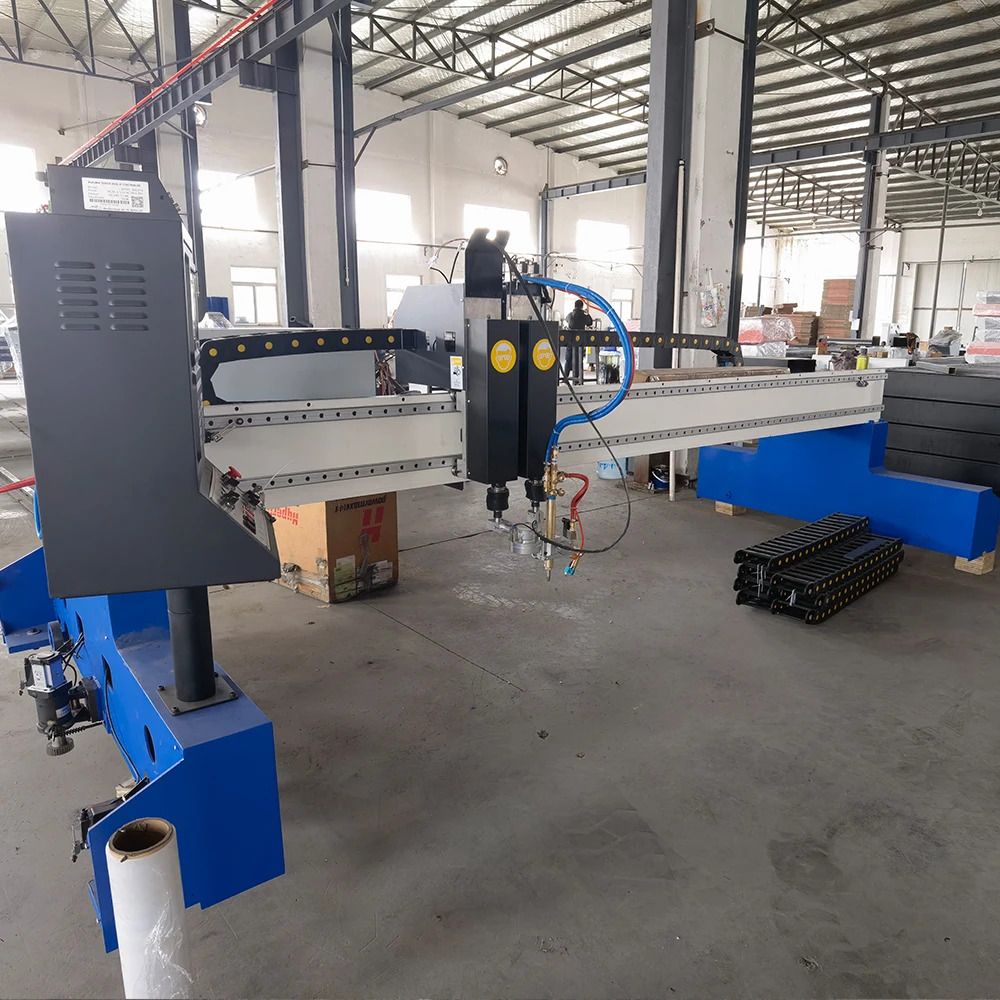

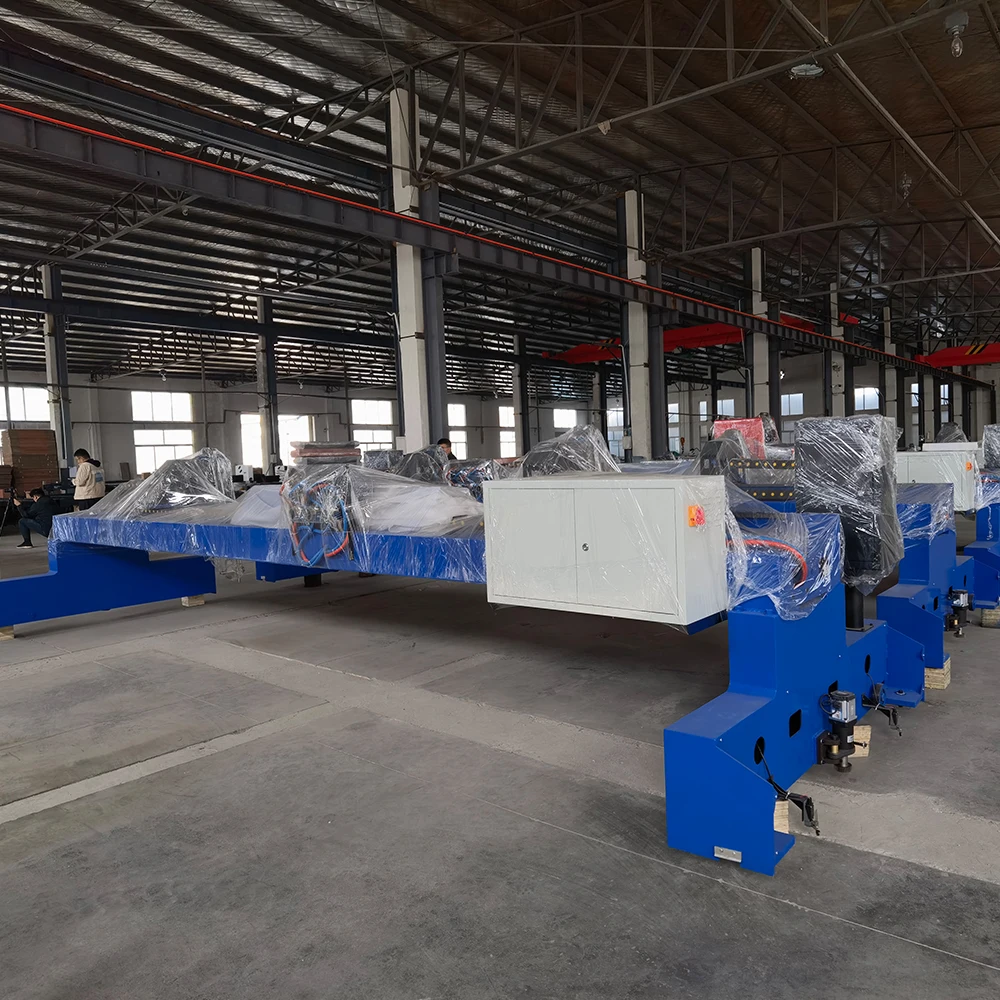

Gantry plasma cutting machine plasma and flame cutting servo 750W motor reducer 10 inch large screen control system
- Category: >>>
- Supplier: Qingdao Headway Industry And Trade Co. Ltd.
Share on (11000005866907):
Product Overview
Description
1. Industrial-grade high-precision heavy-duty gantry design and manufacture.
2. Servo motor is used, with large torque, no lost steps, and higher running accuracy.
3. Equipped with electromagnetic anti-collision device to protect the cutting torch.
4. The new FL plasma cutting system is easy to operate, equipped with a remote control, and easy to operate.
5. Adopt reducer drive to ensure conveying speed and cutting accuracy.
6. Infrared assisted positioning and cutting function.
7. Equipped with flame cutting torch, it can cut more than 300mm metal sheet.
2. Servo motor is used, with large torque, no lost steps, and higher running accuracy.
3. Equipped with electromagnetic anti-collision device to protect the cutting torch.
4. The new FL plasma cutting system is easy to operate, equipped with a remote control, and easy to operate.
5. Adopt reducer drive to ensure conveying speed and cutting accuracy.
6. Infrared assisted positioning and cutting function.
7. Equipped with flame cutting torch, it can cut more than 300mm metal sheet.
Specification
Model.No | HD-3080 | HD-3580 | HD-4080 | ||
Working Area | 2500*7500mm | 3000*7500mm | 3500*7500mm | ||
Control System | F2300A V5.0 /FL2300A/FL2300B/FL2100B/FL2100BX (optional) | ||||
Height Controller | FL1621 Arc Voltage Height Controller | ||||
Mobile Configuration | Servo Motor + Reducer | ||||
Anti-collision Device | Electromagnetic Anti-collision Device | ||||
Flame Cutting Torch | ≥300mm Carbon Steel | ||||
Remote Control | FL Remote | ||||
Assisted Positioning | Infrared Assisted Positioning | ||||

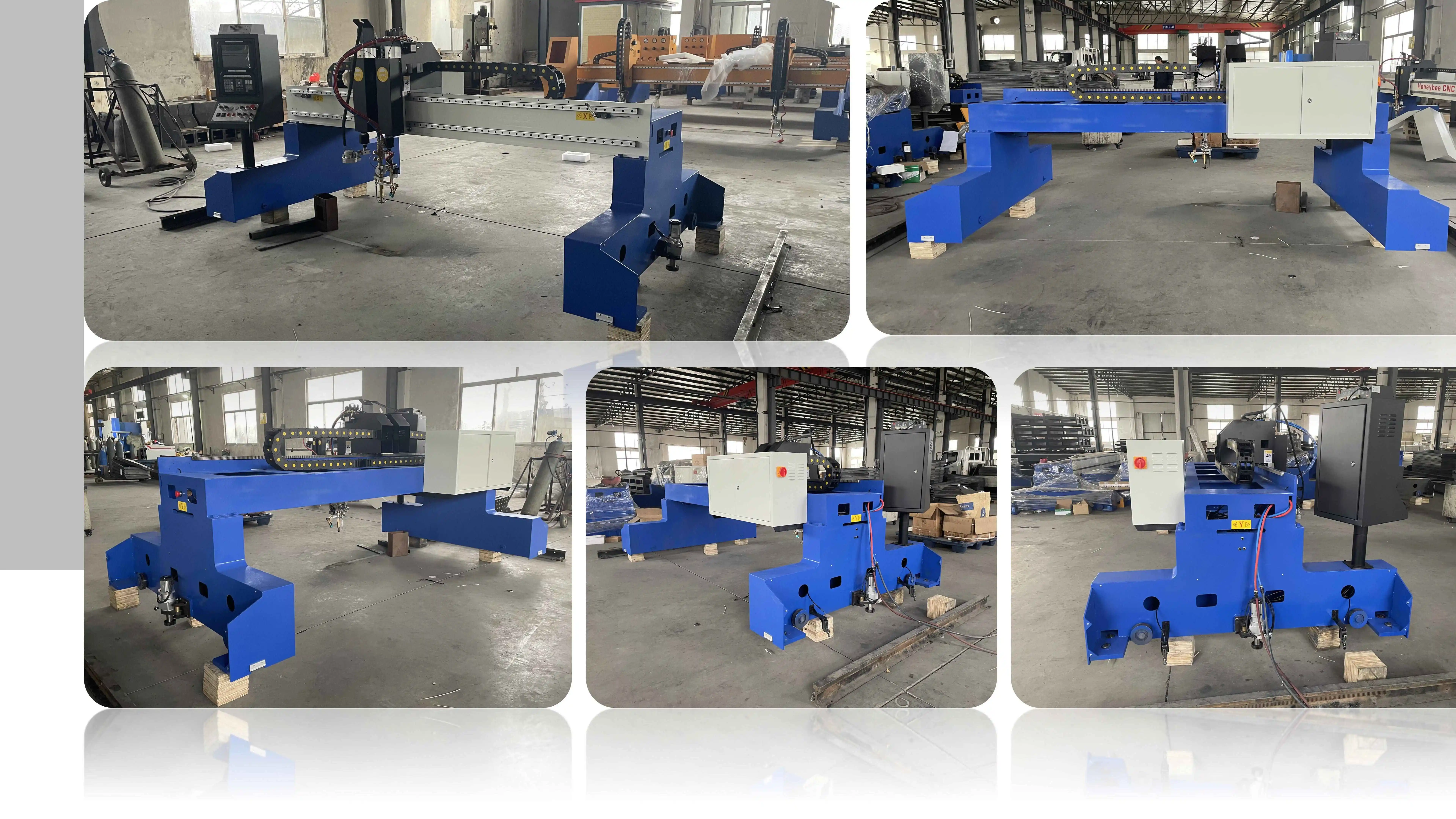

Detailed Imaged

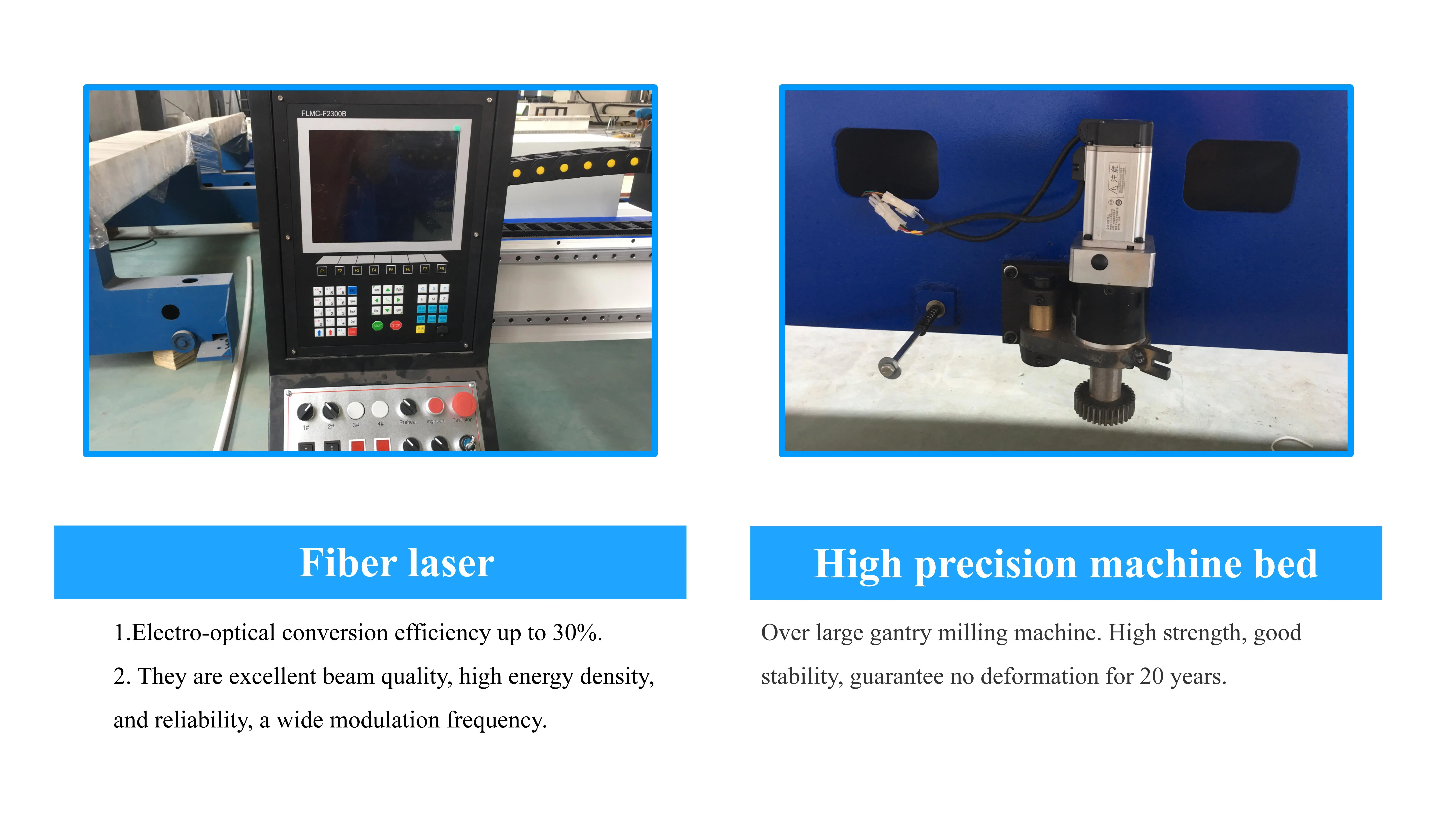

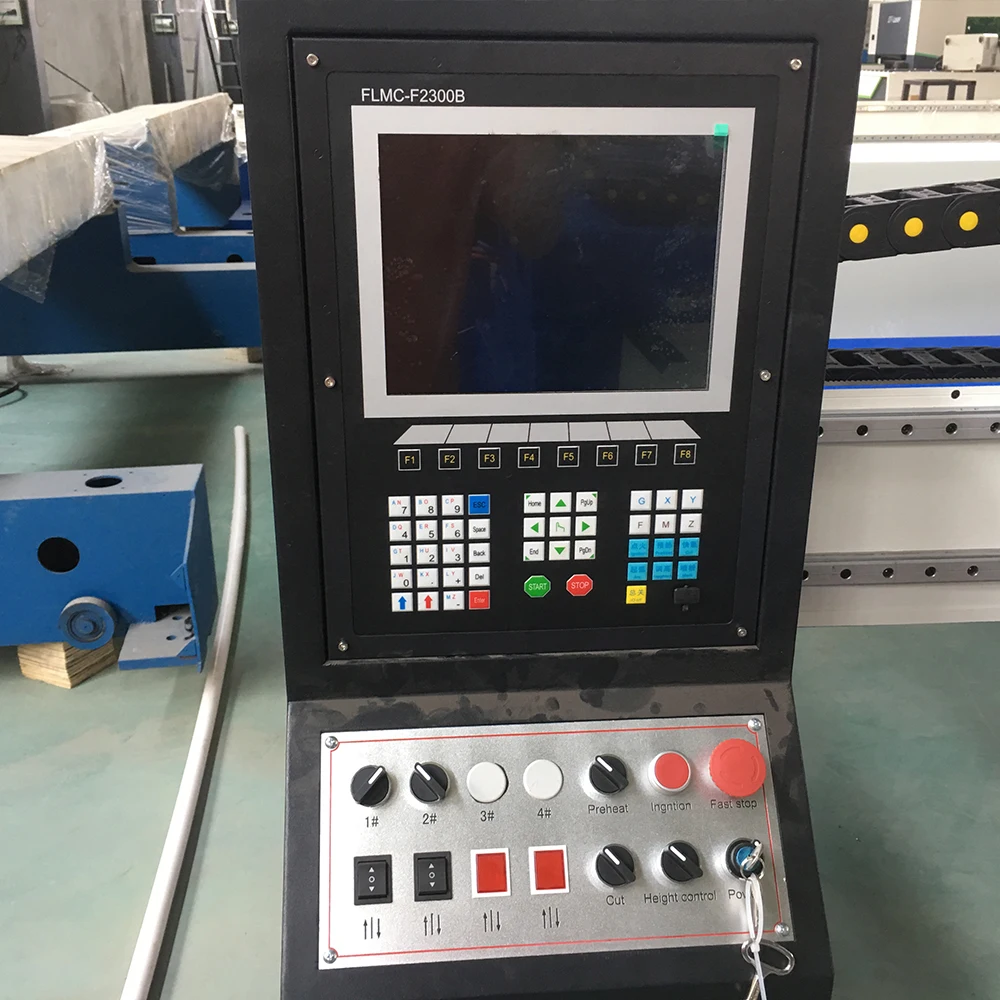

FL control system
The operating system of Shanghai FL plasma cutting machine is easy to operate and easy to use. It not only has a graphics library, but also supports external graphics import and cutting.
Motors and reducers
Stepper motors and servo motors can be selected. The transmission mode is unified by the reducer transmission, which ensures the cutting progress and the smooth performance of the machine operation.

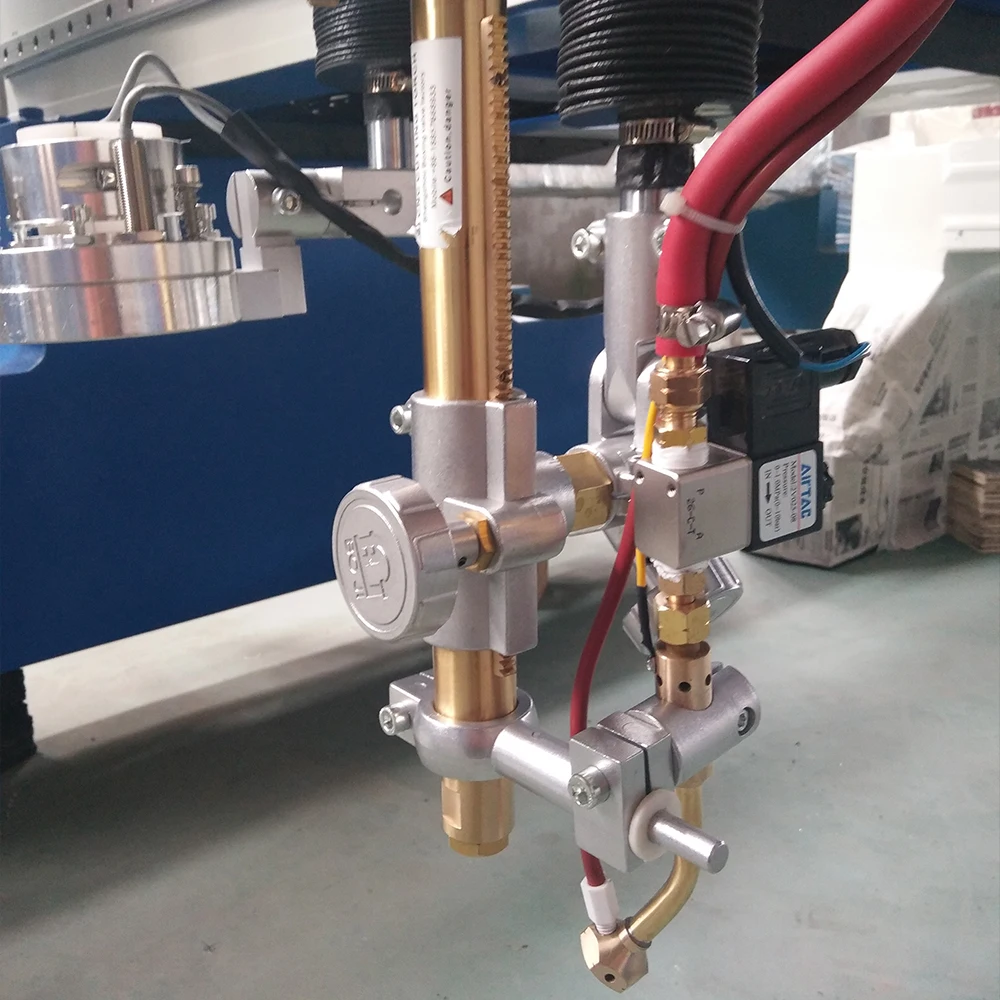

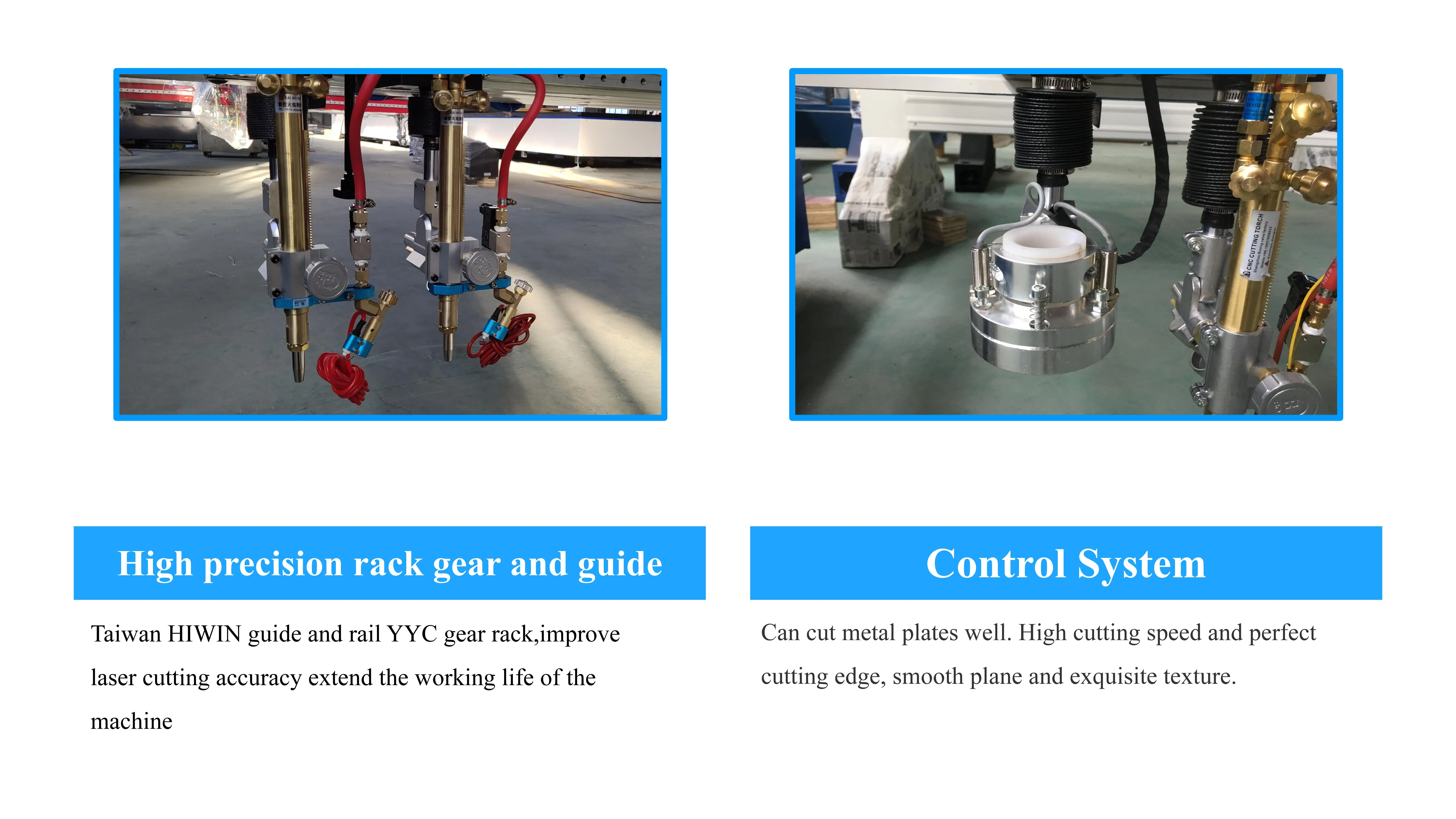

Flame torch
Oxygen/Nitrogen/Acetylene can be used as auxiliary gas for very thick sheet metal cutting machines.
Electromagnetic anti-collision device
The collision of the cutting torch during the cutting process will trigger the electromagnetic anti-collision device, thereby lifting the cutting torch and protecting the cutting torch.
Pressure regulating valve
It is mainly used to regulate the gas in the pipeline, prohibit or allow the passage, and the specific function is to stabilize the air pressure..

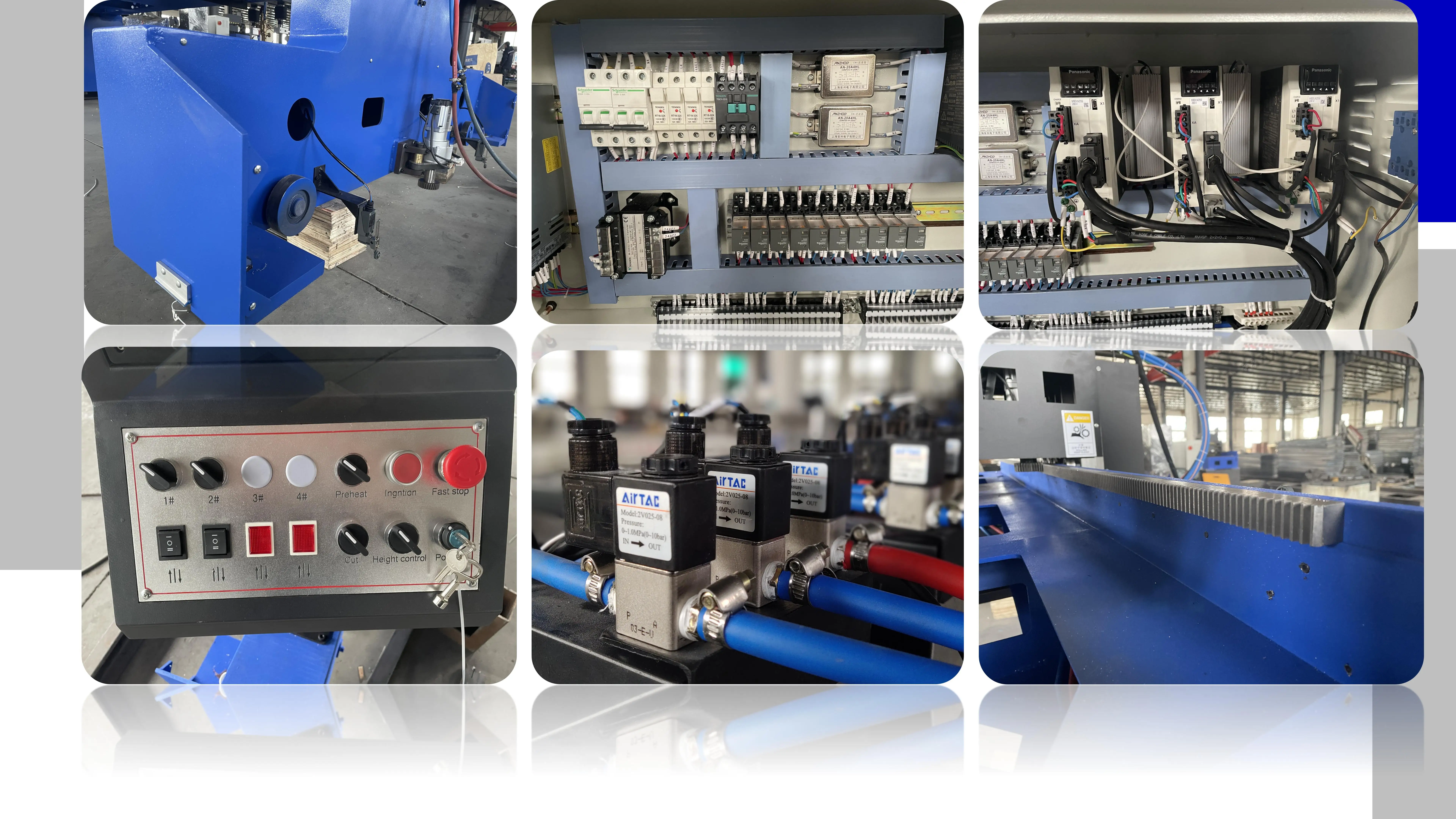

Electrical cabinet
The distribution of electrical components is uniformly assembled in the electrical cabinet, which is convenient for the operator to monitor the operation in real time.
Linear guides and slides
High-precision linear guides ensure the smooth running of the machine.

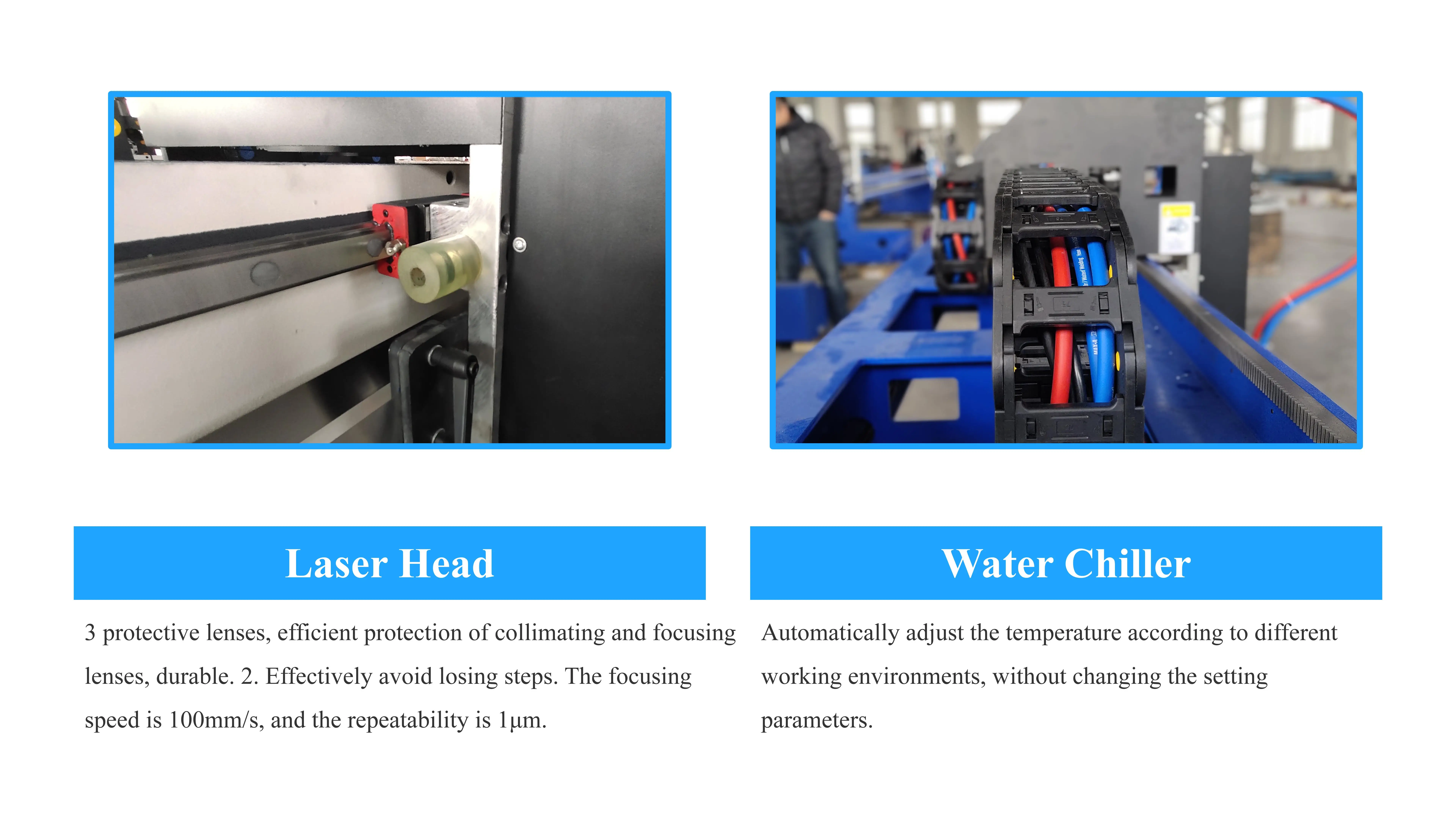

E-chain slot
Mainly used to protect cable wiring and neatly store wiring.
Application Industry and Samples
Metal cutting, locomotive manufacturing, machinery industry, household appliance manufacturing, hardware tool
processing,decorative advertising and other machinery manufacturing and processing industries
processing,decorative advertising and other machinery manufacturing and processing industries

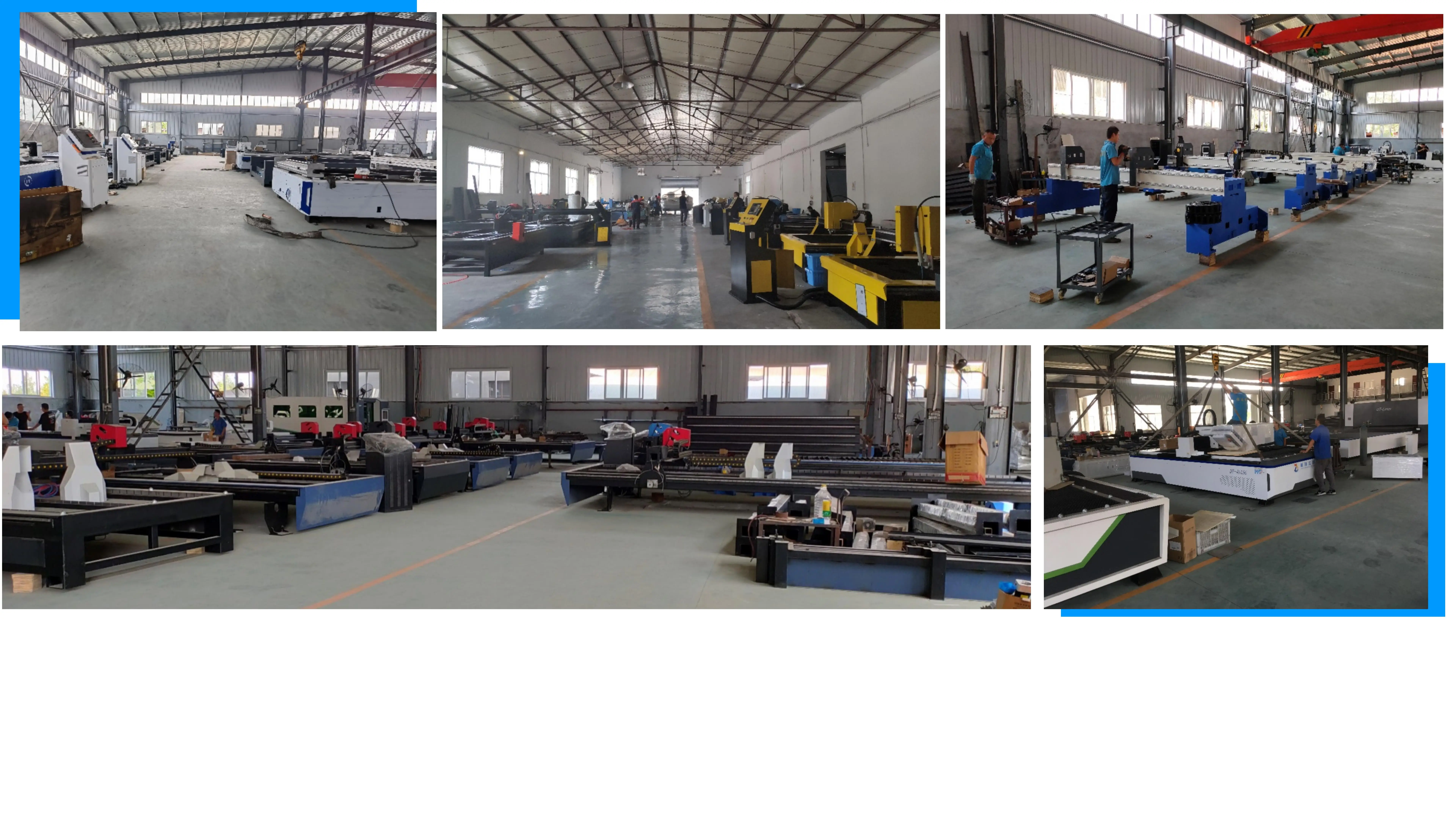

Our Company
Headwaycnc Company is an expert in CNC wood router business since 2007, which is a global manufacturing company that produces CNC wood routers, wood lathes, laser cutting machines, laser marking machines for various applications such as furniture. woodworking, steel metallurgy, automotive industry, military electronics, machinery manufacturing, hardware tools and other industries. We have a large cnc router equipment production workshop, as well as our own painting room, metal plate fabrication work room.
At the same time, a global service network centered on China has been established, and responsible overseas agencies covering Asia, Europe, North America, South America, Africa, Oceania and other parts of the world have been established, serving more from 120 countries and regions around the world.
Welcome to visit our factory!
At the same time, a global service network centered on China has been established, and responsible overseas agencies covering Asia, Europe, North America, South America, Africa, Oceania and other parts of the world have been established, serving more from 120 countries and regions around the world.
Welcome to visit our factory!
Packaging and Shipping
1.Outside package: Strong wooden case.
2.Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package.
Fumigation-free packaging size:4500mm*2000mm*1500mm
Total weight:1500KG
2.Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package.
Fumigation-free packaging size:4500mm*2000mm*1500mm
Total weight:1500KG
