Harbin Dadi Organic Compost Waste Fertilizer Pellet Granulation Granulator Machine For Making Organic Fertilizer Granules

Product Overview

Description

Harbin Dadi  Organic Compost Waste Fertilizer Pellet Granulation Granulator Machine For Making Organic Fertilizer Granules



Range of Applications:

The series of granule machines can make the following raw materials into granules :

1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran, etc.

2. Animal manure: a mixture of poultry litter (PL) and animal waste(AW), such as Slaughterhouse Waste, Fish Market, Urine, and dung of cows, Pigs, Sheep, Deer, Chicken, Ducks, Geese, Goat, earthworm cast, etc.

3. Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue, Bean cakes, Vinasse slag, Biogas residue, Fruit residue, palm oil residue, etc.

4. Residues of urban rubbish or sewage treatment plants.

5. Home scrap: food waste, bones, the roots and leaves of vegetables, etc.

6. Turfs, lignite, sludge, pond sludge, Sucrose slag, starch pulp, Bentonite clay, and Diatomite.

7. Organic materials mix with mineral materials.



Model :	KHL-400-2
Capacity: T/h	0.5-1
Input moisture content required:  %	30-35
Moisture reduction after granulation: %	3
Input material particle size required: mm	0.3-0.5
Rate of finished products:%	>90
Voltage: V	380 (optional)

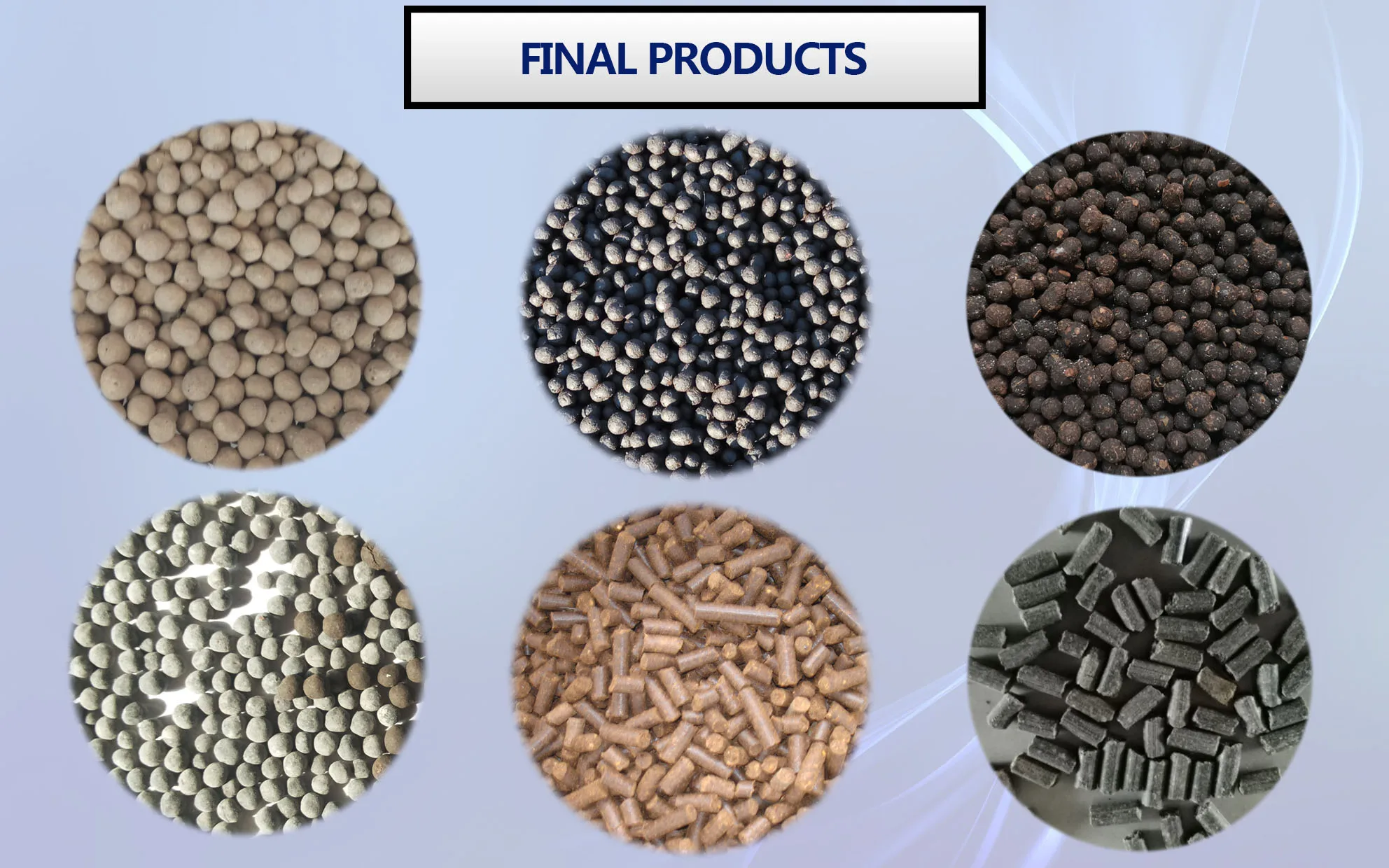

Granules size: mm	3.5-5.5
Power: KW	33
Total weight: Kg	2200
Size: m	4.0 -1.7 -1.4





Working Principle

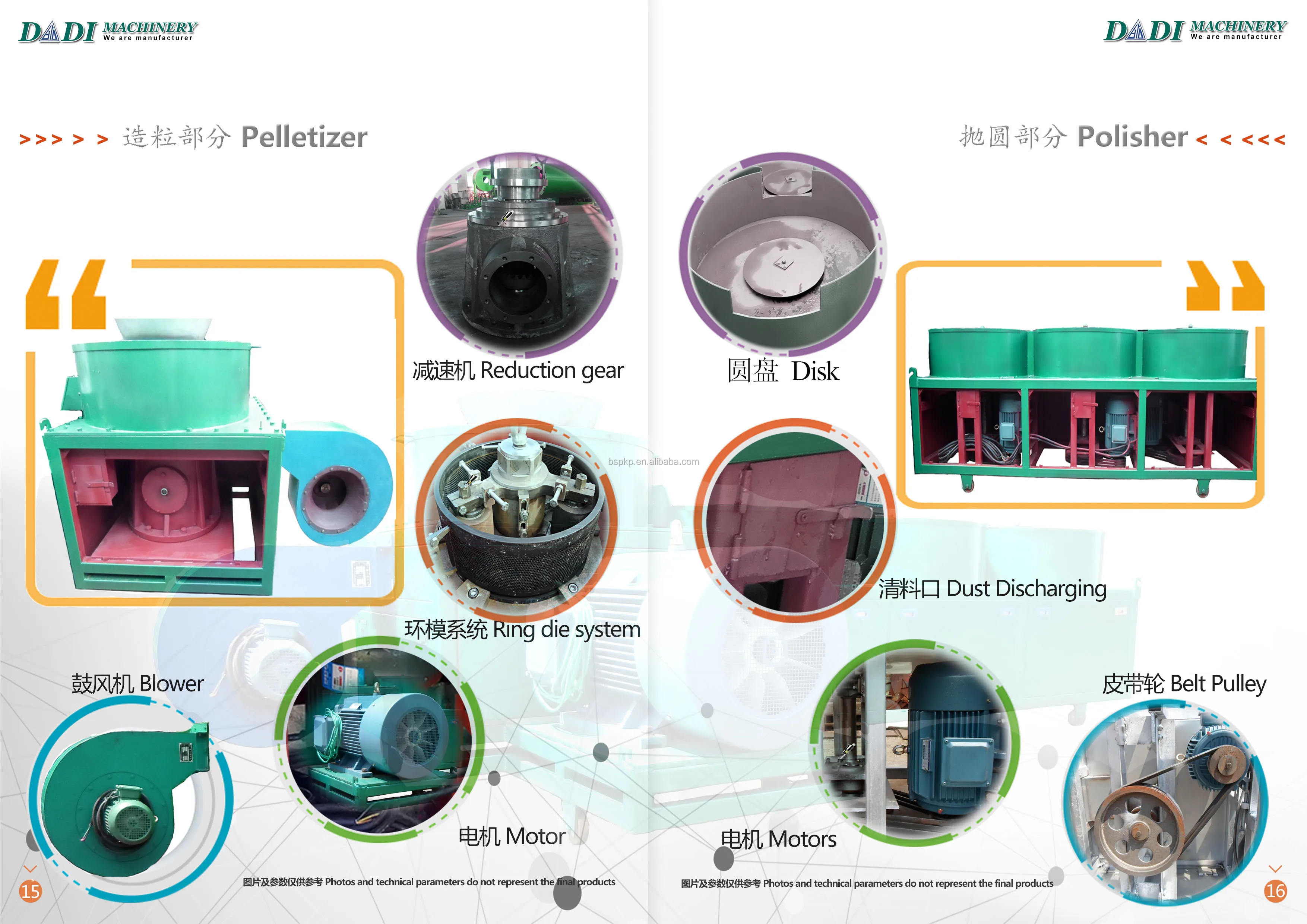

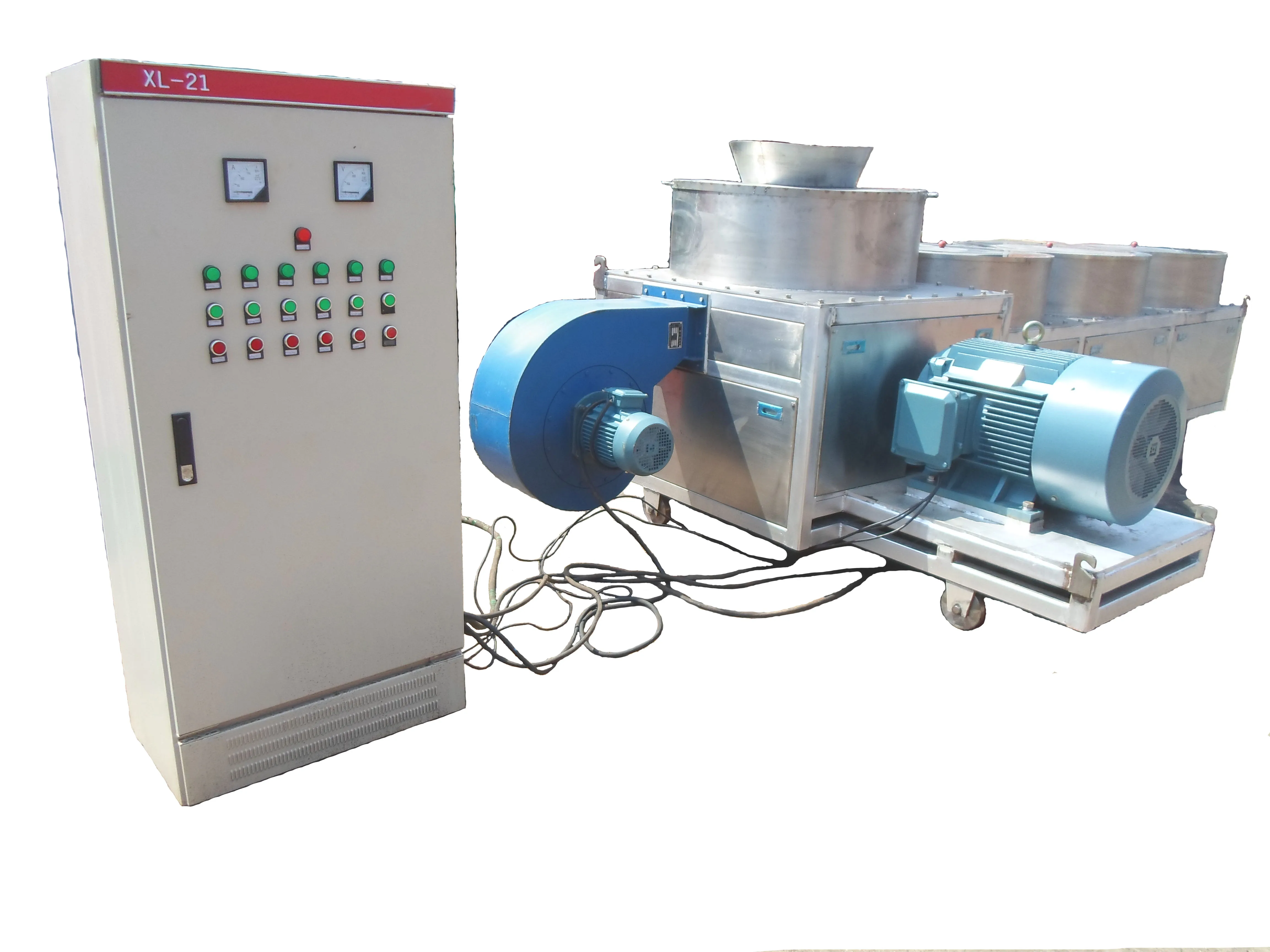

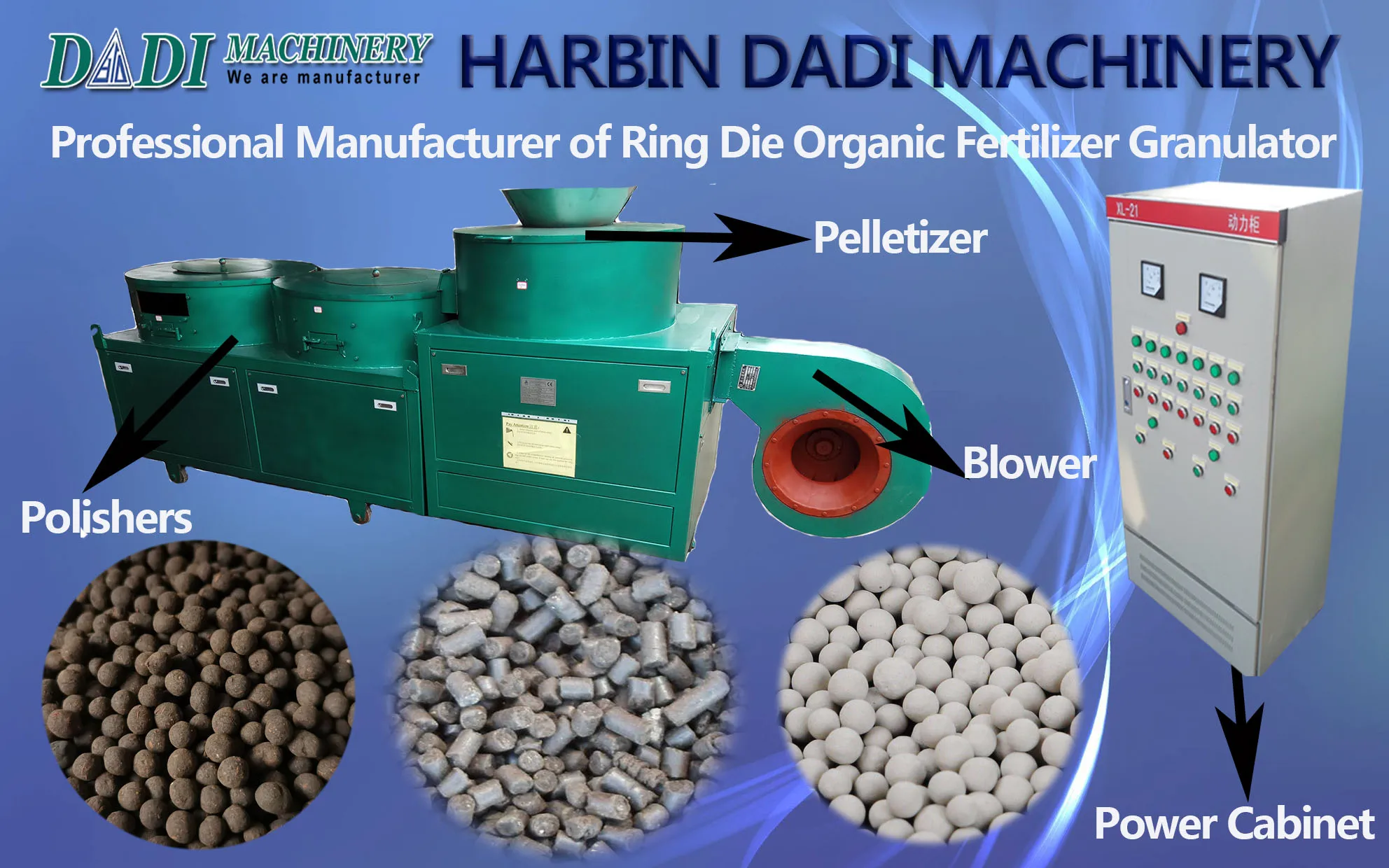

The Ring Die Granulator has two parts :

1, Pelletizer part

2, Polisher (Balling) part

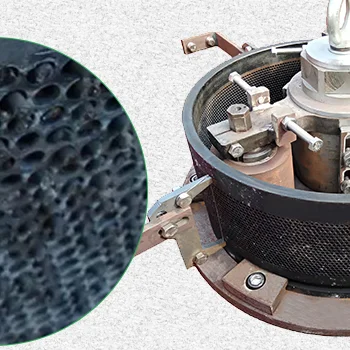

The Pelletizer part with Ring die and rollers system :
The raw material goes into the working chamber and falls on the ‘dump tray’, the raw materials throw into the ring die by centrifugal effect; The ring die and rollers system turn drive-by reduction gears & transmission which energy from the motor. The pressure comes from the ring die and rollers system running, cylinder form is forced extrusion from the ring die hole, which is cut into small pellets as required by the cutting line.

The polisher (Balling) part is a rotation disk:
The small pellets fall onto the disk in the drum, by high-speed rotating disk throw onto the wall of the drum with circumferential movement, the granules in a circular motion at the same time also in radial rotation motion due to centrifugal effect. Mutual friction makes the granules with edges and corners into balls gradually due to the granules’ moving. At this moment, Polisher (Balling) part gradually floats on the top, and the final granules overflow along with the number of granules increasing in the drum.
