Megarevo 4600W 5000W 6000W Single Phase Energy Storage Hybrid Solar Battery Inverter Pack RKL1
- Category: >>>
- Supplier: Wuxi Sunket New Energy Technology Co. Ltd.
Share on (11000005899889):
Product Overview
Description
Products Description
Technical Specifications

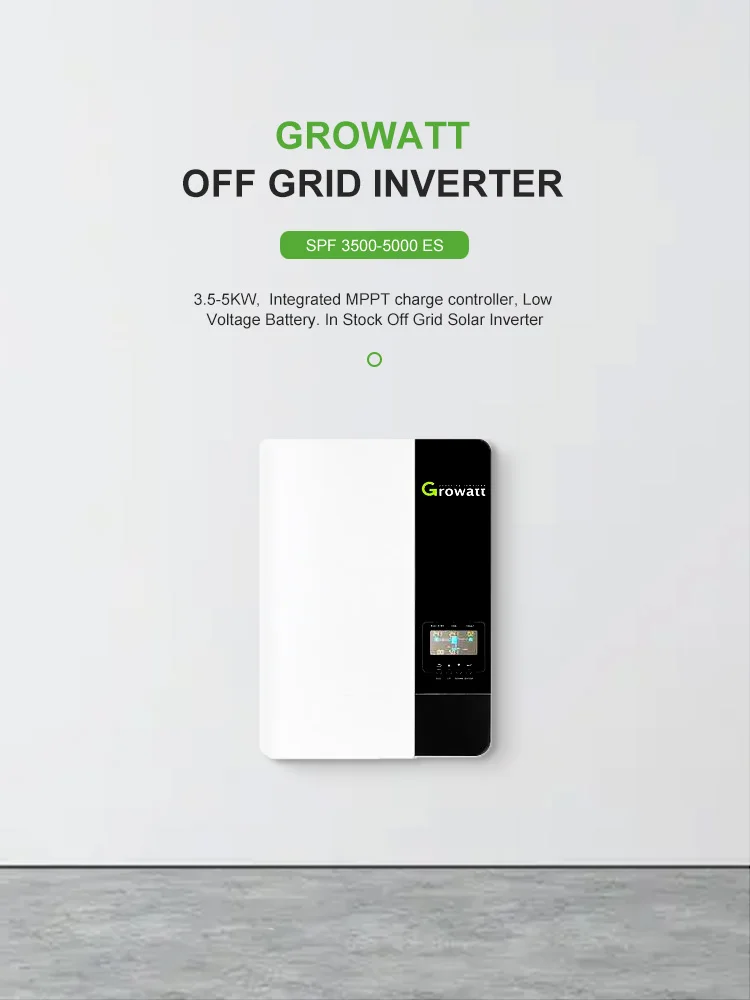

Datasheet | SPF 3500 ES | SPF 5000 ES | ||
Battery Voltage | Lithium/Lead-acid | |||
INVERTER OUTPUT | ||||
Rated Power | 3500VA/ 3500W | 5000VA/ 5000W | ||
Parallel Capability | Yes, 6 units maximum | |||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||
Surge Power | 7000VA | 10000VA | ||
Efficiency (Peak) | 93% | |||
Waveform | Pure sine wave | |||
Transfer Time | 10ms typical, 20ms Max | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 4500W | 6000W | ||
MPPT Range @ Operating Voltage | 120VDC ~ 430VDC | |||
Number of Independent MPP Trackers/Strings Per MPP Tracker | 1/1 | |||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum Solar Charge Current | 80A | 100A | ||
AC CHARGER | ||||
Charge Current | 60A | 80A | ||
AC Input Voltage | 230 VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
PHYSICAL | ||||
Protection Degree | IP20 | |||
Dimension (W/H/D) | 330/485/135mm | 330/485/135mm | ||
Net Weight | 11.5kgs | 12kgs | ||

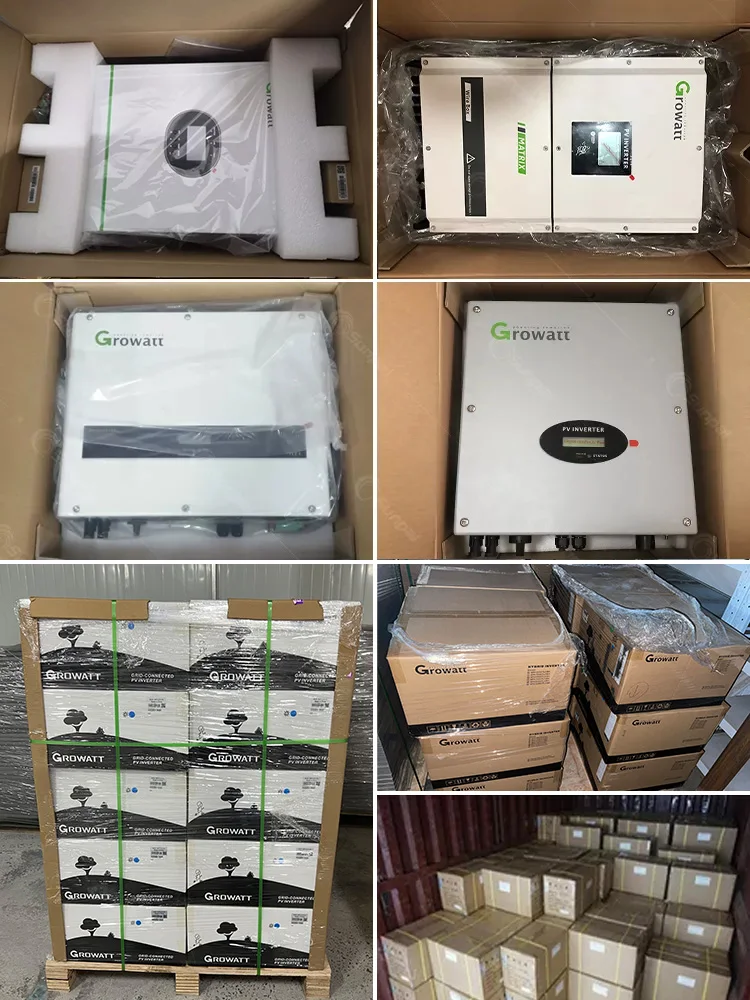

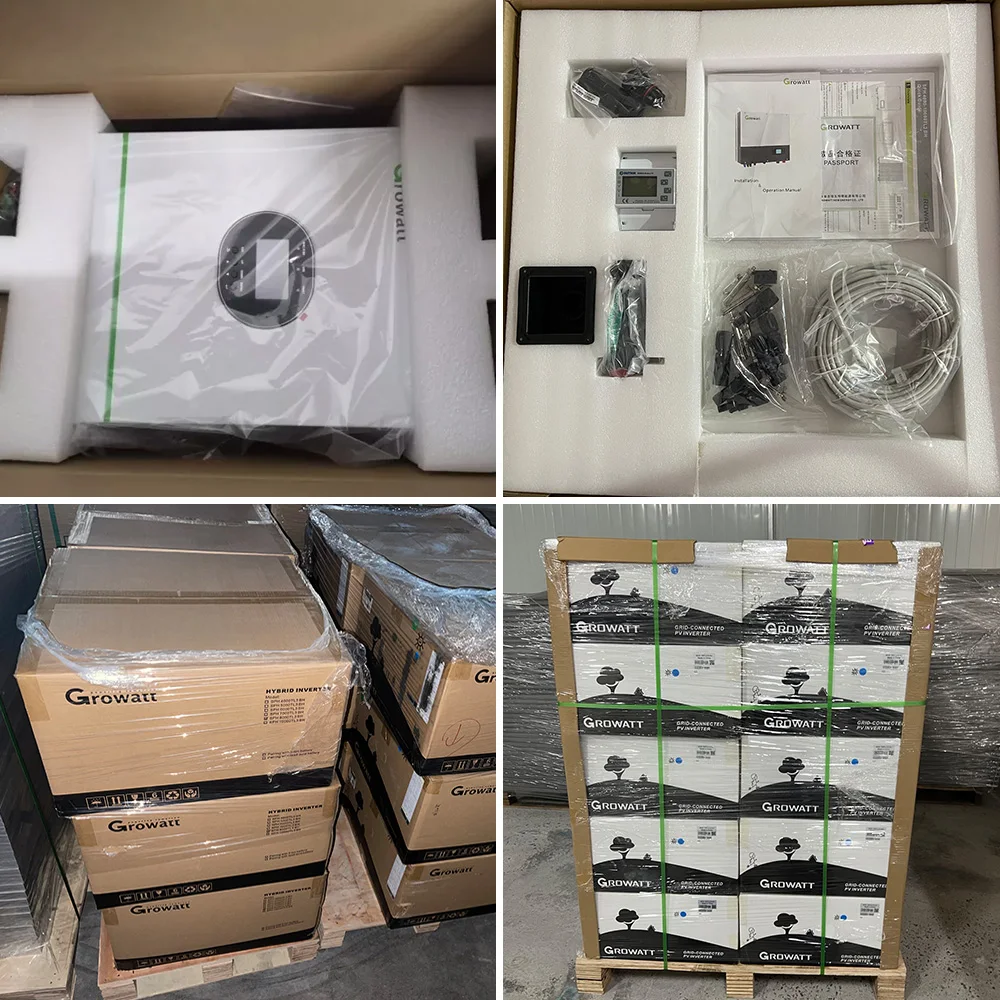

Professional Packing

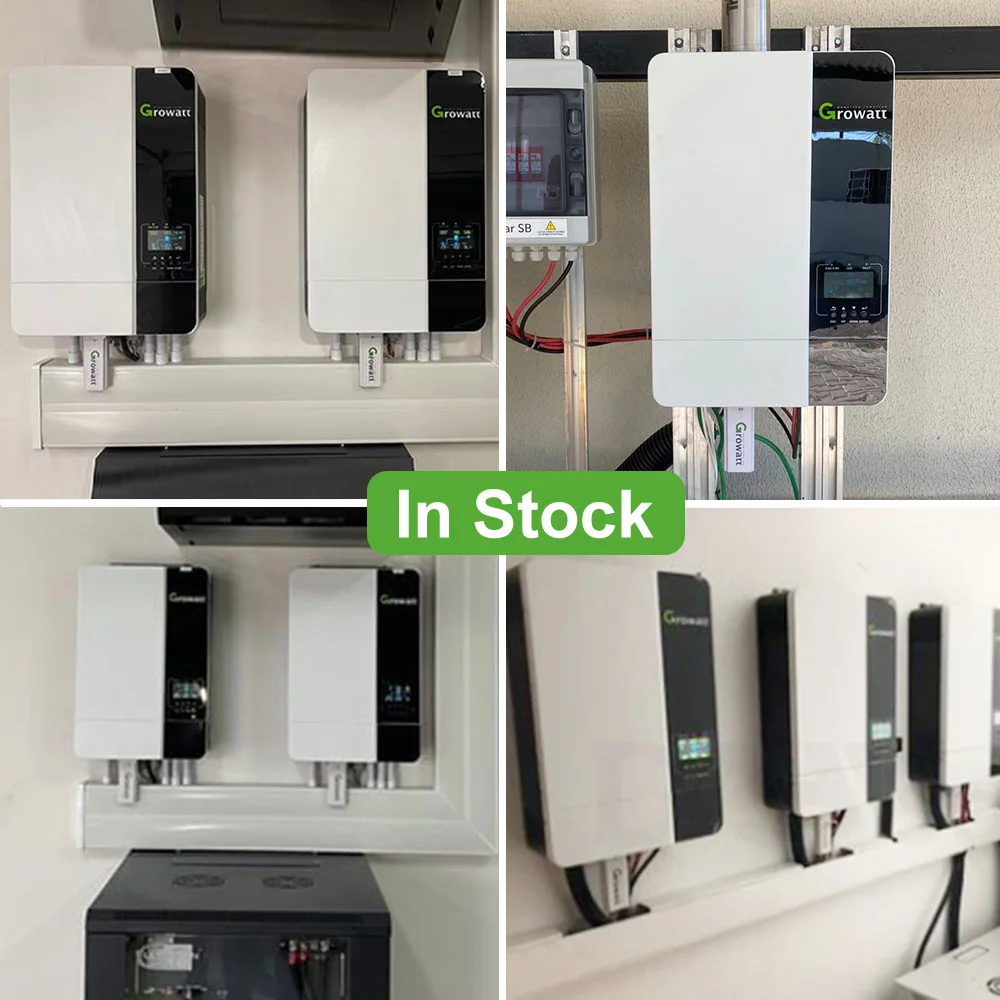

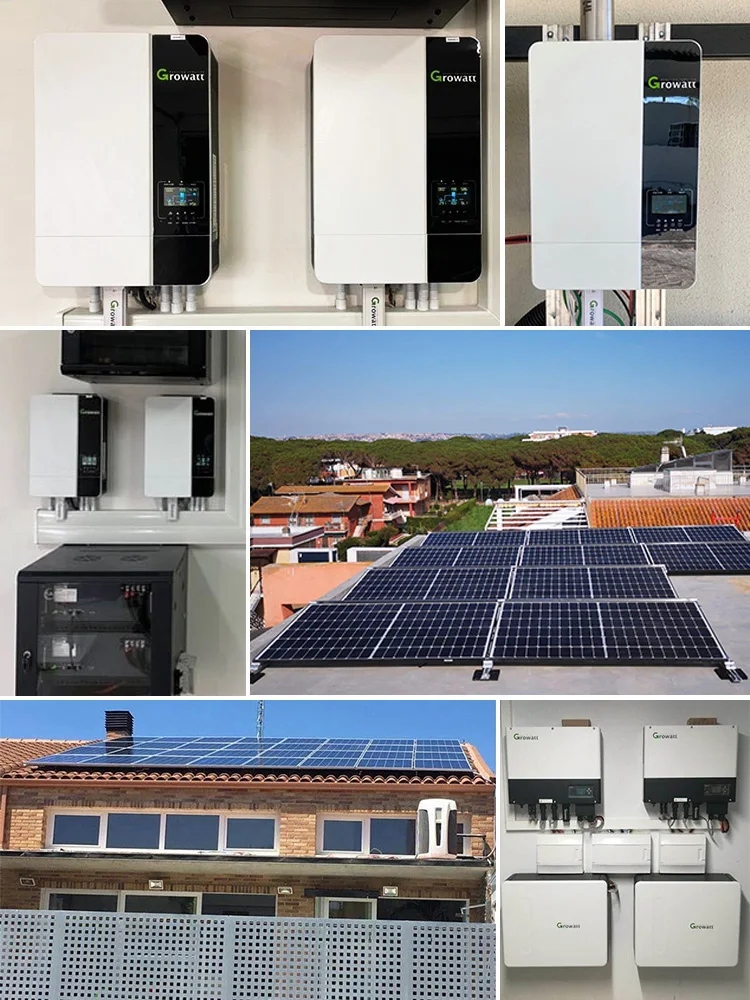

Projects Cases
You May Like
FAQ
Q: Who are we?
We are a professional manufacturer of solar panels with many years of experience. Our factory and business office are located in Wuxi, China, which is ONE hour driving from our factory to the airport, we can provide pick-up service once you confirmed your flight information with us.
Q: What can Sunket provide?
We can provide solar panels, solar inverters, lithium batteries, and solar energy systems.
Q: Why choose Sunket?
Sunket is a professional factory leader in the PV industry, we offer solar photovoltaic system one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Customized service
Q: Can I make my own design and logo for the product?
Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.
Q: How to get free samples?
Send us your address, your telephone number, postcode, and express account number to our mailbox, and also told us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
Q: How about the delivery time?
The common products we always have the stock, it can be sent out within 15 days. While the big order takes 45 days to finish production.
We are a professional manufacturer of solar panels with many years of experience. Our factory and business office are located in Wuxi, China, which is ONE hour driving from our factory to the airport, we can provide pick-up service once you confirmed your flight information with us.
Q: What can Sunket provide?
We can provide solar panels, solar inverters, lithium batteries, and solar energy systems.
Q: Why choose Sunket?
Sunket is a professional factory leader in the PV industry, we offer solar photovoltaic system one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Customized service
Q: Can I make my own design and logo for the product?
Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.
Q: How to get free samples?
Send us your address, your telephone number, postcode, and express account number to our mailbox, and also told us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
Q: How about the delivery time?
The common products we always have the stock, it can be sent out within 15 days. While the big order takes 45 days to finish production.
