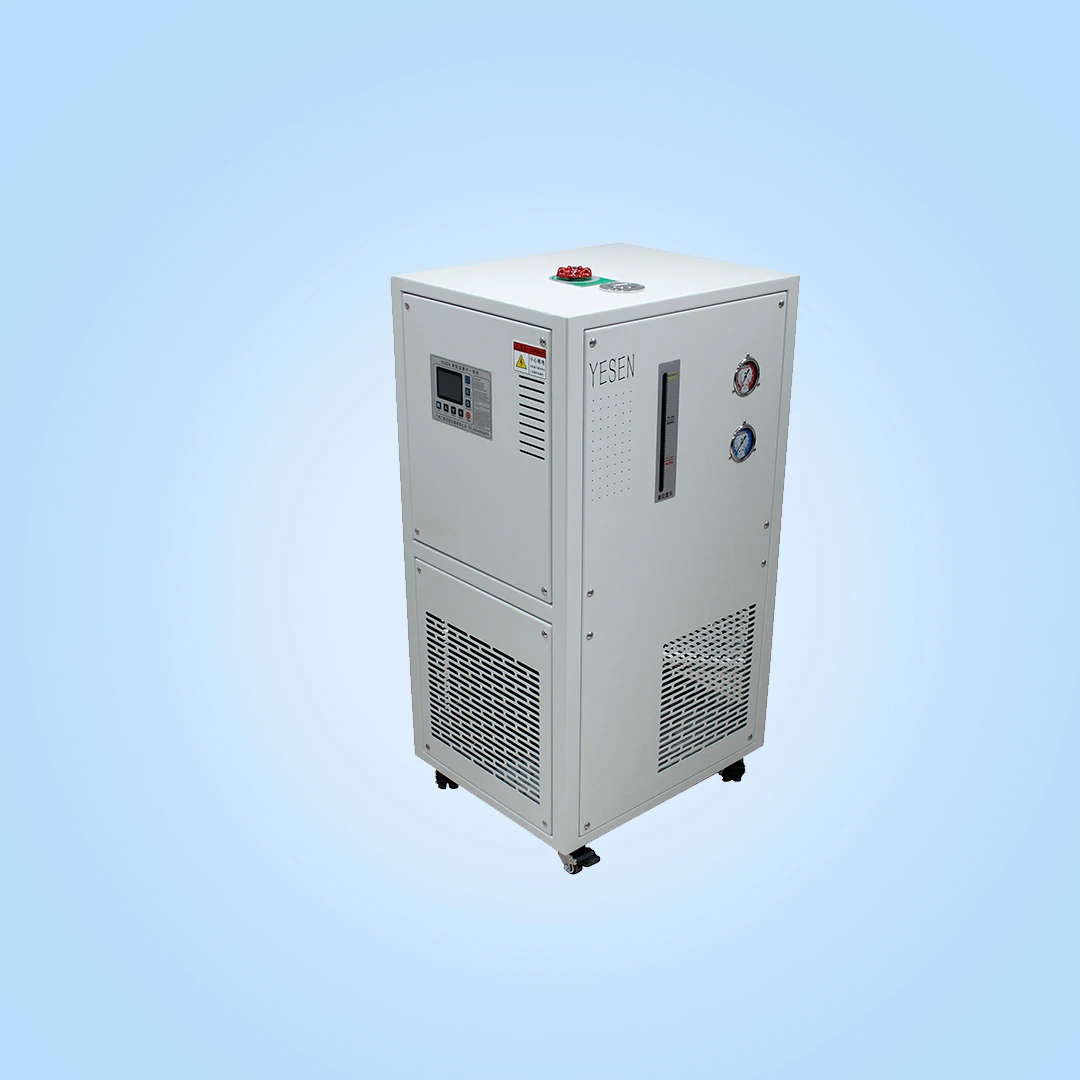

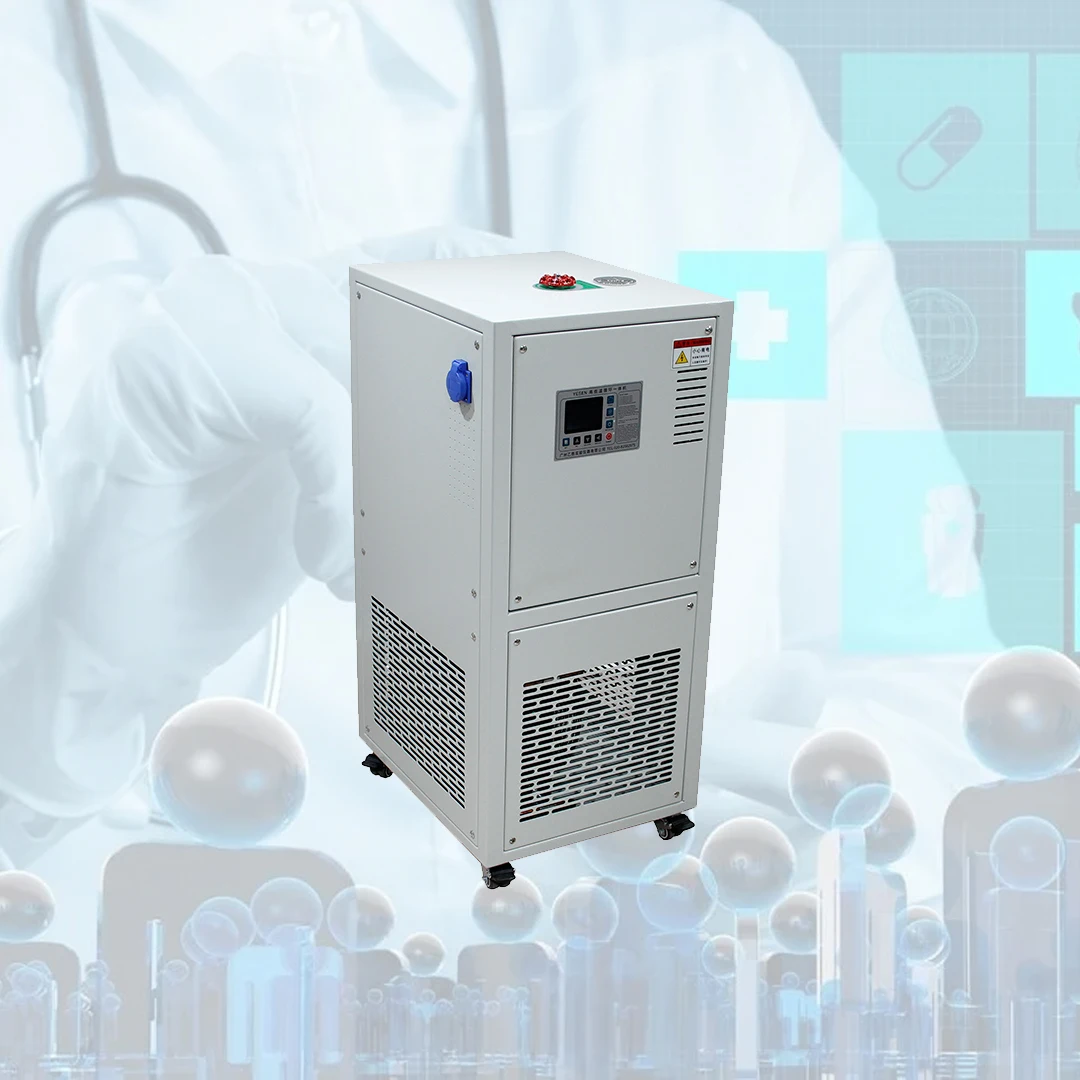

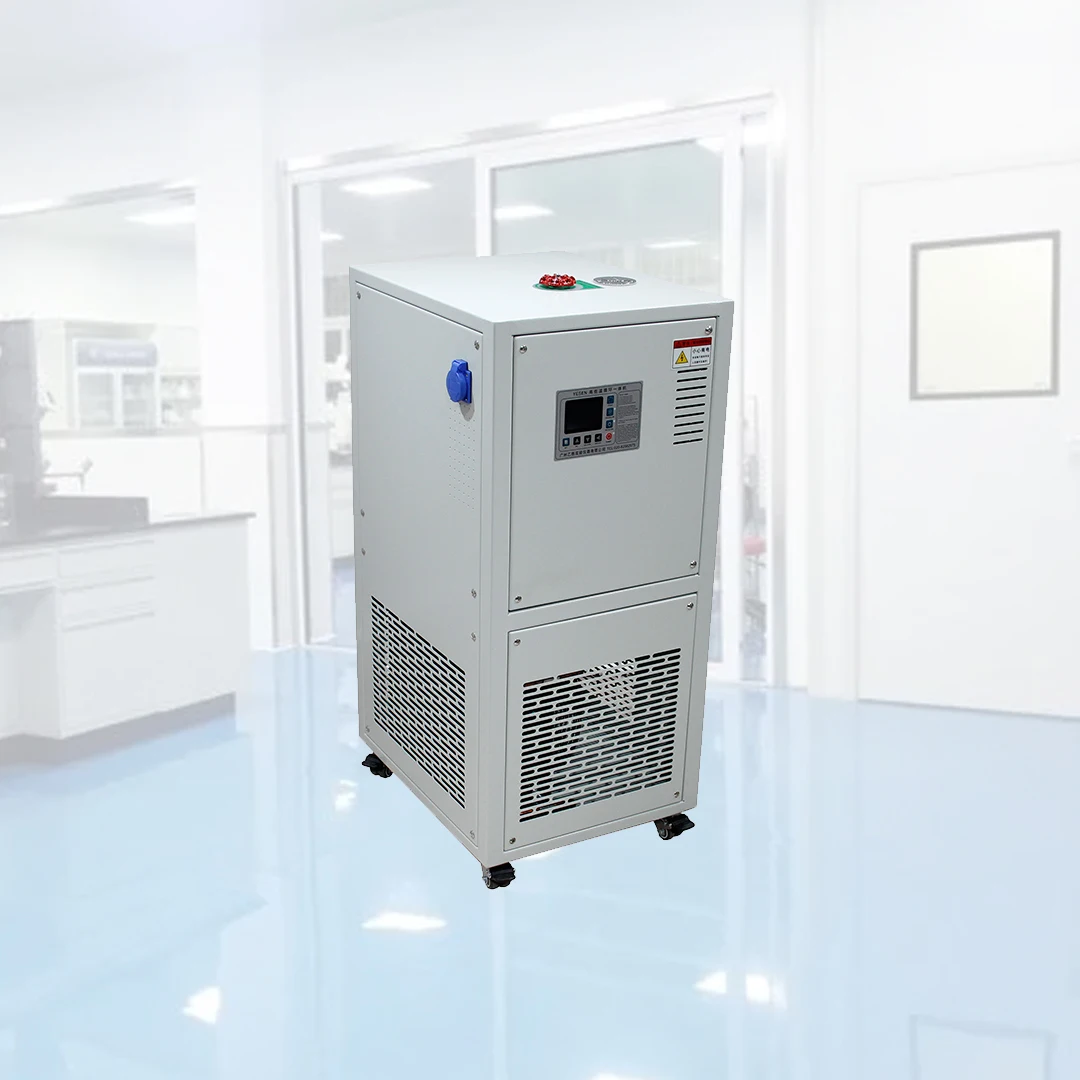

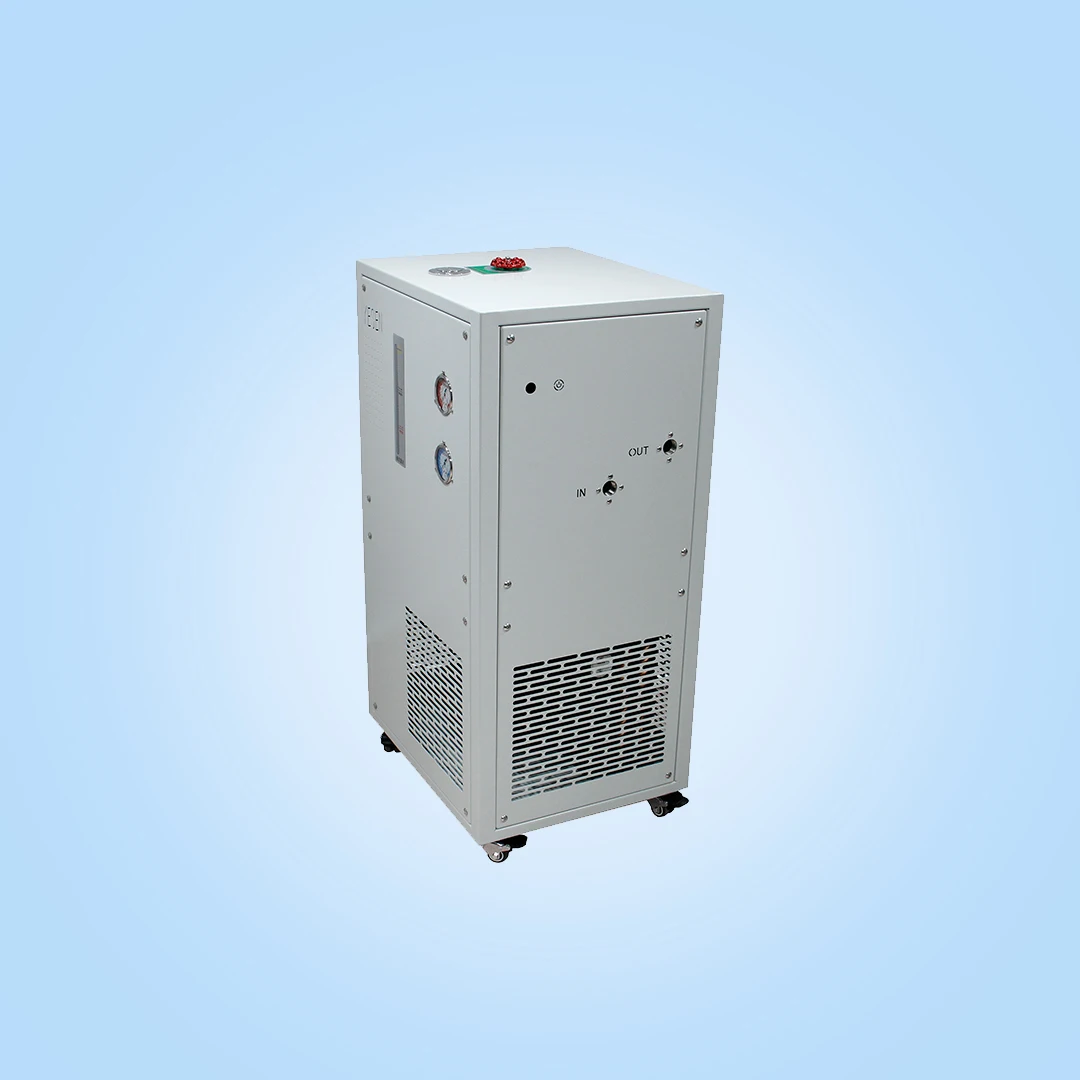

efficiency compressor heating system independently circulation Recirculating chiller & heater
- Category: Lab Supplies >>>
- Supplier: Guangzhou Yisheng Experimental Instrument Co. Ltd.
Share on (11000005900437):
Product Overview
Description
Specification
Item | Recirculating chiller & heater | ||
Model | GDX-4050 | ||
Explosion proof | optional | ||
Temp range | -40℃~+200℃ | ||
Optimum ambient temperature | 5~35℃ | ||
Power source(options) | 380V/50HZ | ||
Safety protection | leakage protection, high and low voltage protection, refrigerator overload protection, dry burning protection, phase sequence protection. | ||
Display screen | LCD display,push-button operation | ||
Temperature Accuracy | ±1℃ | ||
Sensor | PT100 | ||
Total power | 13.5KW | ||
Heating power | 9KW | ||
Compressor | capacity | 5P | |
quantity | 1 | ||
power | 3.75kw | ||
maximum cooling capacity | 12.0kw | ||
Circulating pump | Power | 0.37kw | |
Lift | 28M | ||
flow | 42L/min | ||
Pressure | ≤0.2MPa | ||
Plate heat exchanger | Heat change area | 1.45㎡ | |
Cryogen | R22 | ||
Enclosure material | cold plate electrostatic spray(Panton color code 7035） | ||
Outlet | 3/4” male adapter | ||
Heat medium | Specialty silicone oil/dimethyl（Viscosity less than 100CPS） | ||
Dimension | 650*750*1280mm | ||
Net weight | 175KG | ||
Packaging size | 750*800*1330mm volume 0.8㎡ | ||
Gross weight | 205KG | ||
Details Images
Company Profile
Guangzhou Yisheng instruments Co., Ltd Incorporated in June 2009,Guangzhou Yisheng Experimental Instrument Co., Ltd., is a domestic high-tech enterprise specializing in the manufacture of chemical glass instruments and the supporting circulating heater chillers. Located in Panyu District of Guangzhou city,our company--backed up by the strong supply chain in China-- cater for the local factories and units quickly and thus build up her network everyday.
Our company integrates R & D,manufacture and marketing, and by means of spirit of innovation,she has acquired a number of technological know-how in the fields of biochemistry, electronic materials, ternary synthesis, new energy batteries, polymer materials, metallurgy, etc. She focuses on the research and development of single / double jacketed glass reactor, photocatalytic glass reactor, ternary glass reaction system, glass rectification device, precious metal purification and tail gas treatment system, rotary evaporator, low-temperature cooling circulation pump, closed-off circulating heater, closed-off circulating heater chiller,closed-off PLC-controlled heater chiller, Heating/cooling recirculator (with open bath), short path distiller and other experimental instrument and equipment.
The company always puts quality and reputation first, and with the entrepreneurship, honest operating style, quality products and amicable after-sales service, she provides professional and in-time solutions to specialty chemicals out of honor and expertise.
Our company integrates R & D,manufacture and marketing, and by means of spirit of innovation,she has acquired a number of technological know-how in the fields of biochemistry, electronic materials, ternary synthesis, new energy batteries, polymer materials, metallurgy, etc. She focuses on the research and development of single / double jacketed glass reactor, photocatalytic glass reactor, ternary glass reaction system, glass rectification device, precious metal purification and tail gas treatment system, rotary evaporator, low-temperature cooling circulation pump, closed-off circulating heater, closed-off circulating heater chiller,closed-off PLC-controlled heater chiller, Heating/cooling recirculator (with open bath), short path distiller and other experimental instrument and equipment.
The company always puts quality and reputation first, and with the entrepreneurship, honest operating style, quality products and amicable after-sales service, she provides professional and in-time solutions to specialty chemicals out of honor and expertise.
Rave reviews
Our Advantages
Trade Capacity
Packaging & Shipping
FAQ
1. Are you factory or trading company?
We have our own factory more than 8 years professional experience.
Our factory specializes in experimental instrument, like Single/Double Glass Reactor, Rotary evaporators and so on.
2. Could you do design for us ?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the detailed content and tell u where to put.
3. What about the quality of your products?
Each product,we will test it strictly one by one before ship out,do not worry about that please.
Any questions,can feel free to contact us.
4. How can we place order?
After we made agreement on your product and price, we will make a Performa invoice for your confirmation. After we got your payment (deposit), we will place the order and arrange the goods within 5 working days generally. When goods are ready, we will prepare for our QC report, if there is no problem, we will ship goods to destination port as your required.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. If you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder to help you clear the custom, wish you know that.
5. How many days for your products after sales-services?
There are one year of the quality warranty provided.
6. How long is the delivery time?
Normally, we will prepare your goods after you paid and then arrange the shipping during 2~3 working days. As to the shipping
speed, it depends on which shipping methods you choose.
We have our own factory more than 8 years professional experience.
Our factory specializes in experimental instrument, like Single/Double Glass Reactor, Rotary evaporators and so on.
2. Could you do design for us ?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the detailed content and tell u where to put.
3. What about the quality of your products?
Each product,we will test it strictly one by one before ship out,do not worry about that please.
Any questions,can feel free to contact us.
4. How can we place order?
After we made agreement on your product and price, we will make a Performa invoice for your confirmation. After we got your payment (deposit), we will place the order and arrange the goods within 5 working days generally. When goods are ready, we will prepare for our QC report, if there is no problem, we will ship goods to destination port as your required.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. If you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder to help you clear the custom, wish you know that.
5. How many days for your products after sales-services?
There are one year of the quality warranty provided.
6. How long is the delivery time?
Normally, we will prepare your goods after you paid and then arrange the shipping during 2~3 working days. As to the shipping
speed, it depends on which shipping methods you choose.
