мини 4 мм вал датчика энкодер

Product Overview

Description

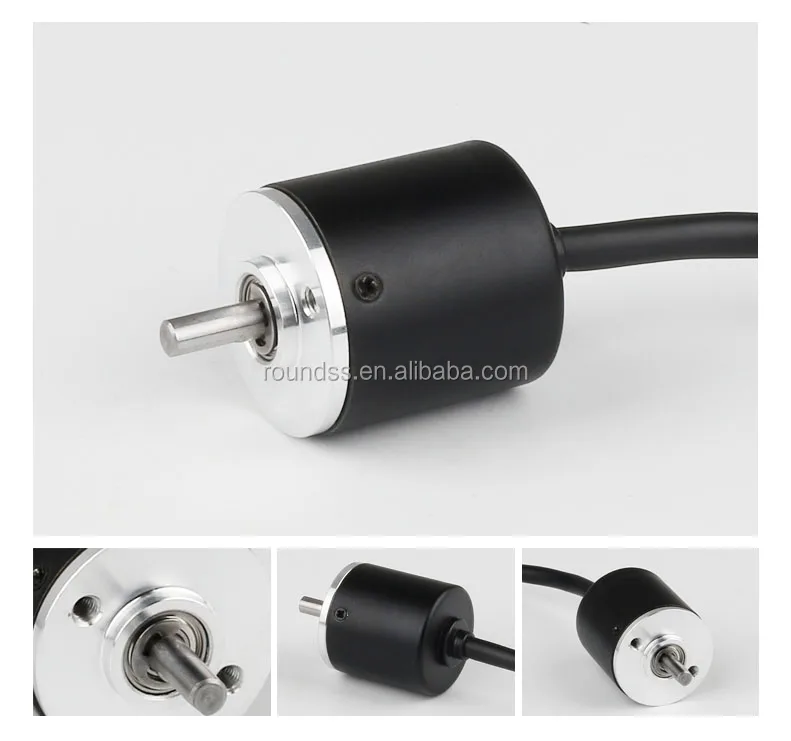

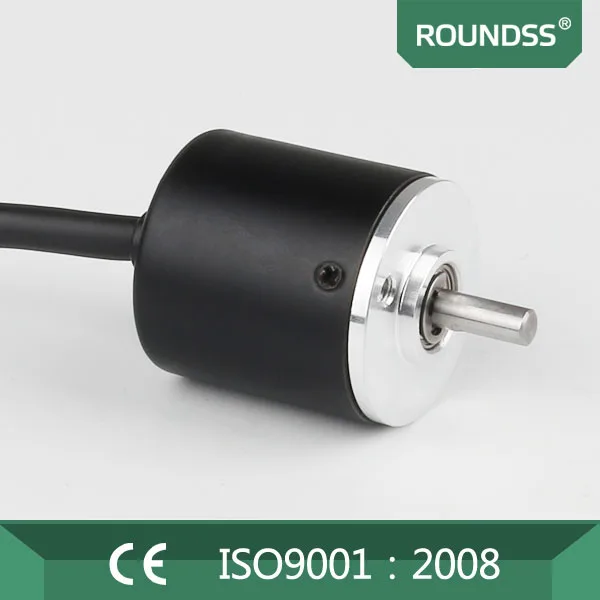

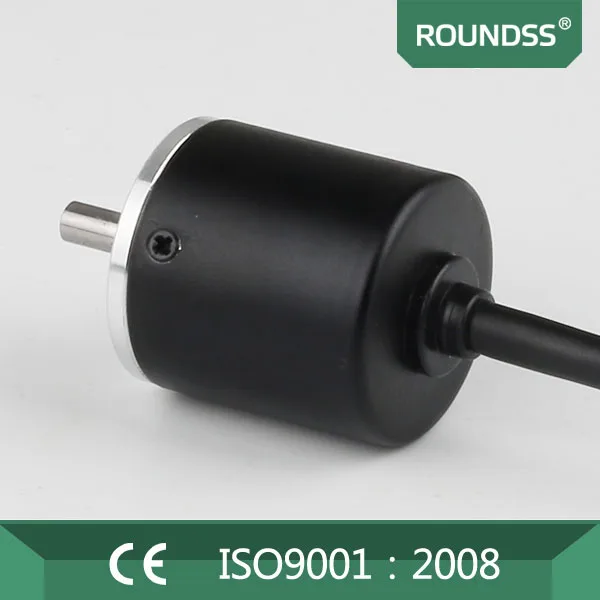

MICRO ROTARY ENCODER OPTICAL SENSOR





Product Description



MECHANICAL SPECIFICATIONS
External Diameter	25mm
Shaft Diameter	4mm
Slew Speed	10000r/min
Shaft Load	≤9.8N
Operating Temperature	-20 °C(-40 °C)- +85°C
Protection Class	IP53
Termination	Axial cable



ELECTRICAL SPECIFICATIONS
Supply Voltage	DC5V-DC26V
Output Model	Voltage output/ Open collector
Frequency Response	0-100kHz
Current Requirement	≤60mA
Output Pulse No.	60-1200
Index Length	1T
Output Phase	A,B,Z





Mechanical Dimensions





Pre-sales Service



1.The micro rotary encoder sensor can be customzied to meet your need

2.The questions about the encoder will be answered within 24 hours.

3.We have the best after-sale service.















FAQ



MOQ                                        1 Set

Term of Payment                T/T   Western Union    PayPal

Supply Capability               5000 sets / Week

Packing                                    Carton

Delivery Time                       5-7 working days after payment reached





Q1:Can I have a sample for testing?

A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample



Q2:Can I add my logo on the encoder ?

A:Yes,OEM and ODM are available for us.

But you should send us the Trademark authorization letter.



Q3:How can i get the after-service?

A:We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,but you should pay.

For our range hood motors it is lifelong maintenance.



Q4 :Do you have inspection procedures for encoder ?

A:100% self-inspection before packing



Q5:Can I have a visit to your factory before the order?

A: Sure,welcome to visit our factory.

Here is our factory address: No.816-2, Pudong Road, Changchun, China

We can pick you up in the airport.

Hotel booking service is available
