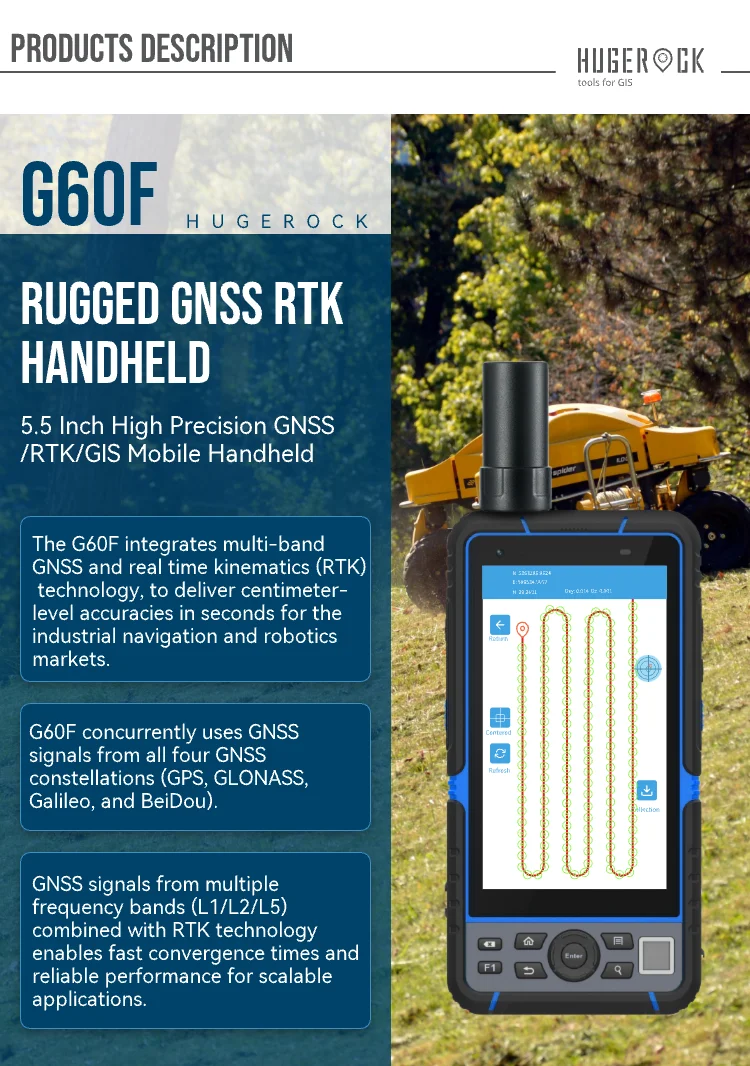

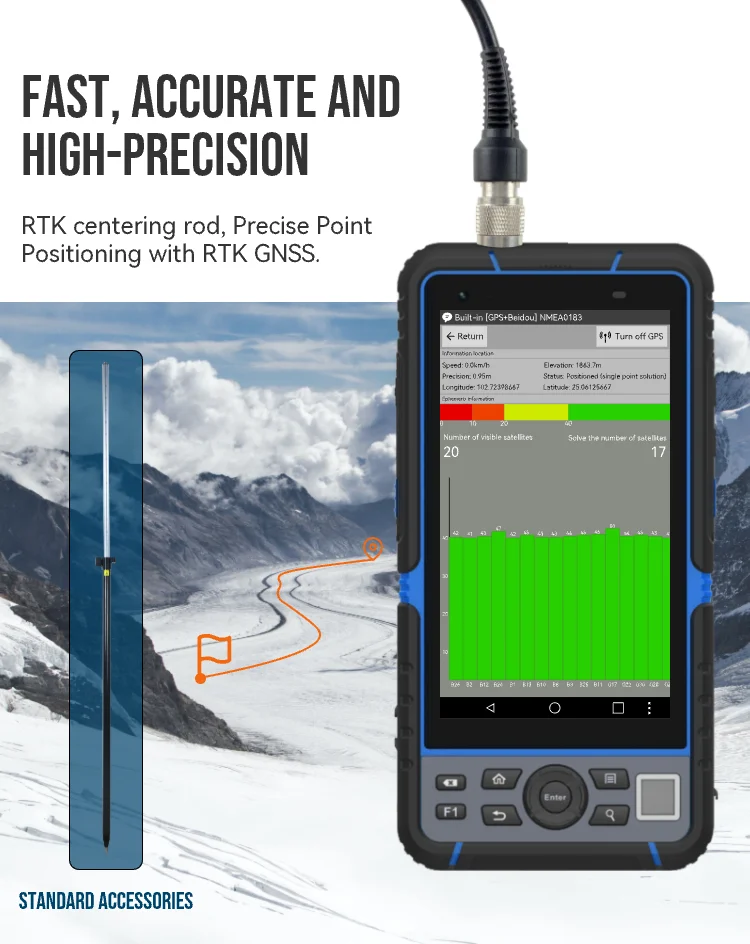

HUGEROCK G60F cors system pda hand held pos terminal android industrial rugged panel gps navigation rtk antenna
- Category: >>>
- Supplier: Shenzhen Soten Technology Company Limited
Share on (11000005939441):
Product Overview
Description

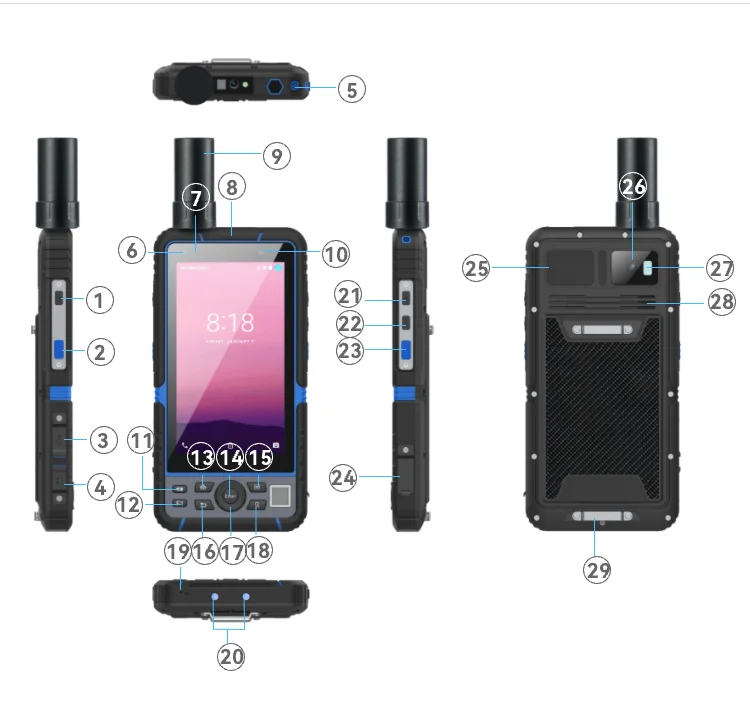

1. Power button | 2. SOS button | 3. Type-C (Sealed Cover) | 4. Earphone (Sealed Cover) | 5. Hanging hole |
6. Front camera | 7. Charge lamp | 8. Receiver | 9. Antenna | 10. Light sensor |
11. Delete button | 12. Custom button | 13. Home button | 14. Confirm button | 15. Menu button |
16. Back button | 17. Arrow button | 18. Search button | 19. MIC | 20. 2pin Pogo pin |
21. Volume up | 22. Volume down | 23. Scan button (Definition) | 24. SIM (Sealed Cover) | 25. Nameplate |
26. Main camera | 27. Flash light | 28. Speaker | 29. Fihand strap xing parts |
Hardware | ||
CPU | ARM Cortex A73 Octa -core ( 2.0GHz) | |
GPU | Arm Mali-G72 MP3 | |
RAM | 8GB | |
Internal Memory | 128GB | |
External Memory | Micro SD card ( T-FLASH card), max 256GB | |
Main Camera | 13.0MP(AF) with flash led | |
Sub Camera | 5.0MP | |
Battery | 7800mAh | |
Display | 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m2 Sunlight Readable | |
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |
IO/Sensor/Navigation | ||
SIM Card | Nano sim card*2 | |
TF Card | Micro SD card ( T-FLASH card) ;max 256GB | |
Headphone | 3.5mm (CTIA） | |
Charging interface | Type-C+2pin pogo pin | |
Data interface | Type-C 24pin, support OTG | |
RS232(Optional) | RS232X1 | |
Gravity sensor | support | |
Direction Sensor | support | |
Magnetic Field Sensor | support | |
Gyro sensor | support | |
Rotation Vector | support | |
Light- sensor | support | |
Acceleration sensor | support | |
Charger | 5.0V 2A-10W | |

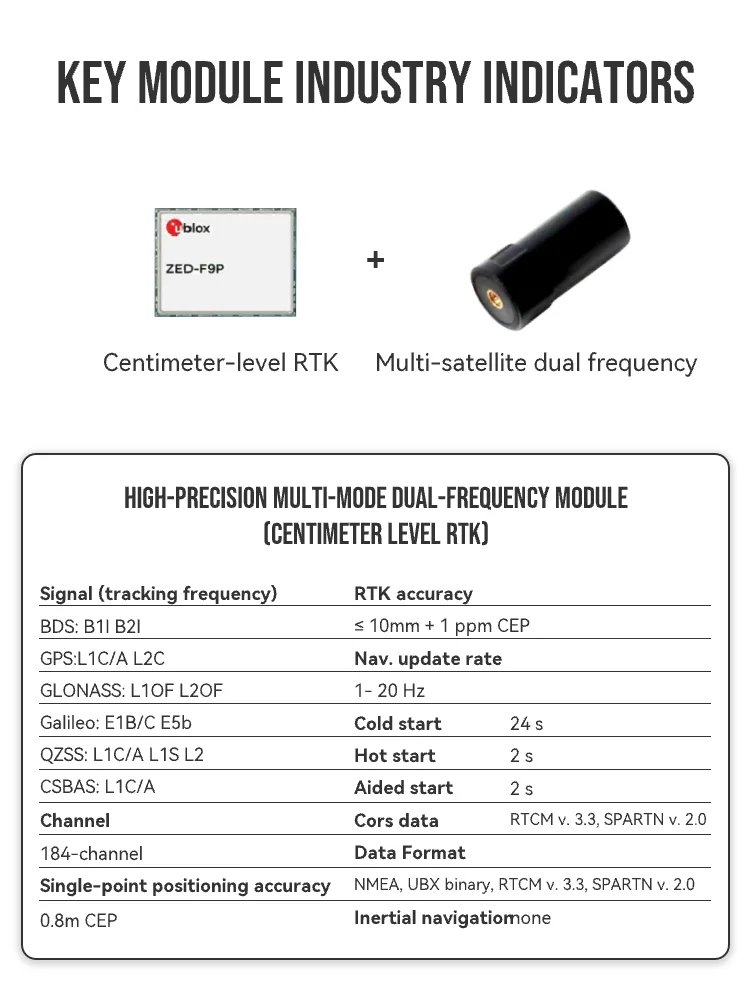

Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) | |
Appearance | ||

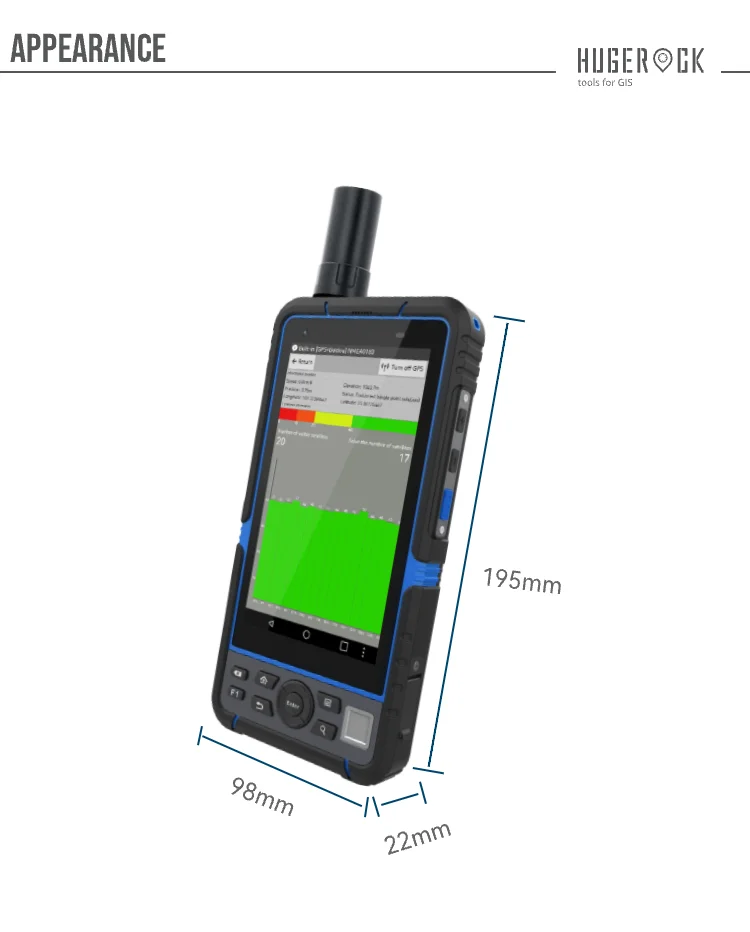

Size | 195*98*22mm (L×W×H) | |
Weight | 460g | |
Color & Material | Blue(PC+ABS)+black(TPU) | |
Communications & Networking | ||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |
2G Band | GSM（B2/3/5/8） | |
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |
3G Band | WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1 | |
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink | |
4G Band | TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28） | |
WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |
BT | 5.0 Low Energy (LE) | |
Industrial & Reliability Design | ||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |
Waterproof | Class 7 ( IEC 60529 ) | |
Dustproof | Class 6 ( IEC 60529 ) | |
Reliability | MTBF>5000h ; MTTR | |
Operating temperature | -20°C to 55°C | |
Storage Temperature | -40°C to 70°C | |
RH | 5%RH-95% | |
Operating Altitude | Max: 4,500 m（15,000 feet） | |
Certification/OS/Software | ||

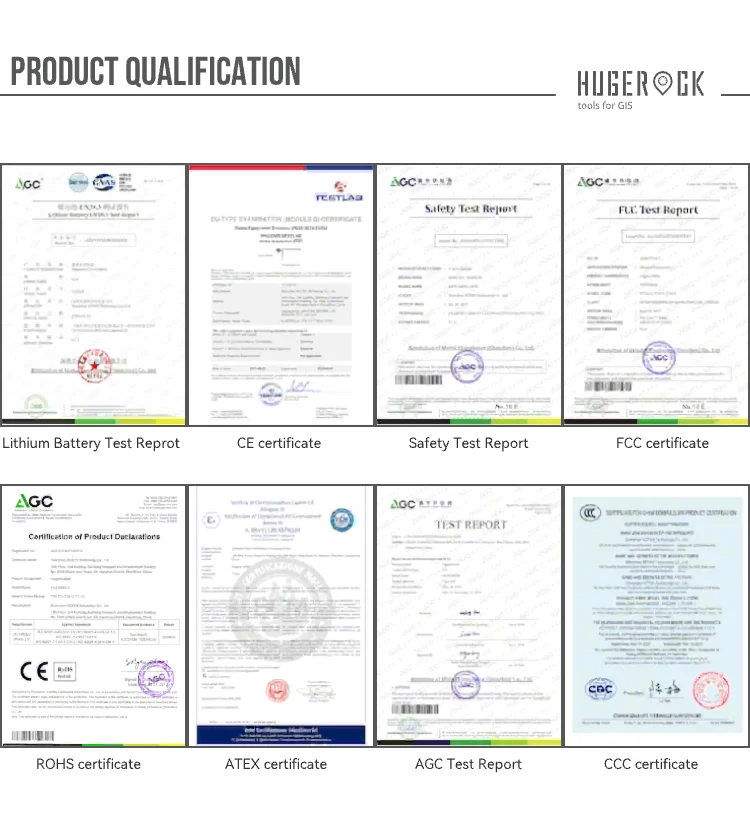

Certification | 3C /FCC/CE/ROHS/IP67（IEC 60529） | |
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch,French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese,Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc | |
OS | Android 11.0 | |
Package/Warranty terms | ||
Warranty | 24 months | |

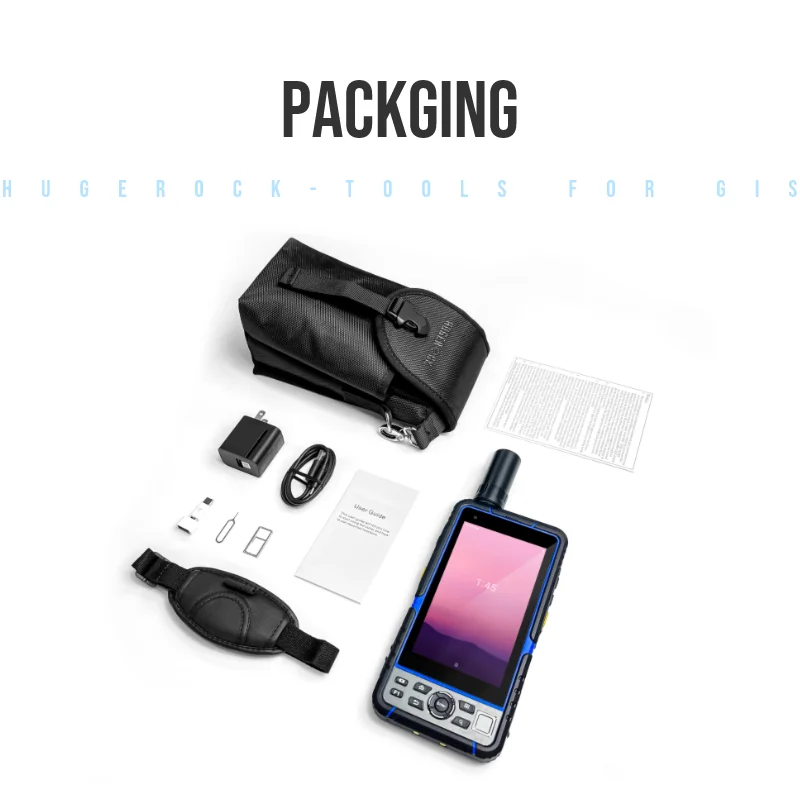

Package | USB cable / Charger 5V 2A / Introduction manual / Screen protector / Aircraft box / Toolkit / SIM Card Ejector x 1 | |
Q :Are you manufacturer?

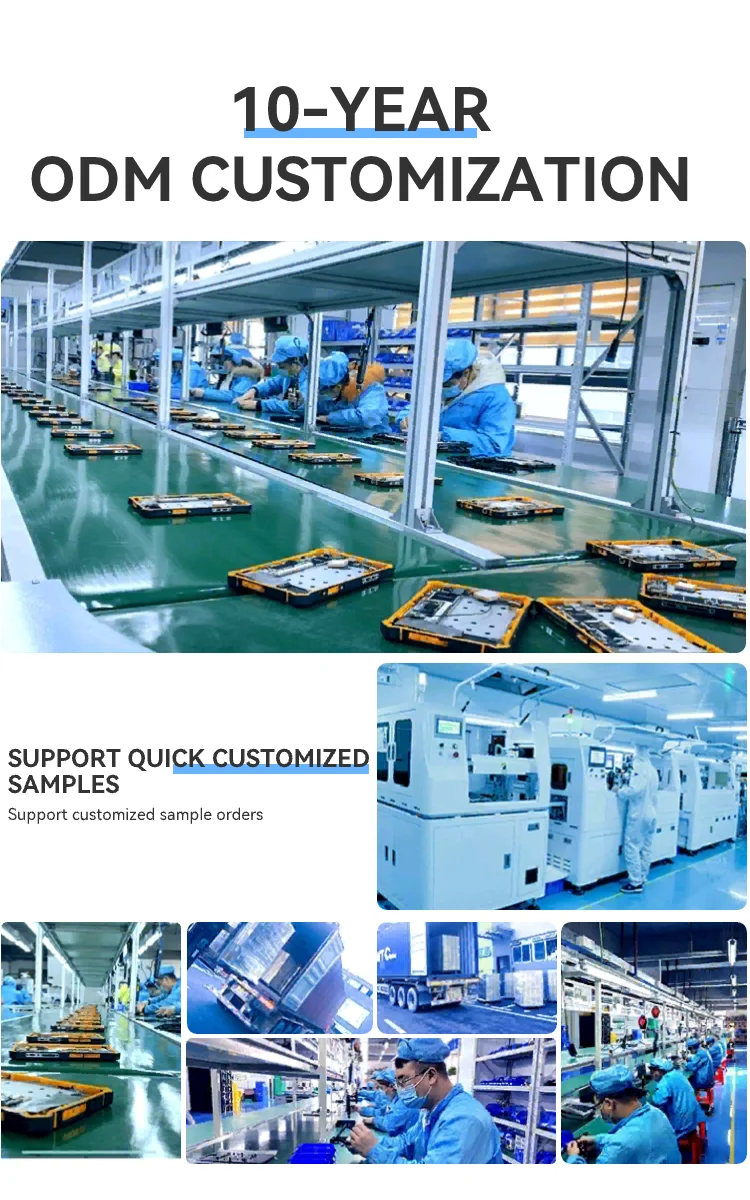

A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/ UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
