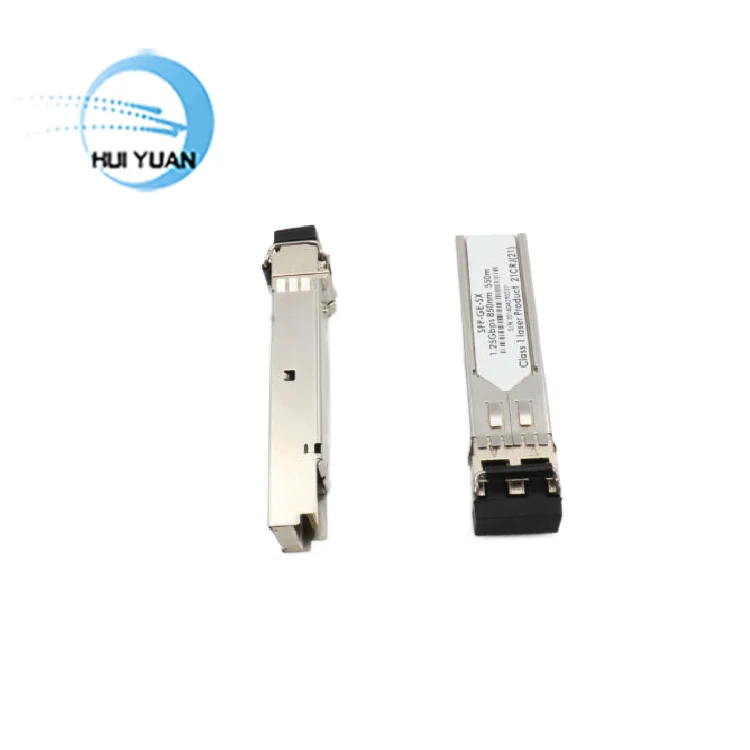

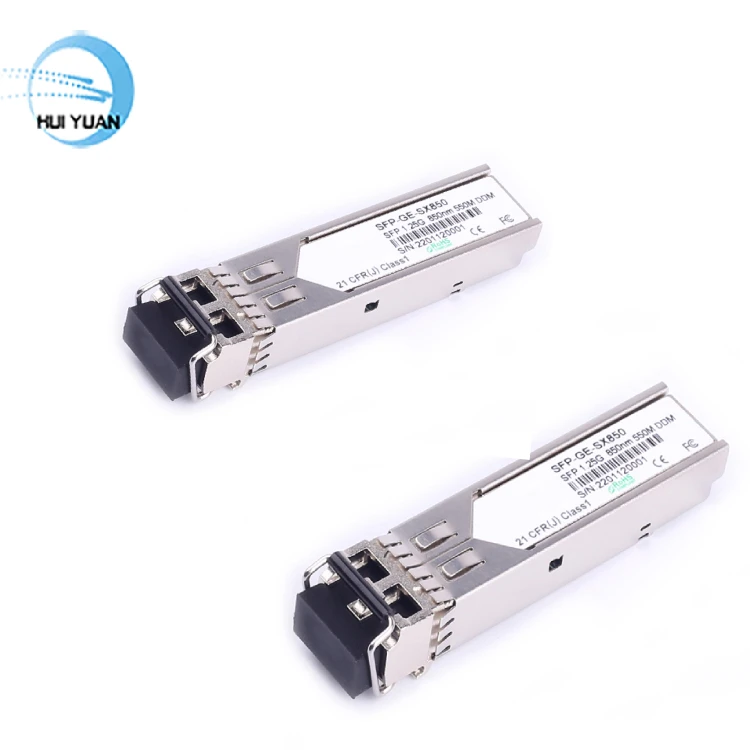

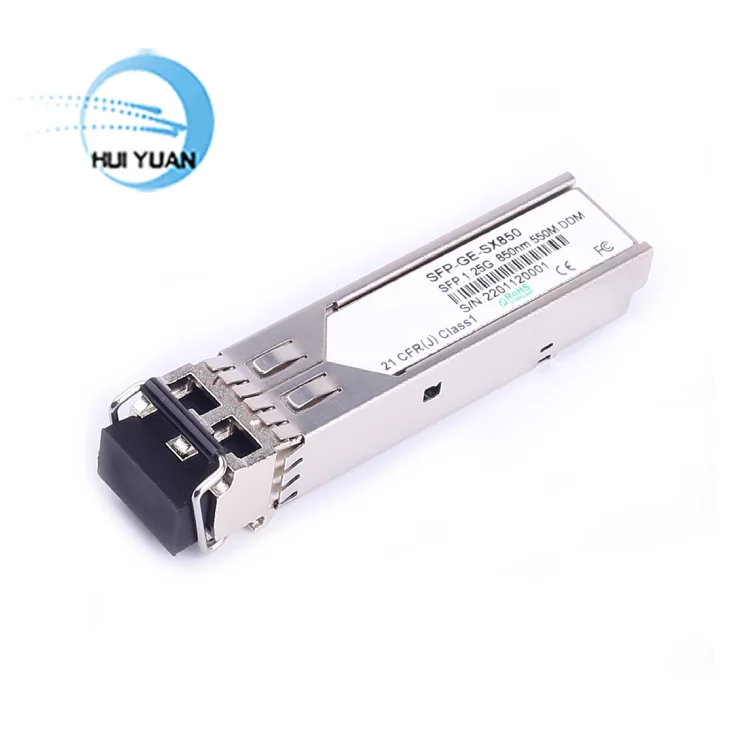

Media Converter 550m Multi Mode MMF Duplex LC 1 Set 1.25Gbps SFP Transceiver
- Category: >>>
- Supplier: Fuzhou Huiyuan Communication Equipment Co. Ltd.
Share on (11000005942312):
Product Overview
Description
Product Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA and SFF-8472.
Specification
Parameter | Symbol | Min. | Typical | Max. | Unit | Note | ||||
Transmitter Section: | ||||||||||
Centre Wavelength | λc | 830 | 850 | 860 | nm | |||||
Spectral Width (RMS) | σ | 0.85 | nm | |||||||
Average Optical Power | Pavg | -9 | -3 | dBm | 1 | |||||
Laser Off Power | Poff | - | - | -45 | dBm | |||||
Extinction Ratio | ER | 9 | - | - | dB | |||||
Relative Intensity Noise | Rin | - | - | -128 | dB/Hz | 12dB reflection | ||||
Transmitter jitter | UIp-p | - | 0.1 | 3 | ||||||
Optical Return Loss Tolerance | - | - | 12 | dB | ||||||
Output Optical Eye | Compliant with IEEE802.3 z | 4 | ||||||||
Receiver Section: | ||||||||||
Receiver Centre Wavelength | λr | 830 | 860 | nm | ||||||
Receiver Sensitivity in Average Power | Sen | -18 | -3 | dBm | 5 | |||||
Overload | Pin | - | - | -3 | dBm | 5 | ||||
Los Dessert | LosD | - | - | -19 | dBm | |||||
Los Assert | LosA | -35 | - | - | dBm | |||||
Los Hysteresis | LosH | 0.5 | - | - | dB | |||||
Receiver Reflectance | - | - | -12 | dB | ||||||
Receiver power (damage) | - | - | 0 | dBm | ||||||
Notes:
1. The optical power is launched into 50/125µm MMF.
2. Unfiltered, measured with a PRBS 223-1 test pattern @1.25Gbps
3. Meet the specified maximum output jitter requirements if the specified maximum input jitter is present.
4. Measured with a PRBS 223-1est pattern @1.25Gbps.
5. Measured with a PRBS 223-1 test pattern @1.25Gbps, worst-case extinction ratio, BER ≤1×10-10
1. The optical power is launched into 50/125µm MMF.
2. Unfiltered, measured with a PRBS 223-1 test pattern @1.25Gbps
3. Meet the specified maximum output jitter requirements if the specified maximum input jitter is present.
4. Measured with a PRBS 223-1est pattern @1.25Gbps.
5. Measured with a PRBS 223-1 test pattern @1.25Gbps, worst-case extinction ratio, BER ≤1×10-10
Main features
Features
Up to 1.25Gbps data links
Compliant with SFP MSA and SFF-8472
Hot-pluggable with Duplex LC Connector
Up to 550m on 50/125µm MMF
Hot-pluggable with Duplex LC Connector
Up to 550m on 50/125µm MMF
Up to 300m on 62.5/125µm MMF
All-metal housing for superior EMI performance
Operating case temperature: Commercial : -5 to +70°C, Extended: -20 to +80℃, Industrial : -40 to +85°C
RoHSS6 compliant (lead free)
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
