SVLEC IP67 non flush mountable 4mm detection distance NO NC type M8 circular inductive proximity sensor
- Category: Sensors >>>
- Supplier: Kunshan,SVL,Electric,Co.,Ltd
Share on:
Product Overview
Description
Product Description
Inductive proximity sensor:
SVLEC inductive proximity sensors are widely used in position counting and limit protection in all automation processes. The contact-free and wear-free working mode ensures long service life of the sensors, high switching frequency and repetition accuracy, and strong shock-proof, dustproof and water-proof
capability (the protection level of the whole series of products is IP67) to ensure the reliability of the sensor and strong environmental adaptability.
capability (the protection level of the whole series of products is IP67) to ensure the reliability of the sensor and strong environmental adaptability.
SVLEC IP67 inductive proximity sensors: circular, non-flush mountable, NO or NC, different series for your choice.
* Wide operating temperature range
* High protection rating for the requirements of harsh industrial environments
* Reliable detection due to low sensor tolerances
* Reduced storage due to wide range of applications
* Reliable detection due to low sensor tolerances
* Reduced storage due to wide range of applications
Technical data
Product Name: | Inductive Proximity Sensor |
Product type: | M8 Plug type |
Install form: | Non-flush mountable |
Product dimension: | M8*59 |
Detection distance: | 4mm |
Supply voltage: | DC type：10-30V |
Combined current: | 200mA |
Protection: | IP67 |
Frequency ( Hz ): | 2000 |
Temperature range: | -25℃~+70℃ |
Shell material | CuZn-Cr |
Connection | M8 M12 or with cable |
Cable material: | PVC |

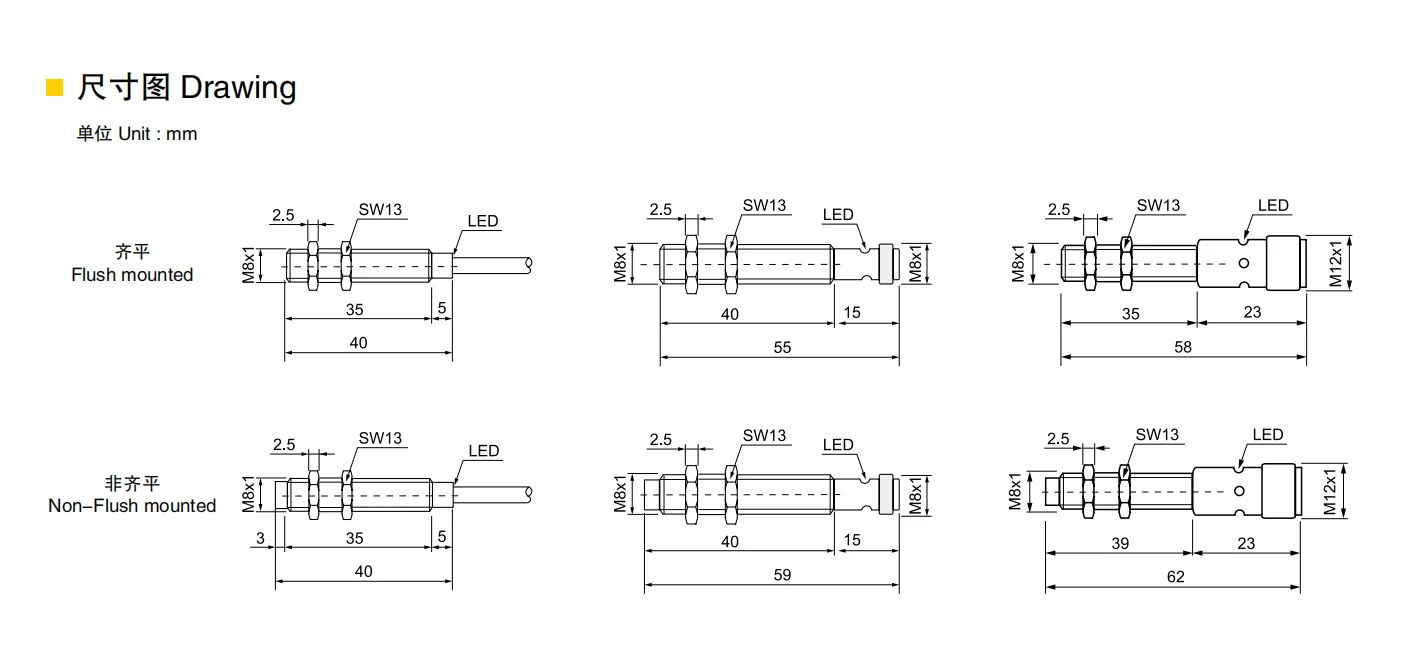

Dimension
Packing & Delivery
For product in stock, we will ship within 3-7 days.
For OEM product, please inquire.
Transport Package: PE bag/Bubble bag→Carton→Pallet
Payment: T/T , 50% Deposit, 50% Balance Before Delivery.
For OEM product, please inquire.
Transport Package: PE bag/Bubble bag→Carton→Pallet
Payment: T/T , 50% Deposit, 50% Balance Before Delivery.
Trade term: EXW , FOB , CIF, CFR, DDU.
Shipment: Express, air cargo, sea shipment.
