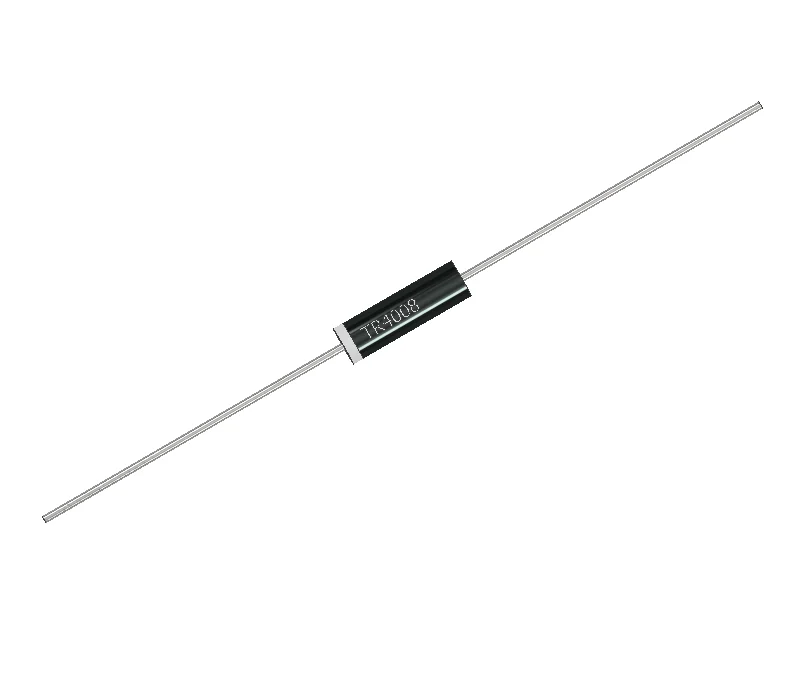

Fast Recovery High Voltage Diode TR4008 8KV 40mA 100ns
- Category: >>>
- Supplier: Yangxin Huantai Technology Co. Ltd.
Share on (11000005969466):
Product Overview
Description
Product Description
▼Fast Recovery High Voltage Diode
TR4008
Type | Repetitive peak reverse voltage | Average forward current | Surge(Non-repetitive) forward current | Peak reverse current(Ta=25°C) | Peak forward voltage | Reverse recovery time | Size |
VRRM | IF | IFSM | IRRM | VFM | trr | ||
KV | mA | A | µA | V | ns | mm | |
TR4003 | 3 | 40 | 3 | 1 | 29.5 | 100 | ∅3.0x10.0 |
TR4005 | 5 | 40 | 29.5 | ||||
TR4008 | 8 | 40 | 30.0 | ||||
TR4010 | 10 | 40 | 30.0 | ||||
TR4012 | 12 | 40 | 31.0 |
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
▼Applications
● X light Power supply
● Voltage dubler circuit
● Microwave emission power
● Voltage dubler circuit
● Microwave emission power
