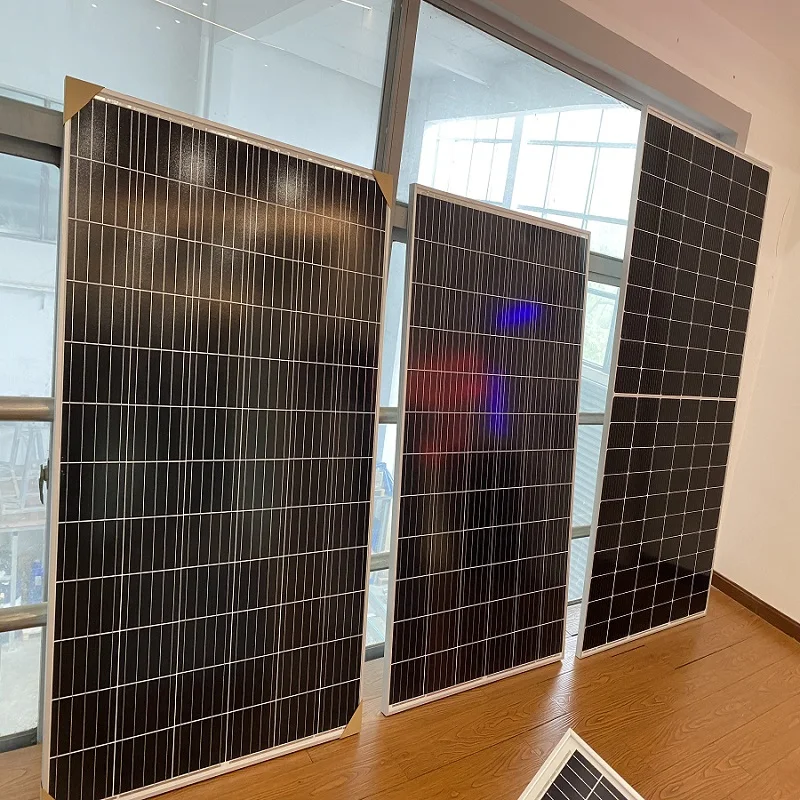

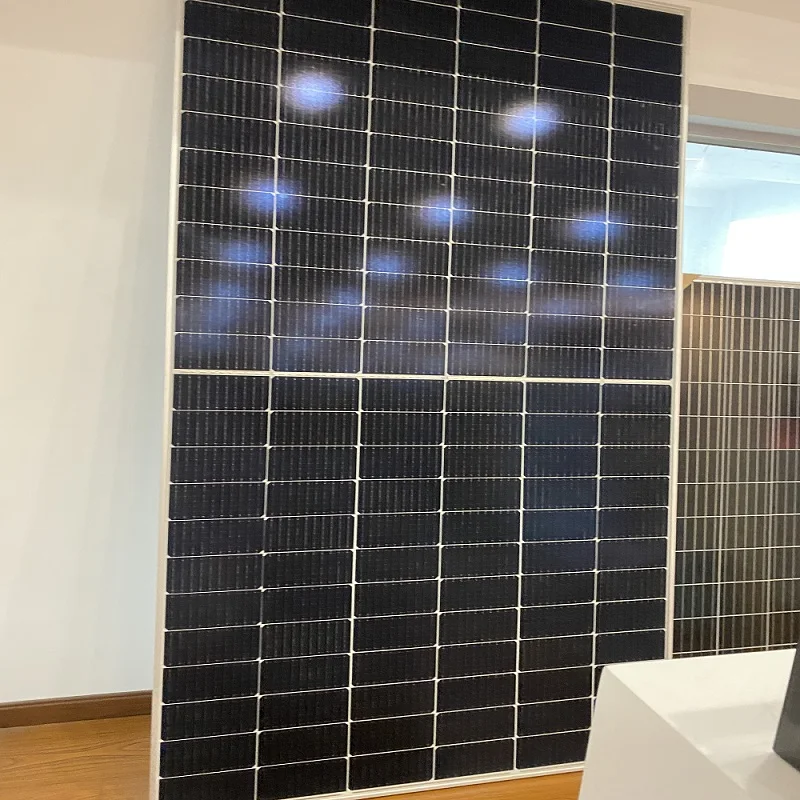

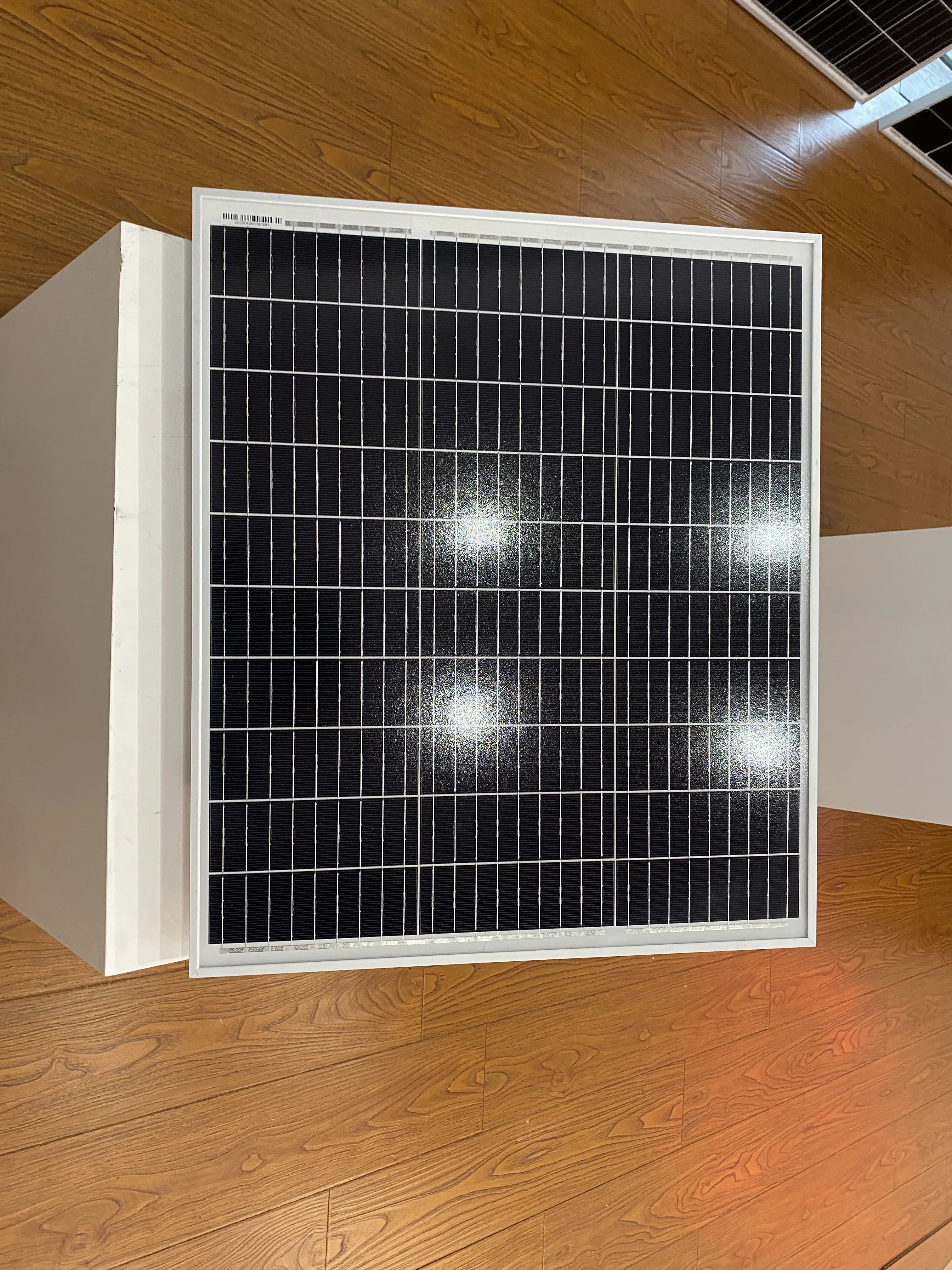

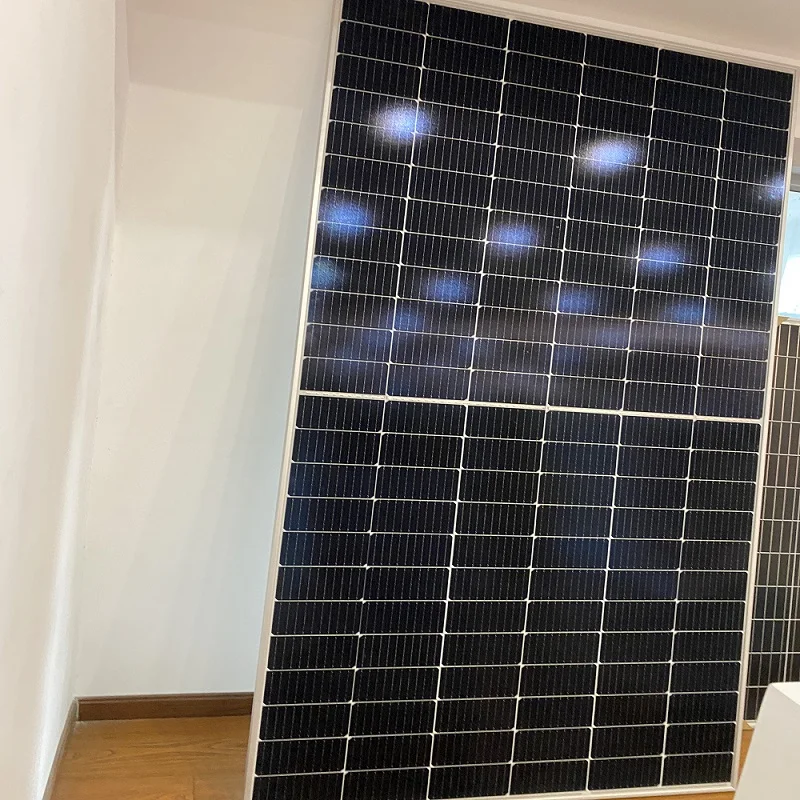

Home use solar power system with mono and poly series solar panels
- Category: >>>
- Supplier: Nova Textile Machinery Manufacture Co. Ltd.
Share on (11000005986280):
Product Overview
Description
Product Description
Product feature
1. High conversion efficiency
Through superior battery technology and leading manufacturing processes, achieve up to
Through superior battery technology and leading manufacturing processes, achieve up to
21.5% component conversion efficiency.
2. Current grading process
The current grading process is adopted to reduce the current loss by 2%
3. Excellent low light performance
It can produce more power in low light conditions such as cloudy days, morning and evening
4. Reduce the hot spot effect
Reduce component hot spot effect and minimize component attenuation
5. Superior load capacity
Can withstand up to 2400 pa negative pressure and 5400 pa positive pressure
6. Can withstand harsher environments
Reliable quality makes components more sustainable even in deserts, farms and near the coast
2. Current grading process
The current grading process is adopted to reduce the current loss by 2%
3. Excellent low light performance
It can produce more power in low light conditions such as cloudy days, morning and evening
4. Reduce the hot spot effect
Reduce component hot spot effect and minimize component attenuation
5. Superior load capacity
Can withstand up to 2400 pa negative pressure and 5400 pa positive pressure
6. Can withstand harsher environments
Reliable quality makes components more sustainable even in deserts, farms and near the coast

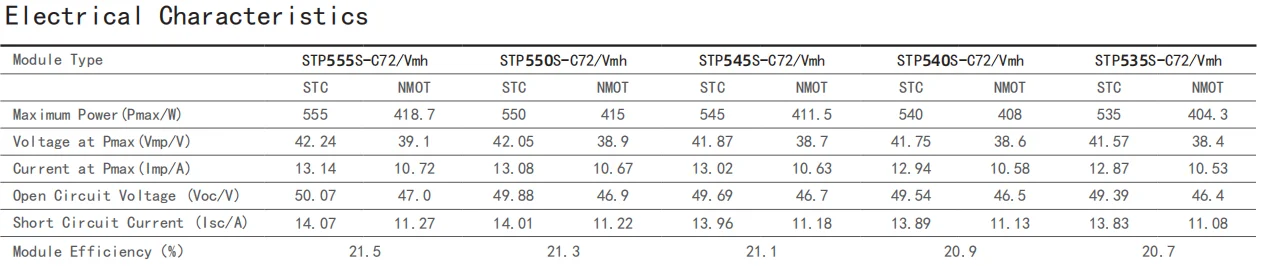

Specification
item | value |
Place of Origin | China |
Jiangsu | |
Model Number | STP540S-C72 |
Cell size | 158.75mmx158.75mm |
Type | Half Cell |

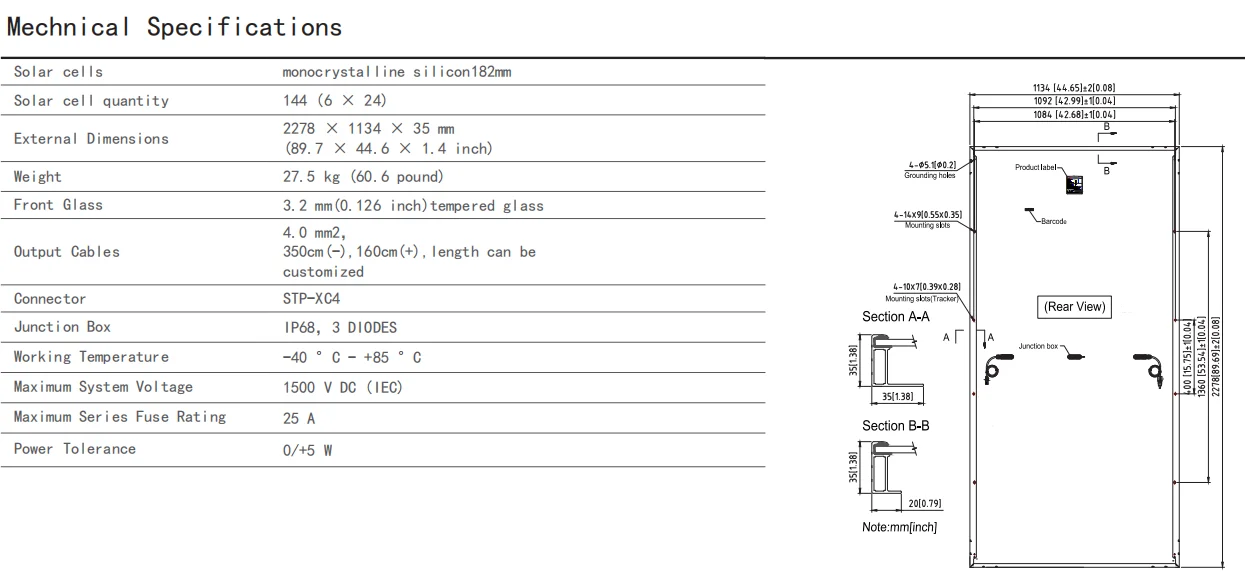

Panel Dimensions | 2278*1134*35mm |
Panel Efficiency | 20.9% |
Certificate | TUV/CE/ETL/CEC/ISO |
Warranty | 25 Years Warranty |
Product name | Solar Panels |
Maximum power | 540W |
Open circuit voltage | 49.54V |
Short circuit current | 13.89A |
Voltage at Pmax | 41.75V |
Current at Pmax | 12.94A |
Module Efficiency | 20.9% |
Maximum system Voltage | 1500V DC(IEC) |
Maximum series fuse rating | 25A |
Warranty | 25 years |
Packing & Delivery
sea shipping wooden carton.
Company Profile
It was established to focus on distributed power station investment, development, construction, operation and maintenance, technical support and other services. Long-term stable cooperation with state-owned enterprises and central enterprises, committed to providing distributed power plant solutions, technical services and third-party distributed power plant asset management services for domestic and foreign customers. The business footprint covers Southeast Asia, Australia, Europe, America and other countries. To date, it has served more than 1700 dealers.
We rely on years of accumulated cases for company, cloud bamboo shoots in big data analysis application in Internet and Internet technology research and development experience, especially using the data of "quality is the most sophisticated, digital" power station management, operations, power management technology experience, ensure quality of photovoltaic power station, improve the system efficiency, reduce operating costs, Maximization of output benefits for the national county to promote policy to provide mature services. Continue to make new contributions to the development of global green energy and electricity.
We rely on years of accumulated cases for company, cloud bamboo shoots in big data analysis application in Internet and Internet technology research and development experience, especially using the data of "quality is the most sophisticated, digital" power station management, operations, power management technology experience, ensure quality of photovoltaic power station, improve the system efficiency, reduce operating costs, Maximization of output benefits for the national county to promote policy to provide mature services. Continue to make new contributions to the development of global green energy and electricity.

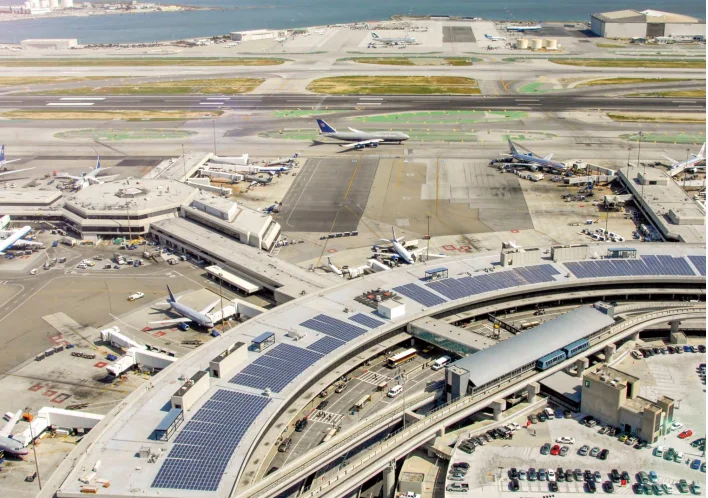

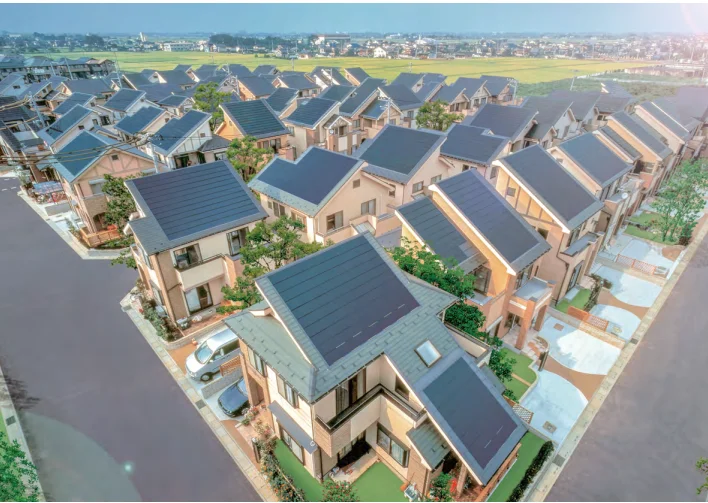

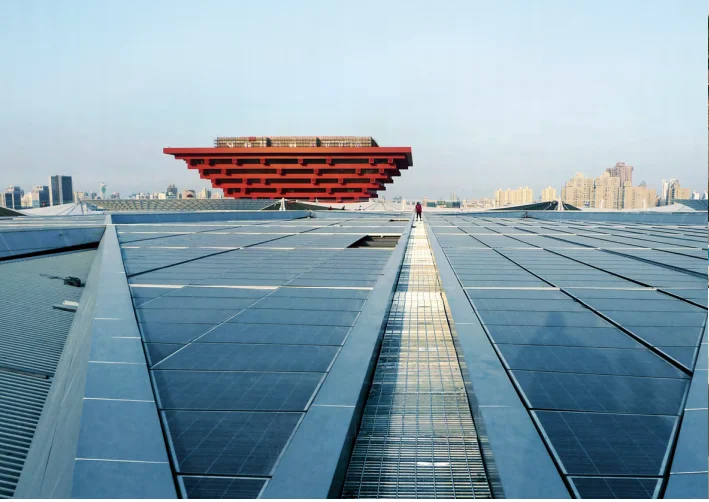

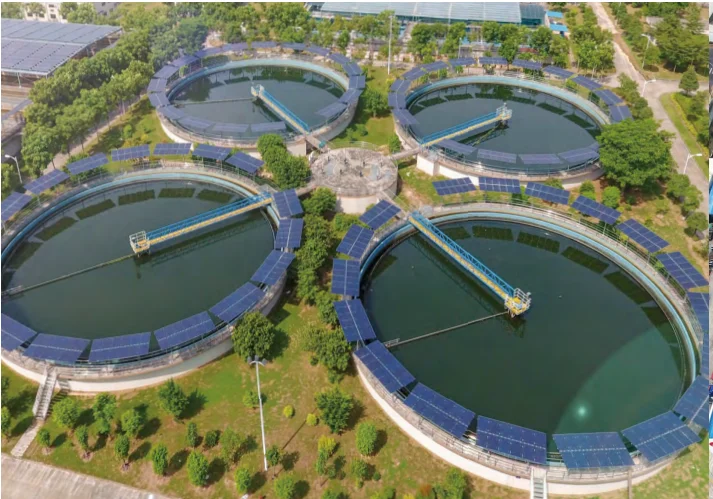

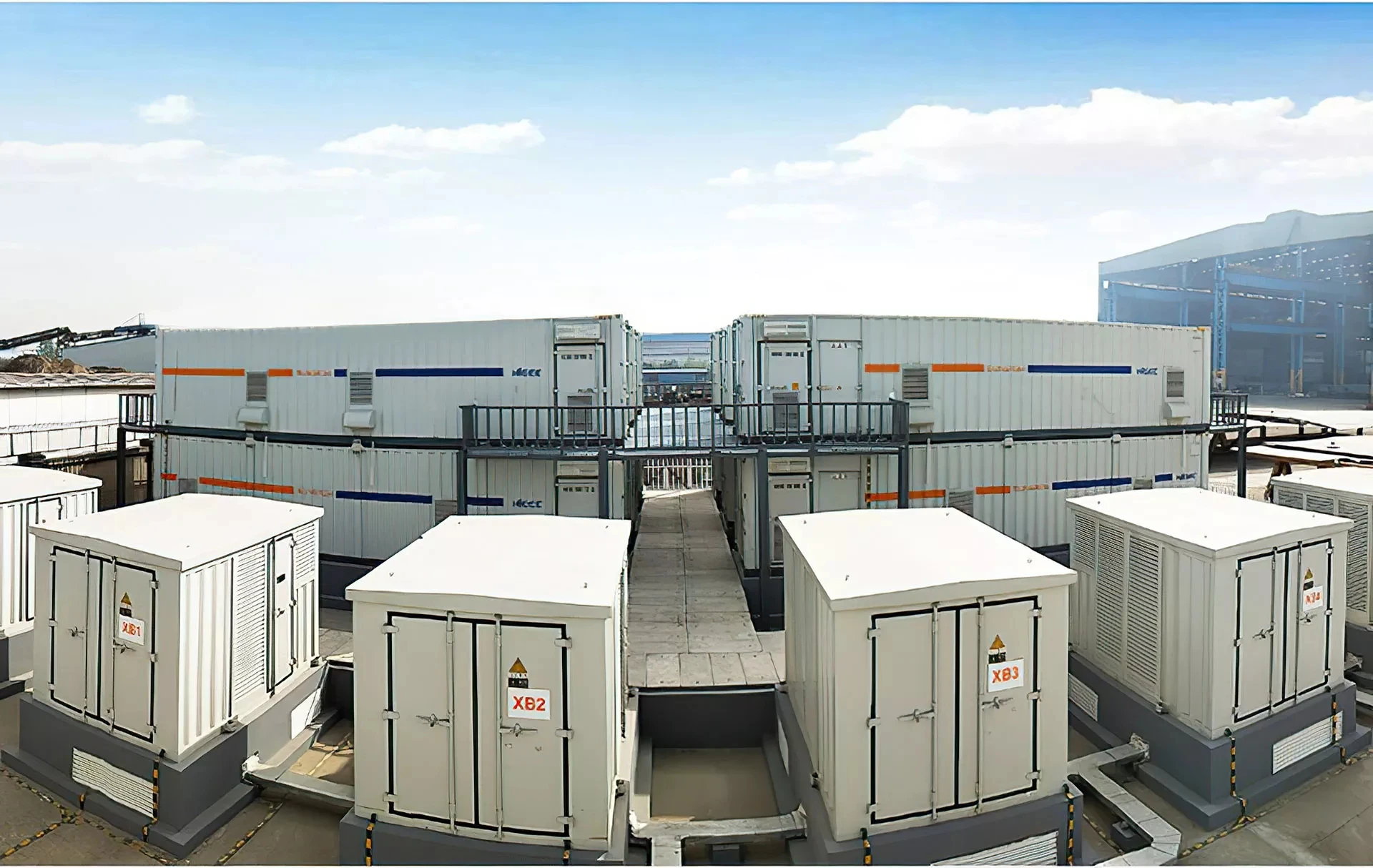

Project
Certifications
Comprehensive product certification and quality standards
CE Certification
IEC 61730
IEC 61215
SA 8000 Social responsibility standard
IEC TS 62941 Standard system
ISO 9001 quality system certification
ISO 14001 Environmental Management System
ISO 45001 Occupational health and safety management system
IEC 61730
IEC 61215
SA 8000 Social responsibility standard
IEC TS 62941 Standard system
ISO 9001 quality system certification
ISO 14001 Environmental Management System
ISO 45001 Occupational health and safety management system
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2017,sell to Mid East(50.00%),Southeast Asia(30.00%),Central America(5.00%),South America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
warp knittin machine,warping machine,stitch bonding machine,crochet machine,warp knitting spare parts
4. why should you buy from us not from other suppliers?
Changzhou Nova Textile Machinery Manufacture Co., Ltd was established in 2017, we have more than 20 years' experience in warp knitting machine manufacture, and have more than 10 years export international experience in warp knitting machinery business.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2017,sell to Mid East(50.00%),Southeast Asia(30.00%),Central America(5.00%),South America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
warp knittin machine,warping machine,stitch bonding machine,crochet machine,warp knitting spare parts
4. why should you buy from us not from other suppliers?
Changzhou Nova Textile Machinery Manufacture Co., Ltd was established in 2017, we have more than 20 years' experience in warp knitting machine manufacture, and have more than 10 years export international experience in warp knitting machinery business.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
