Educational Analog & Digital Trainer Kit for Training & Learning Experiment Kit

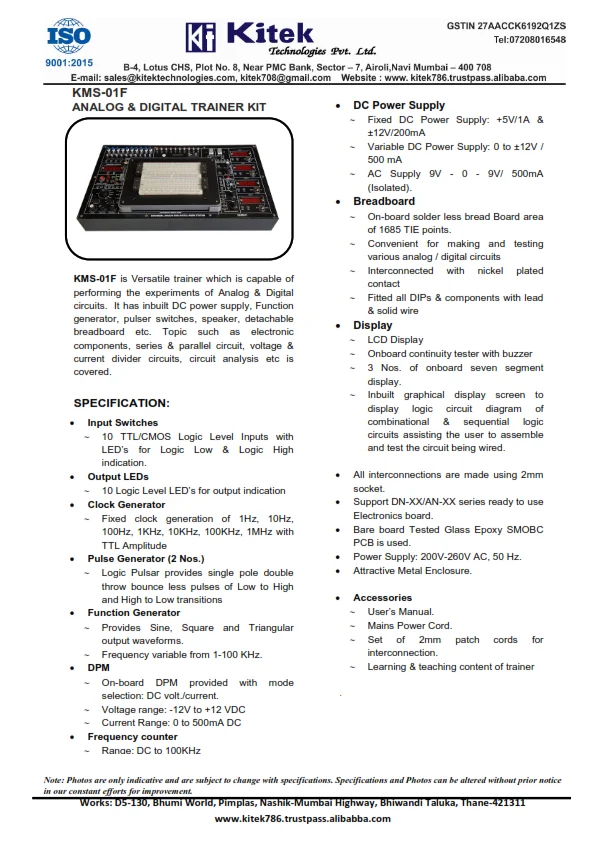

KMS-01F is Versatile trainer which is capable of performing the experiments of Analog & Digital circuits. It has inbuilt DC power supply, Function generator, pulser switches, speaker, detachable breadboard etc. Topic such as electronic components, series & parallel circuit, voltage & current divider circuits, circuit analysis etc is covered.

Specification

• Input Switches
- 10 TTL/CMOS Logic Level Inputs with LED’s for Logic Low & Logic High indication.
• Output LEDs
- 10 Logic Level LED’s for output indication
• Clock Generator
- Fixed clock generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz, 1MHz with TTL Amplitude
• Pulse Generator (2 Nos.)
- Logic Pulsar provides single pole double throw bounce less pulses of Low to High and High to Low transitions
• Function Generator
- Provides Sine, Square and Triangular output waveforms.
- Frequency variable from 1-100 KHz.
• DPM
- On-board DPM provided with mode selection: DC volt./current.
- Voltage range: -12V to +12 VDC
- Current Range: 0 to 500mA DC
• Frequency counter
- Range: DC to 100KHz
• DC Power Supply
- Fixed DC Power Supply: +5V/1A & ±12V/200mA
- Variable DC Power Supply: 0 to ±12V / 500 mA
- AC Supply 9V - 0 - 9V/ 500mA (Isolated).
• Breadboard
- On-board solder less bread Board area of 1685 TIE points.
- Convenient for making and testing various analog / digital circuits
- Interconnected with nickel plated contact
- Fitted all DIPs & components with lead & solid wire
• Display
- LCD Display
- Onboard continuity tester with buzzer
- 3 Nos. of onboard seven segment display.
- Inbuilt graphical display screen to display logic circuit diagram of combinational & sequential logic circuits assisting the user to assemble and test the circuit being wired.
• All interconnections are made using 2mm socket.
• Support DN-XX/AN-XX series ready to use Electronics board.
• Bare board Tested Glass Epoxy SMOBC PCB is used.
• Power Supply: 200V-260V AC, 50 Hz.
• Attractive Metal Enclosure.
• Accessories
- User’s Manual.
- Mains Power Cord.
- Set of 2mm patch cords for interconnection.
- Learning & teaching content of trainer

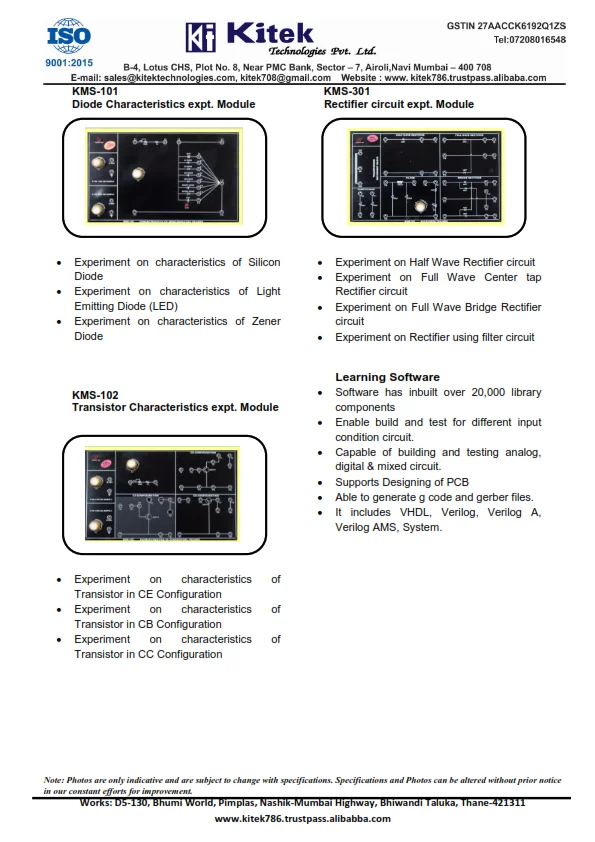

KMS-101 Diode Characteristics expt. Module
• Experiment on characteristics of Silicon Diode
• Experiment on characteristics of Light Emitting Diode (LED)
• Experiment on characteristics of Zener Diode

KMS-102 Transistor Characteristics expt. Module
• Experiment on characteristics of Transistor in CE Configuration
• Experiment on characteristics of Transistor in CB Configuration
• Experiment on characteristics of Transistor in CC Configuration

KMS-301 Rectifier circuit expt. Module
• Experiment on Half Wave Rectifier circuit
• Experiment on Full Wave Center tap Rectifier circuit
• Experiment on Full Wave Bridge Rectifier circuit
• Experiment on Rectifier using filter circuit

Learning Software
• Software has inbuilt over 20,000 library components
• Enable build and test for different input condition circuit.
• Capable of building and testing analog, digital & mixed circuit.
• Supports Designing of PCB
• Able to generate g code and gerber files.
• It includes VHDL, Verilog, Verilog A, Verilog AMS, System.

Export Packaging Quality.

Product packaged in corrugated box with all side cushions
