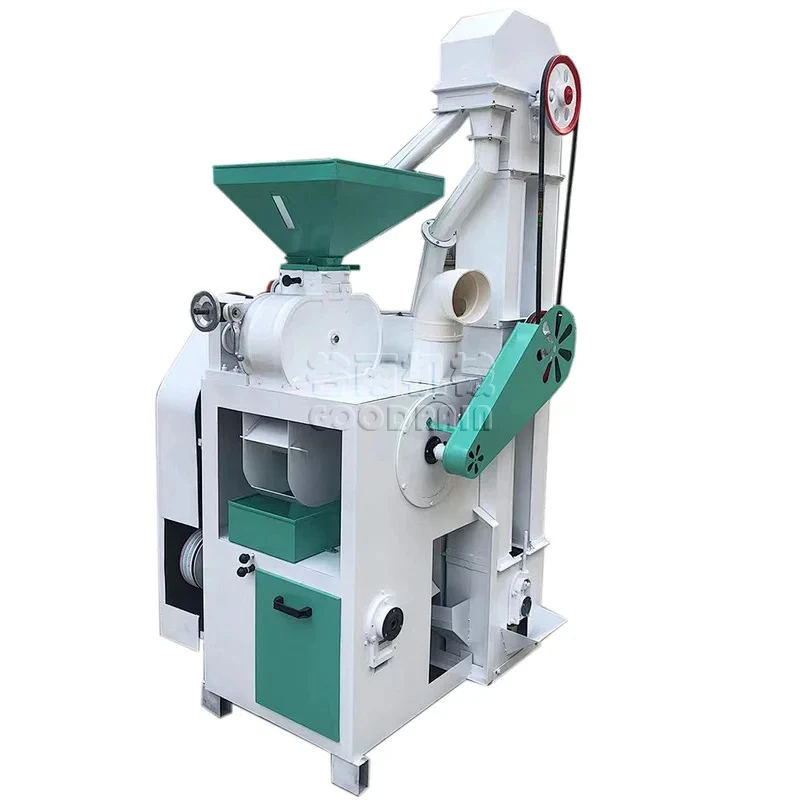

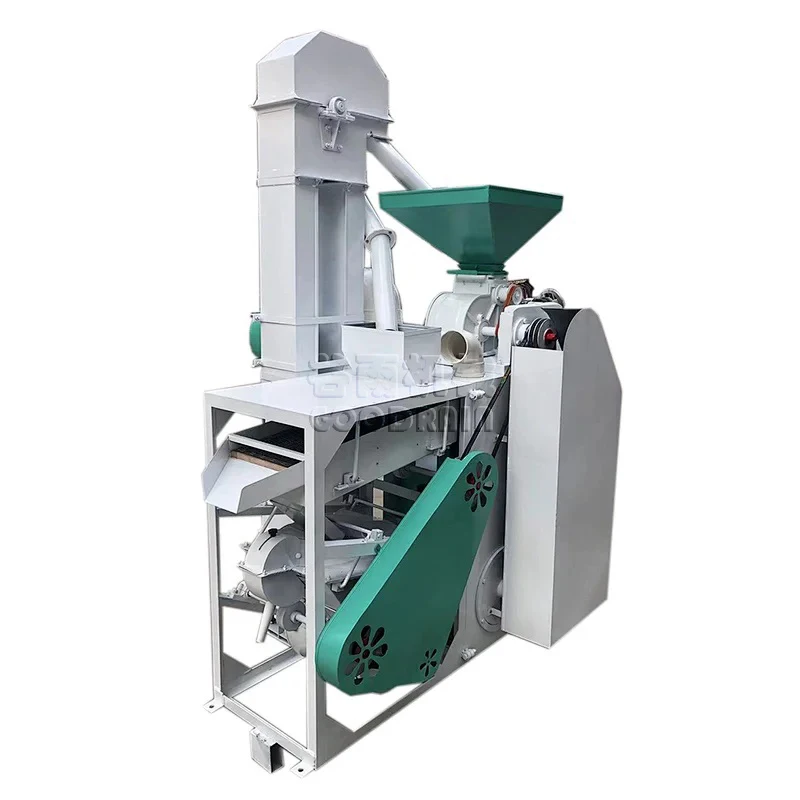

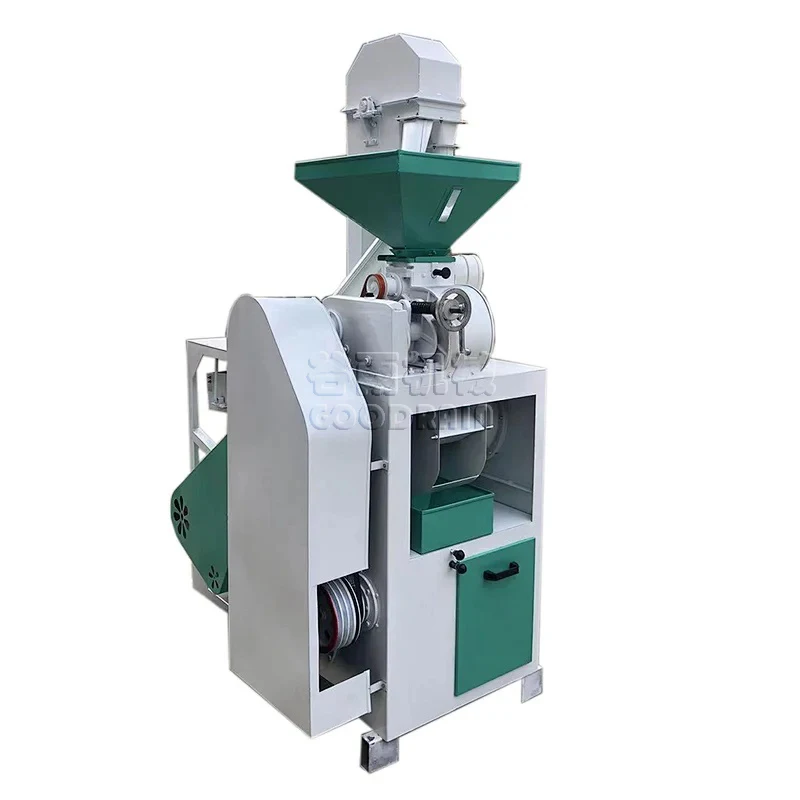

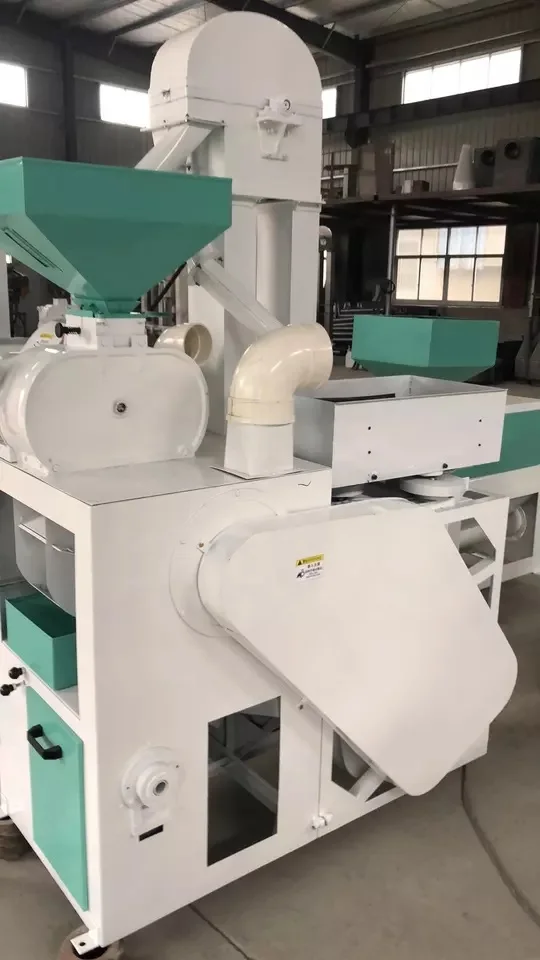

400 500kg/h Diesel engine driven rice mill compact rice processing machine small scale rice mill machine
- Category: >>>
- Supplier: Wuhan Good Rain Machinery Co. Ltd.
Share on (11000006015494):
Product Overview
Description
Product Description
Applications and features

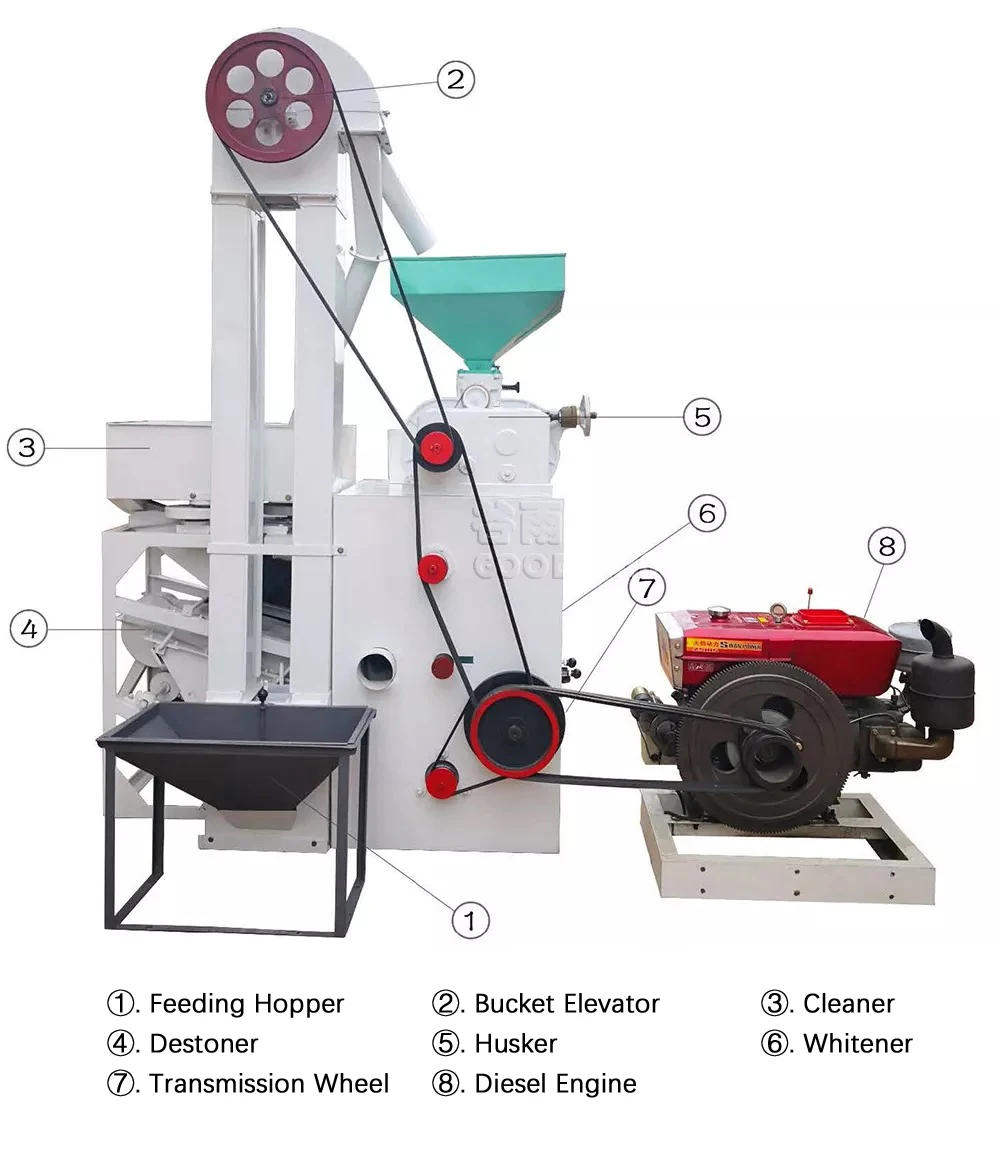

6LN-15/8.5SR Combined De-hulling and rice milling equipment combined with:
horizontal cleaning sieve blow type de-stoner,
rubber roller husker,
iron roller rice whitener,
double elevator.
It features great cleaning, de-stoning, and rice whitening performance, compacted structure, easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level.
Technical Parameter
Model | 6LN-15/8.5SR | |
Capacity(kg/h) | 400-500 | |
Rice milling rate(%) | 65-70 | |
Small broken rice rate(%) | 4 | |
Rubber roller size(inches) | 6 | |
Steel roller diameter(mm) | 8.5 | |
Overall dimension(L*W*H,mm) | 1500*750*2500 | |
Power | Electric motor(kw) | 18.5 |
Diesel motor(hp) | 22 | |

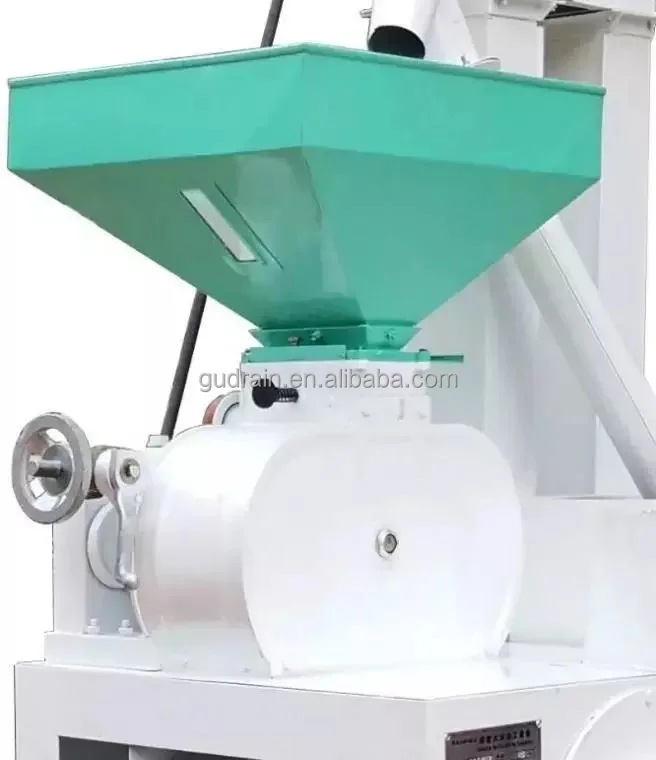

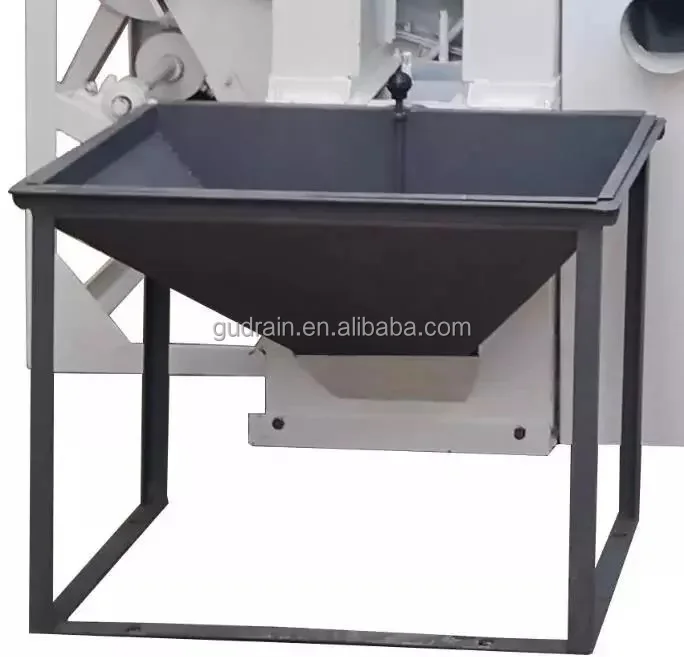

 | Paddy Inlet Large hopper with steel frame structure, stable and durable structure, can hold hundreds of kilograms of millet and keep feeding when not in use. The low height is firmly connected with the hoist, and the feeding is easy. | |

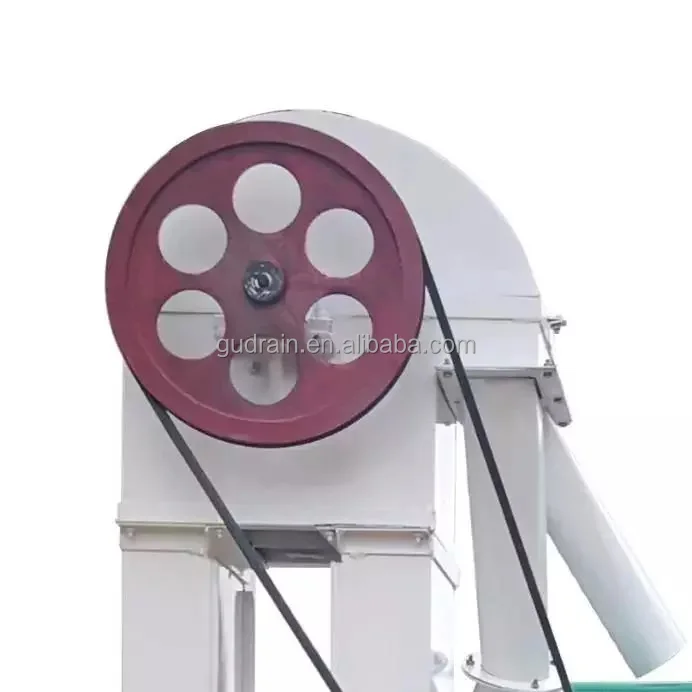

Bucket Elevator The bucket elevatort has a compact structure and low energy consumption. The first step is to lift the uncleaned hairy grain. After cleaning and removing the stone, the clean millet is obtained, and then the second step is used to lift the grain hulling machine for shelling. The two lifts do not interfere with each other. |  | |

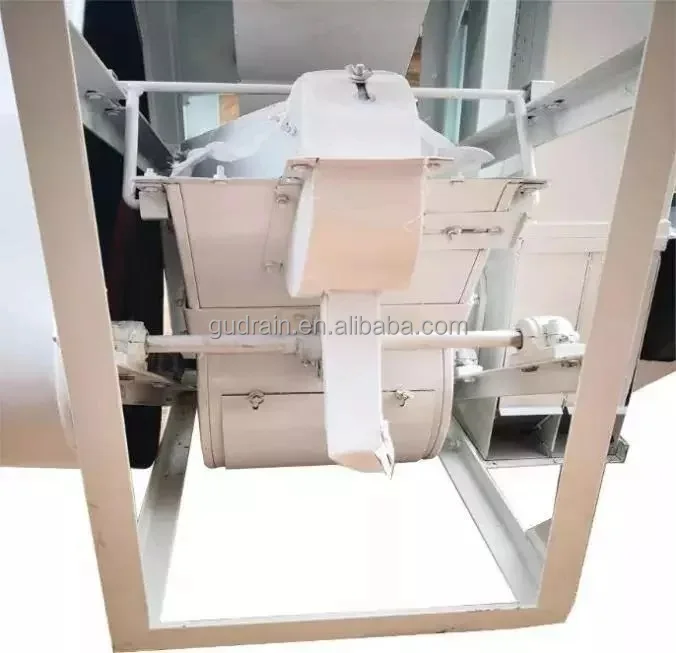

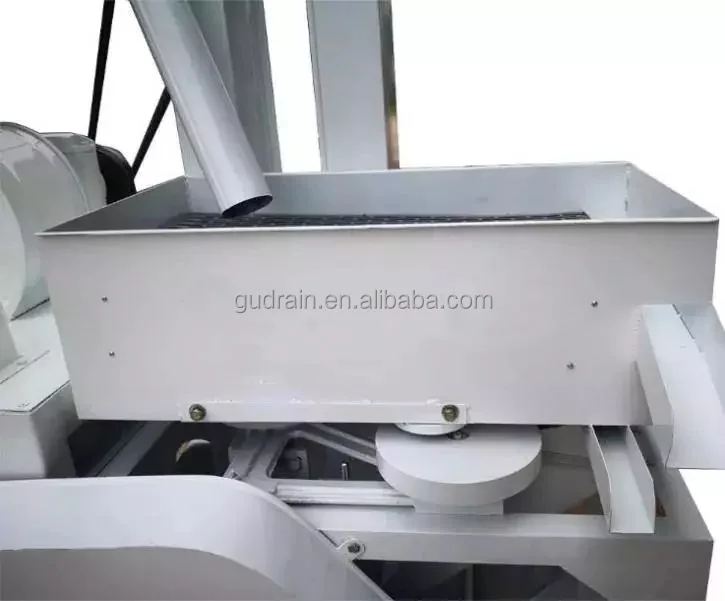

 | Double-deck Flat Rotary Cleaning Sieve The two-layer screen is horizontally rotated to clean the screen. The first layer of screen can remove straw, rice leaves and other debris thicker than millet, and the millet enters the second layer of screen to screen out small grass seeds and dust, so it is highly efficient. Completed the cleaning of the paddy | |
| Specific Gravity Stoner The specific gravity stone remover can make good use of the different specific gravity of rice and stones, and efficiently remove the shoulder stones that cannot be screened out by the cleaning screen. The machine adopts a large air volume blowing design, the air volume is large, and the stone removal effect is more efficient. |  | |
 | Rubber roller husker The cleaned rice is hulled by a 6-inch rubber roller husker. The rubber roller is made of high-elasticity colloidal material, and the rice is rarely damaged during the peeling process, so the brown rice that comes out is basically free of broken rice, and the hulling rate is high. Can reach more than 90%, high-efficiency and high-speed peeling. | |

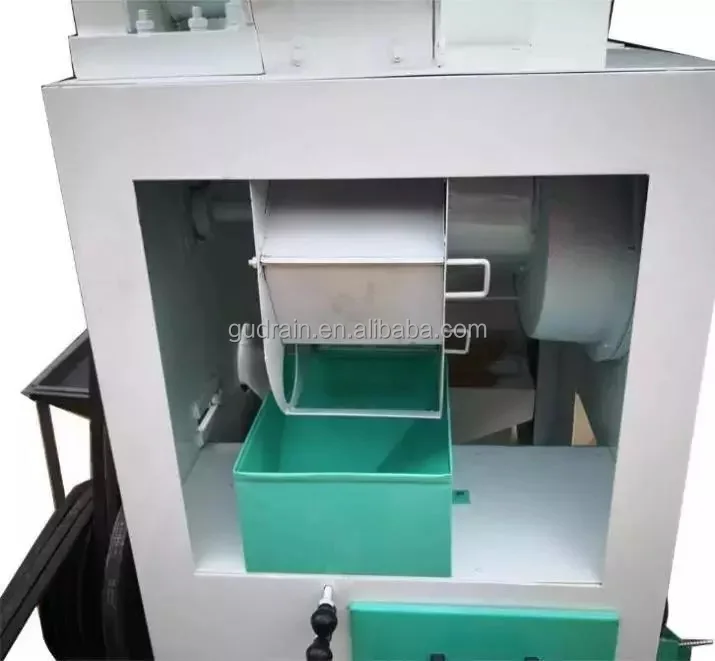

| Chaff separator The chaff separator, through the action of the fan, removes the chaff carried in the brown rice, so that all the rice entering the rice mill is clean brown rice. |  | |
 | Sand Roller Rice Milling Machine Strong fan sand roller rice milling machine, the rice temperature is low, the rice is cleaner, and the gloss of the rice is effectively improved and the broken rice rate is reduced | |

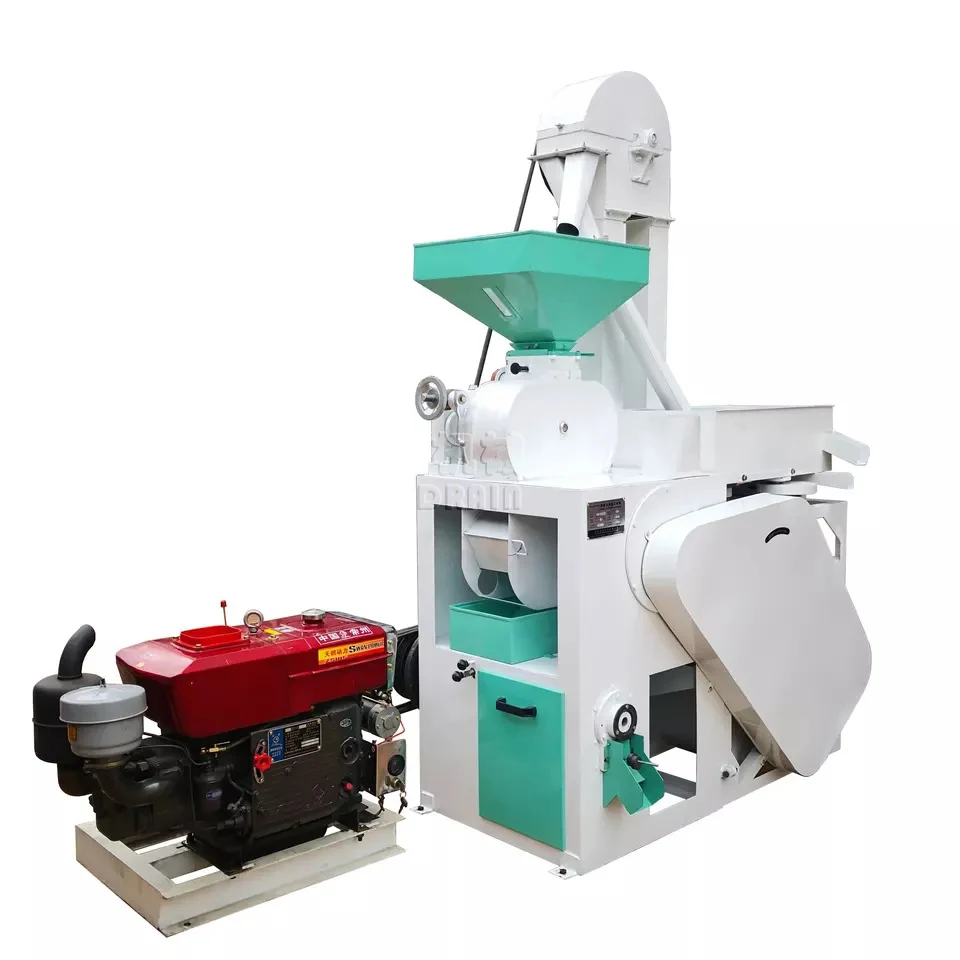

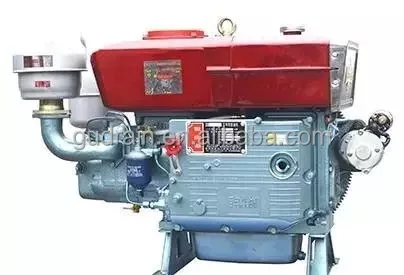

| Single cylinder diesel engine drive This rice machine is powered by a single-cylinder diesel engine for power-deficient areas and mobile processing needs; and is equipped with an electric starting device to operate Easy and convenient |  |
