Product Overview
Description
4K UHD STARVIS 2 Type 1/1.8 AR Coat MIPI CSI-2 sub LVDS IMX577/IMX477 IMX482 IMX STARVIS CCTV Network IP PCB board Camera Module
Product Description

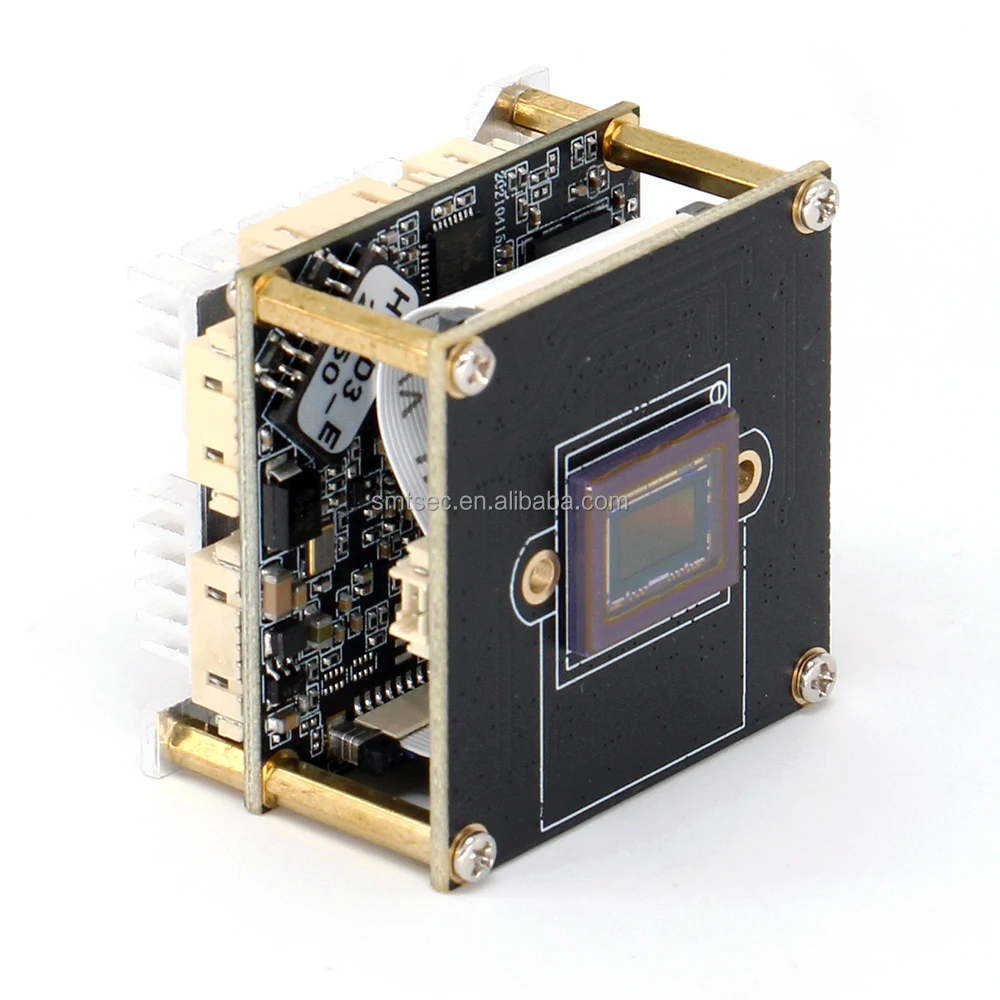

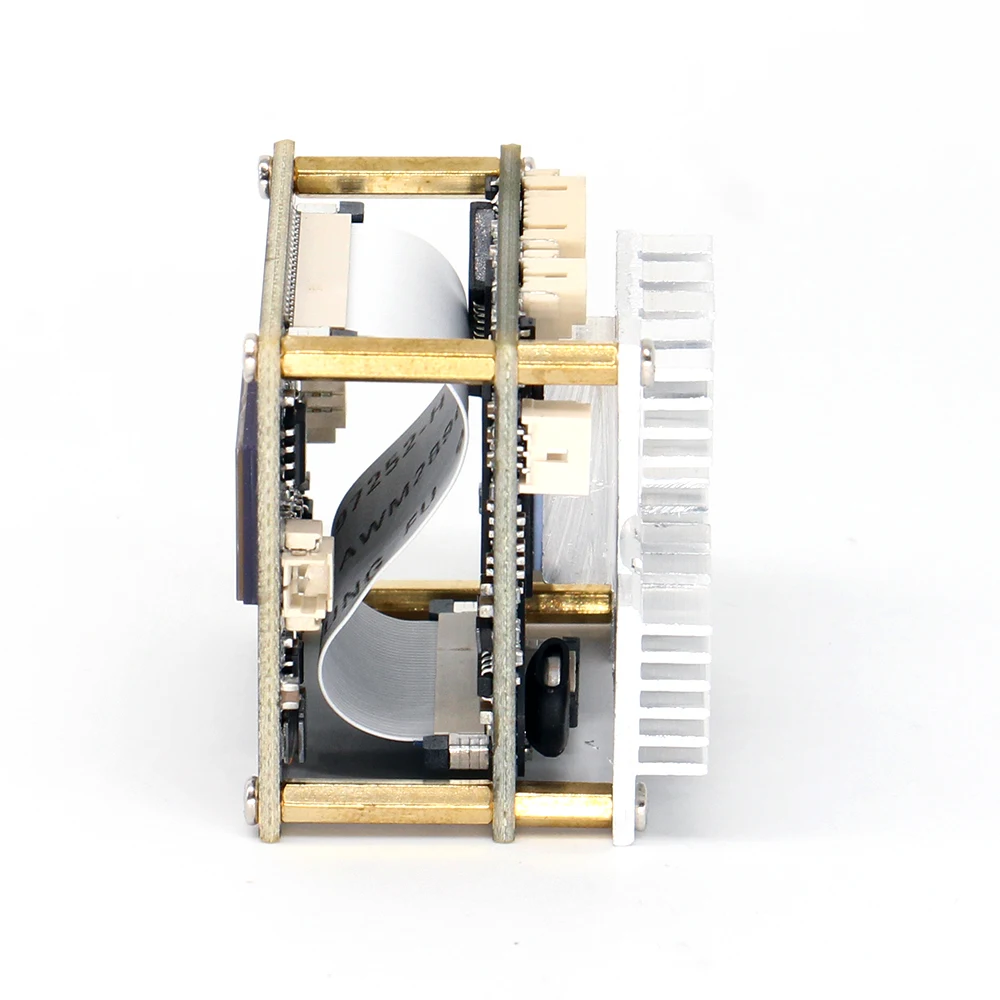

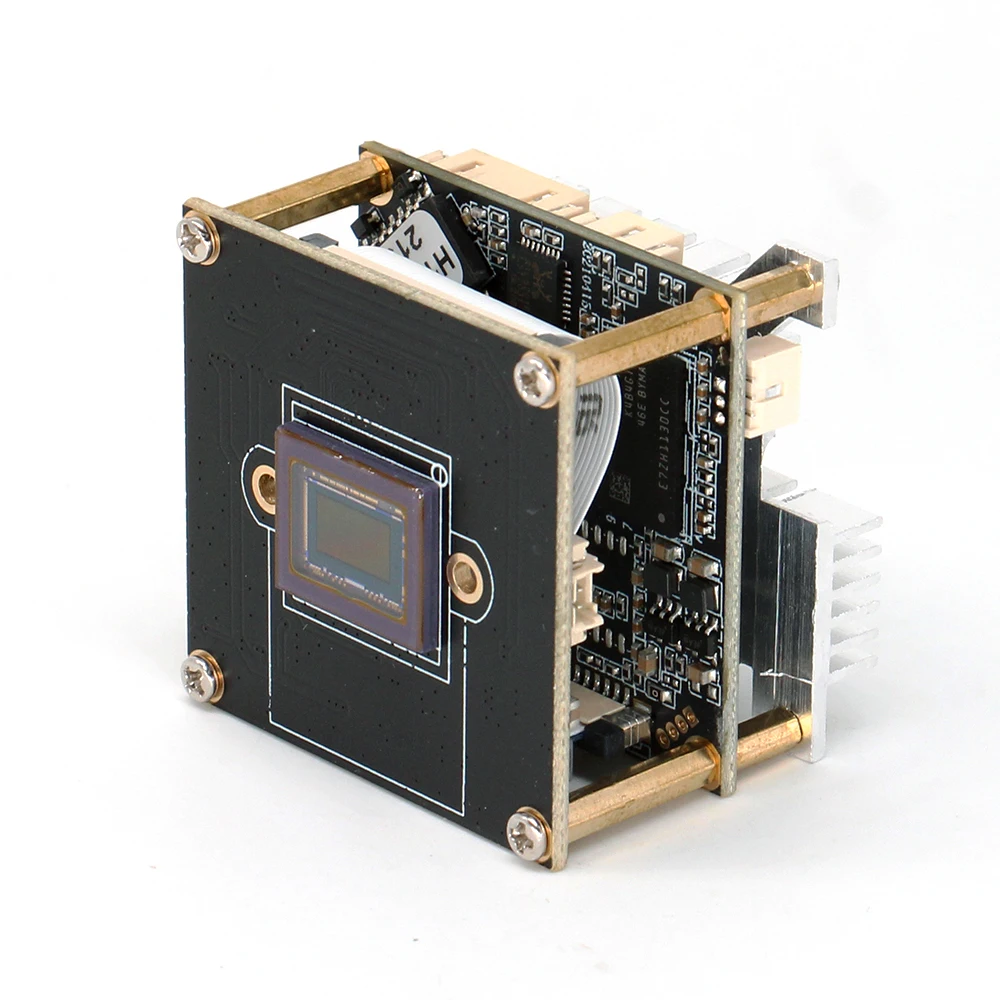

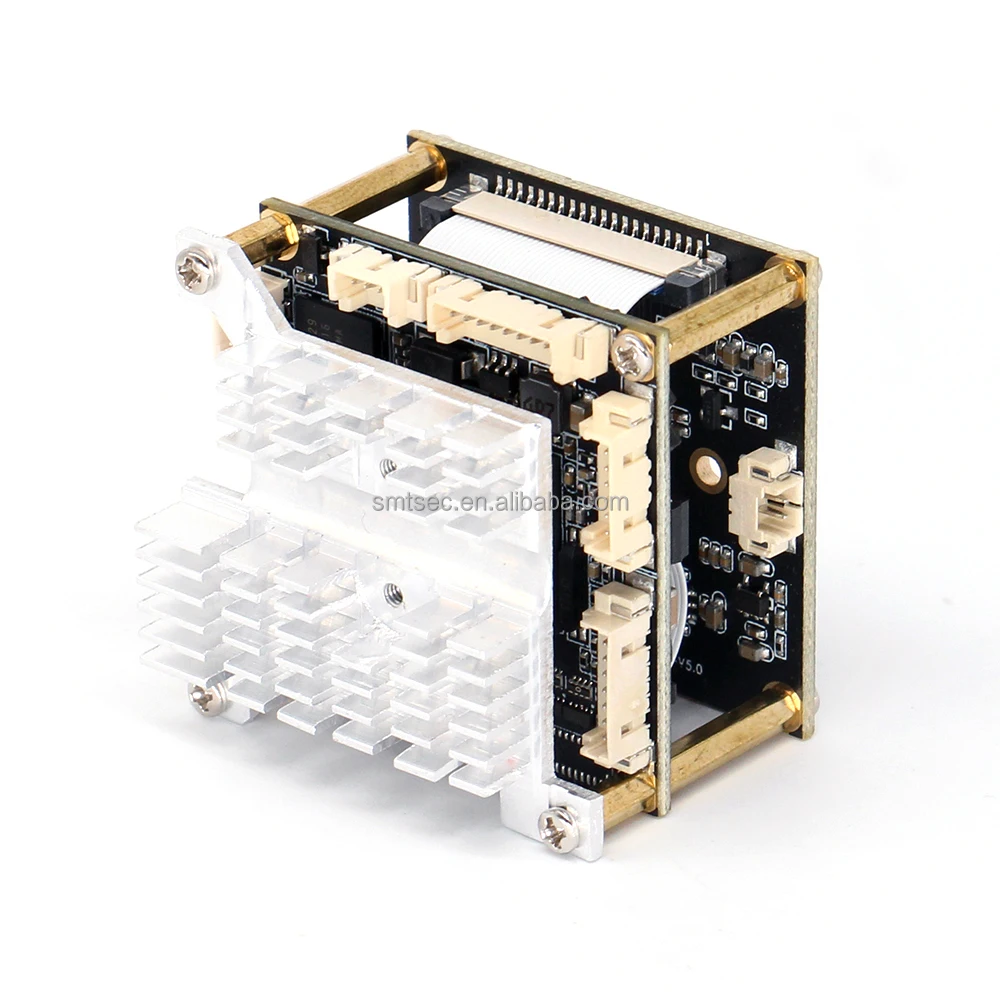

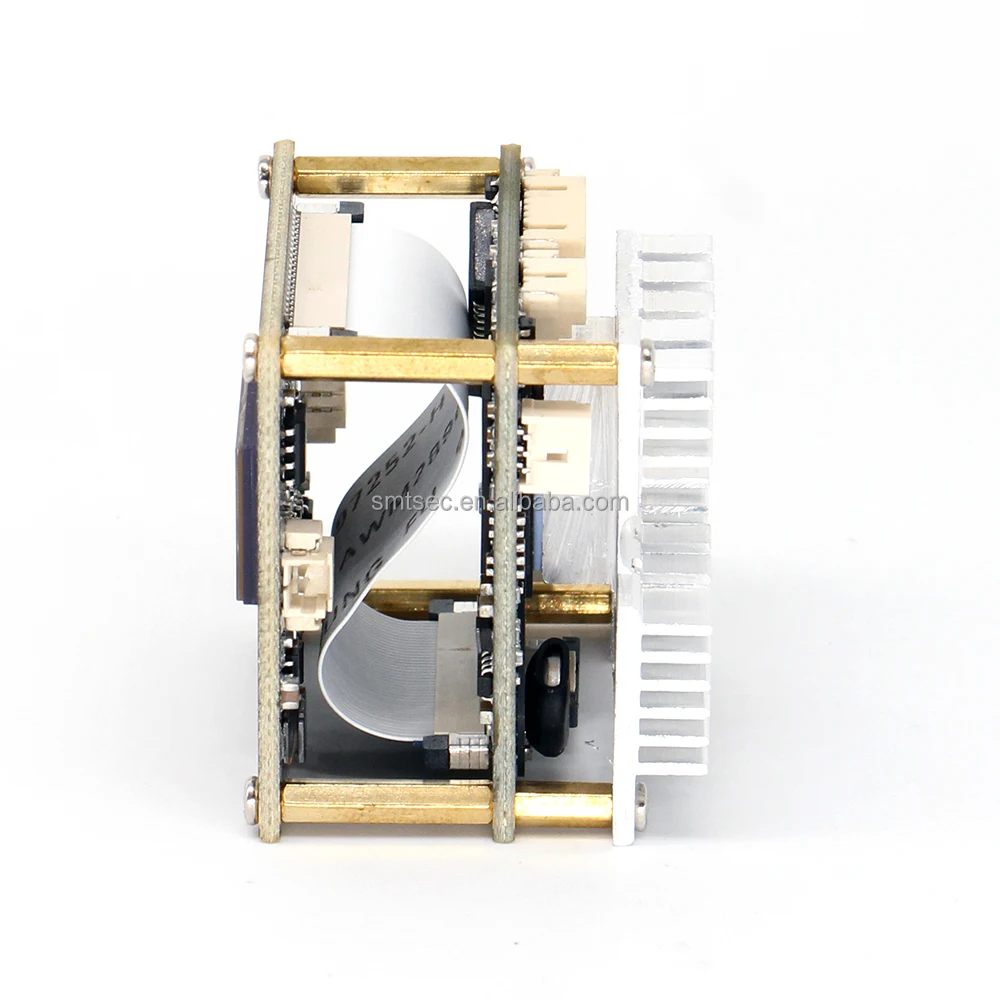

SIP-S385A excellent low illumination performance cctv 2.0mp 120fps 1/1.8" SONY IMX385+Hi3516AV300 STARVIS Network Camera Module

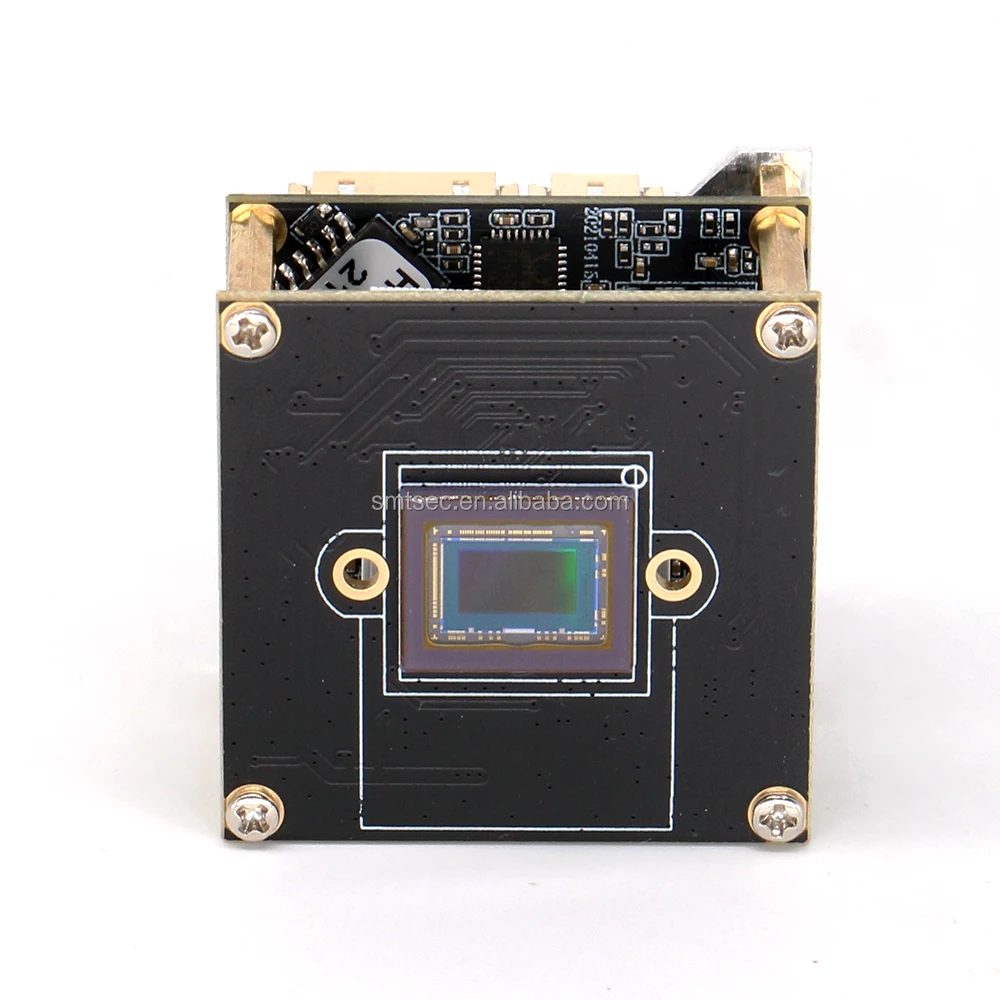

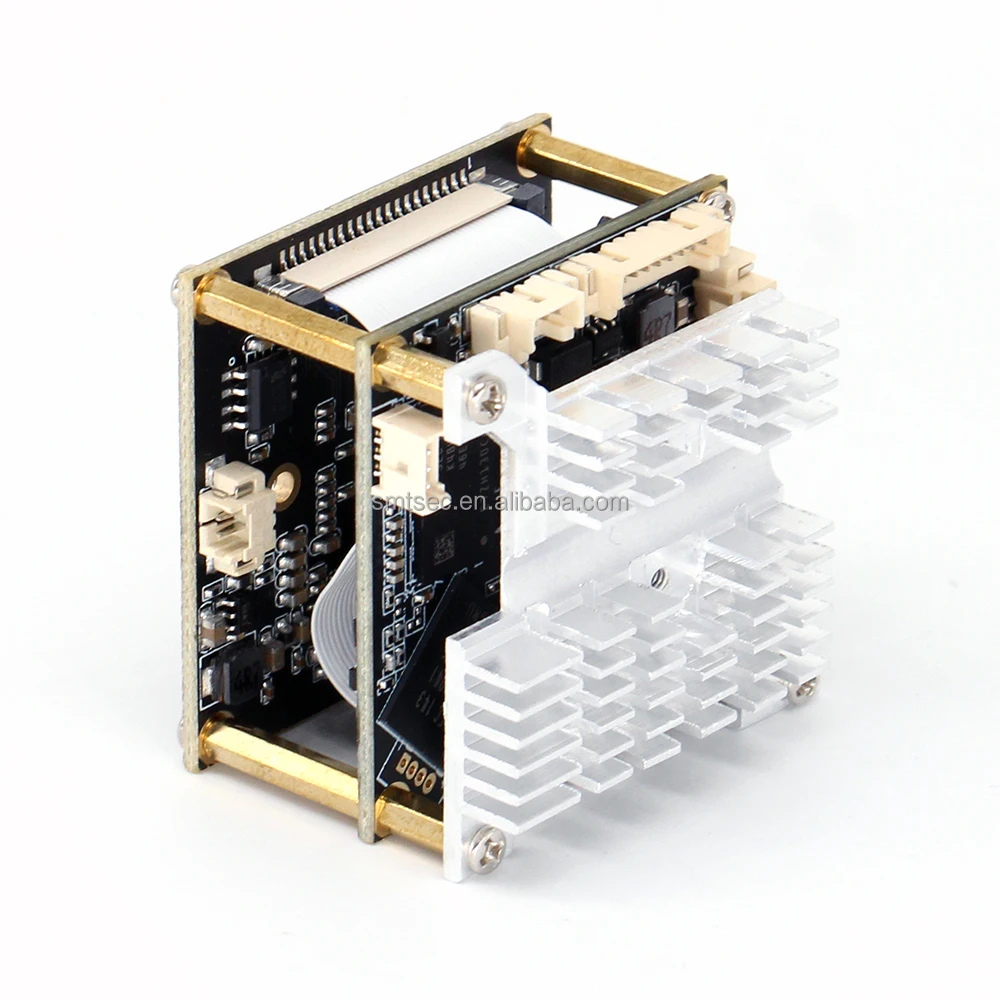

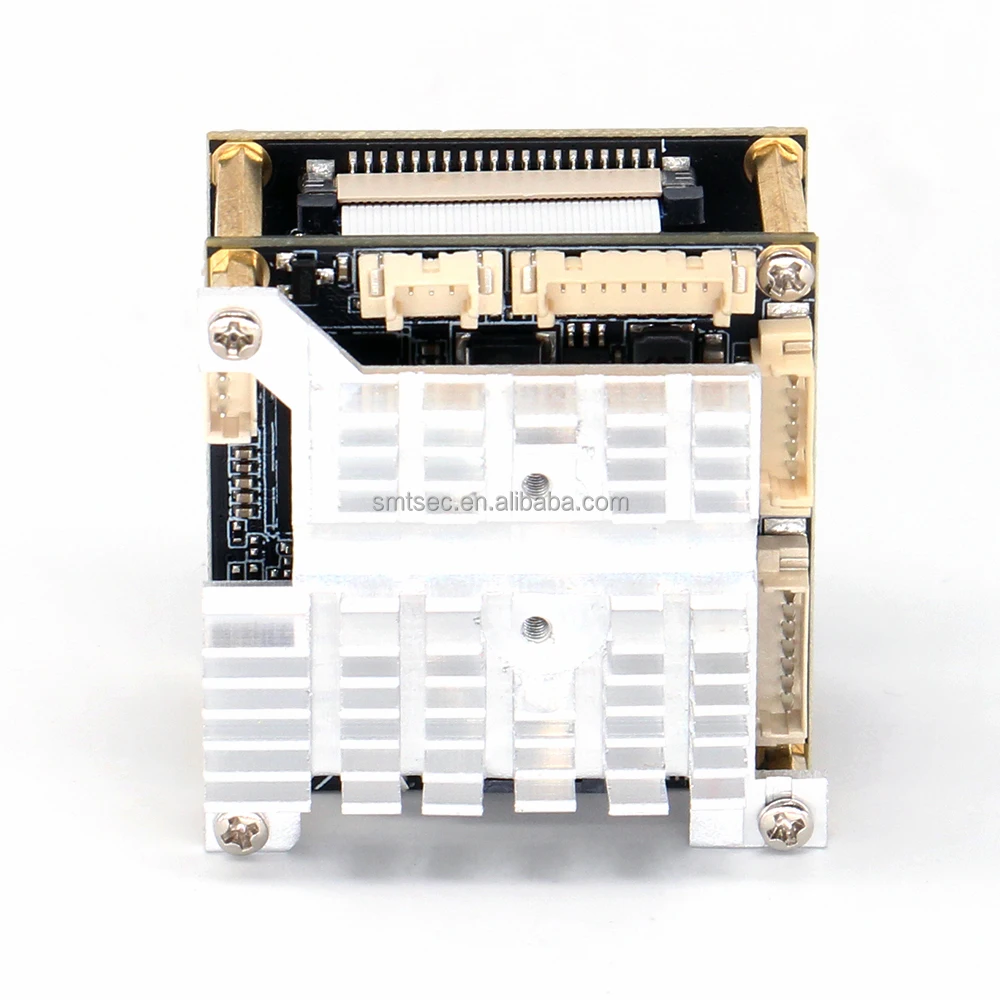

Model: SIP-S385A
Highlights
> Video resolution: 1920*1080 Video compression standard: H.265 H.264;
> Two-in-one DOL WDR, excellent WDR performance;
> Support ONVIF protocol, national standard GB28181 protocol;
> Dual stream, the user can choose the stream and adjust the resolution, frame rate and video quality;
> Support digital 3D noise reduction, the image is clearer and smoother;
> Support motion detection, motion detection alarm, email alarm, client alarm;
> Support screen motion detection/screen blocking, 4 blocking areas and 4 detection areas can be set;
> Support remote real-time monitoring, network user management, network time synchronization;
> Support automatic restart function after power failure/unexpected failure;
> Support automatic switching of filters to realize day and night monitoring;
> Support character superposition, superposition position can be adjusted and automatic inverse color display;
> Auto iris lens interface, supports various auto iris lenses on the market;
> Support mobile phone monitoring and POE power supply (optional);
> Lens: 3.6-10mm/9-22mm auto focus, fast focusing speed and stable zoom, the zoom process is clear throughout (optional);
> Support UVC protocol (optional)
| Model | SIP-S385A |
| Camera Type | H.265 2.0mp IP Camera Module |
| Camera | |
| Image Sensor | 1/2" Color CMOS Image Sensor IMX385 |
| Effective Pixels | 1945 (H) × 1097 (V) approx. 2.13M pixels |
| DSP | Hi3516AV300 Dual-Core Arm Cortex-A7@900Mhz |
| Hashrate | 1Tops |
| Flash | 128Mbit SPI Nor Flash |
| DDR | 4Gbit LP DDR3 (2x 2Gbit) |
| Min. Illumination | Color 0.001Lux F1.2, B&W 0.001Lux F1.2 0Lux With IR |
| S/N Ratio | >60dB(AGC OFF) |
| Lens Mount | Cs Mount Or M12 Mount(Optional) |
| Ir-Cut | Support |
| Day/Night | Day/Night / Time Detect/External Synchronization/Internal Sync/Alarm |
| WDR | >120dB WDR |
| 3D NR | Support |
| BLC | Open/Close |
| Denoise | Off/Low/Medium/High |
| HLC | Open/Close |
| Gamma | Available To Set |
| AE Level | Available To Set |
| AE Offset | 0-255 |
| ISO Max | Auto / Manual |
| Focus Mode | Auto/Hold/Manual |
| Correction | 0-255 |
| Shading Streng | 0-255 |
| Iris Type | Auto / Manual |
| Scene Mode | Normal/Dynamic Face/License Plate Capture/Guarden Face/Motion Pattern |
| Brightness | 0-255 |
| Contrast | 0-255 |
| Grayscale | 0-255 |
| Saturation | 0-255 |
| Sharpness | 0-255 |
| Mirror | Open/Close |
| Flip | Open/Close |
| Rotate | None/Rotate 90 Degrees/Rotate 270 Degrees |
| Flicker | Open/Close |
| WDR Mode | Digital WDR/Compose WDR/Close |
| WDRStrength | 0-255 |
| Shutter | Auto / Manual(1/25S-1/10000S) |
| Slow Shutter | Auto / Manual(1S-1/20S) |
| Anti Fog | Open/Close |
| Anti Fog Strength | 0-255 |
| Awb Mode | Auto/Indoor/Outdoor/Auto Tracking/Manual |
| Red Gain | 0-255 |
| Green Gain | 0-255 |
| Blue Gain | 0-255 |
| OSD | Stream Information/Display Week/Display Time/Channel Title |
| OSD Display | Color, Size, Position Adjustable |
| Video/Audio | |
| Video Compression | H.265/H.264/Mjpeg |
| Resolution | Main Stream:1920*1080 1280*720(1-30fps) |
| Sub Stream:D1, VGA, CIF (1-30fps) | |
| Frame Rate | 1-30fps (2mp 60fps/120fps customizable) |
| Bit Rate | 32Kbps~20Mbps |
| Bitrate Type | Support VBR, CBR, FIX QP |
| Gop Mode | Normal P / Dual P / Smart P |
| Audio Compression | G.711A/G.711U |
| Audio Input Mode | Mic In/Line In |
| Audio Input Gain | Available To Set |
| Audio Output Gain | Available To Set |
| Audio Env Denoise | Open/Close |
| Network | |
| Data Storage | Video Record, Picture Format |
| Trigger | Manual, Automatic(Motion Detection, Alarm, Schedule, Cycle ) |
| Alarm Data Transmission | FTP, E-Mail, Browser, CMS |
| Network Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,RTMP,HTTP,DNS,DDNS,DHCP,NTP,PPPOE,SMTP,UPNP |
| Transfer Protocol | ONVIF/GB28181/SDK/CGI |
| Number Of Client Visits | Support 8 Users Login At The Same Time |
| Network Lost Recording | Supports |
| Motion Detection | Supports 4 Area |
| ROI | Supports 4 Area |
| Hide Detect | Supports 4 Area |

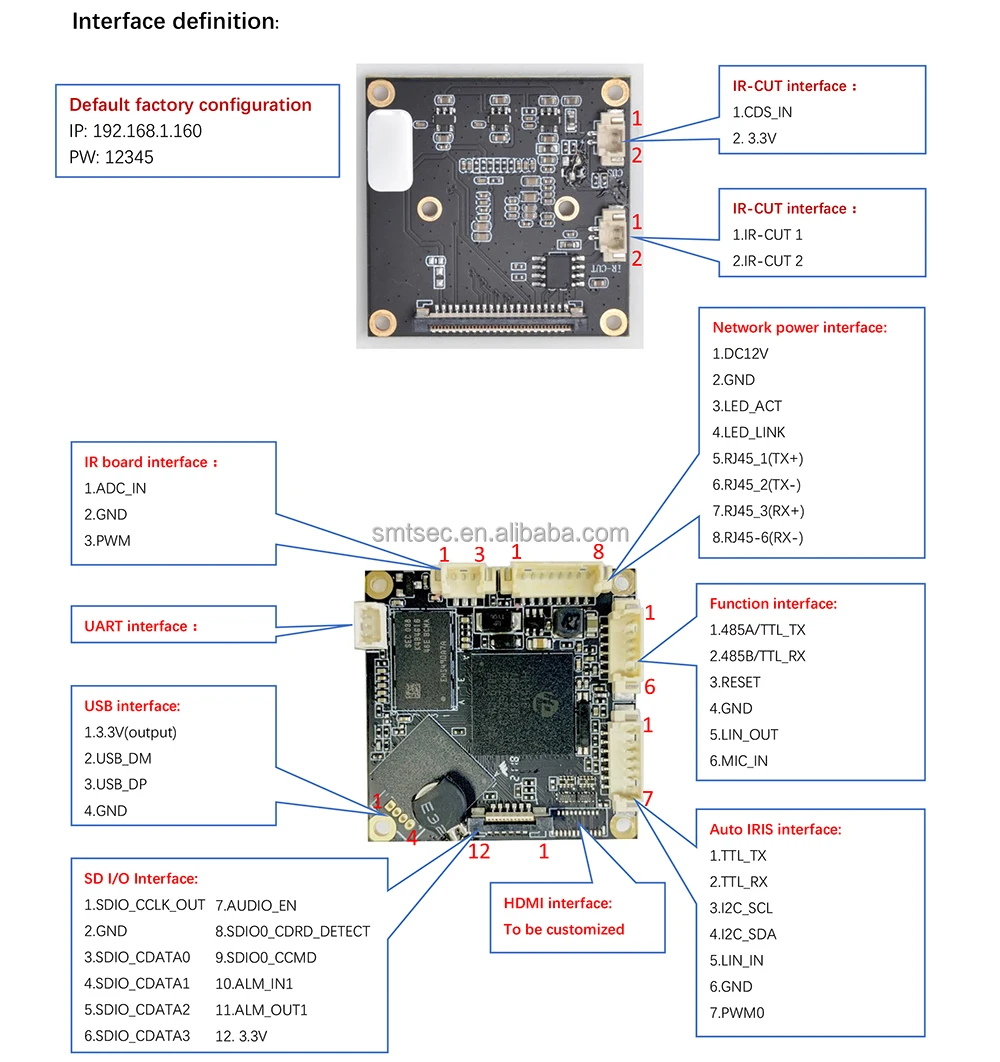

| Interface | |
| Network Interface | 10M/100M Adaptive Ethernet Port |
| Audio Input | 1Ch Input(Mic In/Line In) |
| Audio Output | 1Ch Audio Output |
| Serial Port | 1Ch TTL |
| Reset | Support |
| I2C | 1Ch |
| Optional Function | Note: Standard Edition Does Not Include The Following Features. Please Consult Us If You Need These Features. |
| Smart Phone | iPhone,iPad, Android |
| USB Video Class | Support UVC Protocol |
| HDMI | HDMI Output |
| RS485 | 1Ch |
| Motorized Zoom Lens | Support 3.6-10mm/9-22mm Motorized Zoom Lens |
| Alarm Input | 1 Ch Alarm Input |
| Alarm Output | 1 Ch Alarm Output |
| SD/TF | Maximum Support 256G |
| Wifi | Support 802.11bgn |
| POE | IEEE802.3af/at |
| General | |
| Power Supply | DC12V |
| Power Consumption | <5W |
| Working Environment | -20°C~+60°C , Less Than 90% Rh Dimensions |
| Product Size(L/W/H) | 38X38X35mm |
| Net Weight | 0.3Kg |

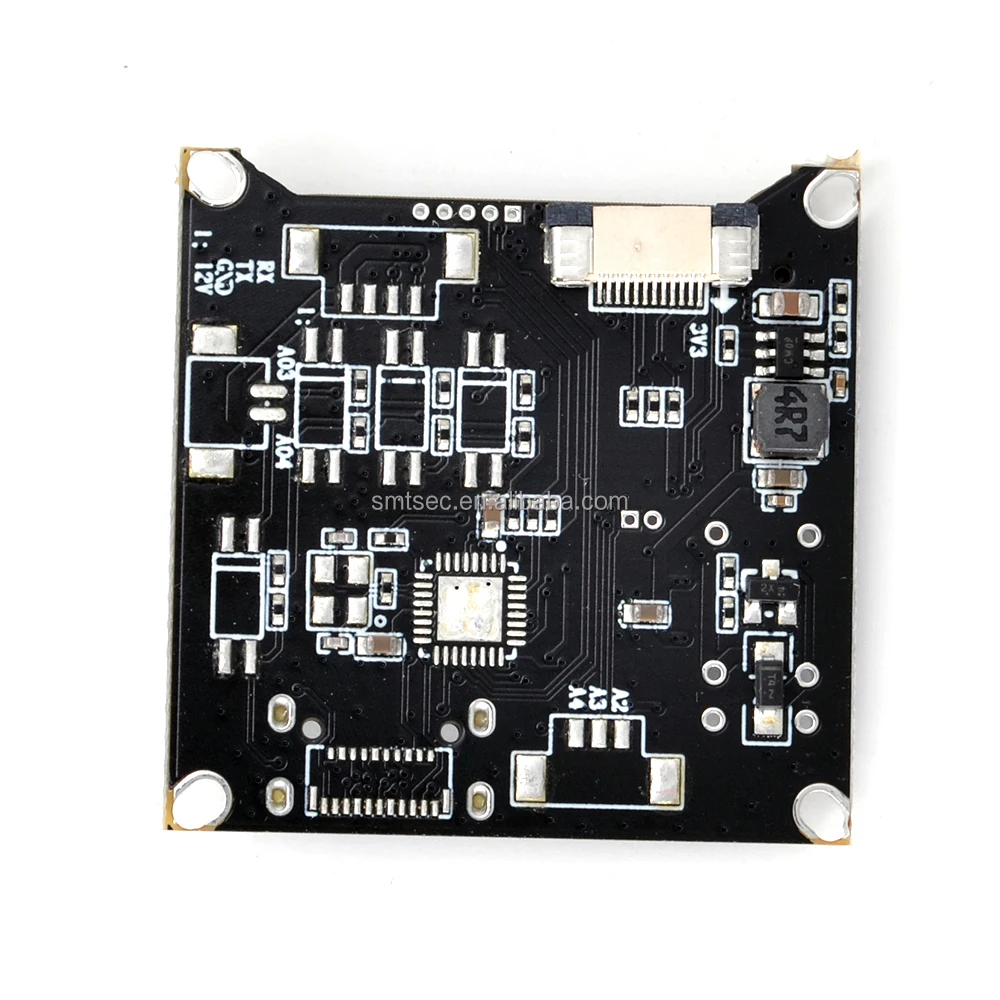

4 kinds TF Board(Optional)

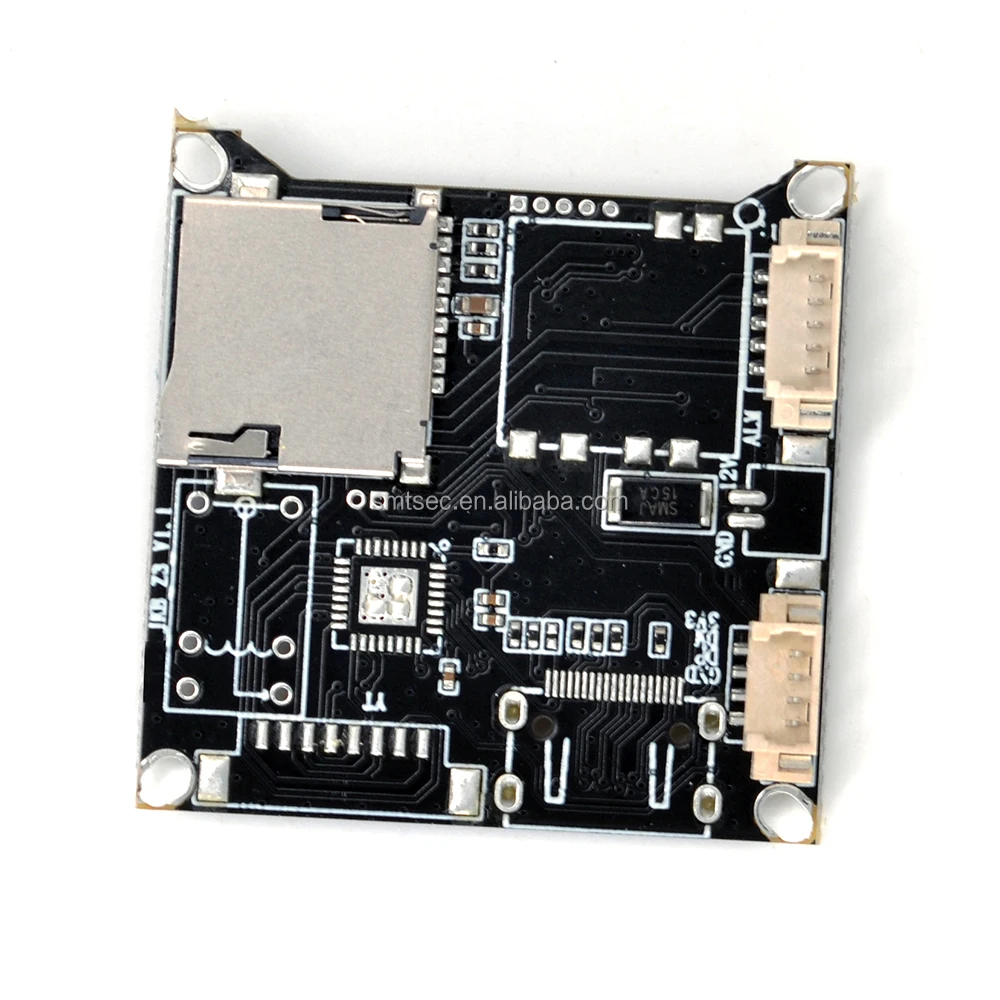

1. TF
Expansion TF Card,
Support 256G TF Card
Support S series module function expansion

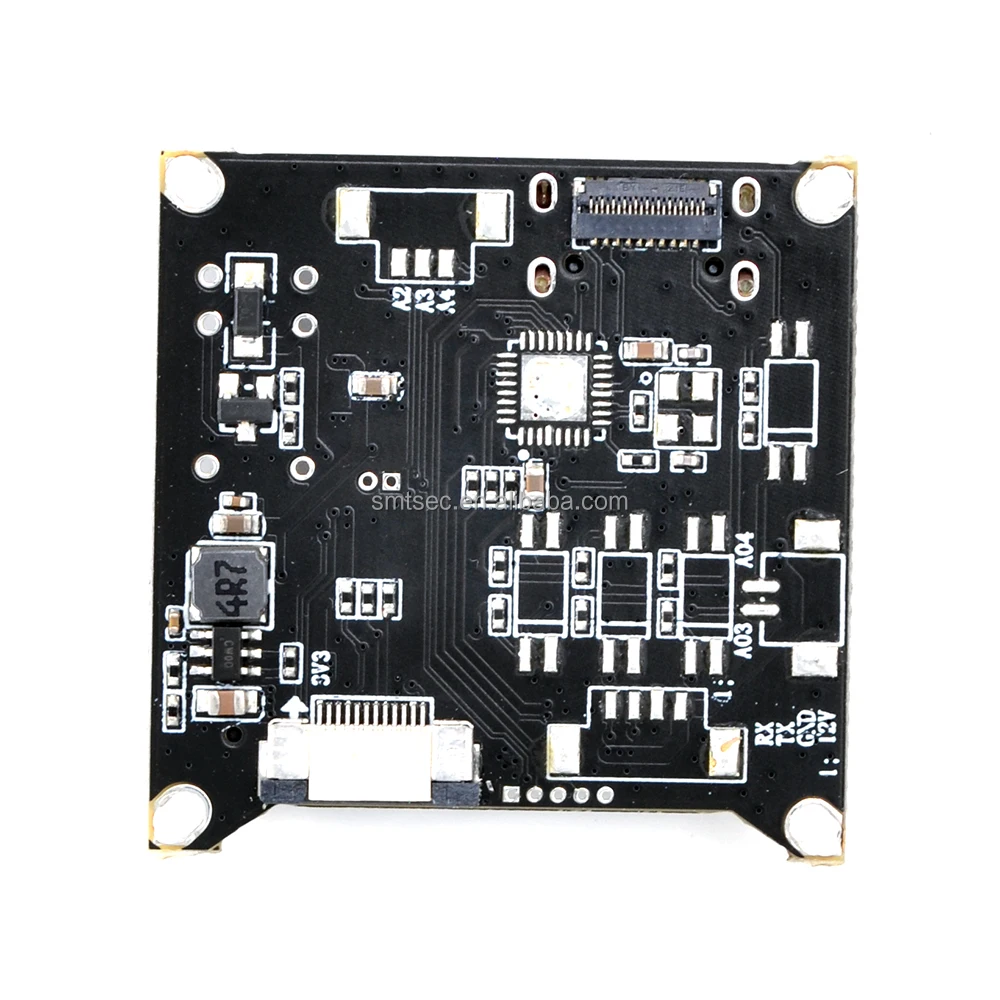

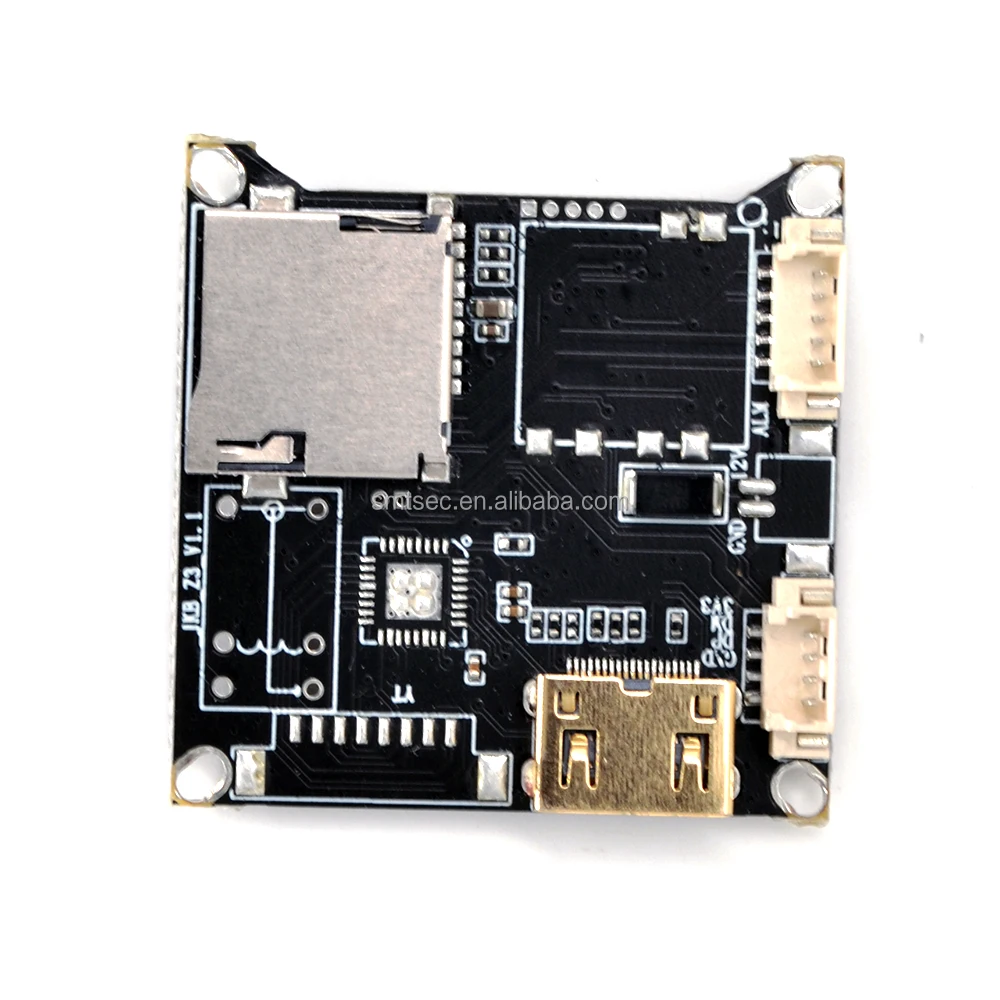

2.T-HDMI
Expansion TF Card,
Support 256G TF Card
Support HDMI Output
Support Hi3516D/Hi3516A S series module function expansion

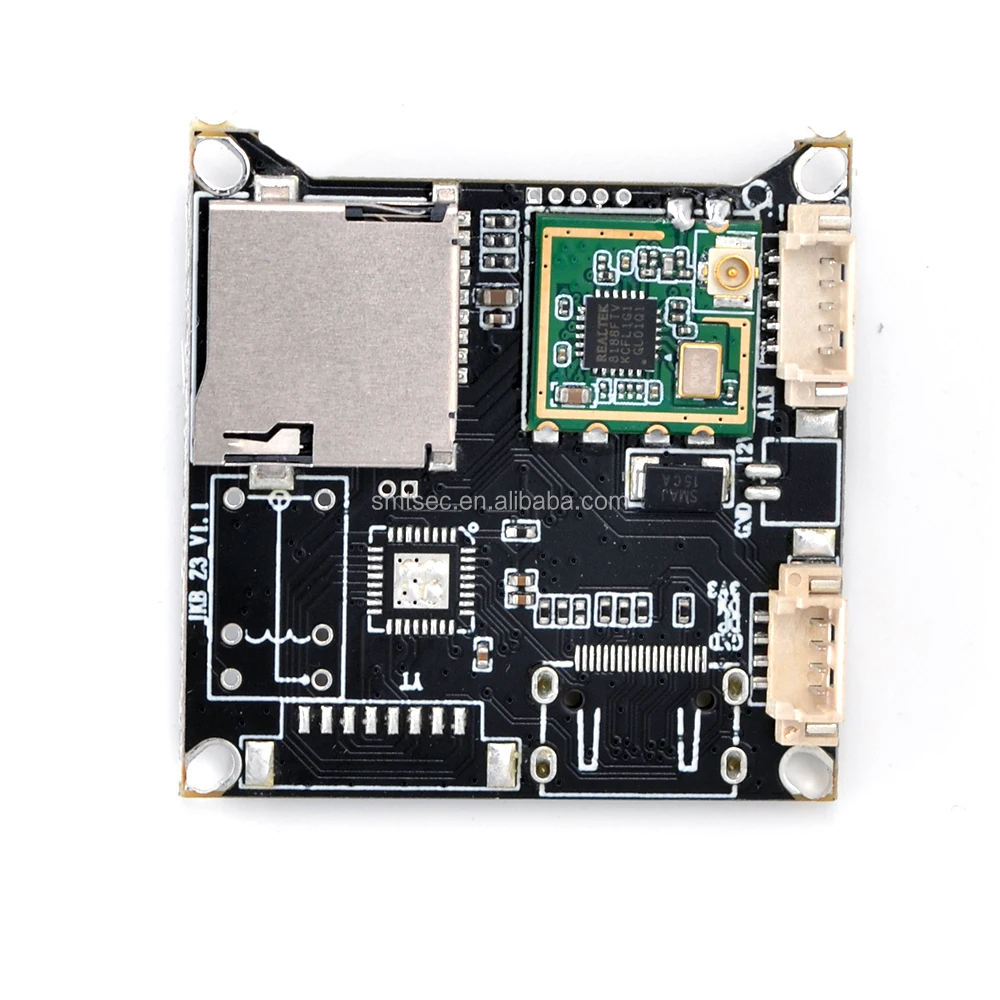

3.T-Wifi
Expansion TF Card,
Support 256G TF Card
Support Wifi Module
Support S series module function expansion

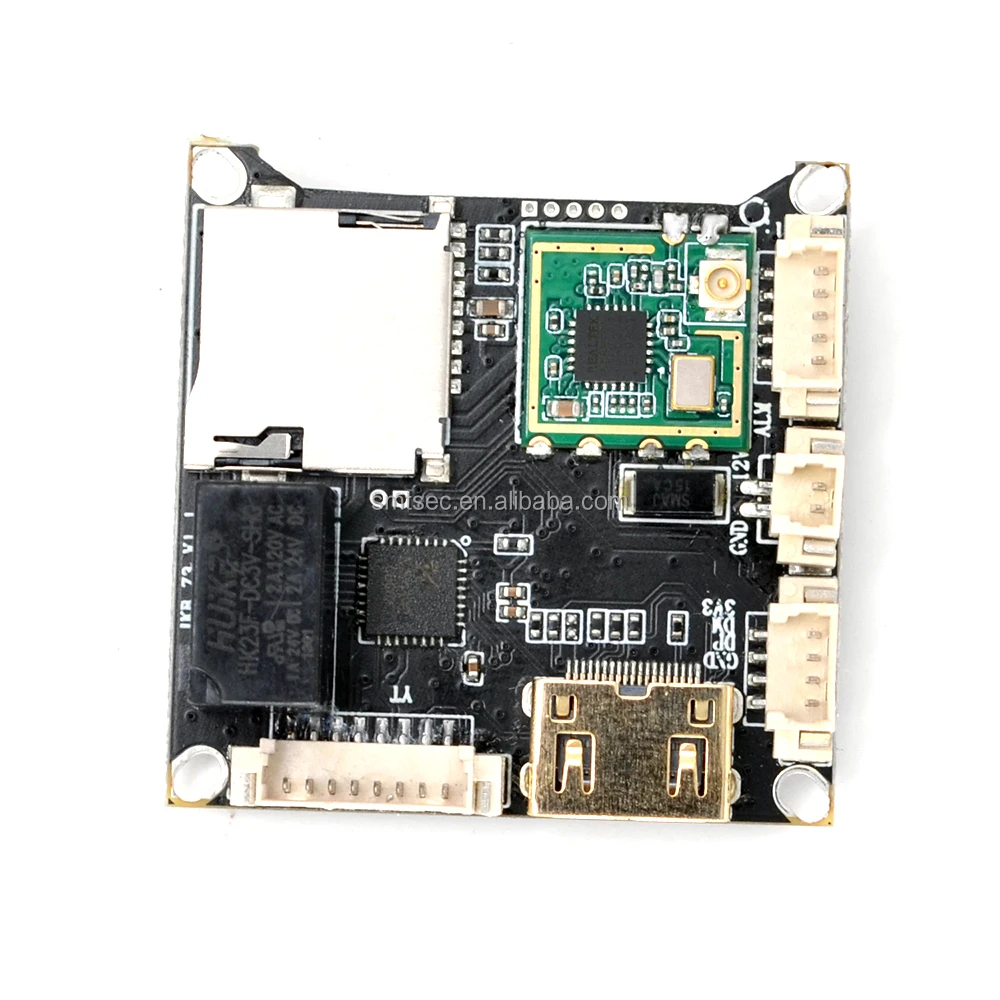

4.T-Full
Expansion TF Card,
Support 256G TF Card
Support HDMI Output
Support Wifi Moudle
Support alarm I/O
Support Motorized Zoom Lens
Support S series module function expansion
(The S series camera modules with DSP GK7205V300 DON'T support HDMI Output)
The POE Module(Optional):
38X38mm PoE module IEEE802.3af/at protocol
POE power: 12W (12V/1A)
POE: 1,2+/3,6- and 4,5+/7,8- adaptive transmission
The WiFi Module(Optional):
80mW, WIFI module (3dBi containing small antenna, feeder, SMA interface), IPEX antenna interface, support 802.11BGN
> Support SIP-E Series
> IP module USB interface expansion
> Use WIFI function, you can not use USB storage
