Customization 500 degree high temperature oven/high temperatures box Hot Oven/stability oven for lab test
- Category: >>>
- Supplier: Dongguan Xinbao Instrument Co. Ltd.
Share on (11000006030916):
Product Overview
Description
Products Description
Introduction:
High Temperature Oven can provide a stable test space for preheating, drying, changes about physics and chemistry testing . It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.Applications:Plastic Rubber Materials,Adhesive Tape,Food,Pharm,Daily-used chemical,etc.
Product Paramenters
Product Name | High Temperature Oven | Model Number | XB-OTS-150L | ||
Power | 1 phase 220V 50Hz | Cable Port | External Power | ||
Interior Size (W*H*D) | 50*60*50cm(W*H*D) | Exterior Size (W*H*D) | 69*110*64cm(W*H*D) | ||
Customized Size | Acceptable | Control Method | PID ,PID automatically adjust the output | ||
Advantages | 1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted. 2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article. 3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch. 4.Timing device for LED Digital constant timing, providing complete use Conditional design. 5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect. 6.Machine continuous running time is above three month 7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down. | ||||
Temp Control Fluctuation | ± 1.5℃ | Temperature Range | RT+10℃～300℃ | ||
Accuracy | ±0.5℃ | Temperature Resolution | 0.1 | ||
Temperature Uniformity | ±2℃ | Power | 4.8KW | ||
Key Set of Data Input | Resolution 0.1 ℃ ntegration time(IT): 0～3600s Derivative time(DT): 0～900s Built-in timer function | Protection Device | Motor overload protection Buzzer Fault indicator No fuse protection switch | ||
Heating Up Time (NO-load) | RT～160℃ about 28min | ||||
Temp Controller | The microcomputer automatically calculus controller | ||||
Chamber Materials | 1．Inner chamber materials：SUS stainless steel plate 2．External chamber materials：Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating. 3．Insulation material: aluminum silicate glass wool 4．The clapboard Material: Stainless Steel 5．Stainless steel electric heater Material: fin heat pipe type 6．Time control: 0 ~ 999H/M/S adjustable. 7．The rmometry body: T thermocouple | ||||
Air Supply Method | Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door. | ||||
Use of The Environment | Allowable temperature range of 0 ~ 35 ℃ | ||||

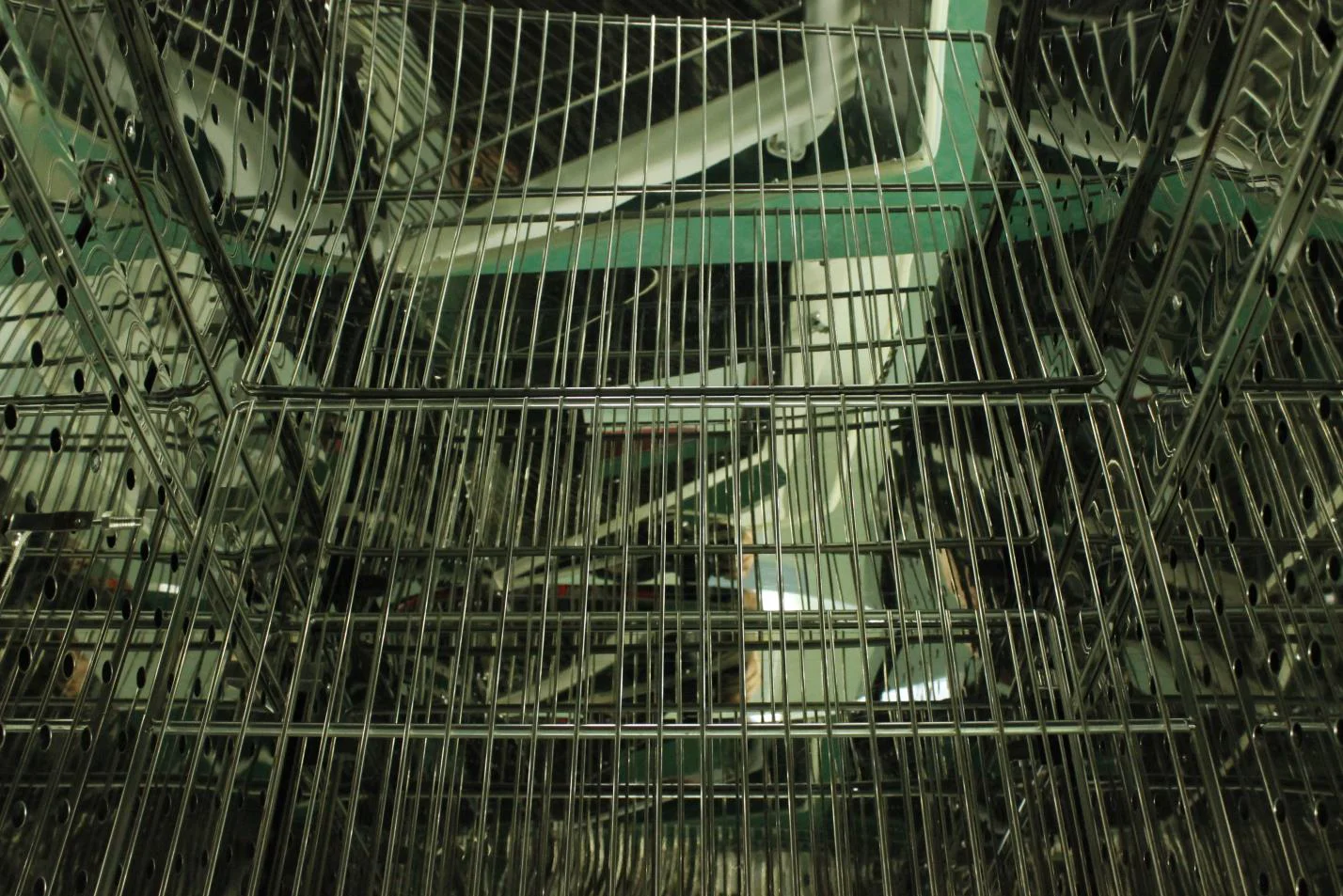

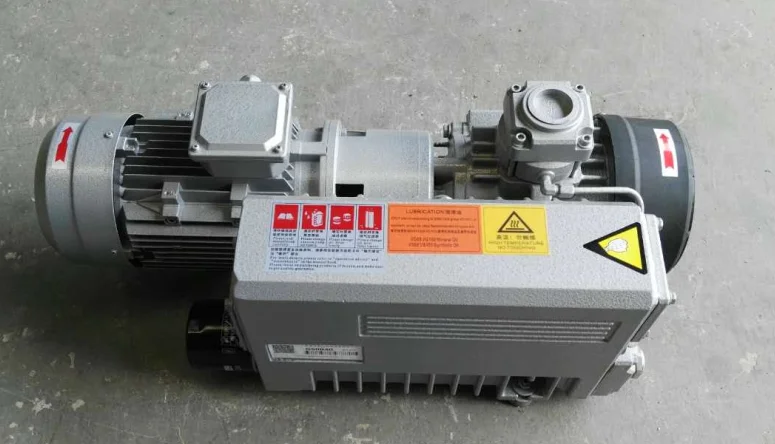

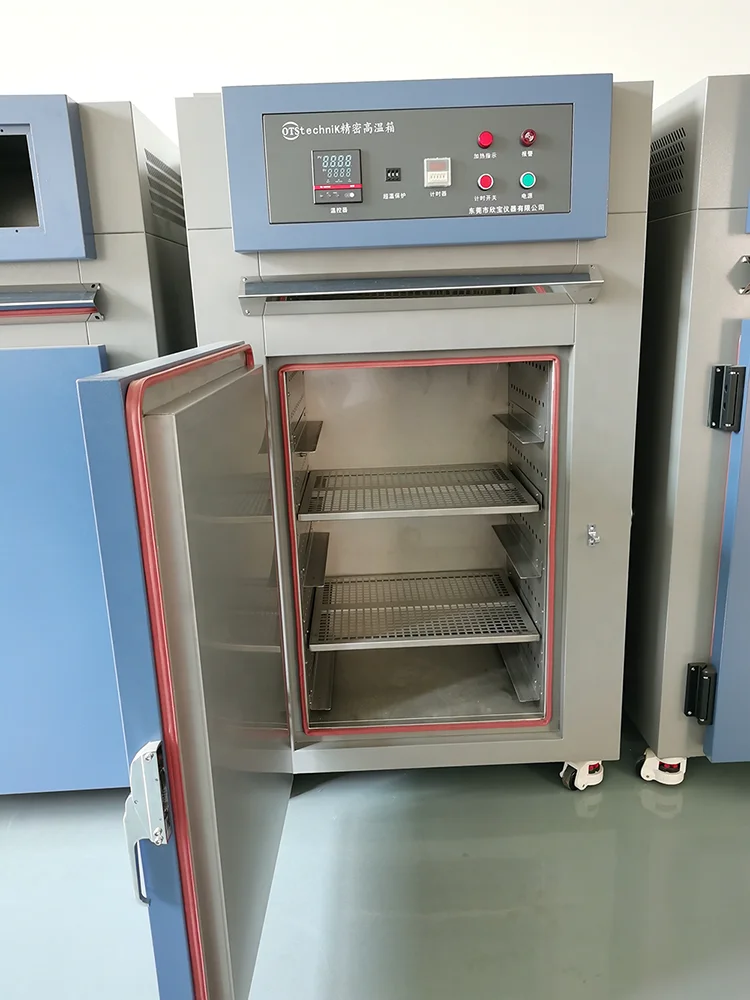

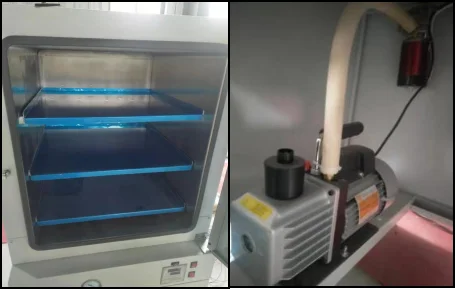

Details Images
Spare Part List
NO. | Name | Spec | Brand |
1 | Thermal Fuse | 4KW 4pcs*1.2MM | Weide |
2 | Temp sensing wire | 2M | Weide |
3 | Motor | ¢14 1/2P220V | Tonghe |
4 | Wind turbine | 7.5”B向¢14 | |
5 | Temp controller | 9620# | Junuo |
6 | Overheat protector | 400℃ | Chaoneng |
7 | Timer | DH48S-2Z | OMRON |
8 | Indicator | ¢22 220V | |
9 | Alarm | ¢22 220V | Keda |
10 | Power switch | Ship feet type | Keming |
11 | Solid relay | 60A | Yangming |
12 | A.C.contactor | 1810 /2510 | Zhengtai |
13 | Thermal protector | 2.5A-4.3A | Zhengtai |
14 | Fusehold | FS-101 | |
15 | Cooling fin | 1 Ø |
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Product packaging
Company Profile
Certifications
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or sky video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
