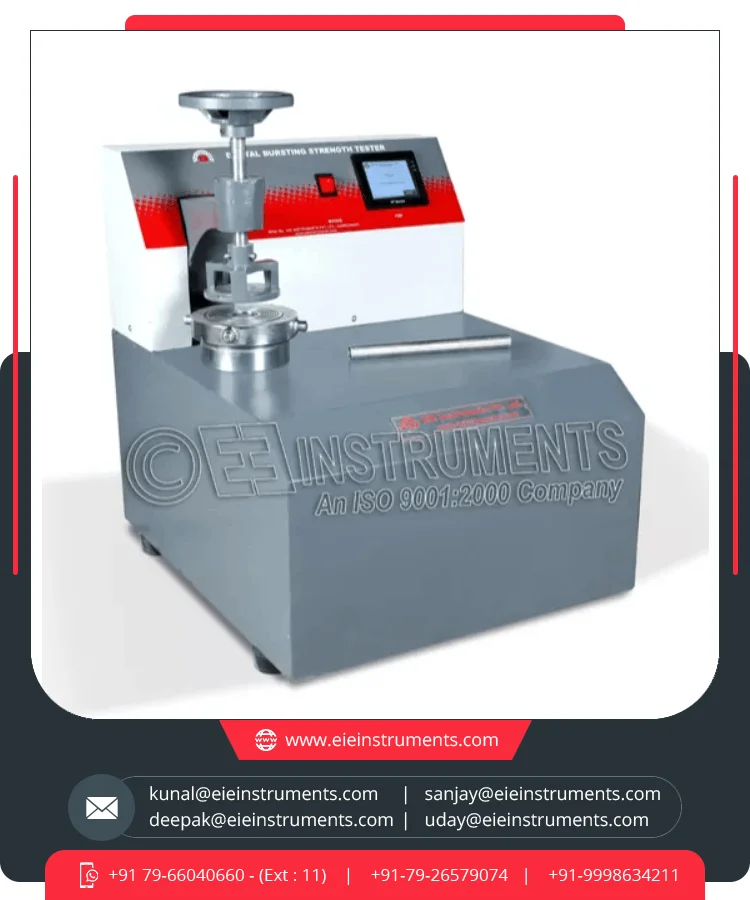

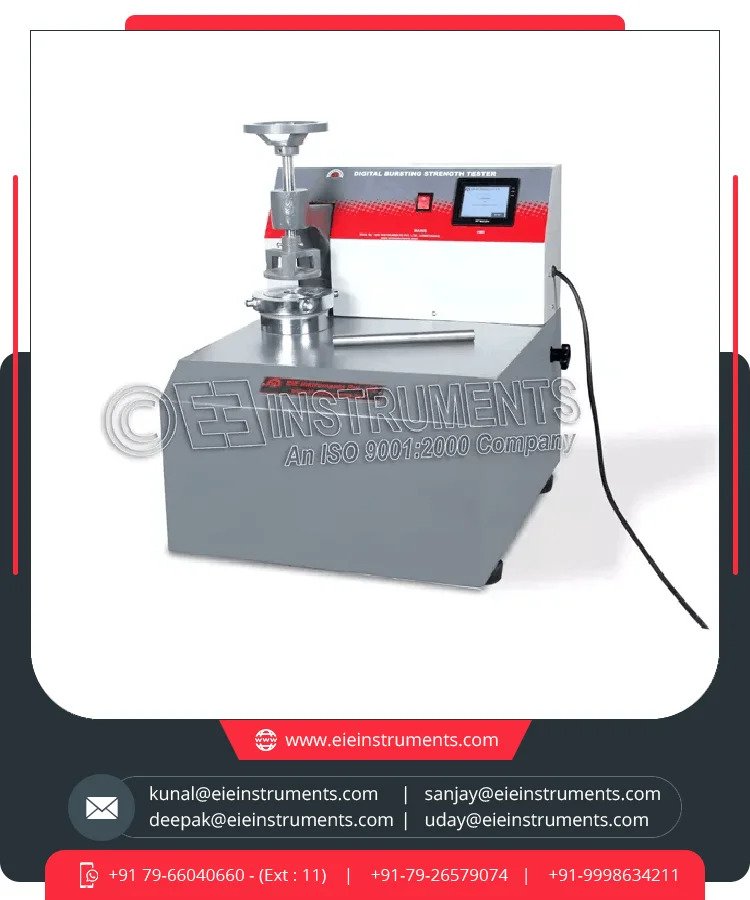

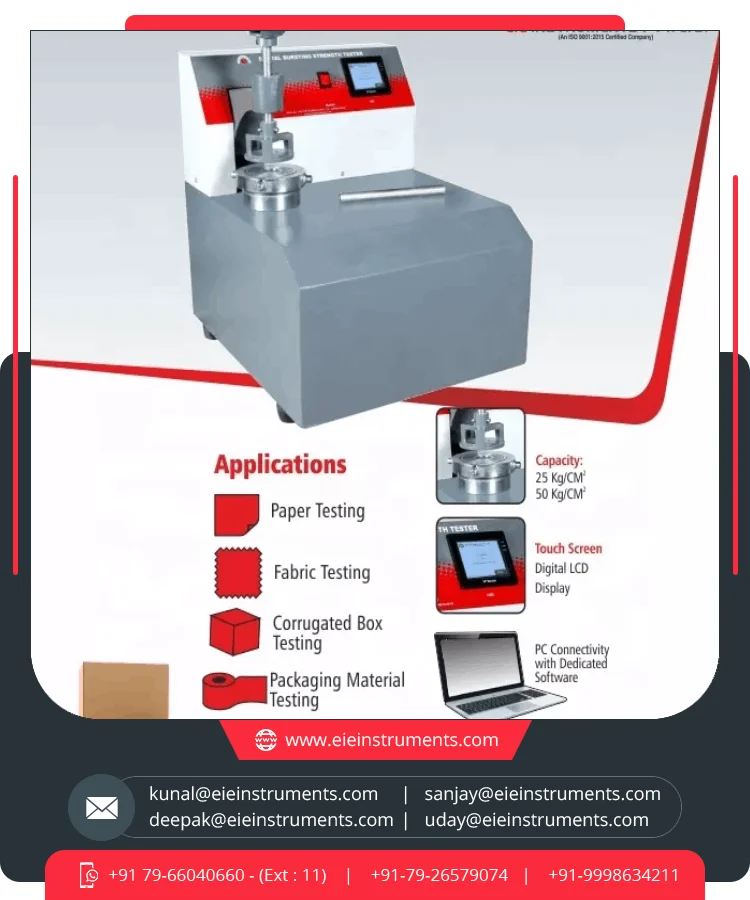

Bursting Strength Tester Digital Mullen Bursting Strength Tester for Paper Bs & Bf Testing Machine Bursting Strength Tester
- Category: >>>
- Supplier: EIE INSTRUMENTS PRIVATE LIMITED
Share on (11000006039862):
Product Overview
Description
Product Description
Compliance Standards
ISO 2758, 2759, 2559, 3303, 3689, BS 3424, 3137, ASTM D3786, D774, D2738, T810, T403
Salient Features
- Proven and reliable performance
- Scientifically calibrated through our own In-House calibration laboratory
- Sturdy in construction
- Noise-Less functioning
- Stepper motor with automatic fluid pump
- Logical detection of sample failure
- Capacity : 25kg/cm2 or 50kg/cm2
- Display resolution : 0.1 kg/cm2
- Unit selection : kg/cm2, PSI, Bar
- Stores data upto last five readings
- Gives Average Value, Min Value & Max value of Performed results
- Also, gives readings for BS (Bursting Strength) & BF (Bursting Factor)
- Reset function to initiate new batch testing
Selection Guide
Type of Heads | HMI Touch Screen & PLC Controller based Fully Automatic Model | Microprocessor Based Digital Controller - Economy Model | Manual Bourdon Type Pressure Gauge Model | ||
Single Head | PT-101SH25FA | PT-101SH50FA | PT-101SH25DE | PT-101SH50DE | PT-101SH25M |
Dual Head | PT-101DH10/25FA | PT-101DH10/50FA | PT-101DH10/25DE | PT-101DH10/50DE | PT-101DH10/40M |
Note:SH : Single Head, DH :Dual Head, FA : Fully Automatic, DE : Digital Economy, M :Manual Pressure Gauge
Optional accessories
- Pneumatic clamping mechanism
- DOT-Matrix printer
- PC Software
- Standard aluminum foil
- Rubber diaphragm
