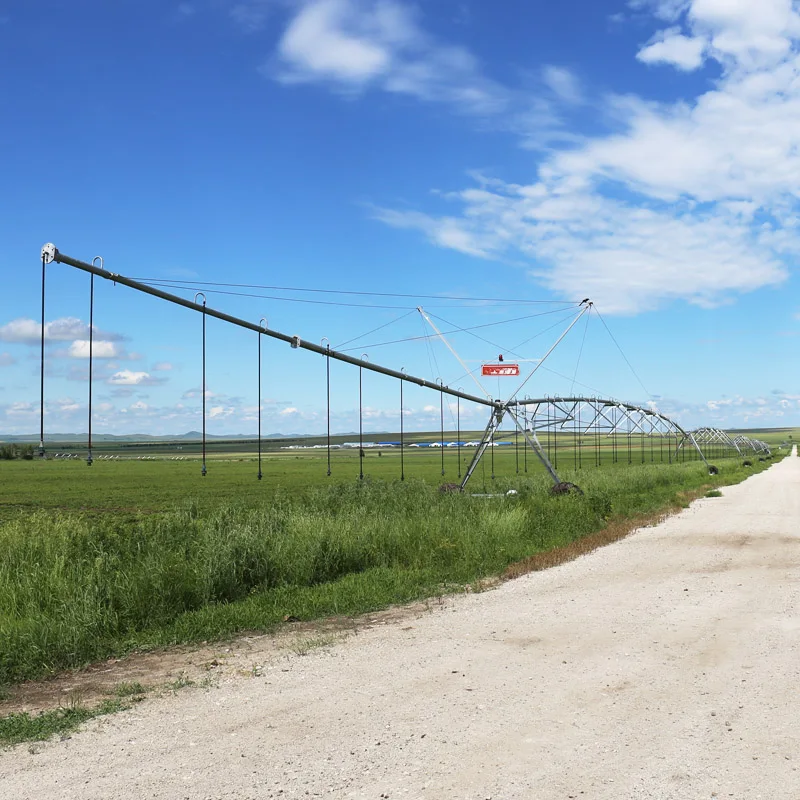

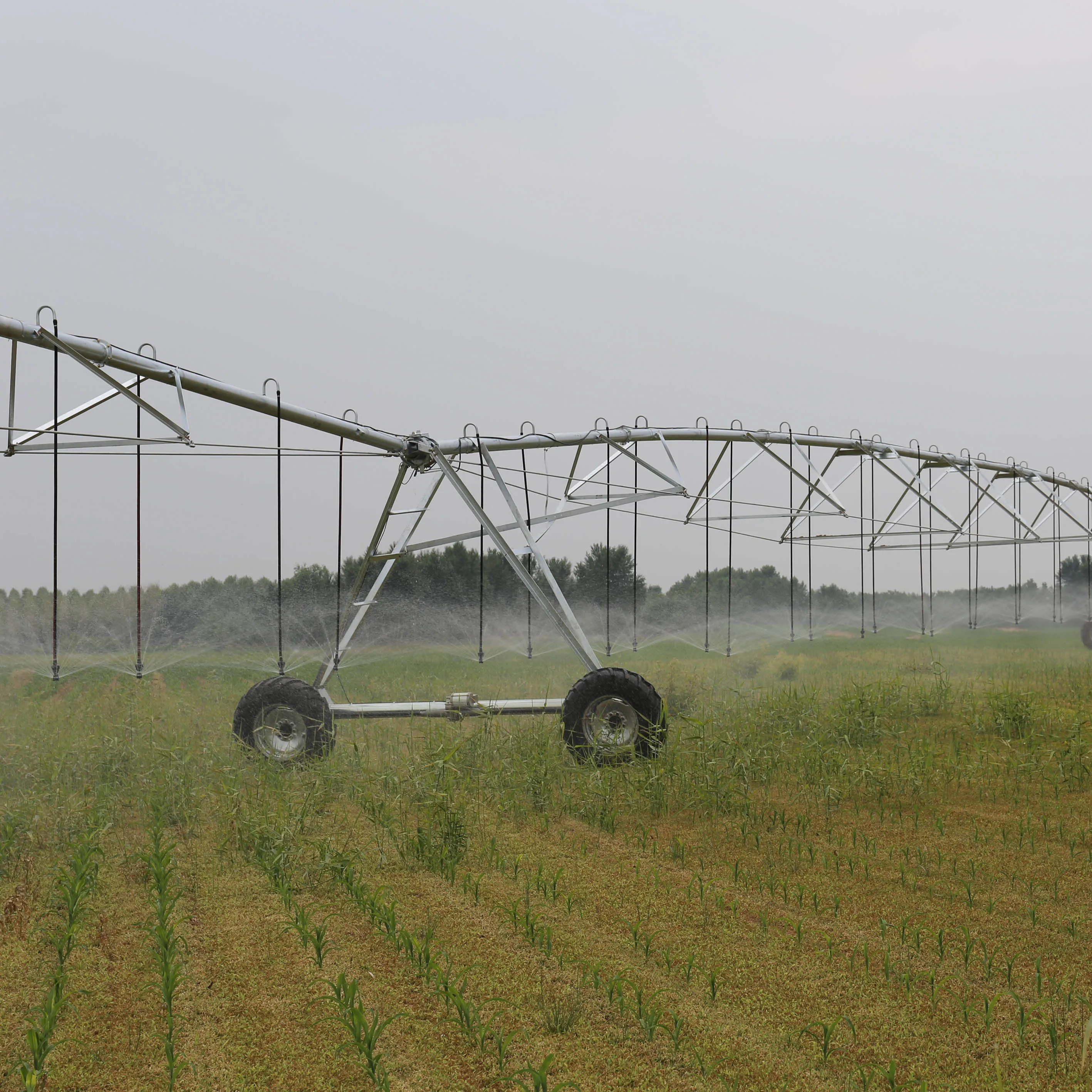

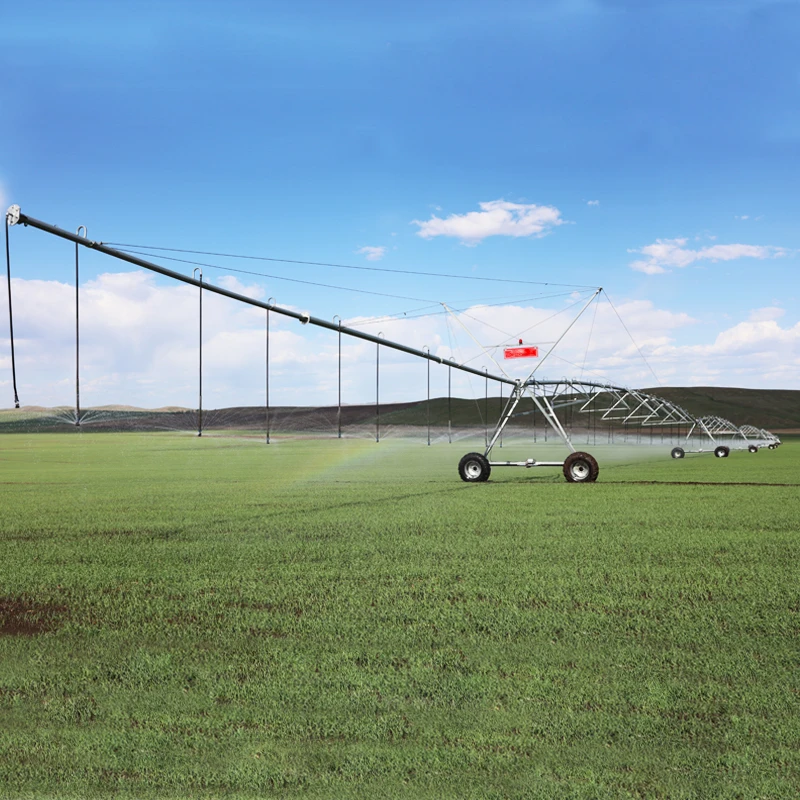

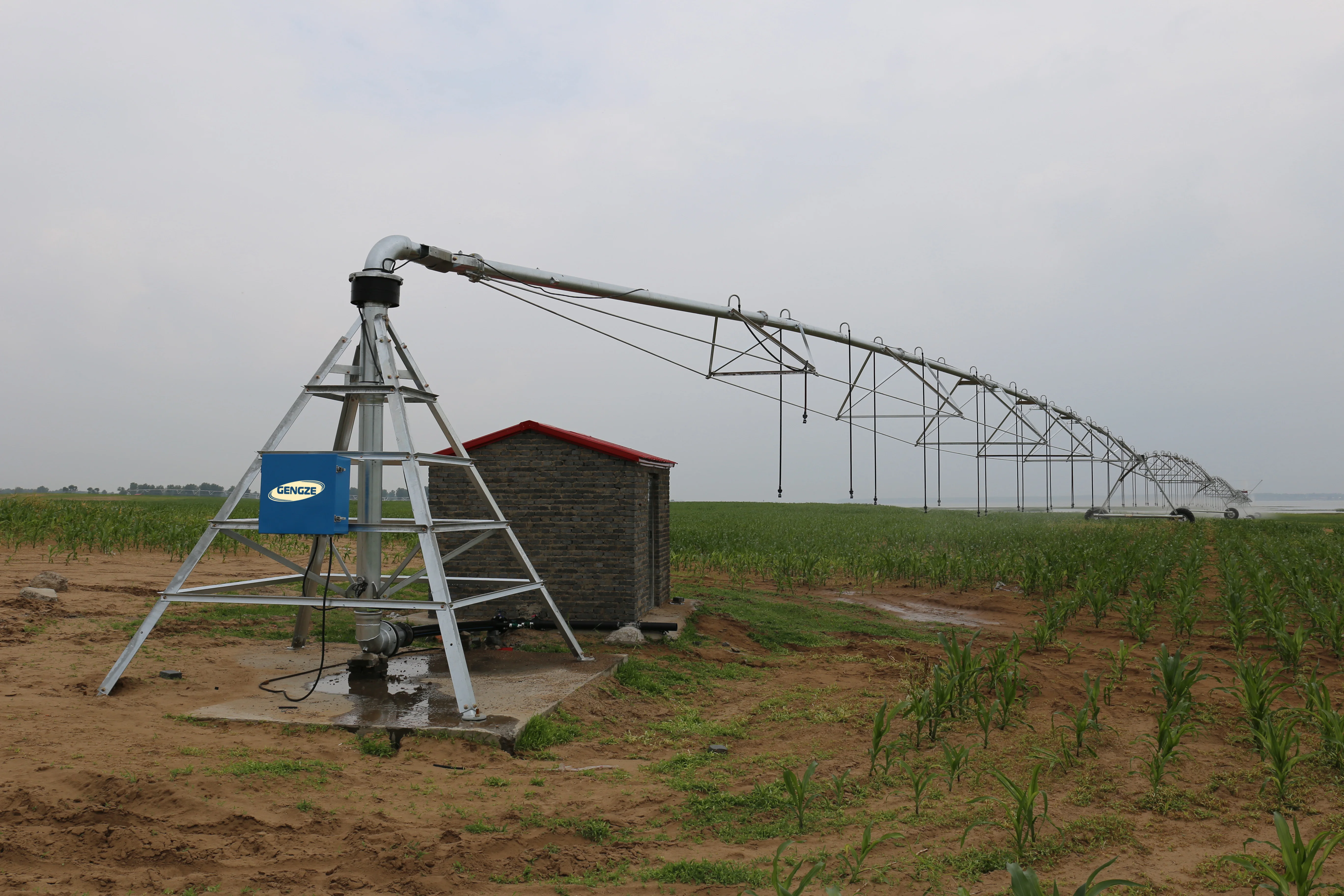

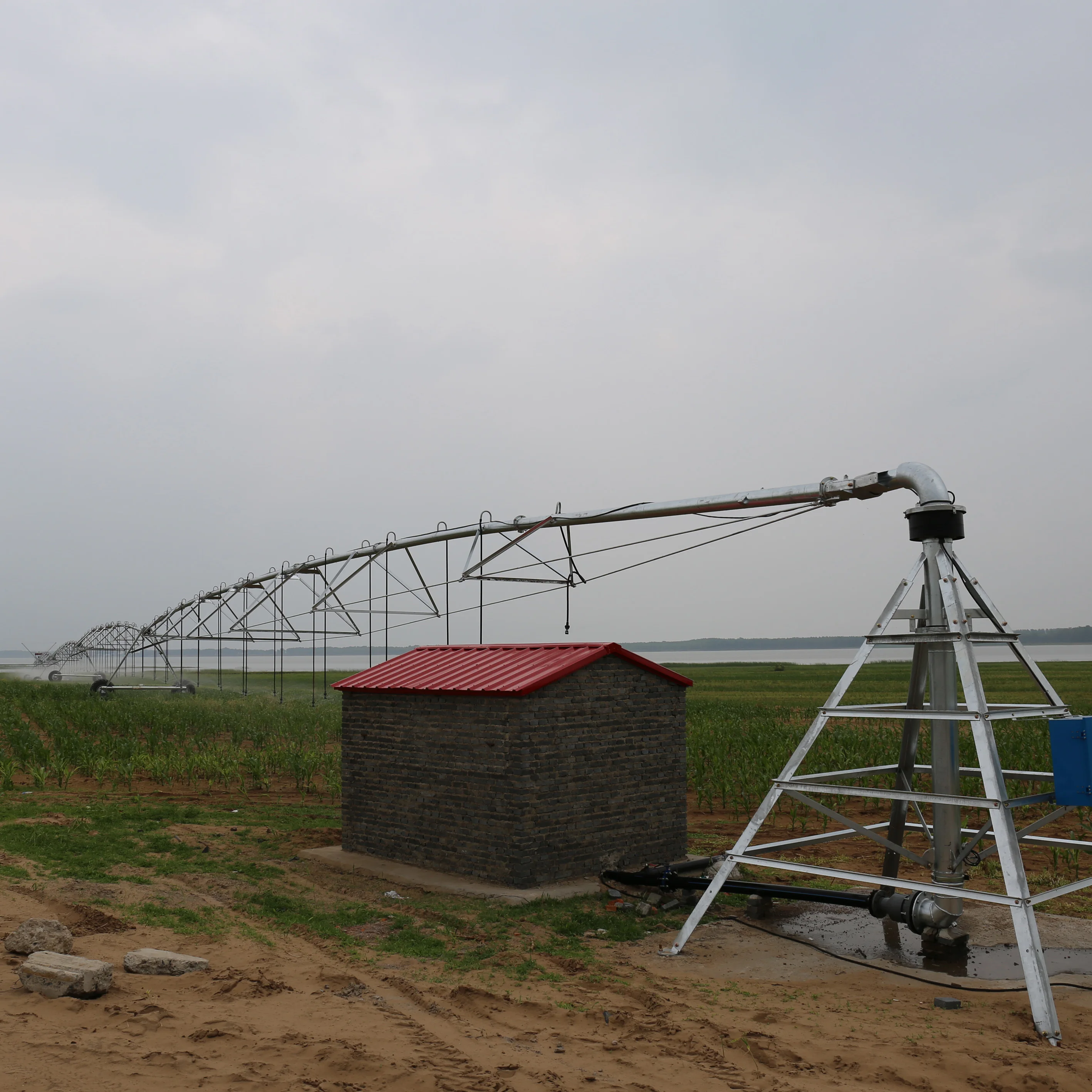

Farm sprinkler pivot irrigation system Center pivot irrigation machine
- Category: >>>
- Supplier: Dalian Gengze Agricultural Equipment Manufacturing Co. Ltd.
Share on (11000006060330):
Product Overview
Description
Product Description
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Farm sprinkler pivot irrigation system Center pivot irrigation machine
Can be operated on a various terrains such as deserts, flood plains, flat land and rolling hills and on a varieity of crops such as rice, patato, sugar cane, etc.
Gengze designs the irrigation system according to your specific climatic, topographical and cropping coonditions that maximizes time,labor and water savings for your induvidual needs.
Contact:Sharon
Whatsapp/Wechat/Tel:0086 13941148339
Farm sprinkler pivot irrigation system Center pivot irrigation machine | ||
Pipeline Diameter | 141mm, 168mm, 203mm, 254mm | |
Pipeline Material | Hot-dip galvanized pipe, Steel 304 pipe ： Option: with poly span inside | |
Pipeline Thickness | 3.0mm | |
Pipe Length | 6.7m | |
Span Length | 61.3m, 54.5m, 48m, 41m | |
Maximum Machine Length | 1200m | |
Overhang Length | 22ft=6.7m/pc, not more than 3pcs | |

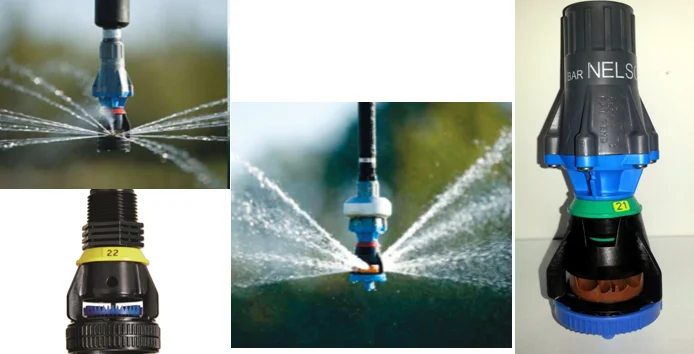

Sprinkler | Nelson D3000/R3000 | |
Working Voltage | 380-460V/50-60HZ: powered by Diesel generator or local power supply | |
Truss Diameter | 22mm,19.1mm,17.5mm( 61.3m:22mm; 54.5m&48m: 19mm; 41m&34m:17.5mm ) | |
Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology | |
Irrigation intake pressure | 0.25-0.35Mpa | |
Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure | |
Tire Options | 11.2x22.5; 11.2x24.5; 11.2''x24''; 14.9x24'' | |

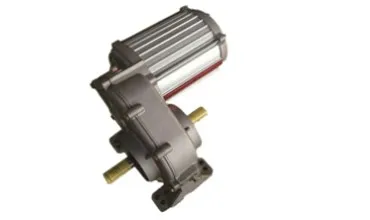

Motor/Gearbox | American brand | |
Motor power | 0.75/1.5 HP | |
Span body tower structure | Adopt V model tower | |
Control Panel | Digital control or PLC | |
End Gun | Option: 35--45m | |
Details Images

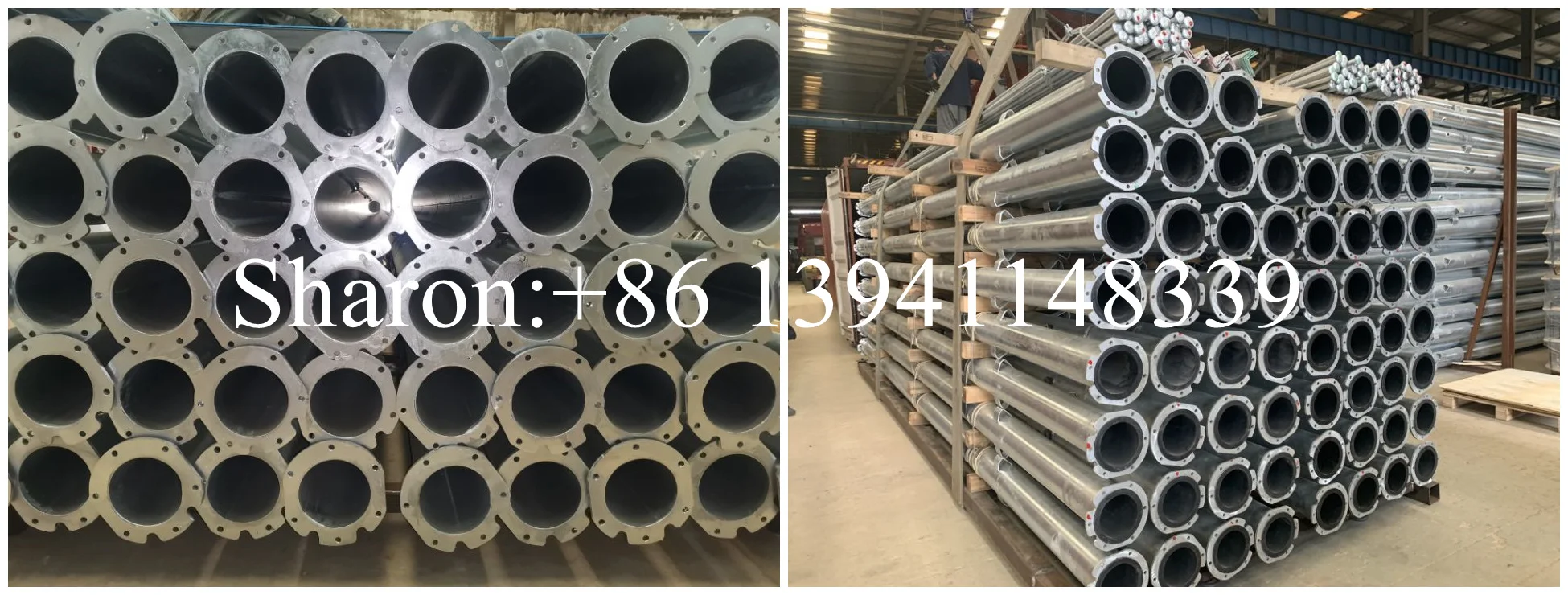

Hot-dip galvanized pipe
Rrubber liner-hot-dip galvanized pipe

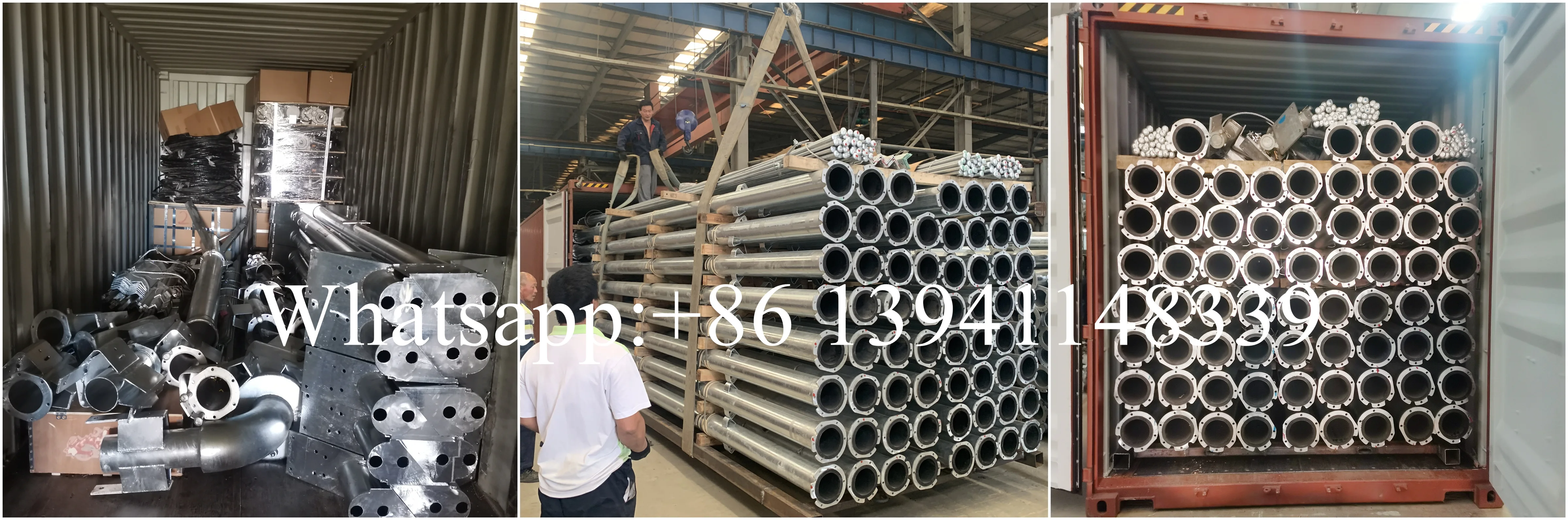

Product Packaging

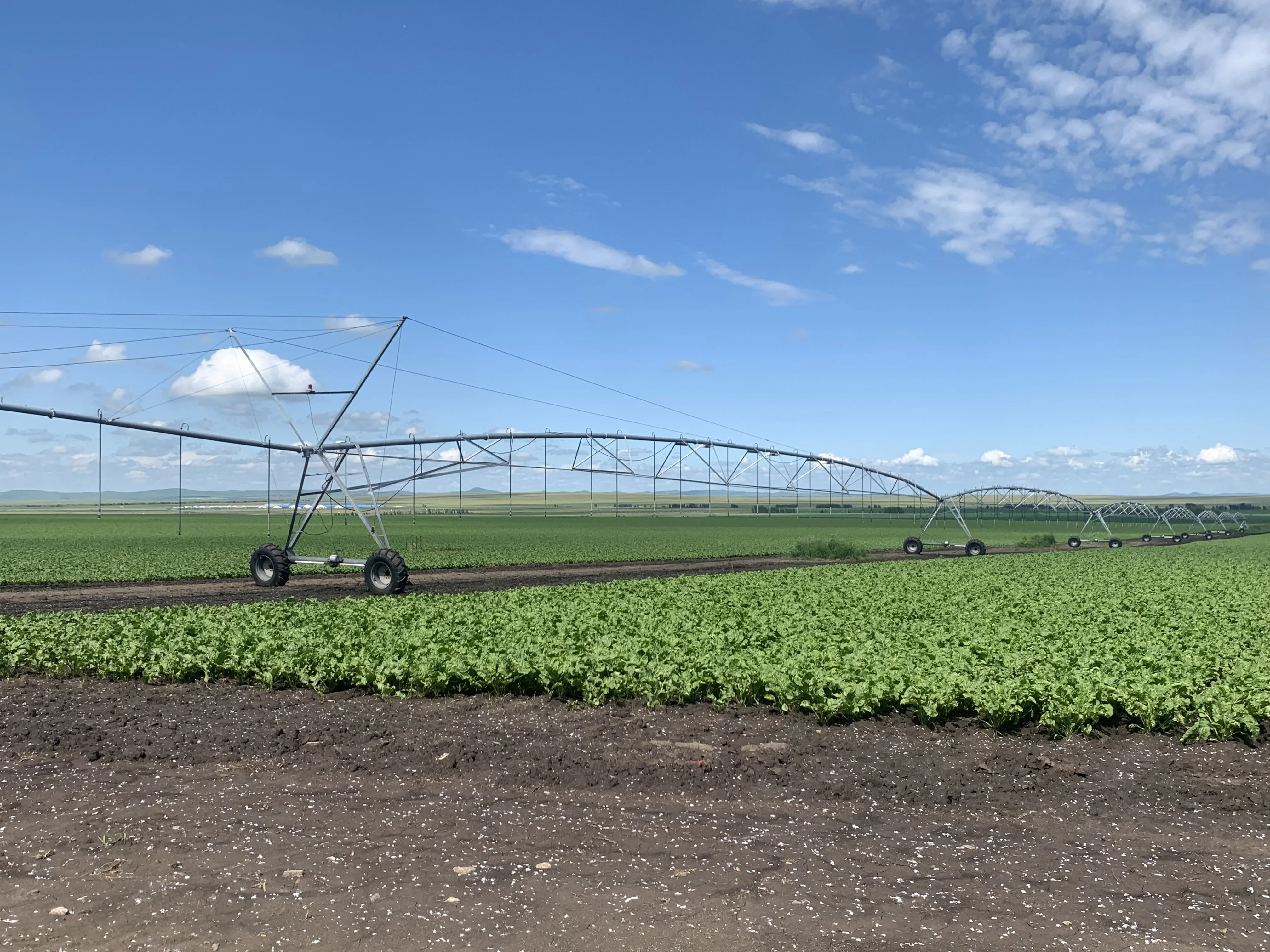

Installation
Related products
Company Profile
FAQ
1. What about the MOQ?
- 1 set (at least 2 spans)
2. There are many similar unqualified products in the market, how can you make sure your quality control?
- We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
3. What’s your accepted payment terms?
- T/T or LC
4. How many sets machine can be loaded in a 40ft container?
- About 1set with 500m or 2sets with 250m.
5. Whether you can support customized logo?
- OEM service is available.
6. How many years warranty you can support?
- One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
- 1 set (at least 2 spans)
2. There are many similar unqualified products in the market, how can you make sure your quality control?
- We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
3. What’s your accepted payment terms?
- T/T or LC
4. How many sets machine can be loaded in a 40ft container?
- About 1set with 500m or 2sets with 250m.
5. Whether you can support customized logo?
- OEM service is available.
6. How many years warranty you can support?
- One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
