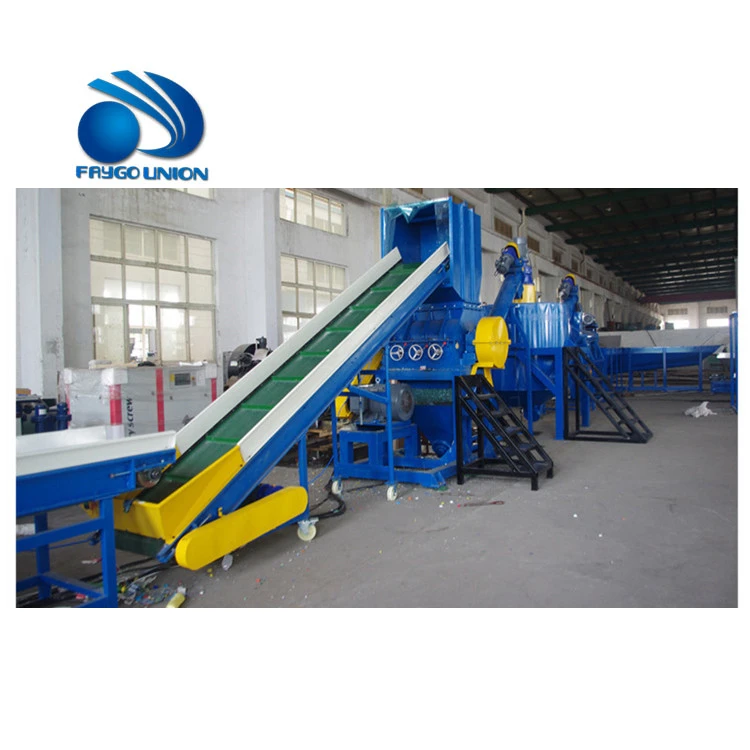

FAYGO UNION 500kg/h PET bottle crushing washing drying recycling line PET recycling plant
- Category: >>>
- Supplier: Jiangsu Faygo Union Machinery Co. Ltd.
Share on (11000006079466):
Product Overview
Description
Products Description

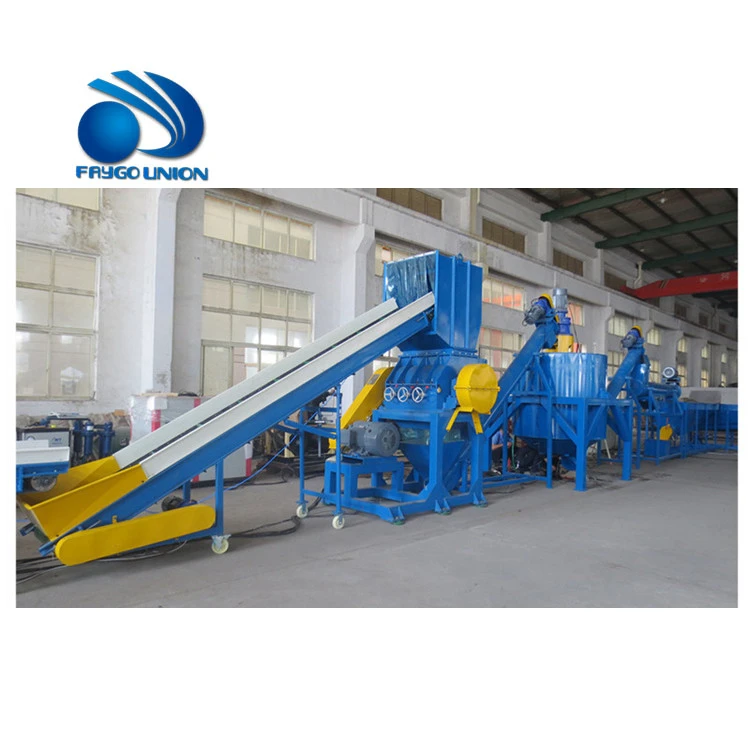

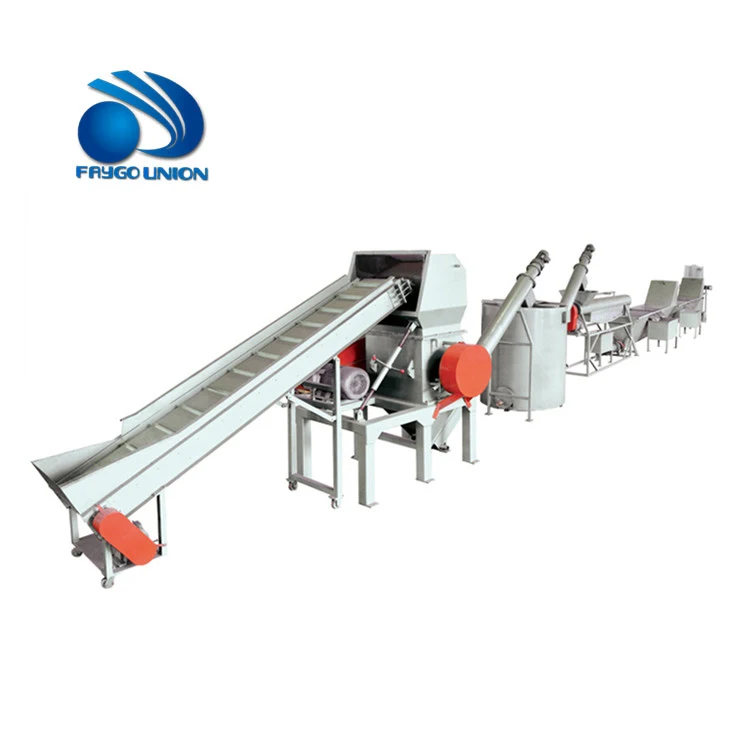

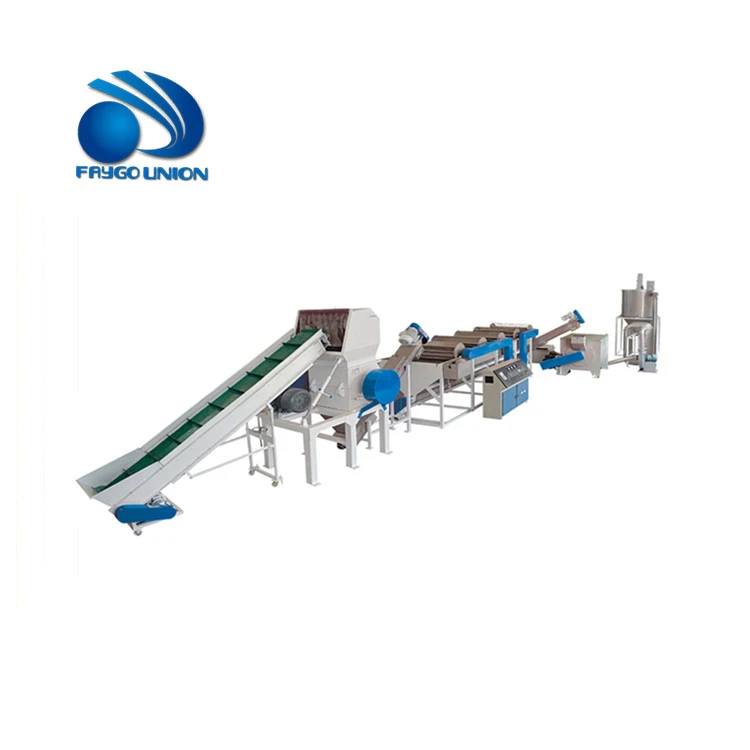

Waste Plastic Recycling Line
1. High automatic degree, clean finished flakes, lower energy consumption and long life time.
2. It includes belt conveyer, crush, steam washing line, cleaning machine, dewatering machine, dryness system etc.
3. The whole production line also can process PVC and some other plastic, with full automatic operation.4. PET bottle crushing and
washing line, PP/PE film crushing and drying line, PP/PE/PET granulating recycling line.
2. It includes belt conveyer, crush, steam washing line, cleaning machine, dewatering machine, dryness system etc.
3. The whole production line also can process PVC and some other plastic, with full automatic operation.4. PET bottle crushing and
washing line, PP/PE film crushing and drying line, PP/PE/PET granulating recycling line.
Specification
2.PP/PE film crushing and drying line
With complete pet bottle washing recycling line, clients can make dry,clean PET flake from wasted PET bottles. This pet bottle.
washing recycling line could be "L" or "U" shape according clients' workshop.
washing recycling line could be "L" or "U" shape according clients' workshop.
Technical Parameter
Product capacity | 300kg/h | 500kg/h | 1000kg/h | 1500kg/h | |||
Workshop(L*W*H) | 40m*7.5m*6m | 42m*10m*6m | 70m*12m*6m | 75m*15m*6m | |||
Needed worker | 3-4 persons | 5-6persons | 7-8persons | 10-12persons | |||
Water supply (recycle use) | 2-3ton/h | 3-5ton/h | 7-10ton/h | 10-15ton/h | |||
Final product quality | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 10-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm | ||||||

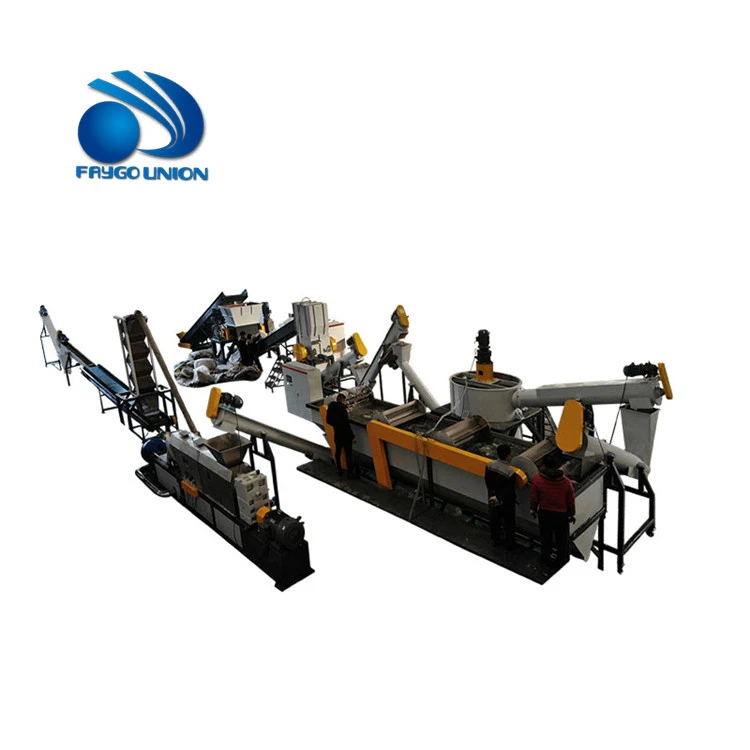

2.PP/PE film crushing and drying line
The productivity could be 300kg/h to 2000kg/h. The complete line should include, conveyer, crusher, conveyer, friction washer,
transit part, rinsing washer, feeding screw, dewater part, drying system, air transit system, hopper.
transit part, rinsing washer, feeding screw, dewater part, drying system, air transit system, hopper.
Technical Parameter
No | Item | Usage | Material |

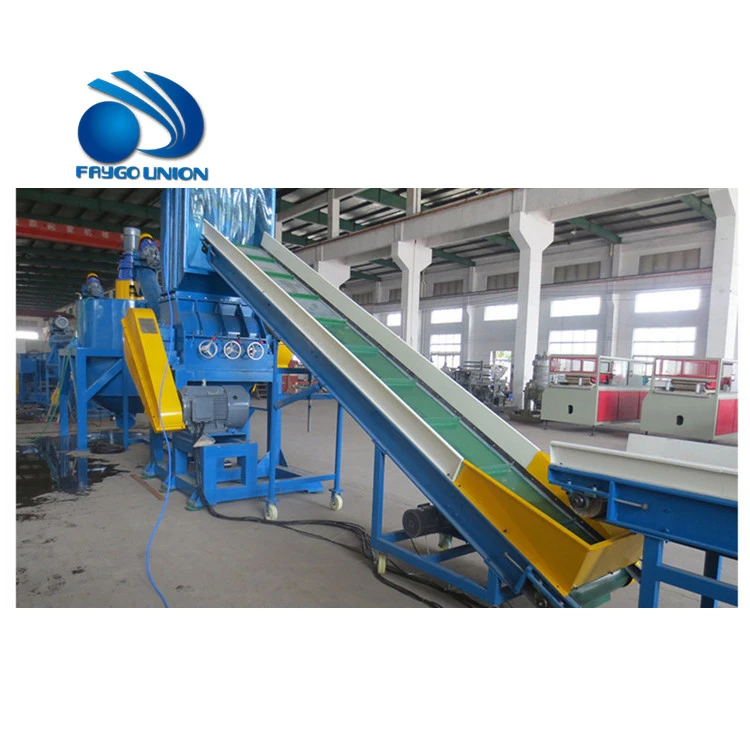

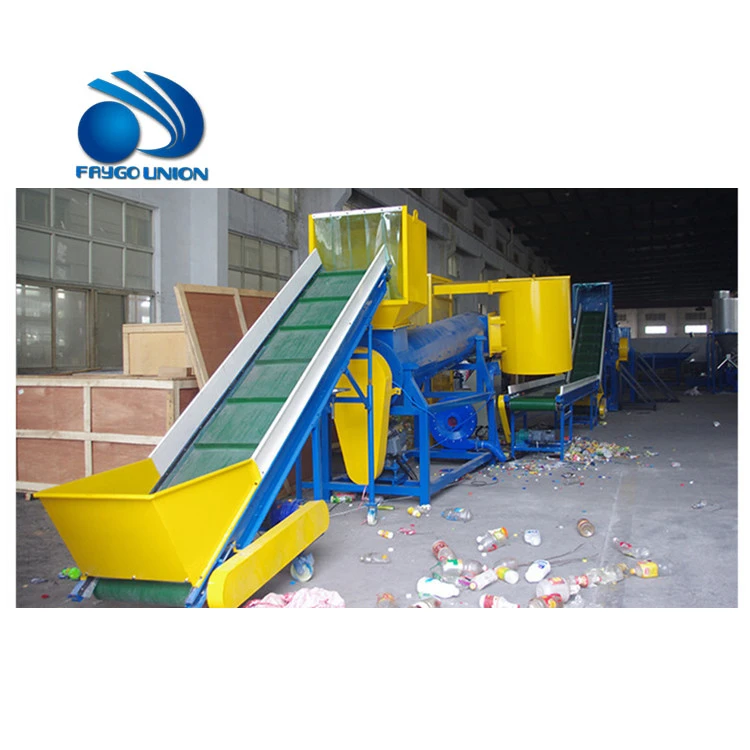

1 | Belt Conveyer | Convey bottle into label separator | Stainless steel |

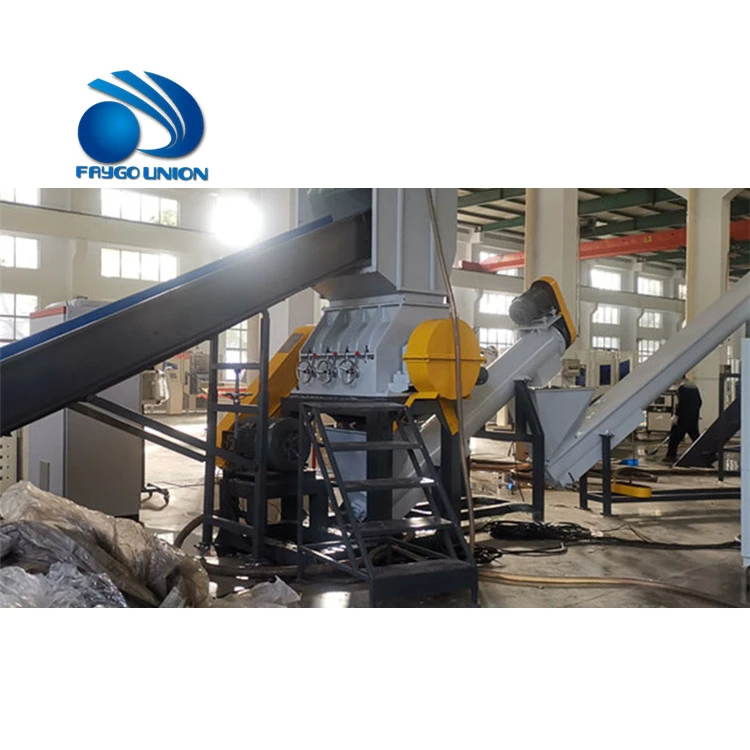

2 | Crusher | Crush the bottle into piece | |
3 | Screw Loader | Feed the PET scrap into friction washer | |

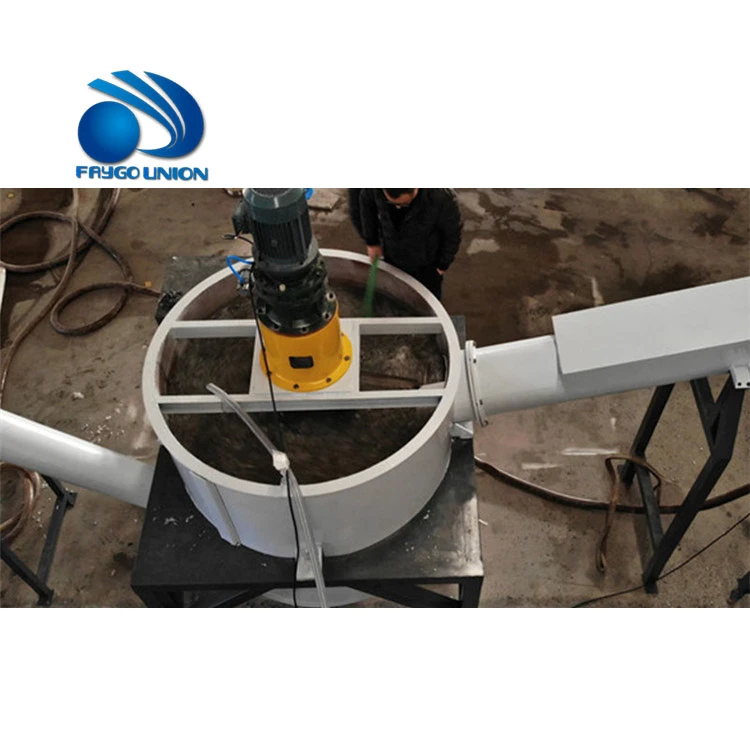

4 | Friction Washer | Hard wash for PET scrap | |
5 | Screw Loader | Transit PET scrap to float washer | |
6 | Float Washer | Washing PET scrap with clean water | |
7 | Screw Loader | Transit PET scrap into dewatering machine | |
8 | Dewatering Machine | Remove the water inside the PET scrap | |
9 | Pipeline Drying Machine | Remove the moisture from the PET scrap | |
10 | Silo | Put the finally clean PET flakes | |
11 | Electrical Control Panel | Control the whole line |

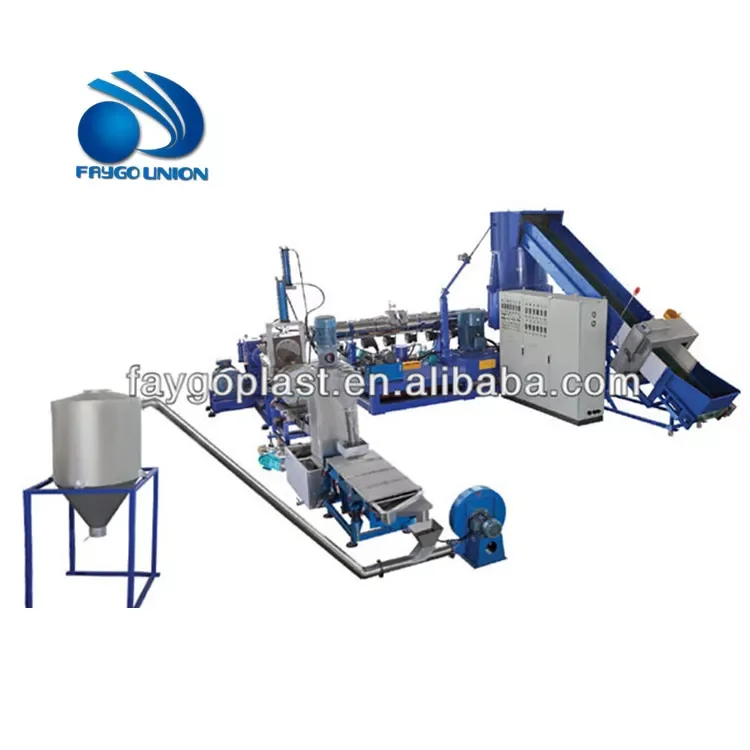

3.PP/PE/PET granulating recycling line
According to different material, we have various PET recycle plastic granules making machine like single/double stage pelletizing
line, strand pelletizing/water-ring pelletizing, force feeder or crushing feeder type pelletizing line. With years experience of pelletizing lines, we can meet clients different needs.
line, strand pelletizing/water-ring pelletizing, force feeder or crushing feeder type pelletizing line. With years experience of pelletizing lines, we can meet clients different needs.
Application

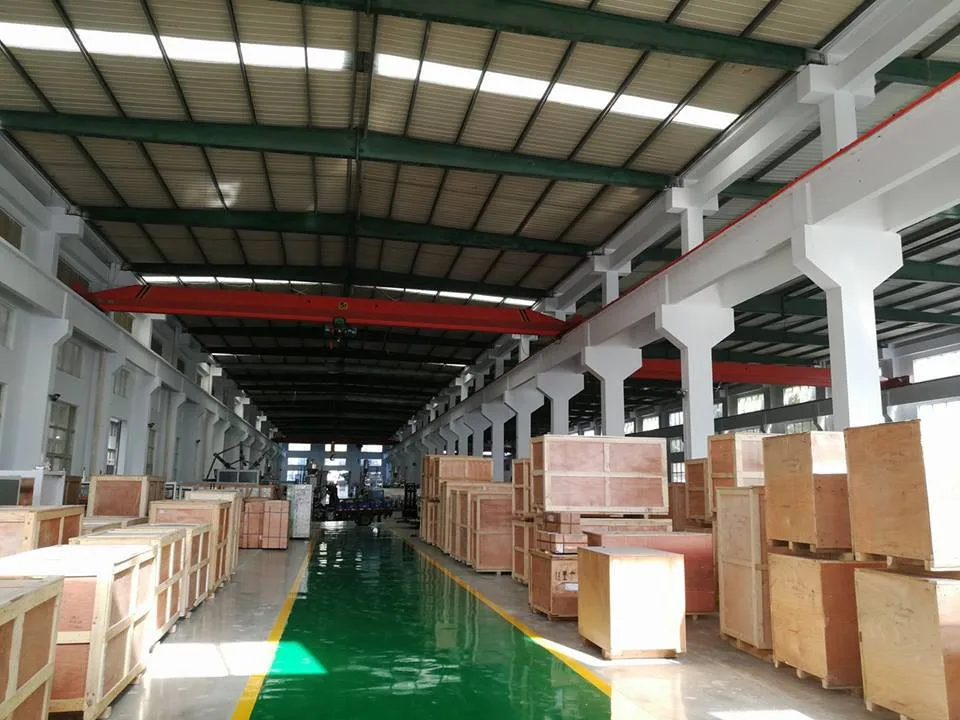

Packing&Shipping
wood case & plastic film packingWe ensure that the machine will arrive safely. Please rest assured.
Certifications & Awards
Eager to get you trust
Jiangsu Faygo Union Machinery Co., Ltd. adheres to the business philosophy of "integrity and win-win", adheres to the customer first and quality, serves customers with science and technology, adheres to technological progress, continuous innovation and continuous surpassing, and has become an enterprise with strength and scale in the rubber and plastic industry.
We will serve you
with the most sincere attitude and the best technology. Your satisfaction is our pursuit.
with the most sincere attitude and the best technology. Your satisfaction is our pursuit.
