Black Cerium Mill grinding 80% zirconia ceramic grinding beads
- Category: >>>
- Supplier: Hunan Kingda Ceramic Materials Co. Ltd.
Share on (11000006101725):
Product Overview
Description
Product Description

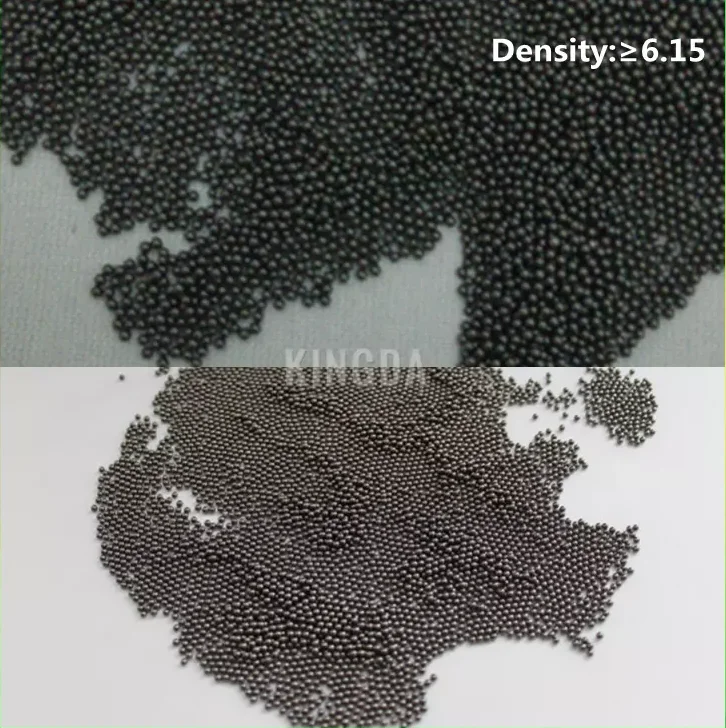

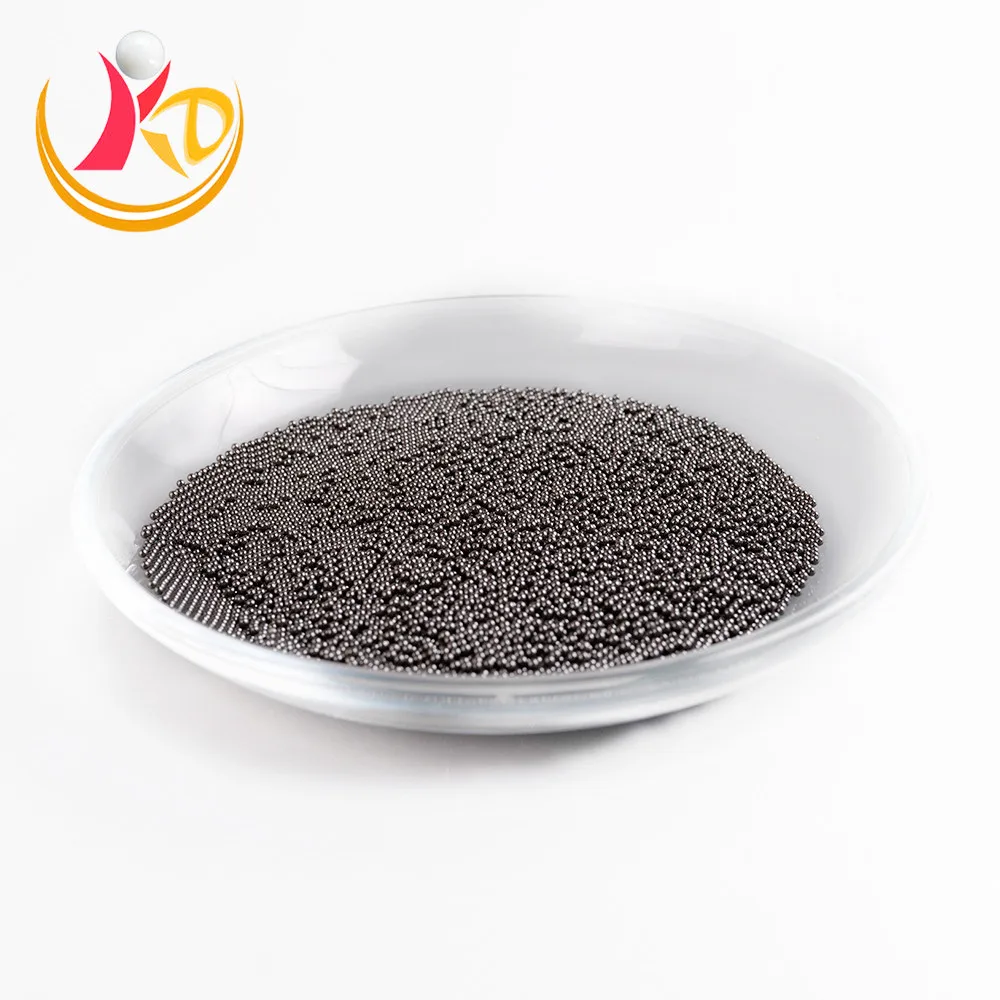

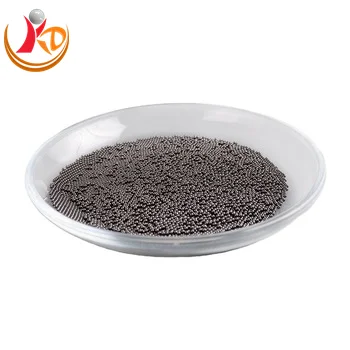

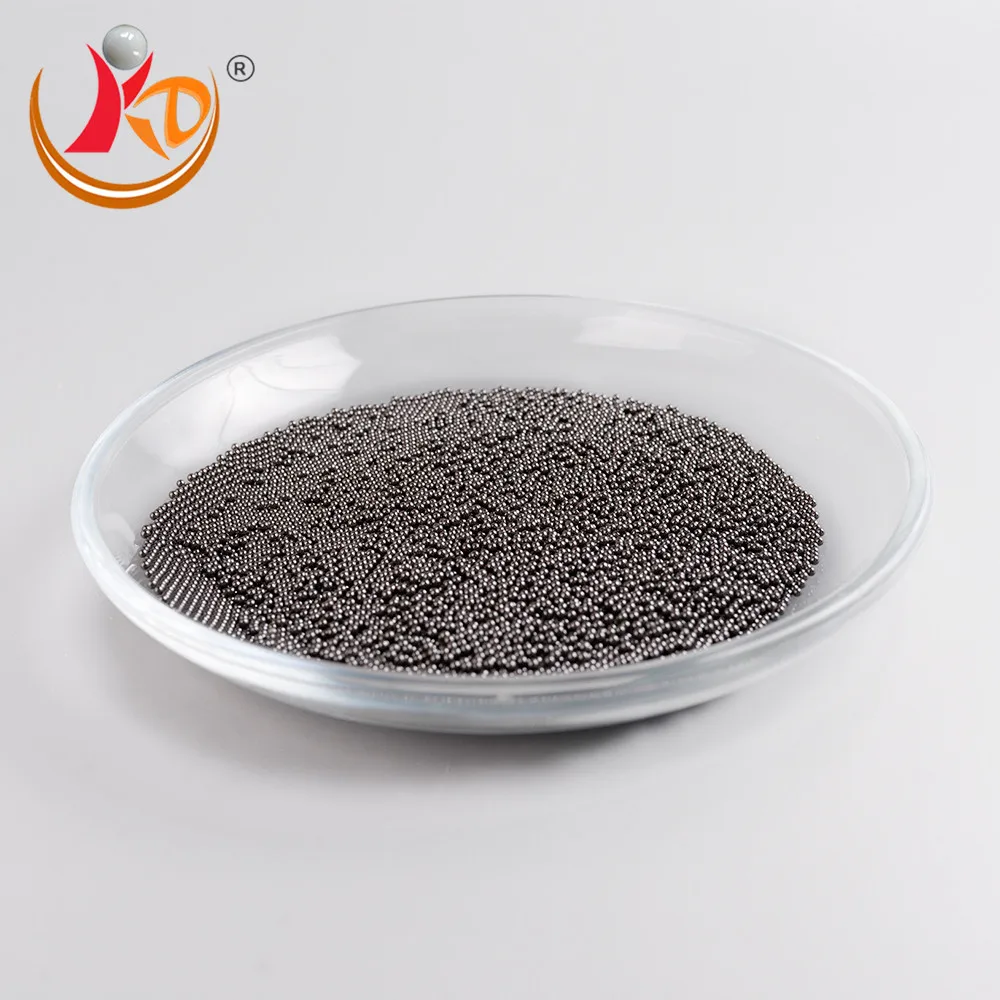

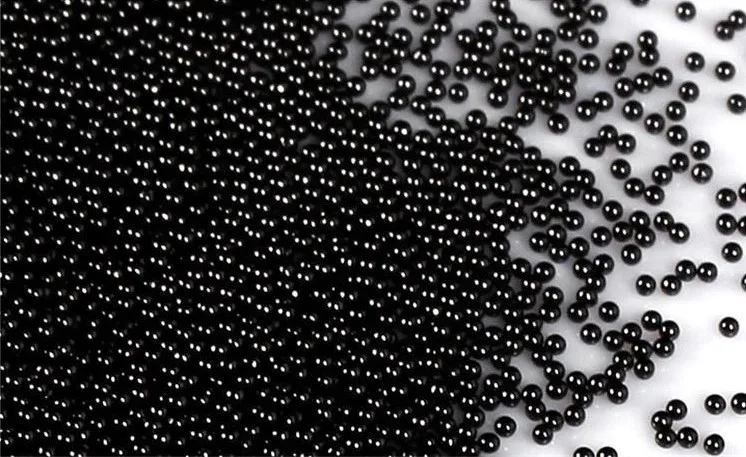

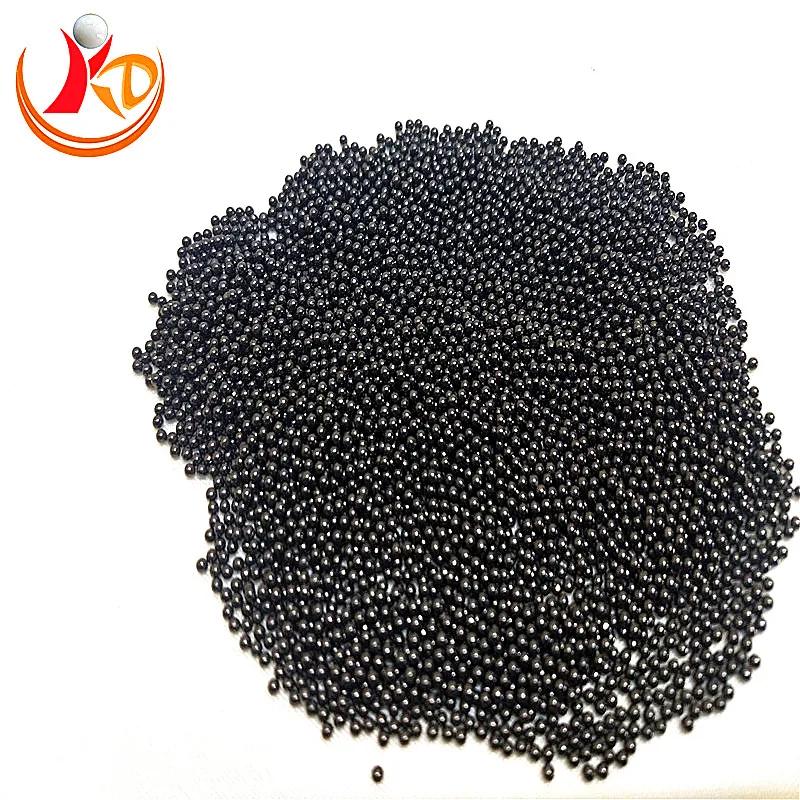

Ceria Stabilized Zirconia Beads
The ceria stabilized zirconia beads are made from a combination of tough, high strength, Tetragonal Zirconia Polycrystal (TZP)materials. These tighter microstructures can enhance wear resistance in the milling process.
Features:
A.High density, super surface toughness, not broken, compact internal structure.
B.The product can be used in the ambient conditions. Whether higher temperature, or higher viscosity, or various chemical liquids,it can be competent all.
C.Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.
Applicable industry:
A.It has high wear-resistance and a black gray color, so there is no contamination caused by the color of beads. It is being used for TiO2 makers that require a true white color.2.
It is suitable for high-efficiency horizontal mills.
B.To prevent pollution: medicine, food, cosmetics.
A.High density, super surface toughness, not broken, compact internal structure.
B.The product can be used in the ambient conditions. Whether higher temperature, or higher viscosity, or various chemical liquids,it can be competent all.
C.Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.
Applicable industry:
A.It has high wear-resistance and a black gray color, so there is no contamination caused by the color of beads. It is being used for TiO2 makers that require a true white color.2.
It is suitable for high-efficiency horizontal mills.
B.To prevent pollution: medicine, food, cosmetics.
Product Paramenters
Chemical Composition: | ||||
Composition | ZrO₂ | CeO2 + Others | ||
Content % | 85~88 | 10~14 | ||
Physical Properties: | ||||||||||
Specific Gravity g/cm³ | Bulk Density g/cm³ | Compressive Strength (Φ2.0mm) | Hardness Hv | Self-Consumption (ppm/h) | Sphericity (%) | |||||
≥6.15 | ≥3.75 | ＞2.0KN | ≥1180 | ＜0.7 | ≥99 | |||||

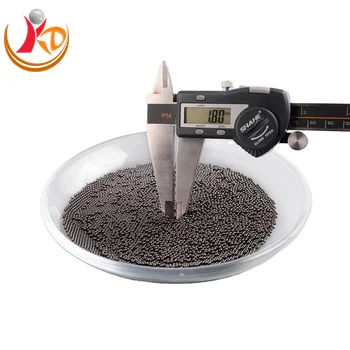

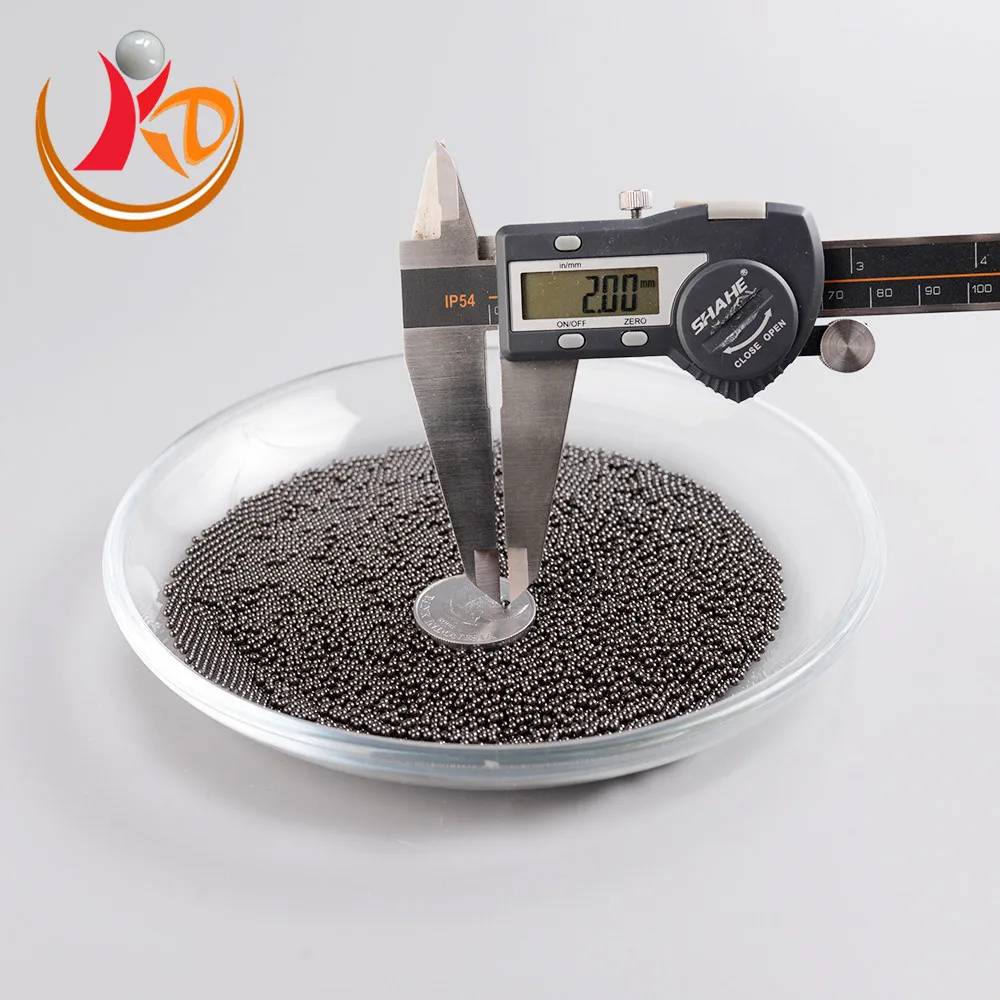

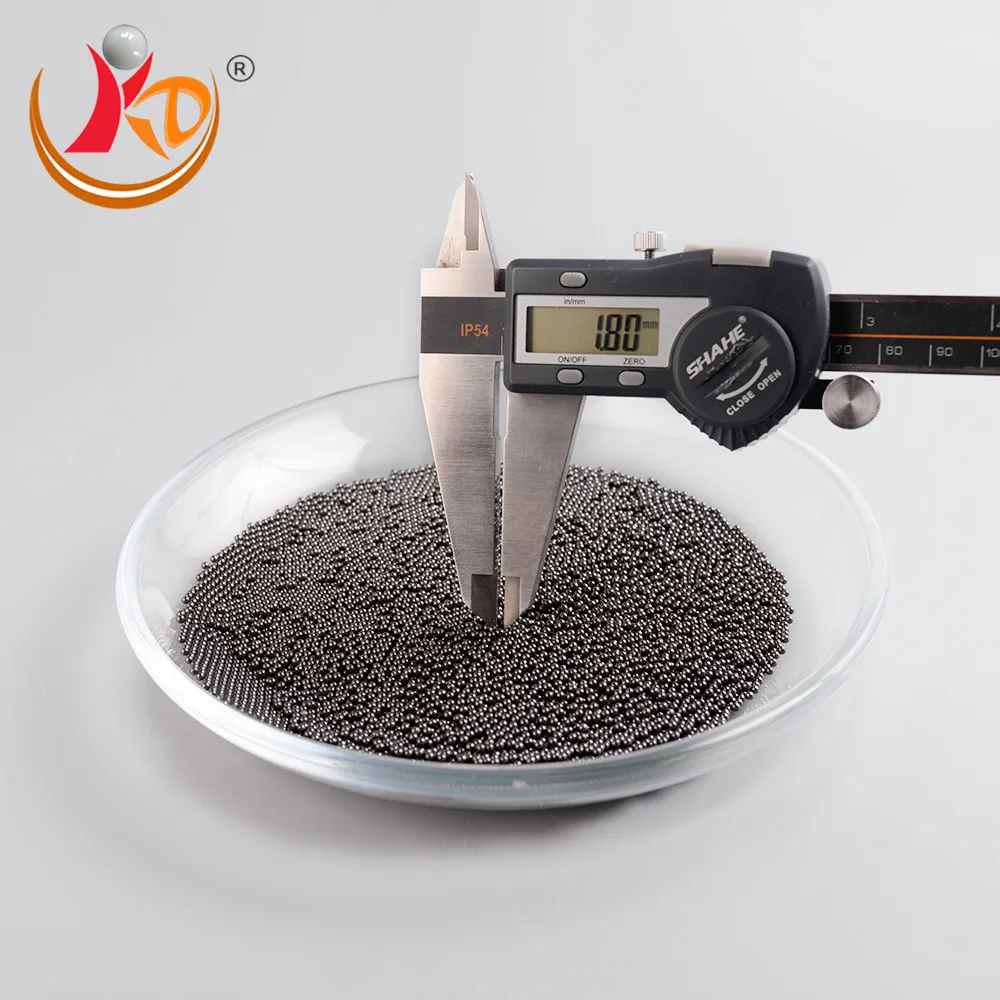

Ball Sizes Φ: | ||||||
Size（mm) | Size（mm) | Size（mm) | Size（mm) | |||
Φ0.3-0.5 | Φ1.0-1.2 | Φ1.8-2.0 | Φ2.6-2.8 | |||
Φ0.4-0.6 | Φ1.2-1.4 | Φ2.0-2.2 | Φ2.8-3.0 | |||
Φ0.6-0.8 | Φ1.4-1.6 | Φ2.2-2.4 | Φ3.0-3.2 | |||
Φ0.8-1.0 | Φ1.6-1.8 | Φ2.4-2.6 | 5, 8, 10, 20. | |||
Factory equipment
The grinding process

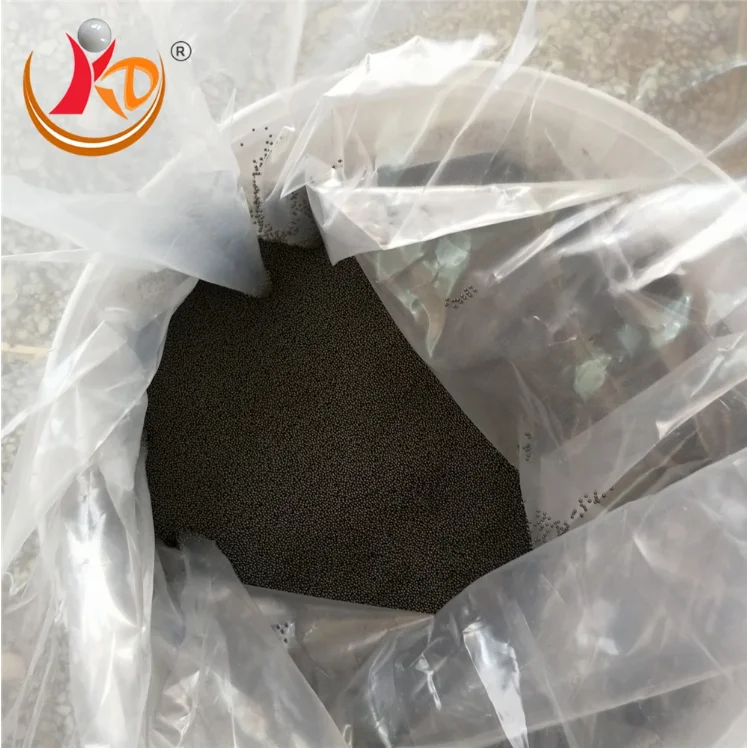

Packaging and delivery
Company Profile
Related products
Main advantage
1.It is one of biggest manufacture to make ceramic grinding media ball in China.
2.SGS, ROHS certificate,Strict quality control system ISO 9001.
3.Professional,Sincerity,Concentration,Honesty,Constant striving for improvement,Mutual Glory.
4.High Quality raw material imported from Australian.
5. Quick-delivery, safe packing
2.SGS, ROHS certificate,Strict quality control system ISO 9001.
3.Professional,Sincerity,Concentration,Honesty,Constant striving for improvement,Mutual Glory.
4.High Quality raw material imported from Australian.
5. Quick-delivery, safe packing
FAQ
1.Q:What's product your company supply?

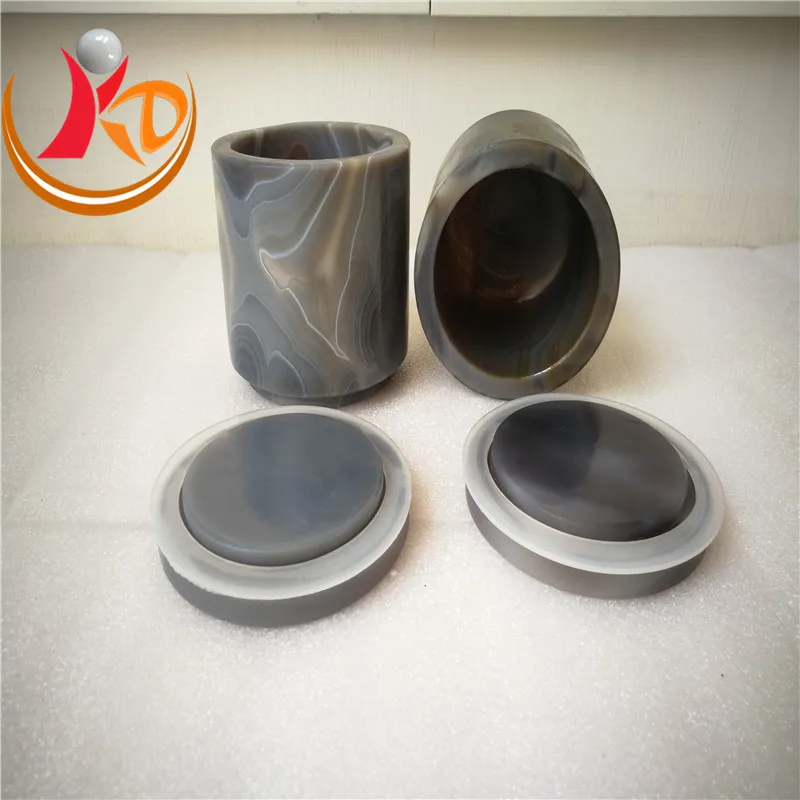

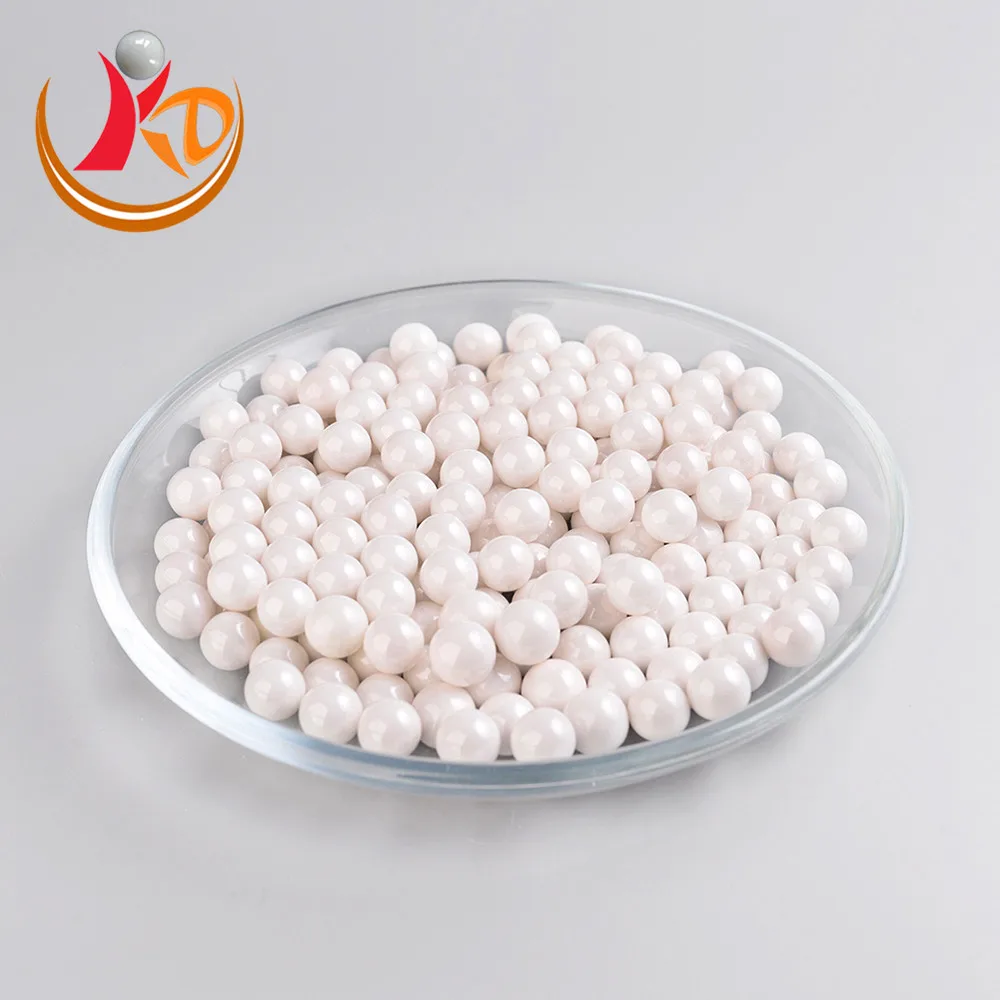

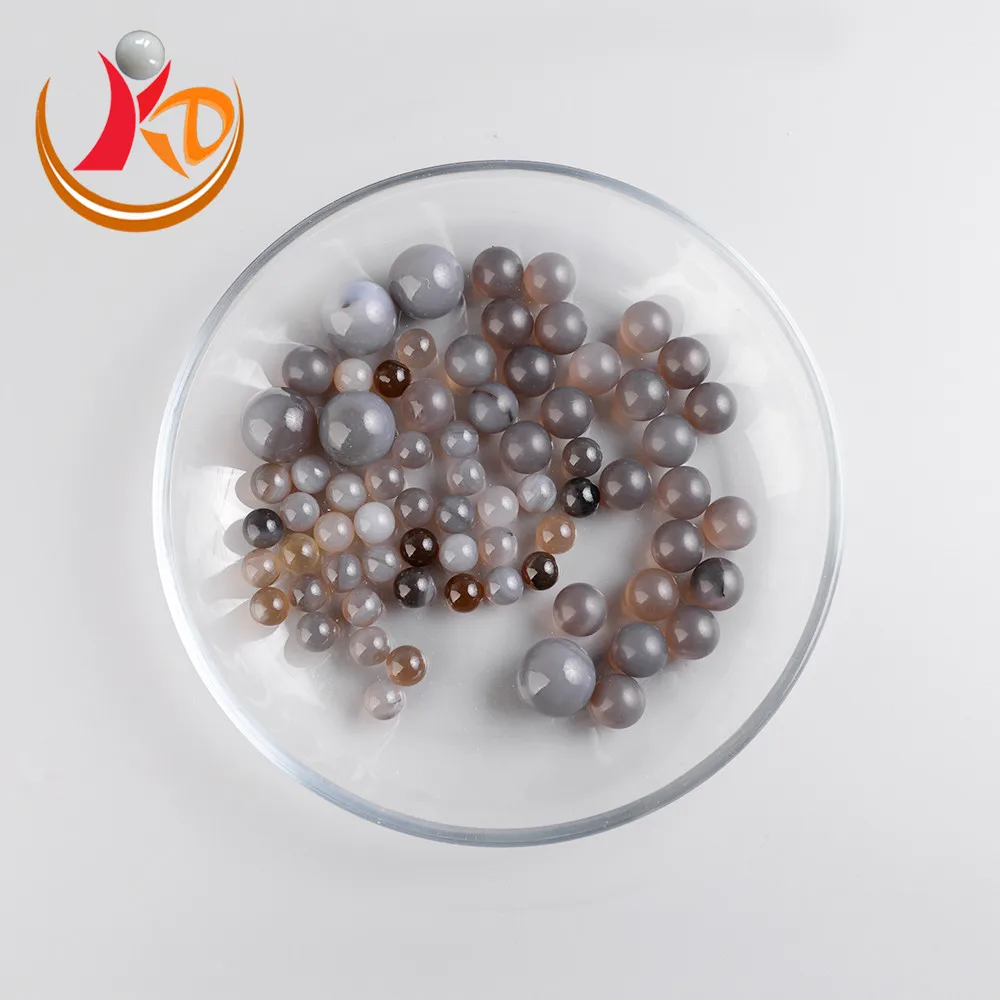

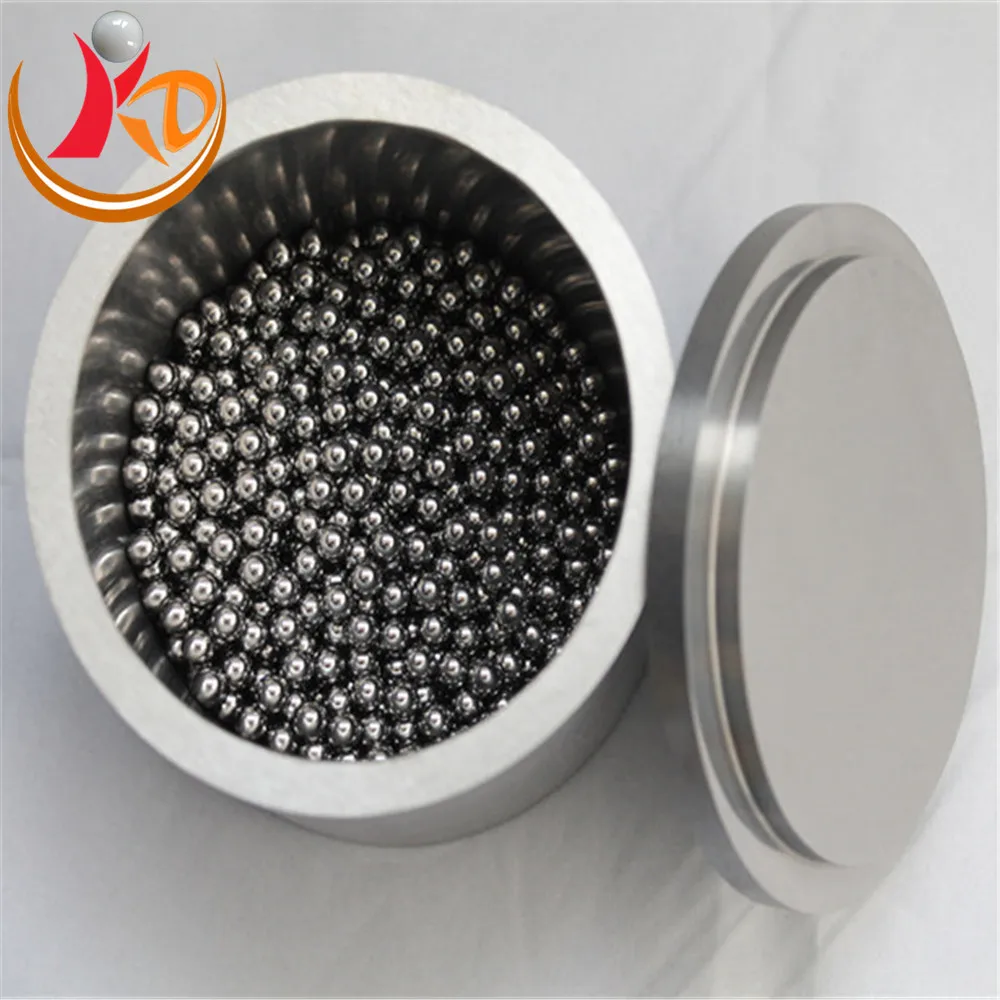

A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball,tungstern carbide ball, ball mill grinding jar,tungsten carbide ball, zirconium powder,ceramic structual elements etc.
2. Q: What is your MOQ?
2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.
3. Q: Can you provide free samples?
3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .
4. Q: What is your production time for bulk order?
4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.
5. Q: What is your normal package?
5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.
6. Q: What is your payment term?
6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.
L/C at sight,Western Union, paypal,Visa,etc
L/C at sight,Western Union, paypal,Visa,etc

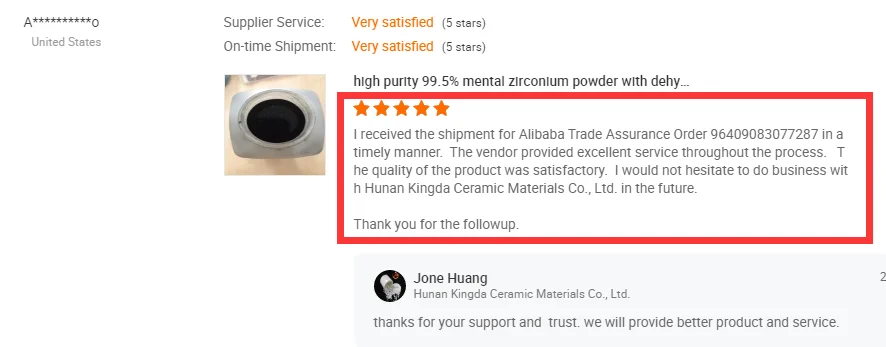

Customer comments
