JT K10H 90AWWJ JUITA Automatic Rotate head Industrial Cnc Sewing Machine Programmable Control Computer Pattern Sewing Machine
- Category: >>>
- Supplier: ZHEJIANG JUITA INTELLIGENT TECHNOLOGY CO. LTD
Share on (11000006129583):
Product Overview
Description
Specification

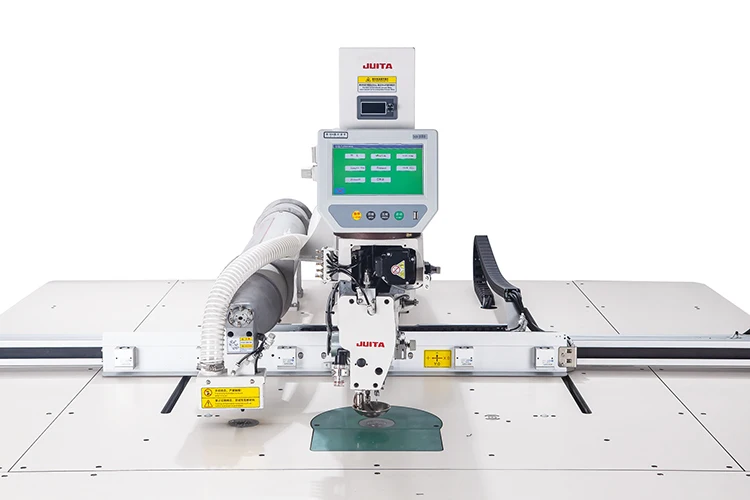

JTK10H-90AWWJ JUITA Brand 360 Degree machine head rotate automatic template pattern sewing machine with laser cutting and two sides automatic template transfer for supper heavy material
1) Powerful CNC system
2) Machine head 360°rotate seam, make sure the stitches beautiful and all forward stitches. The base developed by the independent patent makes the machine more scientific, practical and stable.
3) Automatically recognize various CAD file formats of garment factories
4) Template automatic identification system(RFID function)
5) Standard effective sewing range: X-axis 130cm, Y-axis 85cm
6) It can be selected from various working range such as 150x100cm, 150x110cm and so on.
7) Laser device can improve process efficiency, High cutting precision, smooth and narrow cutting surface, fast cutting speed, improve products quality

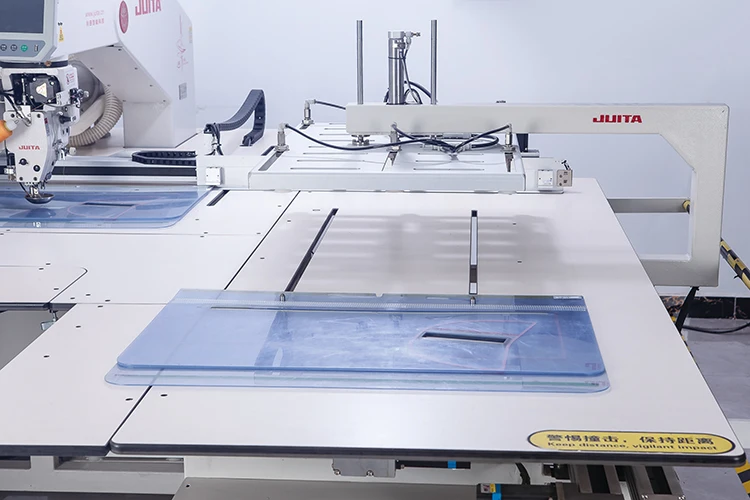

8) Two sides automatic template transfer (two workers can arrange material at same time, widely use in short sewing time but long time material arrange process, which can big improve the produce efficiency)
9) Equipped with eight languages
10) Smart touch operation panel
11) loT capabilities required for smart factory(WIFI)
12) Imported twice as large hook, reducing the frequency of bottom thread replacement.
13) Circular knife thread trimming device
14) Bottom line detection, saving line and cloth.
15)With intelligent point and line drawing function
16) Zhejiang Manufacturing certification, We are the main drafting unit of the industry standard and Zhejiang Manufacturing standard for this series product.
Products Model No: | JTK10H-90AWWJ |
Product name | JUITA Brand 360 Degree machine head rotate automatic template pattern sewing machine with laser cutting and two sides automatic template transfer for supper heavy material |
Sewing range | X: 130cm Y: 85cm |
Stitch type | Lockstitch form |
Attachment device 1 | Laser cutting function |
Attachment device 2 | Two sides automatic template transfer |
Speed | 200-3500 rpm (depend on the model, gauge, material,suture situation) |
Stitch length | 0.5mm - 12.7mm |
Needle type | DPx5 (#7-#24); DPx17(#11-#24) |
Hook | Imported twice large hook |
Storage of templates/pattern | From the original 999 upgrade to unlimited |
Program input device | PC USB data cable or U disk |
Program memory carrier | EPROM memory |
File format | DXF, PLT, AI, etc. |
Power supply | 220V |
System brand | M |
Gross weight | 1450KG |
Volume | 220*132*165cm, 215*110*157cm*2 (LxWxH)- 12.21 CBM (Total 3 Wooden Cases) |
