Product Overview
Description
Product Description
Product Overview.
● Tailor-made control keypad for SONY video conferencing cameras, fully compatible with VISCA protocol
Independent setting of the address code of the SONY video conference camera
● On-line update program function, which compiles the corresponding upgrade program according to the protocol and instructions provided by the customer.
The customer only needs to connect the control keypad via RS485 interface on the PC to upgrade the firmware
● Unique control code learning function, customers can modify the control code instruction by themselves
Multiple communication modes, RS485, RS422, RS232
All parameters can be set via the keypad, easy and fast
Infinitely variable speed control of fast ball rotation, control the swing angle of the rocker to reflect the fast ball speed in real time
Basic functions.
● RS485 control bus, up to 255 front-end device addresses, up to 128 devices in parallel at the same time
Up to 7 SONY video conference cameras can be controlled in series
RM32TC can set and call 1-6 preset positions of SONY video conference cameras
All input and output communication ports are designed to be lightning-proof, with high interference resistance and a standard transmission distance of 1200m
Up to 15 sub-control keyboards can be connected to the cascade port
● Good communication compatibility, built-in multiple protocols
● Keypad operation password switch lock function
Key tone switch function
Infinitely variable speed control of the fast ball
LCD display
● Tailor-made control keypad for SONY video conferencing cameras, fully compatible with VISCA protocol
Independent setting of the address code of the SONY video conference camera
● On-line update program function, which compiles the corresponding upgrade program according to the protocol and instructions provided by the customer.
The customer only needs to connect the control keypad via RS485 interface on the PC to upgrade the firmware
● Unique control code learning function, customers can modify the control code instruction by themselves
Multiple communication modes, RS485, RS422, RS232
All parameters can be set via the keypad, easy and fast
Infinitely variable speed control of fast ball rotation, control the swing angle of the rocker to reflect the fast ball speed in real time
Basic functions.
● RS485 control bus, up to 255 front-end device addresses, up to 128 devices in parallel at the same time
Up to 7 SONY video conference cameras can be controlled in series
RM32TC can set and call 1-6 preset positions of SONY video conference cameras
All input and output communication ports are designed to be lightning-proof, with high interference resistance and a standard transmission distance of 1200m
Up to 15 sub-control keyboards can be connected to the cascade port
● Good communication compatibility, built-in multiple protocols
● Keypad operation password switch lock function
Key tone switch function
Infinitely variable speed control of the fast ball
LCD display
Specification
item | value |
Type | Audio Conference System, Network Conference System, Video Conference System |
Function | Conference System Accessories Smart Keyboards |
Simultaneous Interpretation | NO |
Place of Origin | China |
Guangdong | |
Brand Name | Blue Shark |
Model Number | BST-KZ1 |
Product Name | Conference system Intelligent control keyboard |
Applications. | Controlling SONY video conference cameras and other dome cameras |
Communication methods | RS485 half duplex, RS422 full duplex, RS232 serial |
Communication distance | RS485, RS422 approx. 1200 m, RS232 approx. 10 m |
Number of cascades | 16 sub-control keypads can be cascaded, controller IDs from 0 to 15 |
Display type | LCD blue screen liquid crystal display |
Inner package size | 354*221*135mm (inner dimensions) |
Communication protocol | Pelco-D, Pelco-P, VISCA |
Baud rate (bps) | 1200, 2400, 4800, 9600, 19200 |
OEM/ODM | Support |
Parameters / Model BST-KZ1
Communication protocol Pelco-D, Pelco-P, VISCA
Baud rate (bps) 1200, 2400, 4800, 9600, 19200
Control address Up to 255 fastballs, decoders, address codes from 0-254
Communication method RS485 half duplex, RS422 full duplex, RS232 serial port
Communication distance RS485, RS422 approx. 1200 m, RS232 approx. 10 m
Number of cascades 16 sub-control keypads can be cascaded, controller ID from 0-15
Joystick 3-D (control: up, down, left, right, zoom)

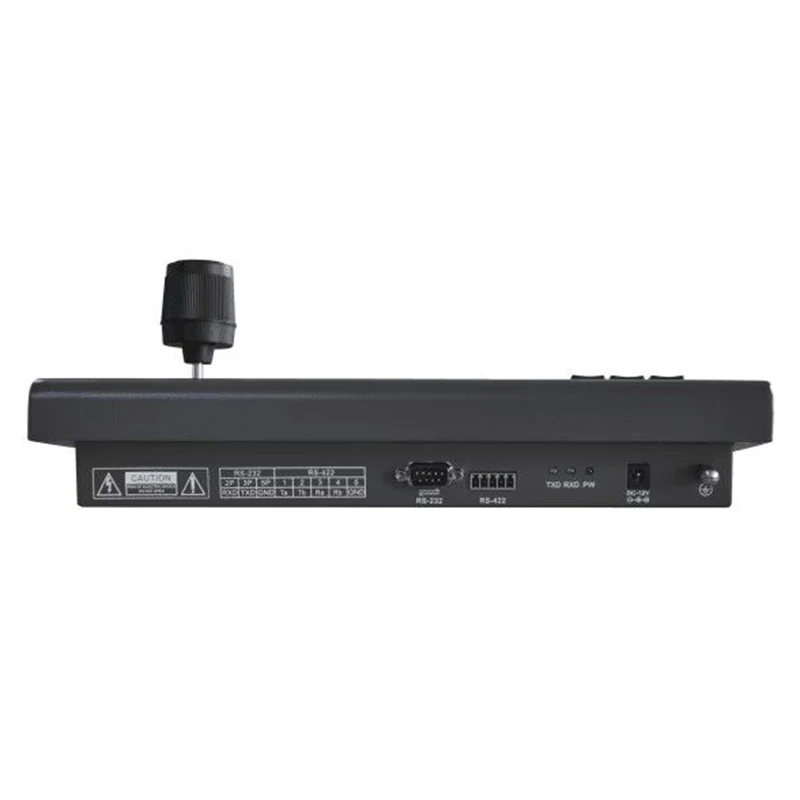

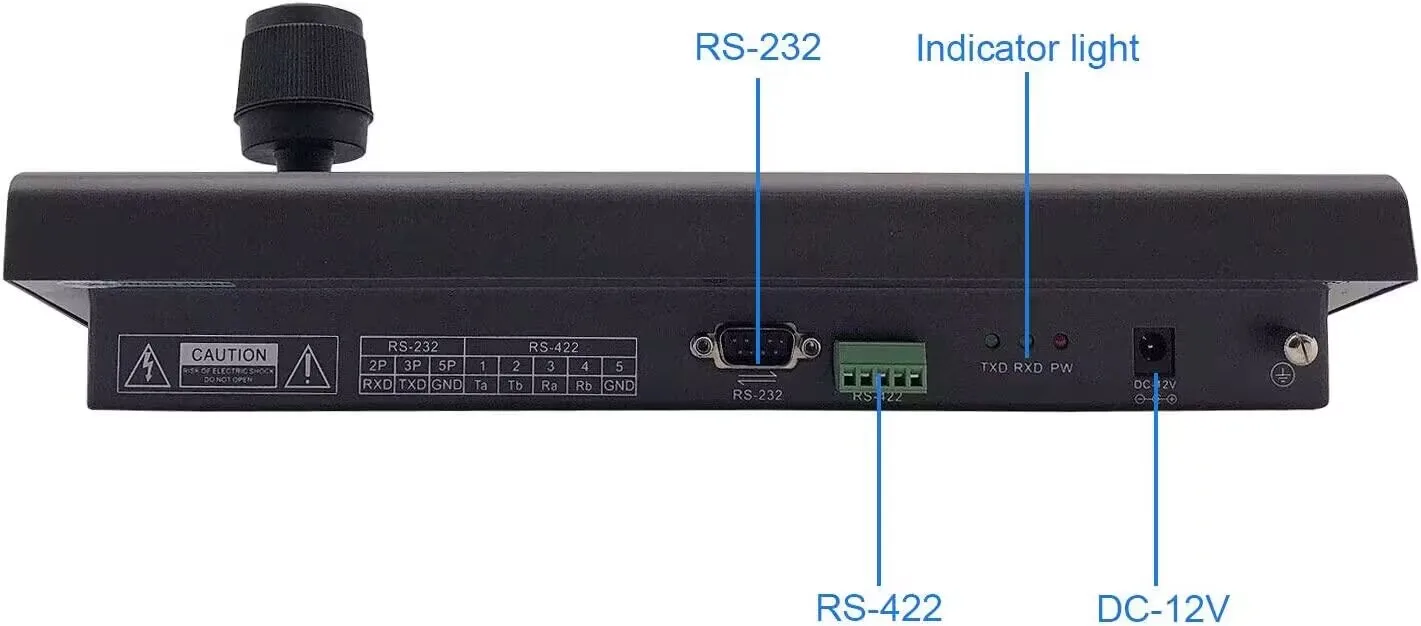

Interface 5PIN crimp terminal, DB9 head
Display type LCD blue screen liquid crystal display
Prompt tone Push button sound prompt on/off
Operating power DC12V1A±10%
Power consumption 6W MAX
Operating temperature 0°C to 50°C
Storage temperature -20℃ to 70℃
Inner package dimensions 354*221*135mm (inner dimensions)
Large outer case dimensions and specifications 450*355*414mm (internal dimensions) / 6 units packed
Net weight 1725g/unit
Communication protocol Pelco-D, Pelco-P, VISCA
Baud rate (bps) 1200, 2400, 4800, 9600, 19200
Control address Up to 255 fastballs, decoders, address codes from 0-254
Communication method RS485 half duplex, RS422 full duplex, RS232 serial port
Communication distance RS485, RS422 approx. 1200 m, RS232 approx. 10 m
Number of cascades 16 sub-control keypads can be cascaded, controller ID from 0-15
Joystick 3-D (control: up, down, left, right, zoom)
Interface 5PIN crimp terminal, DB9 head
Display type LCD blue screen liquid crystal display
Prompt tone Push button sound prompt on/off
Operating power DC12V1A±10%
Power consumption 6W MAX
Operating temperature 0°C to 50°C
Storage temperature -20℃ to 70℃
Inner package dimensions 354*221*135mm (inner dimensions)
Large outer case dimensions and specifications 450*355*414mm (internal dimensions) / 6 units packed
Net weight 1725g/unit
