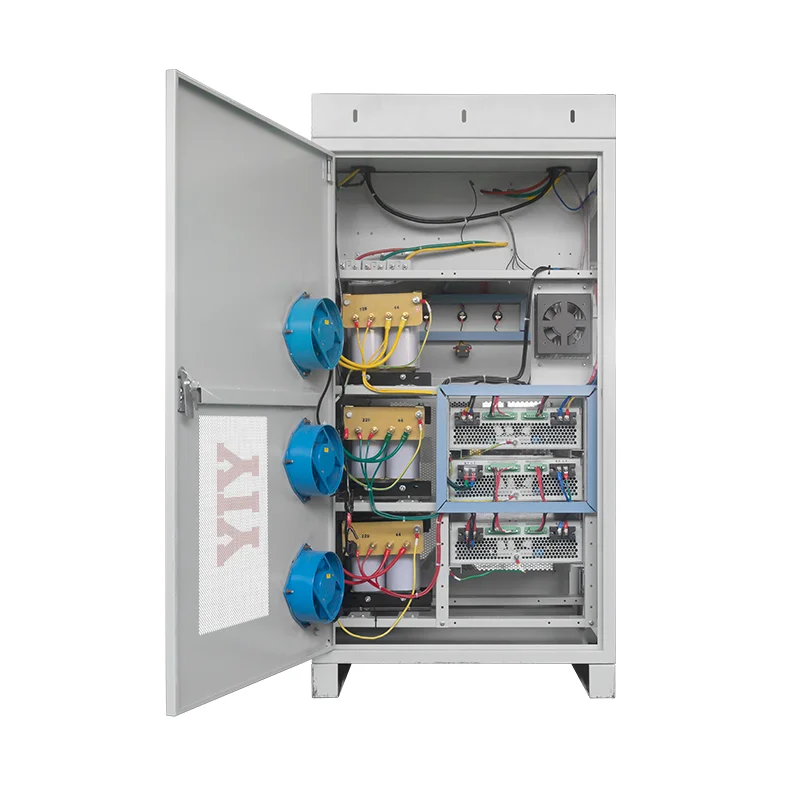

Single/Three Phase 30KVA IGBT Type Voltage Stabilizer Regulator Active Voltage Conditioner AVC (11000006132076)

Share on:


Price:$4,034.00
Price in USD:Details

Quantity:


Product Overview

Description



Products Description

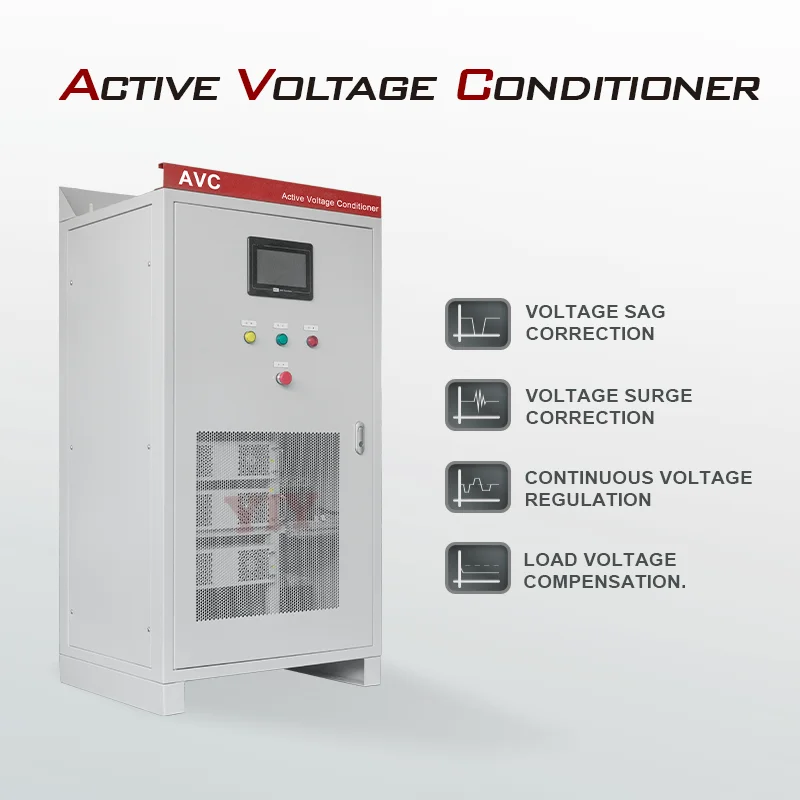

Single/Three Phase 10KVA-3600KVA IGBT Type Voltage Stabilizer Regulator Active Voltage Conditioner AVC


Voltage Sag Correction
Surge Correction
Continuous Voltage Regulation
◆Load Voltage Compensation


〓 Features 〓



The YIY-AVC is an inverter based system that protects sensitive industrial and commercial loads from voltage disturbances.Providing fast,accurate voltage sag and surge correction as well as continuous voltage regulation and load voltage compensation.The YIY-AVC has been optimally designed to provide equipment immunity from power quality events on the supply network.




〓 Working Principle 〓


▶The YIY-AVC consists of two converters that are not on the current path between the load and the utility. Instead,the corrective voltage injection is achieved by means of a transformer winding between the utility and the sensitive load.This configuration results in a very efficient and effective method to provide voltage correction with reduced risk of negative impacts on the load.

▶The YIY-AVC requires no batteries as it draws the additional energy required during sag to make up the correction voltage from the utility supply.With no ongoing maintenance costs typically associated with batteries the cost of ownership for YIY-AVC systems is very small.

▶Furthermore,the YIY-AVC contains a redundant internal bypass system that,in the event of overload or internal fault condition,ensures that the load is continued to be supplied from the utility.





〓 Operational Detail 〓

The following diagrams show the YIY-AVC operation when a utility disturbance occurs, and operation of the internal bypass.





Utility Voltage Close to Nominal Level
When the utility voltage is close to nominal level, i.e. typical utility supply conditions without sags or surges, the PCS100 AVC-40 is only adding small corrections for utility voltage unbalance or load induced voltage variation.




Internal Bypass Operation
In the case of an overload or internal fault condition the internal bypass circuit will shunt the inverter side of the Injection Transformer, bypassing the inverter and effectively providing a direct connection from the utility supply to the output, without interruption to the load.










Utility Disturbance Occurs
When the utility voltage deviates from nominal or the set point due to a power quality event, the inverter will inject a correcting voltage via the Injection Transformer.The correcting voltage level based on the disturbance level and the enemy needed for correction is sourced from the utility via the PCS100 AVC-40 rectifier.

Diagrams on the left show cases with utility voltage below and above nominal level.


Application




Specification


Item
                                                           Tech. Spec .
Power Capacity
Single Phase : 10KVA-1800KVA
Three Phase : 30KVA-3600KVA





Utility Input
Power  System
Three Phase 380V+V(3P4W)3Phase+Neutral(4-Wire)
Range
220V-application range 187-253V
380V-application range 325-440V
Max Supply Voltage
130%
Frequency
50Hz/60Hz ±5Hz
Outage-Control Ride Through
600ms
Harmonics2
THDv< 3%





Output
Voltage
To match nominal input voltage 3
Regulation Mode
contactless
Equivalent Series Impedance
<4% (model specific)
Control Model
independent control on each phase
Partial Correction Derating Conditions
1.0PF at 80% load ,0.8PF at 100%load
Power Factor
0 lagging to 0.9 leading
Crest Factor
300%
Overload Capacity From 100%Supply Volte
150%for 21S , once every 500S






Performance
Efficiency
Typically 95%
Sag Correction Response
Initial 250ps Complete 1/2 cycle
Voltage Regulation Aaauracy
0.5% typical , 2%max
Continuous Regulation Range
10%
Sag Correction Performance 5
Three Phase Sags
Single Phase
60% to 100% for 30s ,50% to 90%for 10s ,40%to 100%for 30s
Partial Correction Derating Conditions6
1.0PF at 80% load /0.8PF at 100%load



Internal Bypass
Capacity
100% of model rating (kVA)
Maximum Overload Capacity (in bypass)
125% for 10 minutes / 150% 1 minute / 500% for 1s / 2000% for 200 ms
Transfer Time
To Bypass < 0.5 ms / To Inverter <250 ms
Equivalent Series Impedance
Bypass <2.5% typical



Injection Transformer
Transformer Type
Dry
Insulation
IEC 60085 Thermal class 200
Frequency
50 Hz / 60 Hz
Vector Group
Diii (delta + 3 independent windings)
Protection
Input over/low voltage protection/output over/low voltage protection, input over current protection, TX over heat protection, output overload protection etc.
Display
7 inch Touch screen
Parameter control, power info, display, fault log, history curve line, etc.









Environmental
Operating Temperature Range
0° C to 50° C (32° F to 122° F)
Temperature Derating
Above 40° C, derate at 2% load per °C to a maximum of 50° C
Operating Altitude
< 1000 m without derating
Derating with Altritude
1 % every 100m above 1500m. 2000m max
Inverter Cooling
Forced ventilation
Transformer Cooling
Natural convection
Humidity
< 95%, non-condensing
Pollution Degree Rating
200%
Noise
< 75dBA @ 2 m
Working Temperature
-25 ~ +45°C
Storage Temperature
-30 ~ +70℃
IP Grade
IP20
