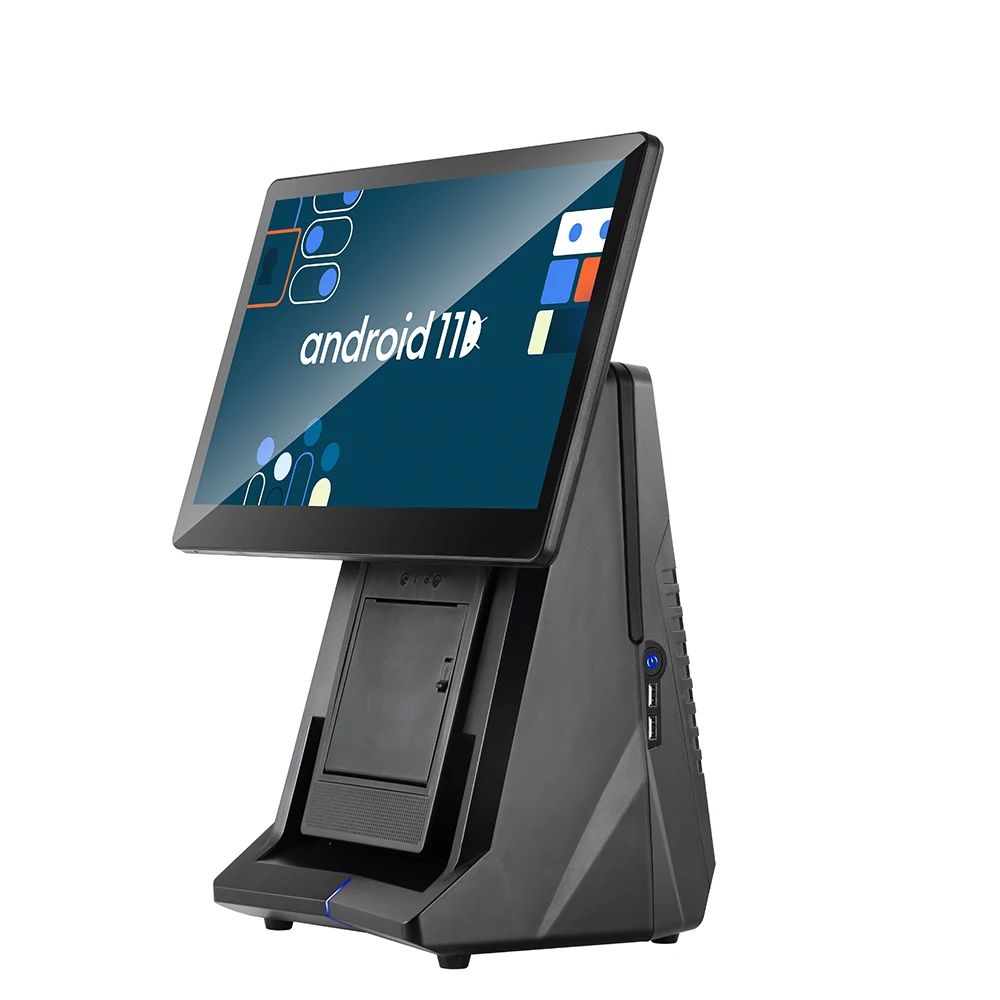

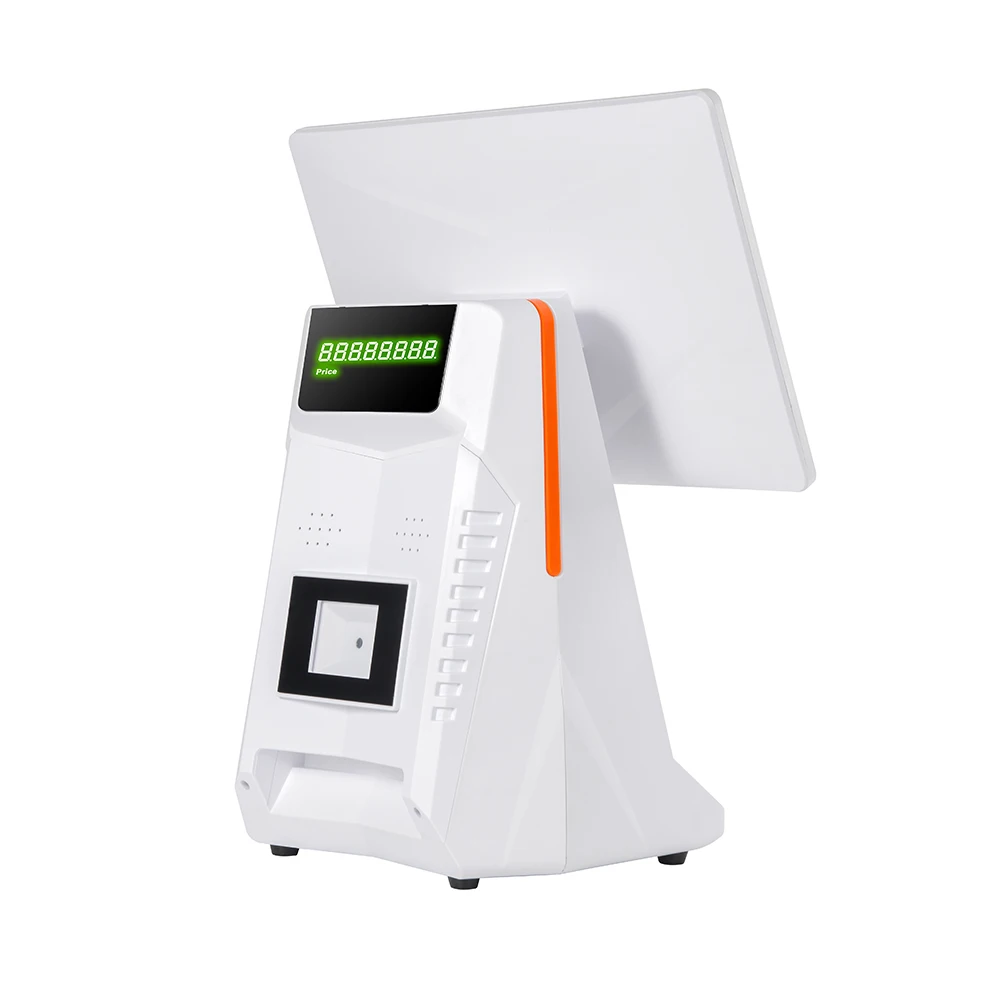

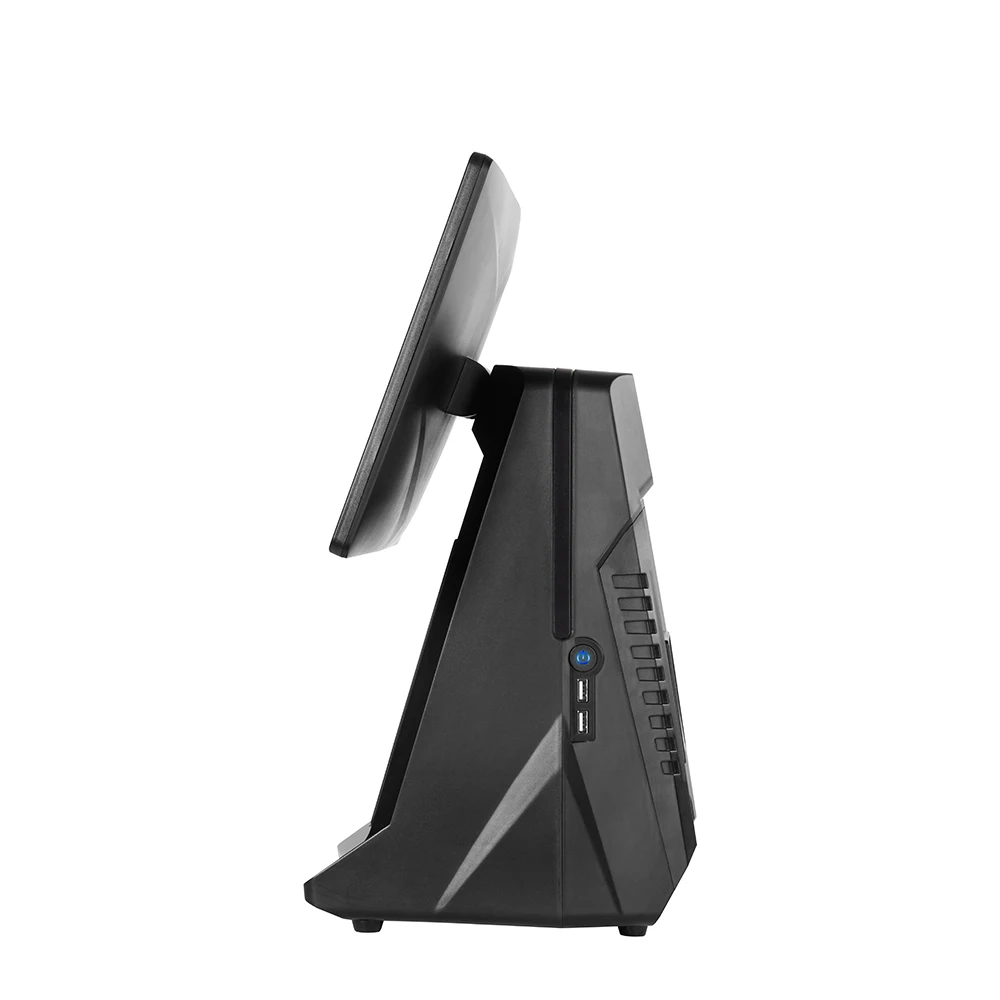

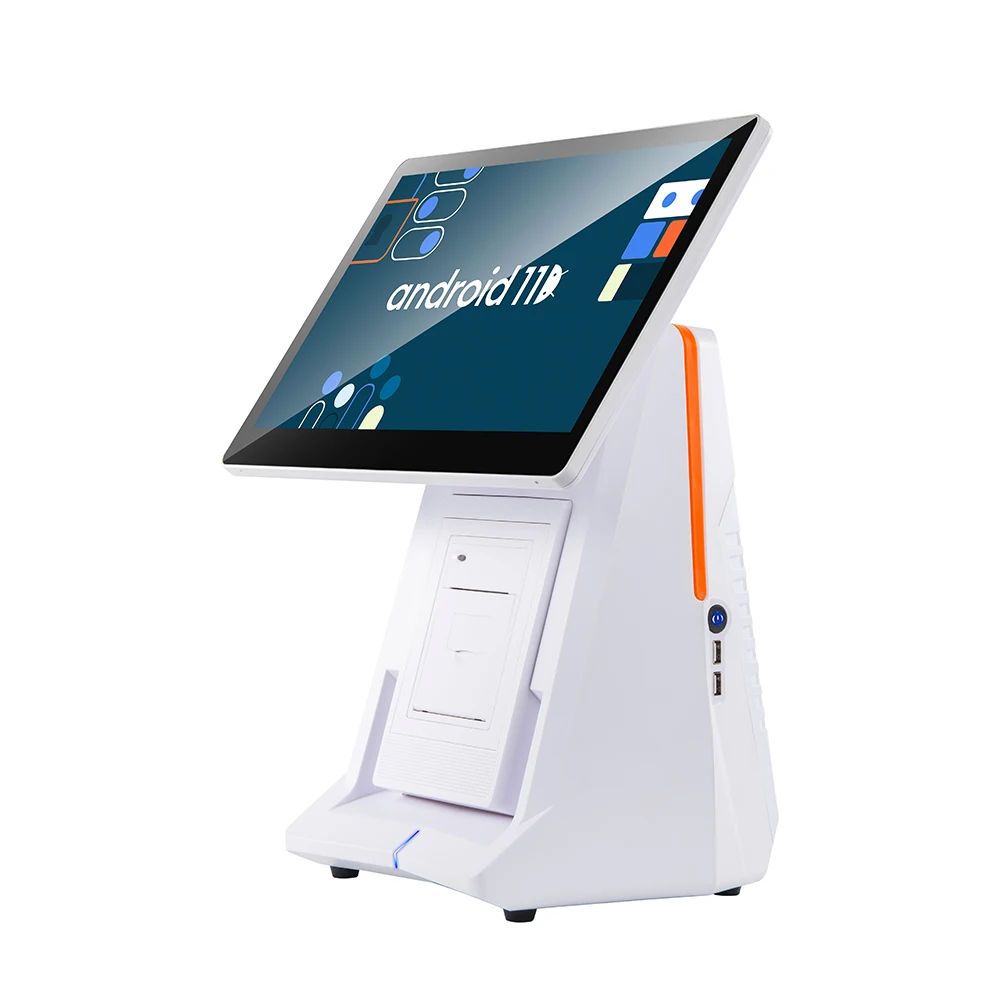

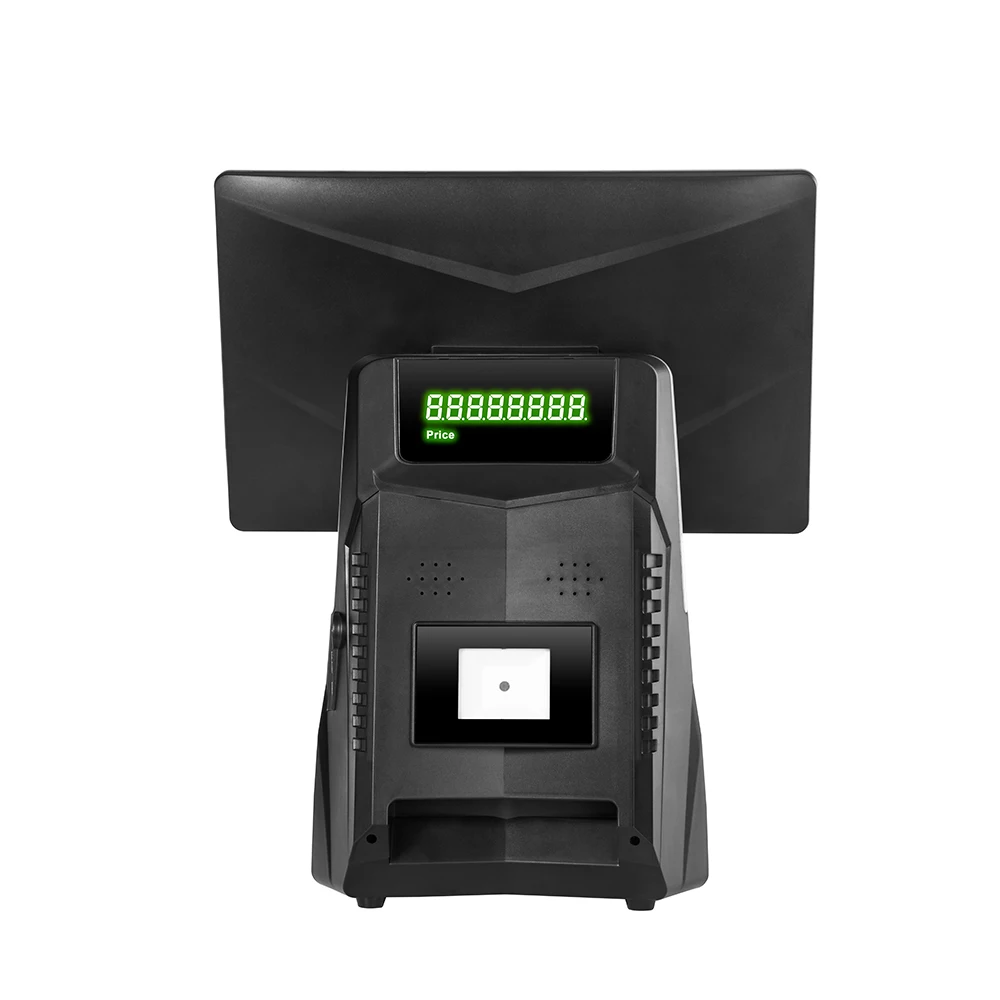

15.6 Inch POS System for Restaurant All in One Touch Screen POS Terminal Machine with Built In Thermal Printer
- Category: >>>
- Supplier: Aidentix Infotech Limited
Share on (11000006133871):
Product Overview
Description
15.6 Inch POS System for Restaurant All-in-One Touch Screen POS Terminal Machine with Built-In Thermal Printer
Product Description
Flexible Display Options
Single Display:
Option 1: 15.6'' capacitive multi-touch display
Dual Displays:
Option 2:
Main: 15.6'' capacitive multi-touch display
Secondary: 11.6'' capacitive multi-touch display / non-touch display
Option 3:
Main: 15.6'' capacitive multi-touch display
Secondary: 15.6'' capacitive multi-touch display / non-touch display
Option 4:
Main: 15.6'' capacitive multi-touch display
LED Line Display
Option 1: 15.6'' capacitive multi-touch display
Dual Displays:
Option 2:
Main: 15.6'' capacitive multi-touch display
Secondary: 11.6'' capacitive multi-touch display / non-touch display
Option 3:
Main: 15.6'' capacitive multi-touch display
Secondary: 15.6'' capacitive multi-touch display / non-touch display
Option 4:
Main: 15.6'' capacitive multi-touch display
LED Line Display
Powerful Built-in Thermal Printer
Paper roll width: 80mm with auto cutter (58mm optional)
Available print width: 72mm (Max)
Resolution: 203dpi, 8dot/mm
Diameter: 80mm
Max speed: 150mm/s
Print life: 100km
Cutter life: 1 million times
Detection status: Overheat, cover open, out of paper
Print characters: ASCII, Multinational character set
Print command: ESC/POS
1D barcode printing: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODABAR, ITF, CODE39, CODE93, CODE128
2D barcode printing: QR code, PDF417
Available print width: 72mm (Max)
Resolution: 203dpi, 8dot/mm
Diameter: 80mm
Max speed: 150mm/s
Print life: 100km
Cutter life: 1 million times
Detection status: Overheat, cover open, out of paper
Print characters: ASCII, Multinational character set
Print command: ESC/POS
1D barcode printing: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODABAR, ITF, CODE39, CODE93, CODE128
2D barcode printing: QR code, PDF417
Swift Built-in Barcode Scanner
1D barcode: UPC-A, UPC E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93,Code 11, Interleaved 2 of 5, Matrix 2 of 5,
Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), MSI Plessey, RSS, China Post, Telepen, etc.
2D barcode: QR code, PDF417
Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), MSI Plessey, RSS, China Post, Telepen, etc.
2D barcode: QR code, PDF417
A Whole Variety of Peripherals
Option 1: Cash Drawer
Option 2: NFC Scanner
Option 3: MSR
Option 4: HD Camera
Option 5: Face Recognition Camera
Option 6: Fingerprint Scanner
Option 2: NFC Scanner
Option 3: MSR
Option 4: HD Camera
Option 5: Face Recognition Camera
Option 6: Fingerprint Scanner
Specification
Operating System | Android 11 |
CPU | RK3568 Quad-Core Cortex-A55, up to 2.0GHz |
Memory | RAM 2GB + ROM 16GB RAM 4GB + ROM 64GB (optional) |
Main Display | Standard: 15.6'' touch screen 1366*768 pixel Optional: 15.6'' touch screen 1920*1080 pixel |
Customer Display (optional) | Option 1: 11.6'' non touch screen 1366*768 pixel Option 2: 15.6'' non touch screen 1366*768 pixel |
Thermal Printer | Paper roll width: 80mm with auto-cutter (58mm optional) Max speed: 150mm/s Print life: 100km |
Communication | Cellular Network: 4G LTE (optional) Wi-Fi: 802.11b/g/n Bluetooth: BT 3.0/4.0 BLE Ethernet: 100M |
Interface | 4 * USB Type-A 1 * RJ11 1 * RJ12 1 * COM 1 * RJ45 (Ethernet) 1 * Audio Jack 1 * MIC Jack 1 * DC Jack |
Buttons & Audio | Power Button Paper Feed Button Speaker (3W*2) |
Power Supply | Input: AC100~240V/1.7A Output: DC12V/5A |
Peripherals | Option 1: Cash Drawer Option 2: NFC Scanner Option 3: MSR Option 4: HD Camera Option 5: Face Recognition Camera Option 6: Fingerprint Scanner |
Dimension & Weight | 376mm*300mm*435mm (L*W*H) & 6.07kg (for Main Display 15.6'' & Customer Display 15.6'') |
Company Profile
Why Choose Us
Aidentix has been hyper-focused on smart terminal OEM and ODM, offering various form factors e.g. handhelds, tablets, desktop, kiosk, suitcase, etc. for public and private sectors.
Aside from hardware expertise, we provide MDM (Mobile Device Management) system as value-added services to help customers empower their solutions.
At Aidentix, we are firmly of the belief that we can bring truly long term value to customers by listening to and understanding the requirements of customers and projects, as well as integrating exceptional hardware, software and services with professional and timely support.
Aside from hardware expertise, we provide MDM (Mobile Device Management) system as value-added services to help customers empower their solutions.
At Aidentix, we are firmly of the belief that we can bring truly long term value to customers by listening to and understanding the requirements of customers and projects, as well as integrating exceptional hardware, software and services with professional and timely support.
FAQ
Q: Can I have a sample order?
A: Yes
Q: What is your general lead time?
A: 3-5 days for sample orders, 21-30 days for mass production e.g. 500pcs, 1,000pcs, 3,000pcs, etc.
Q: What is your MOQ?
A: 2 pieces
Q: What are your warranty terms?
A: 1 year warranty upon the receipt of the goods (2 years warranty for big orders);
Q: What are your payment terms?
A: Sample orders - advance payment before shipment
Batch orders - 50% downpayment before production, balance before shipment
Q: Do you accept OEM order?
A: Yes, MOQ for OEM is 500pcs
A: Yes
Q: What is your general lead time?
A: 3-5 days for sample orders, 21-30 days for mass production e.g. 500pcs, 1,000pcs, 3,000pcs, etc.
Q: What is your MOQ?
A: 2 pieces
Q: What are your warranty terms?
A: 1 year warranty upon the receipt of the goods (2 years warranty for big orders);
Q: What are your payment terms?
A: Sample orders - advance payment before shipment
Batch orders - 50% downpayment before production, balance before shipment
Q: Do you accept OEM order?
A: Yes, MOQ for OEM is 500pcs
