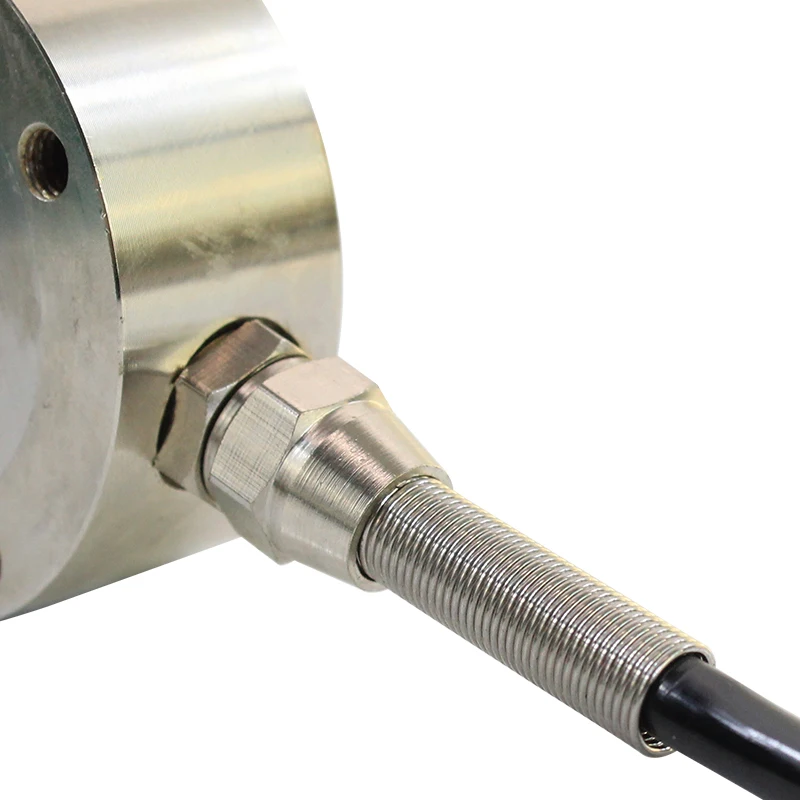

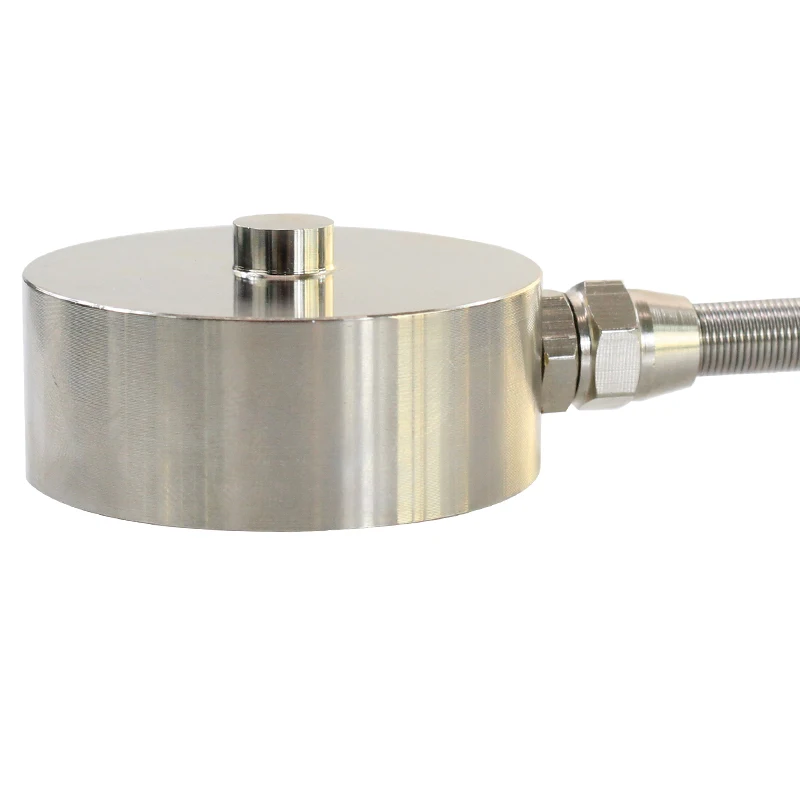

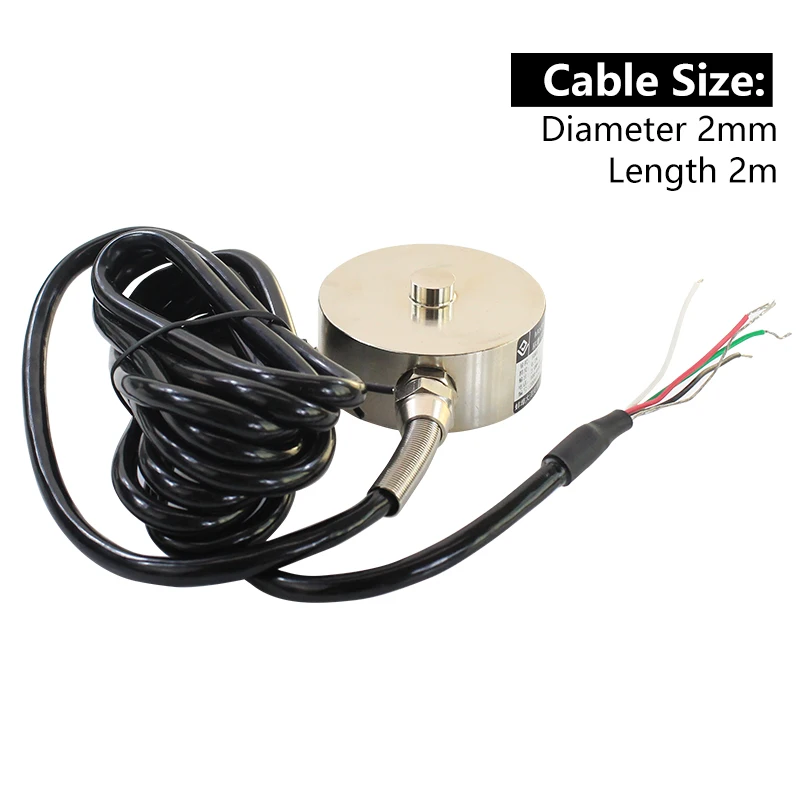

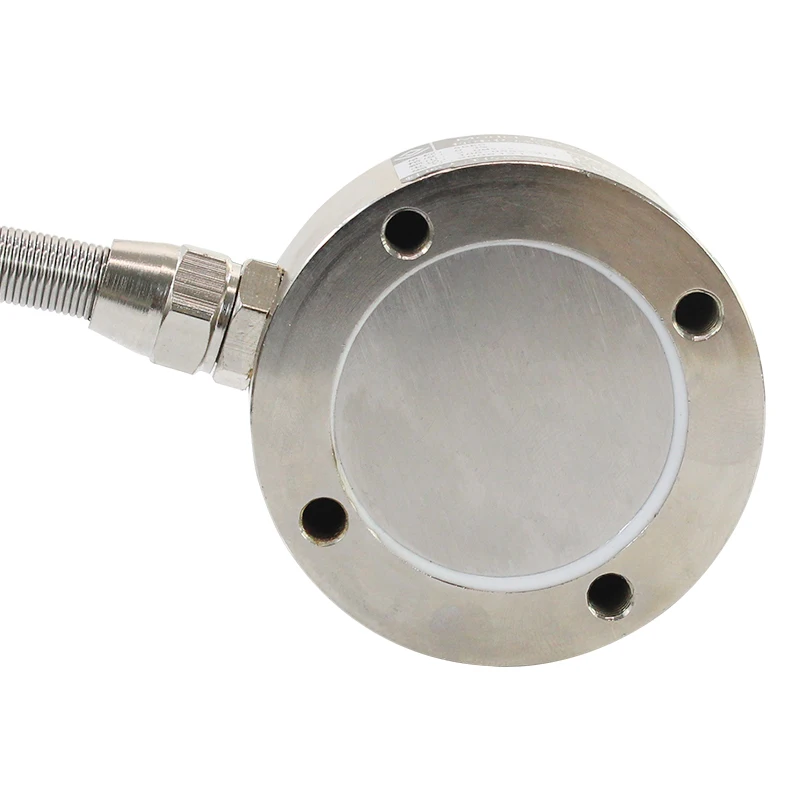

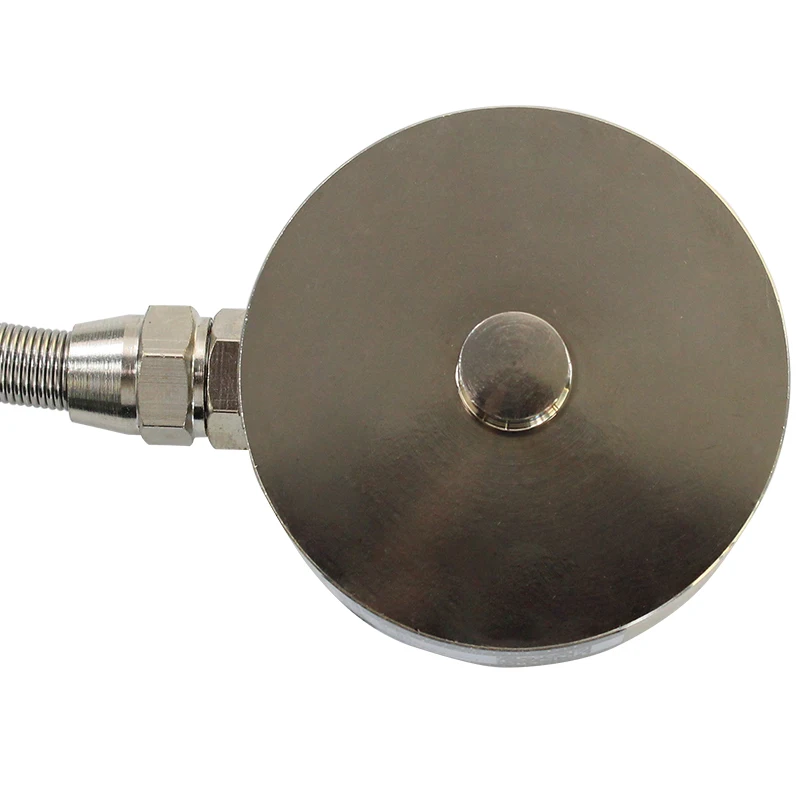

Miniature Force Sensor manufacturer DSMH 101 Pressure Sensor Load Cell 50kg 100T
- Category: >>>
- Supplier: DST (shenzhen) Sensor Co. Ltd
Share on (11000006141844):
Product Overview
Description
Rated Capacity | 50~15000kg |
Comprehensive error | ≤±0.5% |
Rated output | 1.0±10%mV/V |
Zero balance | ±2.0F.S |
Non-linearity | 0.5% |
Creep | ±0.5%F.S/30min |
Input resistance | 350±10Ω |
Output resistance | 350±5Ω |
Insulation resistance | ≥2000MΩ/100VDC |
Temp. effect on span | ±0.5%F.S/10℃ |
Temp. effect on zero | ±0.5%F.S/10℃ |
Compensated temp range | -10~+60℃ |
Operating temp Range | -20~+80℃ |
Excitation voltage | 9~12V |
Safe overload | 120%F.S |
Ultimate overload | 200%F.S |
Defend grade | IP67 |
