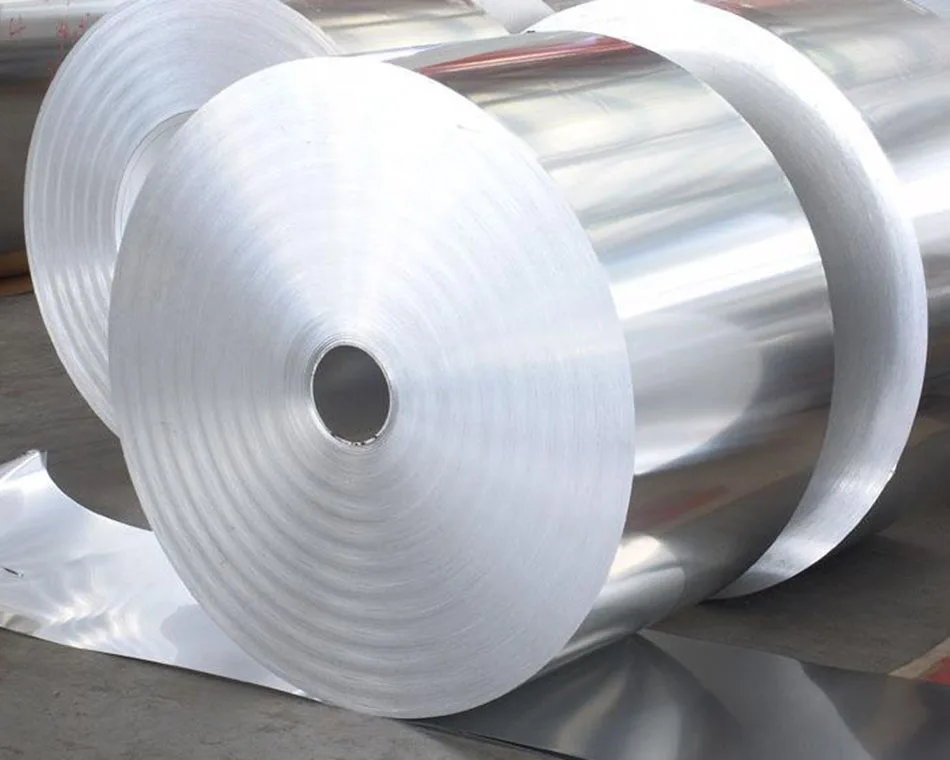

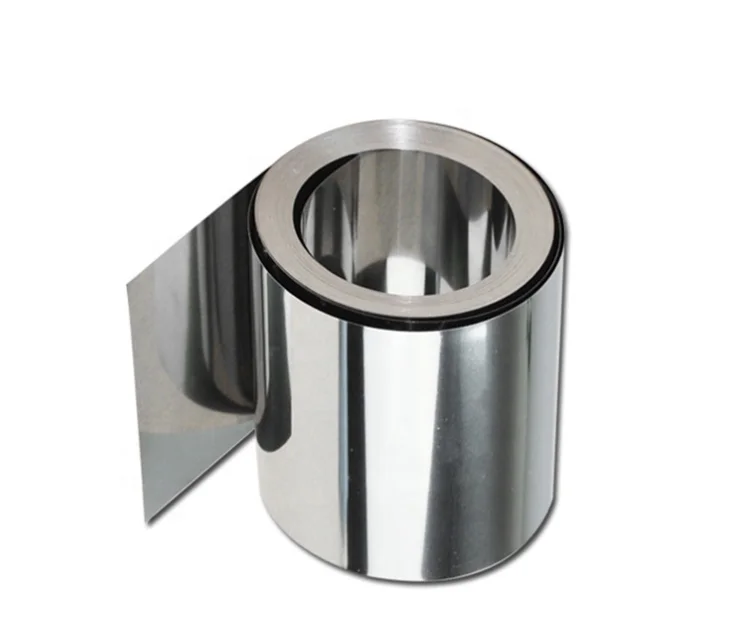

Buy Price 8011 Aluminum Foil Manufacturers Roll Product
- Category: >>>
- Supplier: Xian Dongmeng Steel Trading Co. Ltd
Share on (11000006158025):
Product Overview
Description
Product Description
Product Name | Aluminum Alloy Coil |
Material | 1000 series,3000 series, 5000 series,6000 series |
Regular aluminum alloy sheet | 1060 1100 3003 5005 5052 5083 6061 |
Thickness(mm) | 0.2-200 |
Width(mm) | 100-2250 |
Application | Construction ,Building,Decoration ,Curtain Wall ,Roofing,Mould,Lighting,curtain wall, ship building,Aircraft,Oil Tank ,Truck Body etc. |
Quality assurance | Mill Test Certificate |
Temper | O、H2、H4、H18、H111、H112、T4、T5、T6、T651,etc. |
Type | Coil |
Aluminum coil refers to the aluminum coil rolled and processed by aluminum ingot and can be applied to various fields like automotive, construction, furniture, and more. According to the composition of alloy, Aluminum coil is divided into:
1.High-Purity Aluminum coil( rolled from high purity aluminum, content above 99.9);
2. Pure Aluminum coil(rolled from pure aluminum);
3. Alloy Aluminum coil(composed of aluminum and auxiliary alloys, usually aluminum copper, aluminum manganese, aluminum silicon,aluminum magnesium, etc);
4. Composite Aluminum coil (special purpose aluminum plate formed by compositing multiple materials);
3. Alloy Aluminum coil(composed of aluminum and auxiliary alloys, usually aluminum copper, aluminum manganese, aluminum silicon,aluminum magnesium, etc);
4. Composite Aluminum coil (special purpose aluminum plate formed by compositing multiple materials);
Aluminum coil is a kind of metal plate, which is melted from aluminum ingot and processed into aluminum coil by casting rolling, hot rolling, cold rolling, annealing, cross cutting and other processes.
Color coated aluminum coil is divided into polyester coated aluminum coil (PE) and fluorocarbon coated aluminum coil (PVDF).
1000 series aluminum alloy: belongs to the series with the most aluminum content. The commonly used aluminum alloy includes 1050,1060 and 1100. The purity can reach more than 99.00%. Since it does not contain other technical elements, the production process is relatively simple and the price is relatively cheap. It is currently the most commonly used series in conventional industries.
3000 series aluminum alloy: belongs AL-Mn series alloy and it is the most widely used anti-rust aluminum.Manganese is the main component and the content is between 1.0-1.5, which makes the aluminum alloy have good anti-rust function. The commonly used aluminum alloy includes 3003, 3004, 3A21.
5000 series aluminum alloy: belongs to anti-rust aluminum, and it is called aluminum-magnesium alloy, whose magnesium content is as high as 3-5%. The main features are low density, high tensile strength and high elongation. It is also widely used in conventional industries. The commonly used aluminum alloy include 5052, 5005, 5083, and 5086.
6000 series aluminum alloy: mainly contains magnesium and silicon, thus it has the advantages of 4000 series and 5000 series. The commonly used aluminum alloy is 6061 and 6063. 6061 is a cold-treated aluminum forging product, suitable for the applications with high requirements for corrosion resistance and oxidation. It has the characteristics of easy coating and good processability.
5000 series aluminum alloy: belongs to anti-rust aluminum, and it is called aluminum-magnesium alloy, whose magnesium content is as high as 3-5%. The main features are low density, high tensile strength and high elongation. It is also widely used in conventional industries. The commonly used aluminum alloy include 5052, 5005, 5083, and 5086.
6000 series aluminum alloy: mainly contains magnesium and silicon, thus it has the advantages of 4000 series and 5000 series. The commonly used aluminum alloy is 6061 and 6063. 6061 is a cold-treated aluminum forging product, suitable for the applications with high requirements for corrosion resistance and oxidation. It has the characteristics of easy coating and good processability.

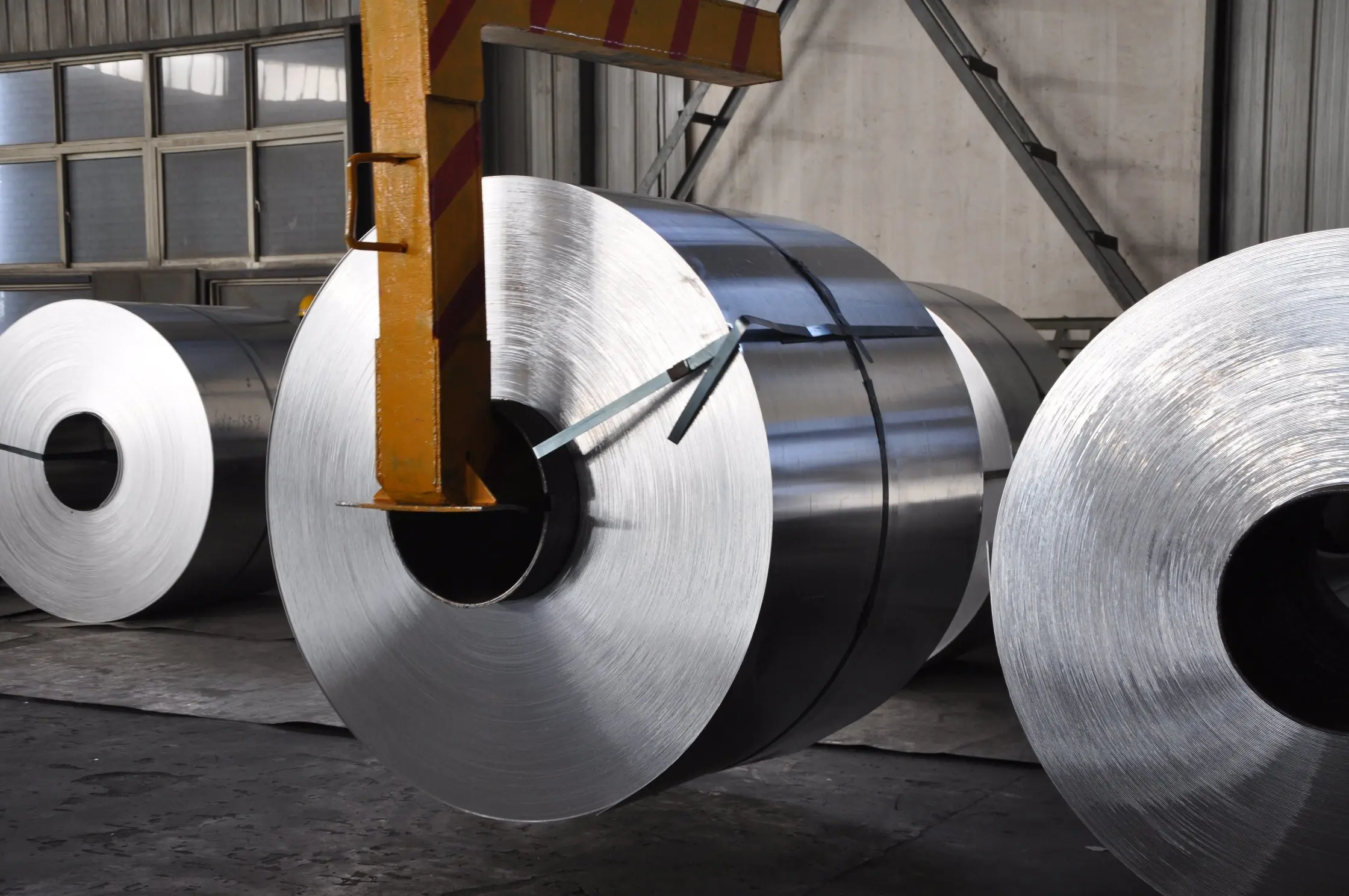

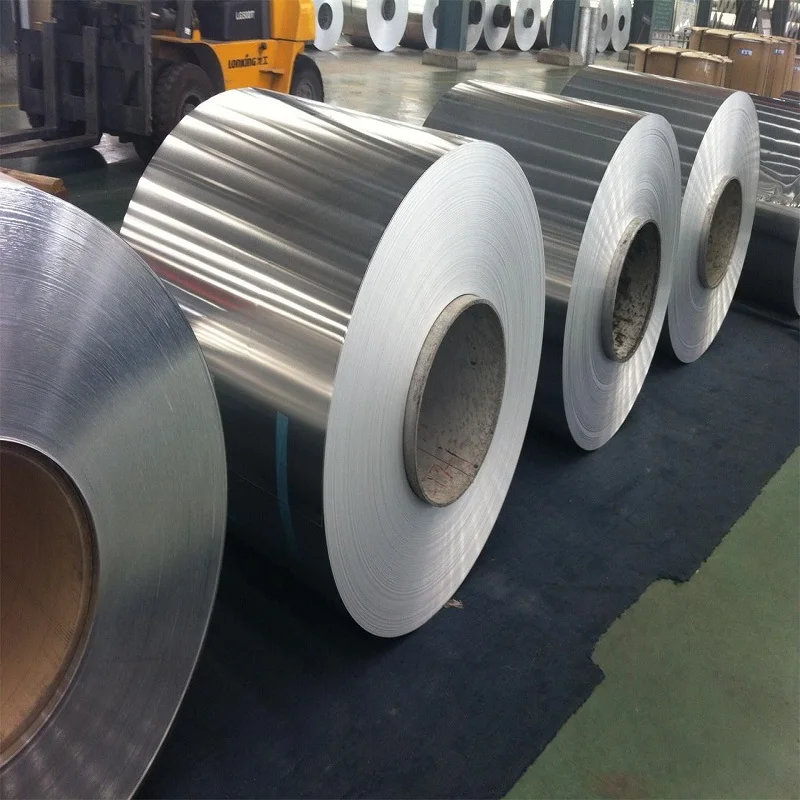

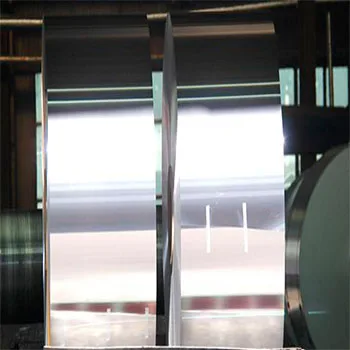

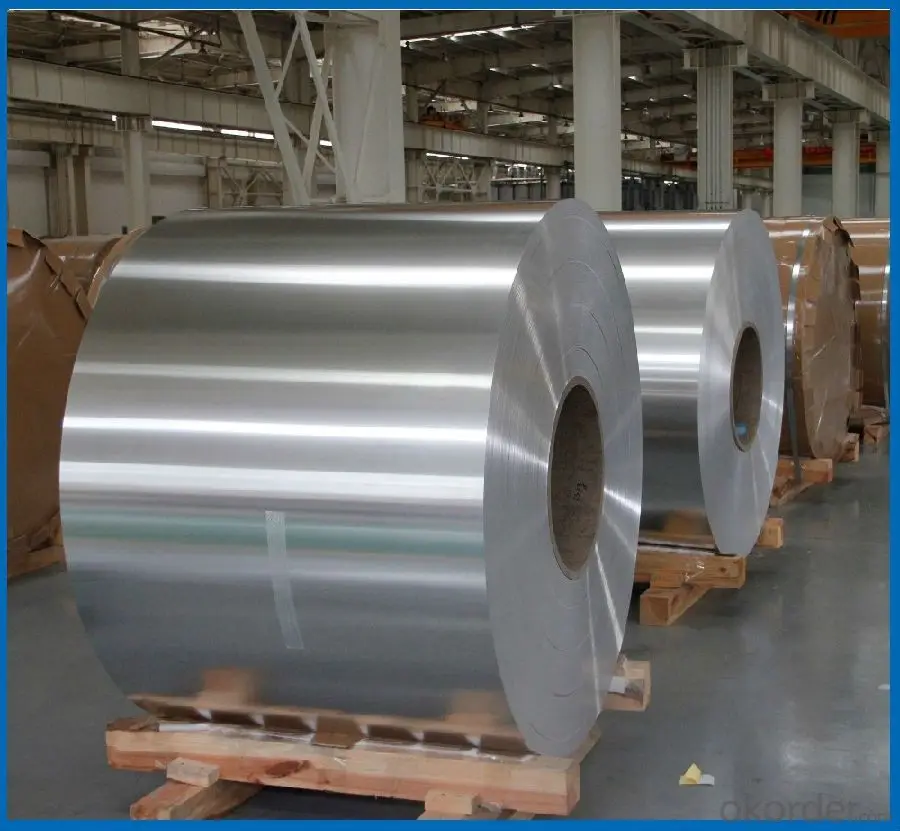

Product Display

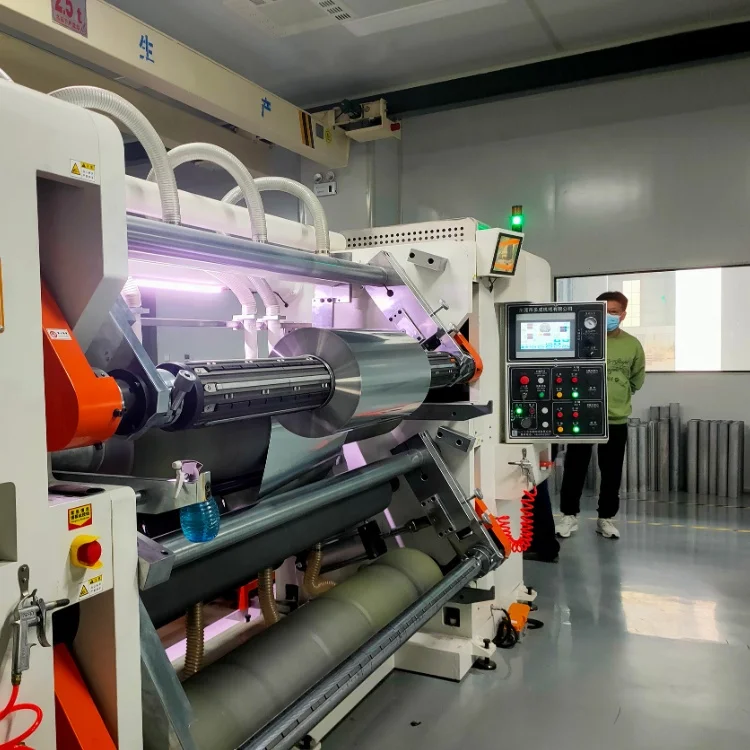

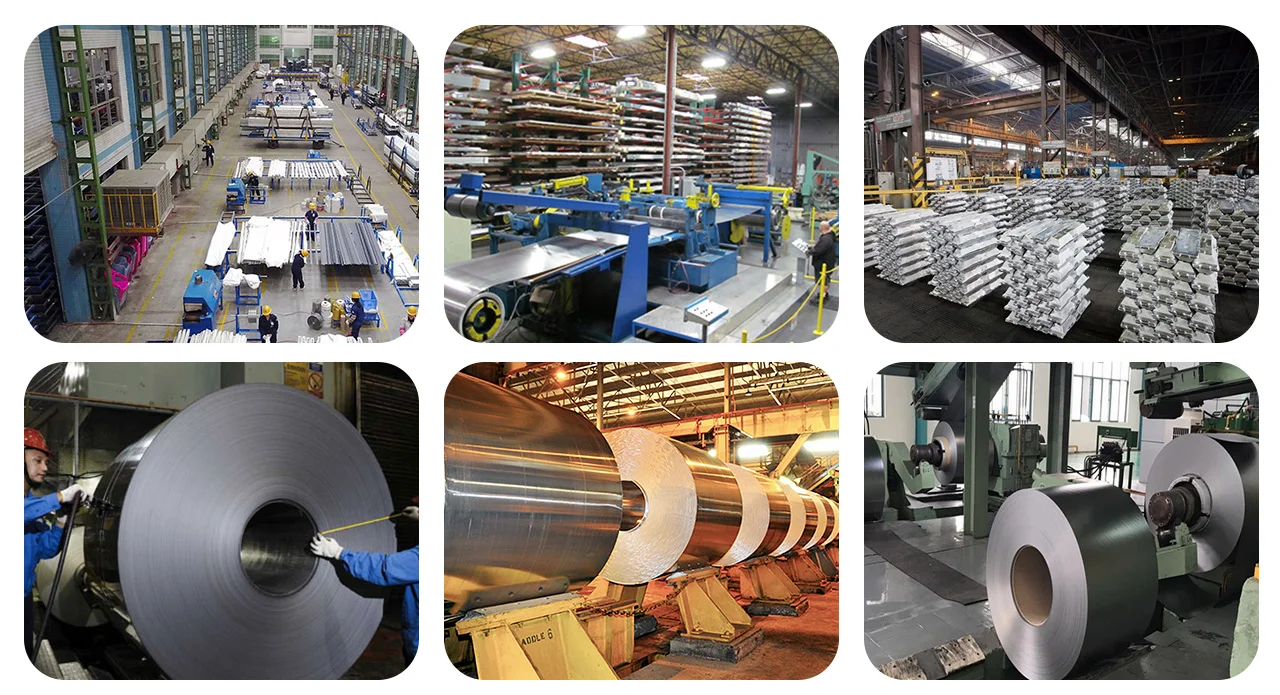

Processing technology

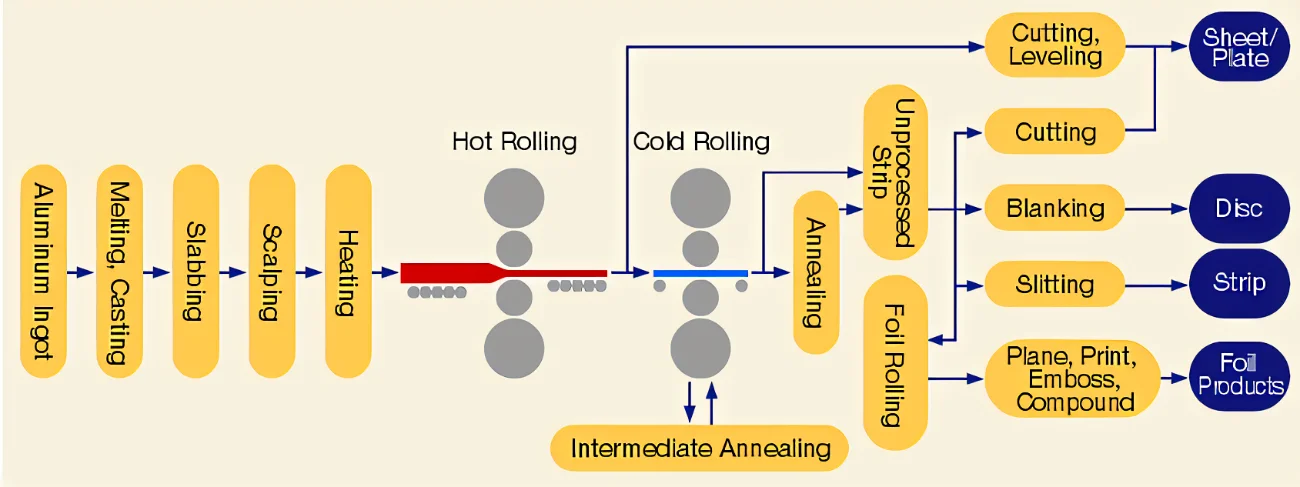

Production Flow Chart

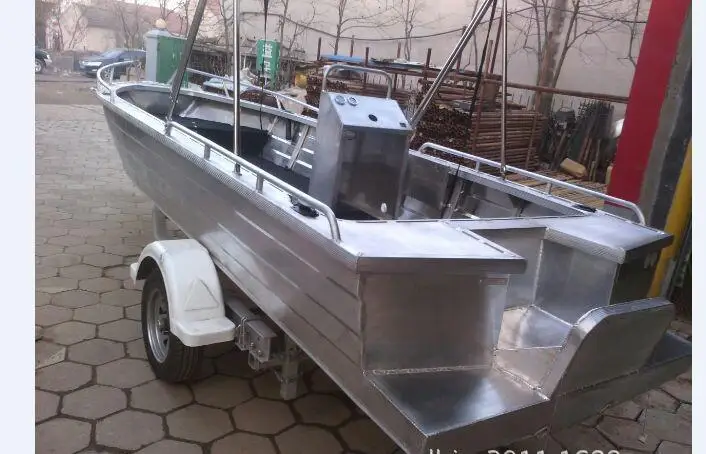

Application
Product applicationi introduction
Aluminum alloy plates have been widely used in aviation, aerospace, automobile, machinery manufacturing, ship building and chemical industry. With the rapid development of science and technology and industrial economy in recent years, the demand for aluminum alloy welding
structure is increasing. Different series of aluminum alloys have different application.
structure is increasing. Different series of aluminum alloys have different application.
Here are some typical applications within the scope of these specifications :
Utility board, used for all general sheet metal works, such as waterproof board, piping system, lining wall, etc.
The 1100-O is mainly used for spinning and drawing operations such as utensils, ornaments, etc.
1100-H14 and 3003-H14 are standard alloys for general molding operations.
The physical characteristics of 5005-H14 are similar to 3003-H14, with excellent corrosion resistance and uniform smooth surface finish suitable for anodic oxidation. The alloy is suitable for curtain wall, decorative parts, control panel boxes and signs, etc.
5052-H32 and H34 are high strength alloys with good molding quality, particularly suitable for Marine applications.
5083-H321 and H323 are different tempered alloys that yield higher joint efficiency. It is used in tank operation, heavy
transport, etc., its welding performance can play an advantage.
5544-H32, a sister alloy of 5083, has a lower stress corrosion rating when operating in the 150°F to 300°F range. Typical use is truck dump trucks, tank trucks, exhaust pipes, chemical treatment tanks on ships, etc.
6061-T6 is an excellent general purpose alloy with high strength and good corrosion resistance. It is used for all structural
applications such as harvesters, logging chutes and ship construction.
Painted aluminium: 1100, 3003, 3105, 5005 and 5052 are just some of the alloys commonly found in painted products. Painted aluminum has a wide range of mechanical properties and finishes including high durability external coatings, dedicated epoxies, polyesters, textured polyesters, fluorocarbons and metallic compounds, and wash coating primers. Standard colors can be selected, or customized according to specifications. Most coatings have one and two sides.
Company Introduction
Why Choose Us
Packing&Shipping
1.Standard sea-worthy export packing,
2.Strong Wooden Pallet with Galvanized Steels band (or plastic band).
3.Wooden pallet package
4.container or bulk (According to customer's requirement)
5.wooden pallets with plastics protection.
6. 15-20MT can be loaded into 20 ftcontainer and 25-27MT can be loaded into 40 ft container.
3.Wooden pallet package
4.container or bulk (According to customer's requirement)
5.wooden pallets with plastics protection.
6. 15-20MT can be loaded into 20 ftcontainer and 25-27MT can be loaded into 40 ft container.
7. For 20 ft container the max length is 5.8m, for 40 ft container the max length is 11.8m.
8. The other packing can be made based on the customer requirement.
8. The other packing can be made based on the customer requirement.
FAQ
Q：May we have an inspection of your factory?
A：Sure, you're welcome any time.
Q：How can I trust your company?
A：We consider honest as the life of our company. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
Q: What is the MOQ?
A: Our MOQ is 1 ton. While the larger purchase quantity, the cheaper price.
Q: What’s the delivery time for the tubes normally in your company?
A: Our delivery time is around 3-30 days base on our stock and customer’s purchase quantity. For the products in stock,we will make shipments in 3-5 days after receiving deposit; If we need produce the products, it will depend on the factory schedule and the purchase quantity. We will try our best to finish the production as soon as we can.
Q: What payment terms you can deal with?
A: Mostly we deal with payment by TT. For payment of L/C, we need to know which bank you will use to open the L/C and then decide whether L/C is acceptable or not.
Q: Could you print our company logo or information on the tubes plastic bag and the outside package also?Is there extra cost for it?
A: Yes, we can print the logo on it for you. The extra cost will depend on the purchase quantity. It can be negotiable.
Q: How to ensure the quality?
A: Mill Test Certificate will be offered. If needed, a Third Party Inspection is acceptable.
Always a pre-production sample before mass production;Always final Inspection before shipment;
Q: How can we contact you as soon as possible?
A: We are always available on Alibaba.com, WhatsApp, Wechat. You can also reach us by email. You are welcome to send us any questions anytime and we will reply you within 24 hours.
A：Sure, you're welcome any time.
Q：How can I trust your company?
A：We consider honest as the life of our company. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
Q: What is the MOQ?
A: Our MOQ is 1 ton. While the larger purchase quantity, the cheaper price.
Q: What’s the delivery time for the tubes normally in your company?
A: Our delivery time is around 3-30 days base on our stock and customer’s purchase quantity. For the products in stock,we will make shipments in 3-5 days after receiving deposit; If we need produce the products, it will depend on the factory schedule and the purchase quantity. We will try our best to finish the production as soon as we can.
Q: What payment terms you can deal with?
A: Mostly we deal with payment by TT. For payment of L/C, we need to know which bank you will use to open the L/C and then decide whether L/C is acceptable or not.
Q: Could you print our company logo or information on the tubes plastic bag and the outside package also?Is there extra cost for it?
A: Yes, we can print the logo on it for you. The extra cost will depend on the purchase quantity. It can be negotiable.
Q: How to ensure the quality?
A: Mill Test Certificate will be offered. If needed, a Third Party Inspection is acceptable.
Always a pre-production sample before mass production;Always final Inspection before shipment;
Q: How can we contact you as soon as possible?
A: We are always available on Alibaba.com, WhatsApp, Wechat. You can also reach us by email. You are welcome to send us any questions anytime and we will reply you within 24 hours.
