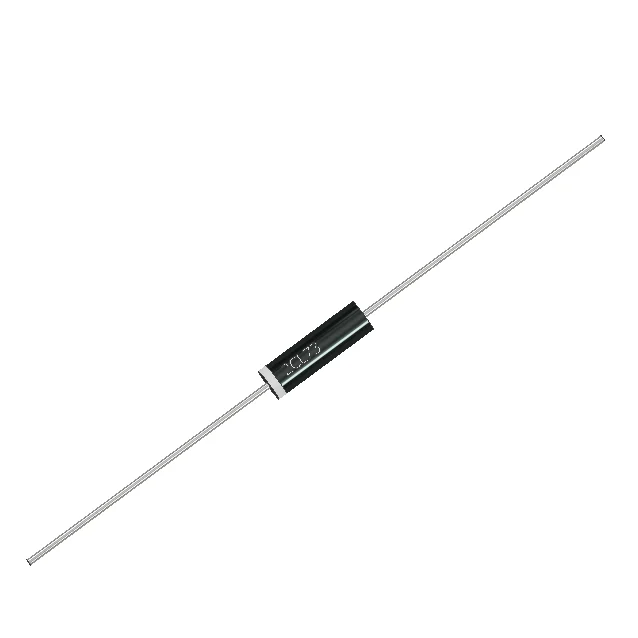

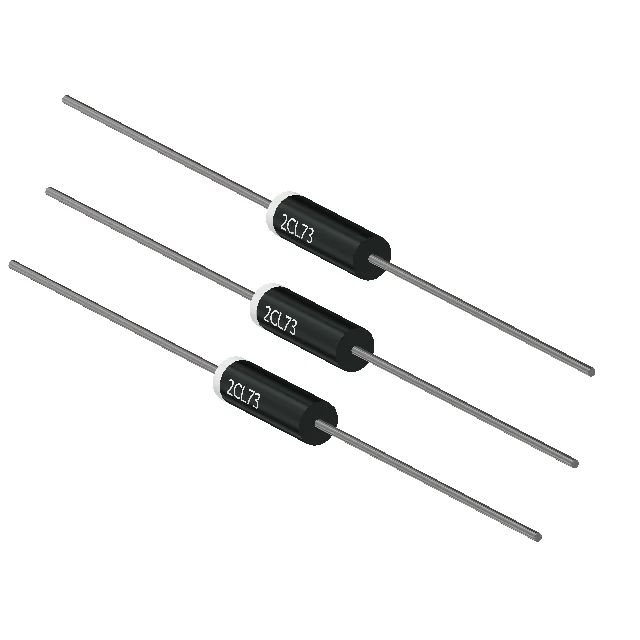

Low current High voltage silicon rectifier diode 5mA 12KV 2CL73 high voltage diode
- Category: >>>
- Supplier: Yangxin Huantai Technology Co. Ltd.
Share on (11000006164778):
Product Overview
Description
Product Description
▼Fast Recovery High Voltage Diode
2CL73
Type | Repetitive peak reverse voltage | Average forward current | Surge(Non-repetitive) forward current | Peak reverse current(Ta=25°C) | Peak forward voltage | Reverse recovery time | Size |
VRRM | IF | IFSM | IRRM | VFM | trr | ||
KV | mA | A | µA | V | ns | mm | |
2CL69 | 4 | 5 | 0.5 | 2 | 20 | 80 | ∅3.0x8.0 |
2CL70 | 6 | 5/10 | 23 | ∅3.0x8.0 | |||
2CL71 | 8 | 5/10 | 25 | ∅3.0x8.0 | |||
2CL72 | 10 | 5/10 | 30 | ∅3.0x10.0 | |||
2CL73 | 12 | 5/10 | 36 | ∅3.0x10.0 | |||
2CL74 | 14 | 5/10 | 42 | ∅3.0x10.0 | |||
2CL75 | 16 | 5/10 | 48 | ∅3.0x12.0 | |||
2CL76 | 18 | 55 | ∅3.0x12.0 | ||||
2CL77 | 20 | 62 | ∅3.0x12.0 |
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
● High surge resisitivity for CRT discharge
▼Applications
● X light Power supply
● Laser
● Voltage dubler circuit
● Microwave emission power
● Laser
● Voltage dubler circuit
● Microwave emission power
