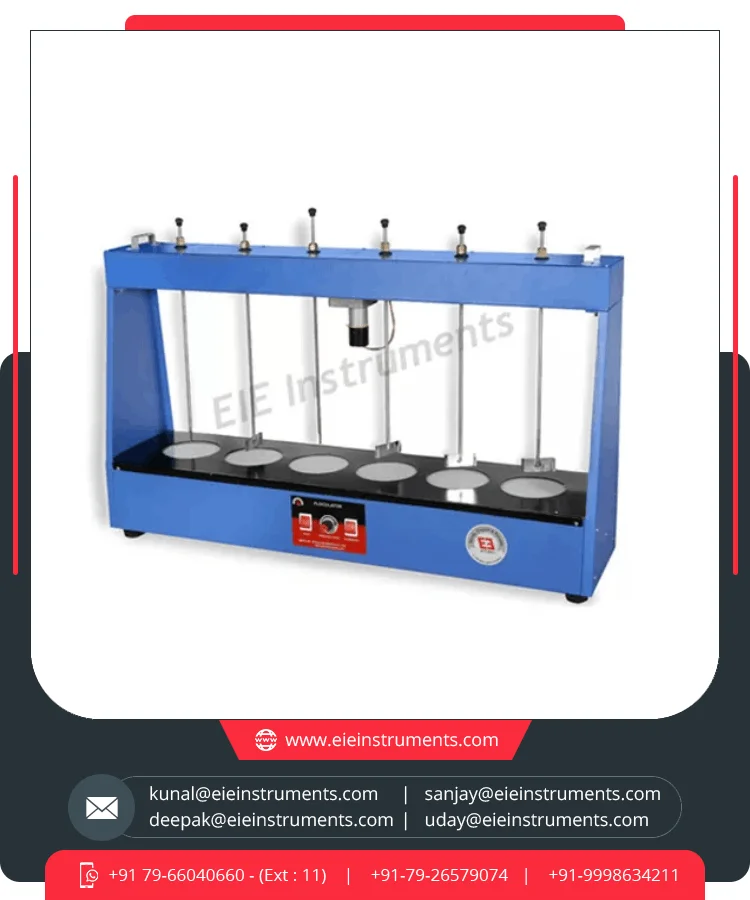

Wholesale Jar Testing Machine/ Flocculator With Heavy Duty Structural Construction for Two Stirrers Jar Test Apparatus

Excellent Quality Jar Testing Machine/ Flocculator with Heavy Duty Structural Construction For Two Stirrers

With Variable speed from 20 R.P.M to 100 R.P.M Approx (New improved Model). Jar Test Apparatus allows efficient and economical flocculation matter and colides in general and also has been specially designed for use in water treatments to correctly estimate the dosing of aluminium and such other coagulants for treatment of water sewage and floc. formation test in water Treatment plants.

Other Details:

Construction: Heavy duty structural construction for rigidly and vibration-free base consists of Fluorescent Tube mounted below translucent plastic plate to provide diffused cold light to floc samples.

Drive with variable speed control: D.C. Electric motor to work in 220-230 volts. A.C. to work on continuously, drip proof geared motor built in Electronic speed regulator to control speed from 20 R.P.M TO 100 R.P.M. approx. The gear chain for multiple spindles Drive gives same speed for all the stainless steel stirring paddle approx. 1" X 3" are attached to the rod having 10" long approx. with lighting knob at top permit adjustment of paddle height spacing of approx. : 6" in between rods permits use to 1000 ml glass Beaker which rest directly on bench.

Control panel:

Consists of Variable control speed regulator to control the stirring sample simultaneously from 20 R.P.M to 100 R.P.M approx. On/Off switch main indicating light etc.

• For two stirrers


• For four stirrers


• For six stirrers
