1km shenzhen remote controls rf 433mhz remote on off switch controller receiver long range rf wireless remote control 12v switch
- Category: >>>
- Supplier: Shenzhen Geili Technology Co. Ltd.
Share on (11000006172203):
Product Overview
Description
Product features:
1. Wide voltage: DC5V-48V voltage range can be used
2. High power: 10A
3. Work mode support: self-locking, interlocking, manual opening and closing
4. A receiver can be paired with 32 remote controllers, independently coded, without interfering with each other
5. Two colors: black and white
6. Stable performance, mature quality, manufacturer's private model, support customization
Scope of application: water pumps, motors, lamps, industrial control equipment, etc.
Product Paramenters
Key word | 4-way remote control switch | Working voltage | 5V 6V 7V 9V 12V 24V 36V 48V | ||||

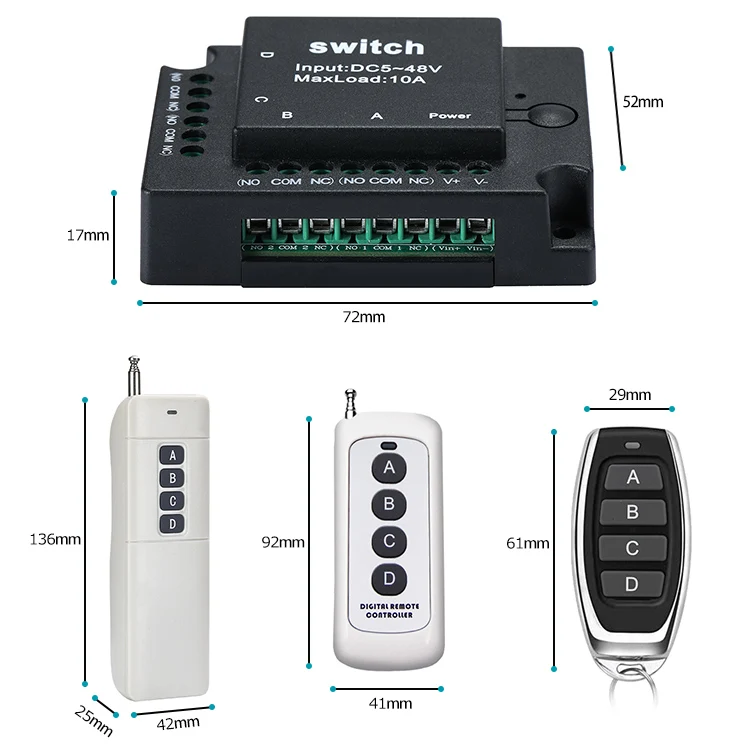

Receiver Size | 72*52*17mm | Working frequency | 433.932 MHz | ||||
Emission current | ≤0.01 uA | Remote distance | 1000m~1500m | ||||
Remote control size | 42*25*136mm | Remote control battery | 6F22 9V | ||||
Current | 10A | ||||||
Working mode | Self locking, interlocking, inching | ||||||
Product Description

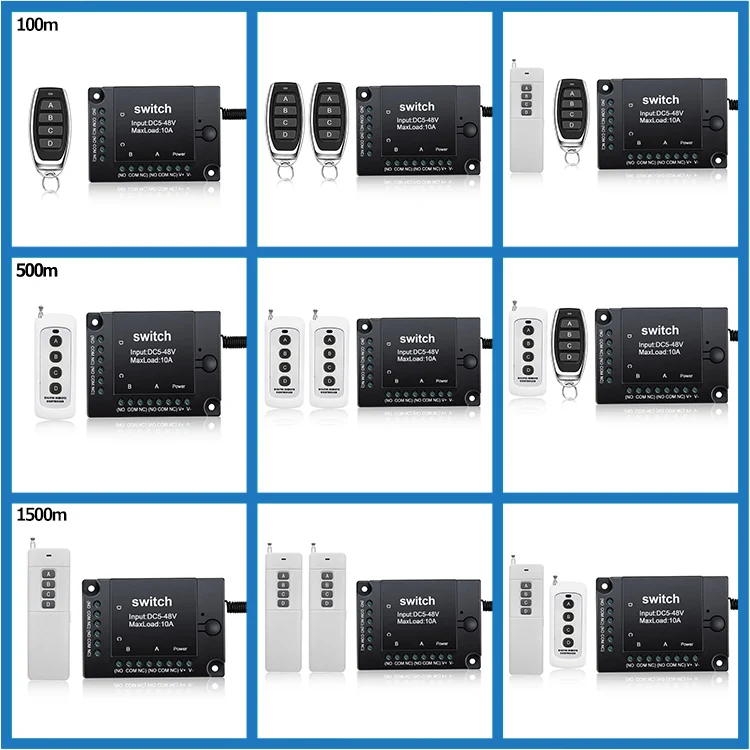

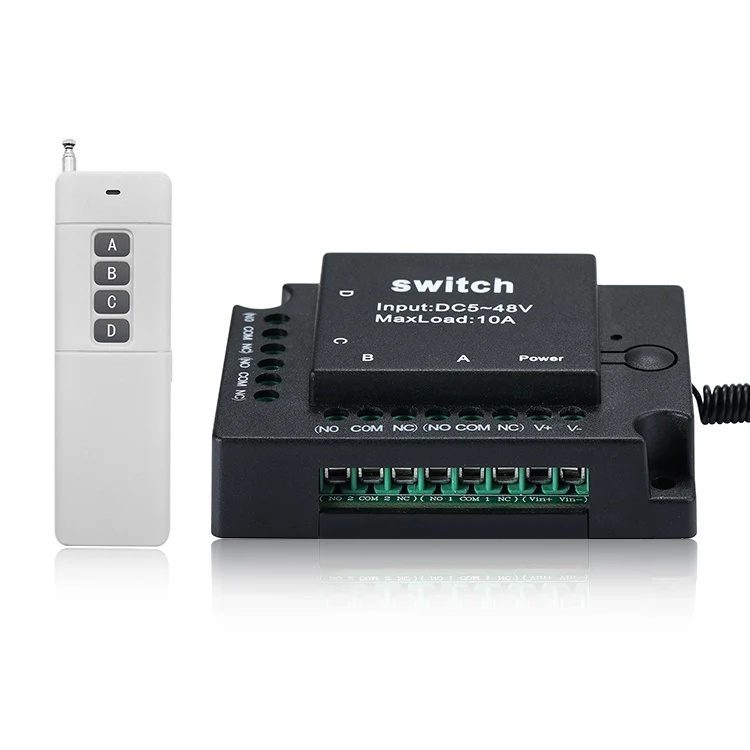

Product Portfolio

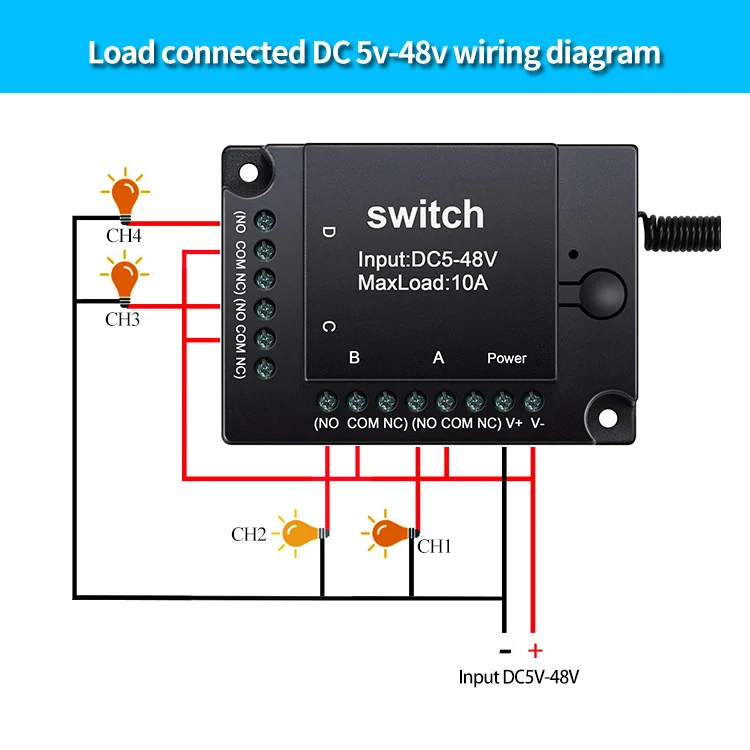

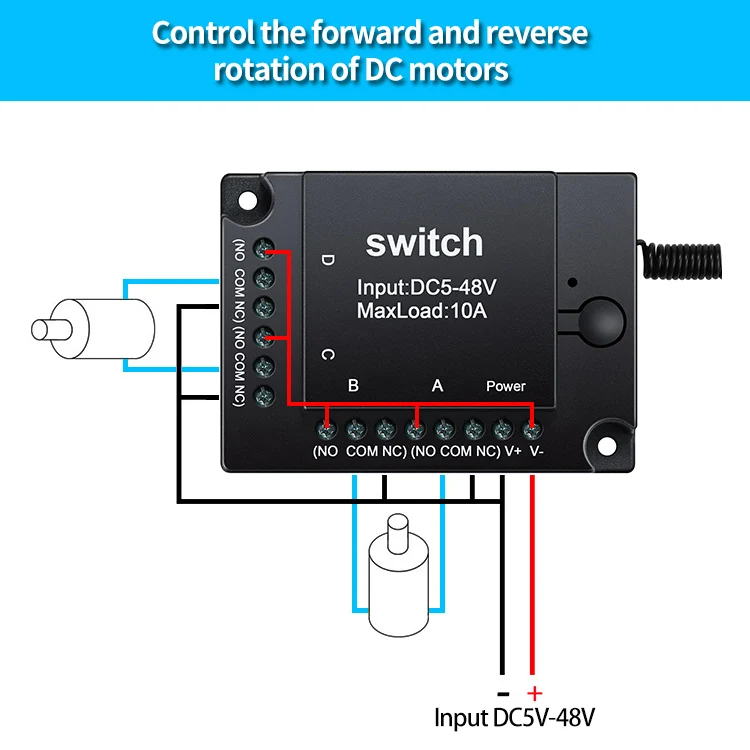

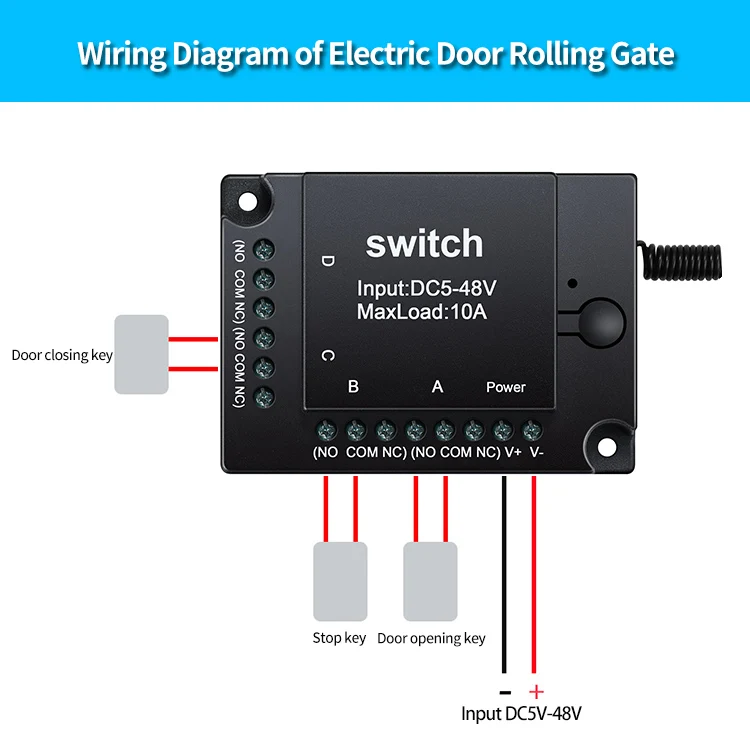

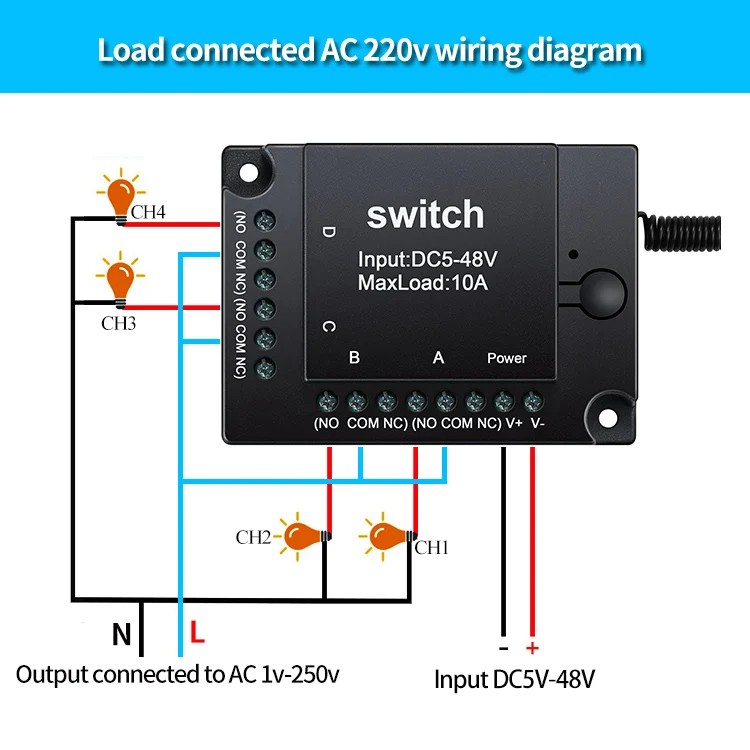

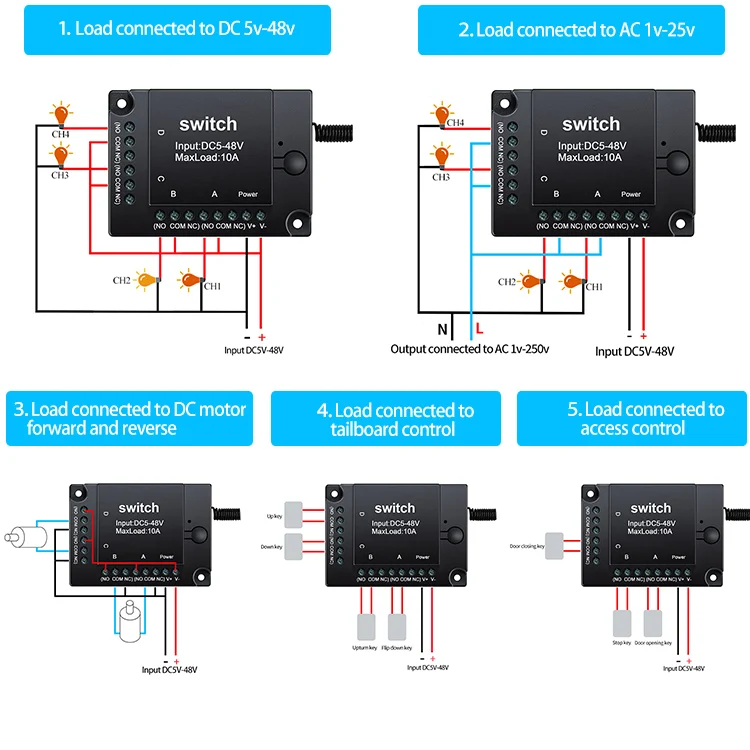

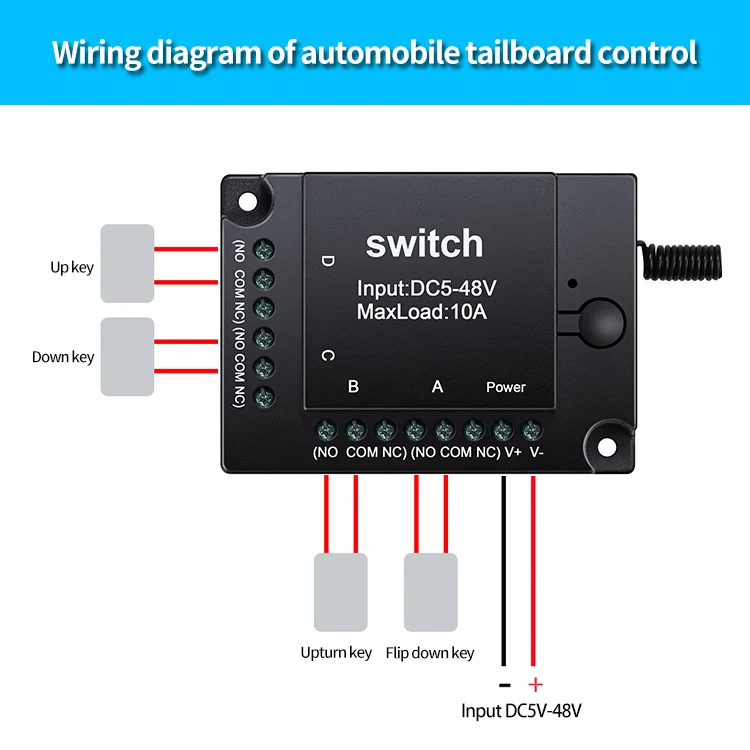

Installation Instructions
Learn Matching Instructions
Work mode introduction：
Self locking mode: it is controlled by one key, and it is called self locking when you press it once to open and then press it again to close.
Interlock mode: When the remote control has two buttons, one button is on and the other button is off, which is called interlock.
Inching mode: controlled by one button, hold down the button of the remote controller, and the relay is closed; Release the remote control button, and the relay is disconnected; It is called inching.
Interlock mode: When the remote control has two buttons, one button is on and the other button is off, which is called interlock.
Inching mode: controlled by one button, hold down the button of the remote controller, and the relay is closed; Release the remote control button, and the relay is disconnected; It is called inching.

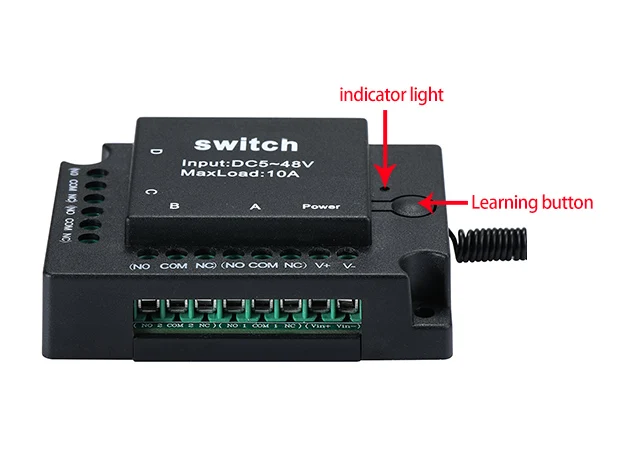

Learning method:
Inching: when the controller is powered on, press the learn button on the side of the controller once, and the indicator light is in the learning state. Then press any button on the remote controller, and the indicator light flashes for three times, indicating the completion of learning.
Self-locking: When the controller is powered on, press the learn button on the side of the controller for two consecutive times, and the indicator light is in the learning state. Then press any key of the remote controller, and the indicator light flashes for three consecutive times, indicating the completion of learning.
Interlocking: when the controller is powered on, press the learn button on the side of the controller for 3 times continuously, and the indicator is in the learning state. Press the ON/ on button of the remote controller, and the indicator flashes for 3 times continuously. When the indicator is always on, press the OFF/ key of the remote controller. The indicator light flashes three times in a row, indicating the completion of the study.
Clear code: when the controller is powered on, press the learn button on the side of the controller for 8 consecutive times, and the indicator light is in a flashing state, indicating that the code clearing is successful.
FAQ
Q1 Are you a factory or a trading company
A1: We are a factory.
A1: We are a factory.
Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
Q7:What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
