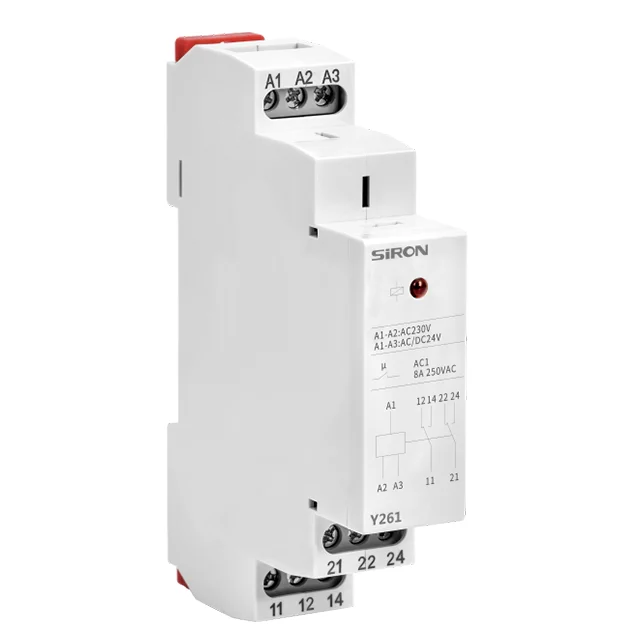

SiRON Y261 AC/DC 12V 24V AC220V Intermediate Relay Auxiliary Relay
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (11000006198221):
Product Overview
Description
Our company's product categories are very rich
Features
* Rated voltage: AC/DC12V, 24V, AC220V;
* Intermediate relay is used to switch certain current load and increase load energyForce or increase
the number of contact groups.
* Intermediate relay is used to switch certain current load and increase load energyForce or increase
the number of contact groups.
Product Parameters
Specifications | ||||||||||||

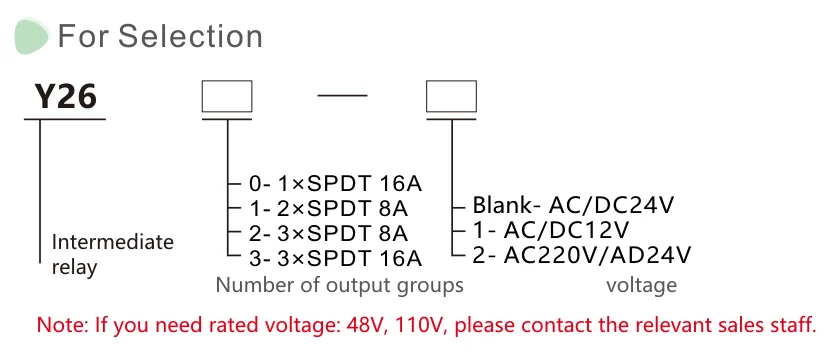

Model | The rated voltage | AC/DC24V | Y260 | Y261 | Y262 | Y263 | ||||||
AC/DC12V | Y260-1 | Y261-1 | Y262-1 | Y263-1 | ||||||||
AC220/AD24V | Y260-2 | Y261-2 | Y262-2 | Y263-2 | ||||||||
Output contact current | 1×16A(AC1) | 2×8A(AC1) | 3×8A(AC1) | 3×16A(AC1 | ||||||||
Output contact voltage | 250VAC/24VDC | |||||||||||
Rated supply voltage | AC 220V(A1-A2),AC/DC24V(A1/A3) | AC220V | ||||||||||
Consumed power | AC.max12VA/DC.max1.9W | AC.max6VA | ||||||||||
Power supply allowable fluctuation range | 15%；+10% | |||||||||||
Maximum switching time | 40ms | |||||||||||
Minimum switching power | 500mW | |||||||||||
Output relay indication | Red LED | |||||||||||
Mechanical life | 1×107 | |||||||||||
Electrical life (resistive load) | 1×105 | |||||||||||
Reset the time | Max200ms | |||||||||||
Operating environment temperature | -20℃～+55℃ (-4℉to131℉) | |||||||||||
Store and transport ambient temperatures | -35℃～+75℃ (-22℉to158℉) | |||||||||||
installation | 35mm rail installation | |||||||||||
Protection grade | IP20 | |||||||||||
Installation position | Arbitrary | |||||||||||
Over voltage category | III | |||||||||||
Pollution levels | 2 | |||||||||||
Wiring ability | 1×2.5mm2 or 2×1.5mm2 0.4N.m | |||||||||||

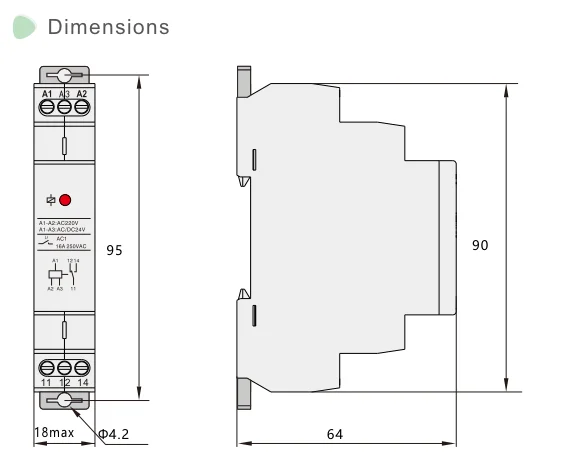

Overall dimensions | 90mm×18mm×64mm | |||||||||||
