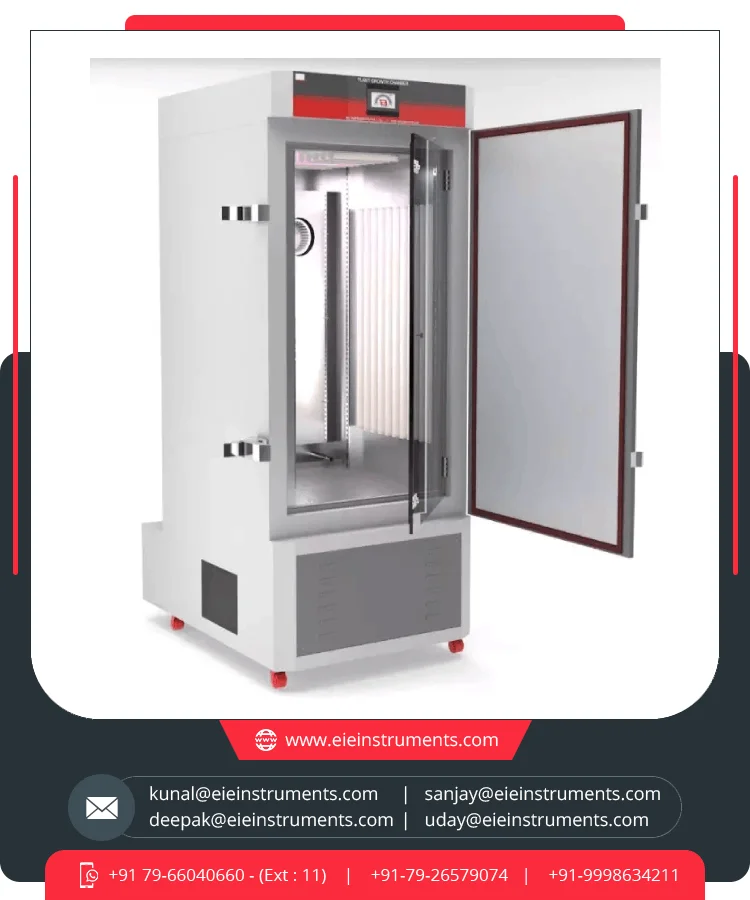

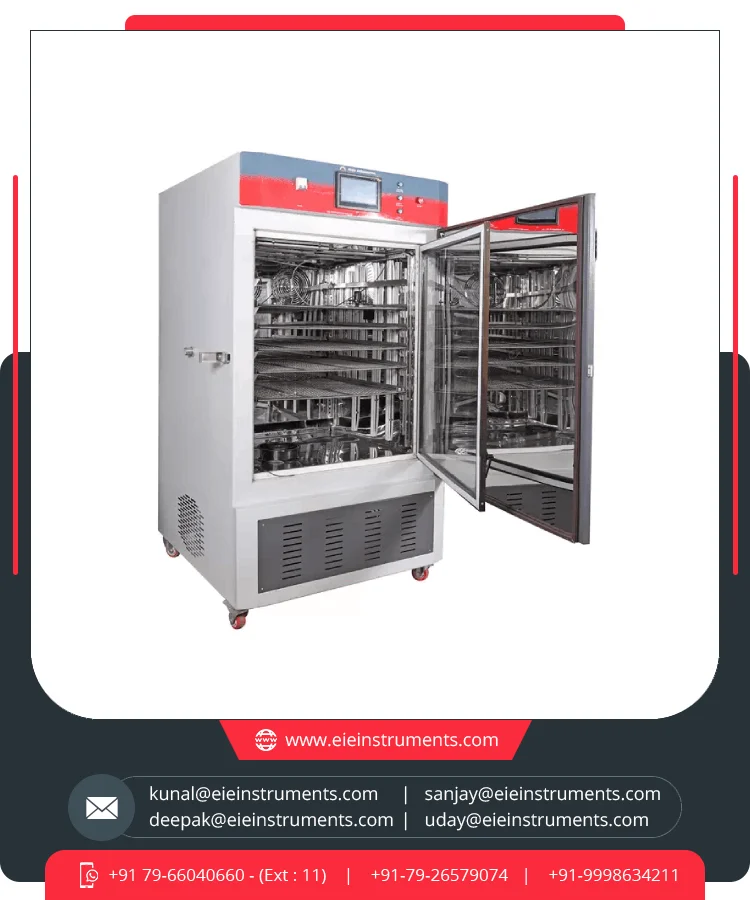

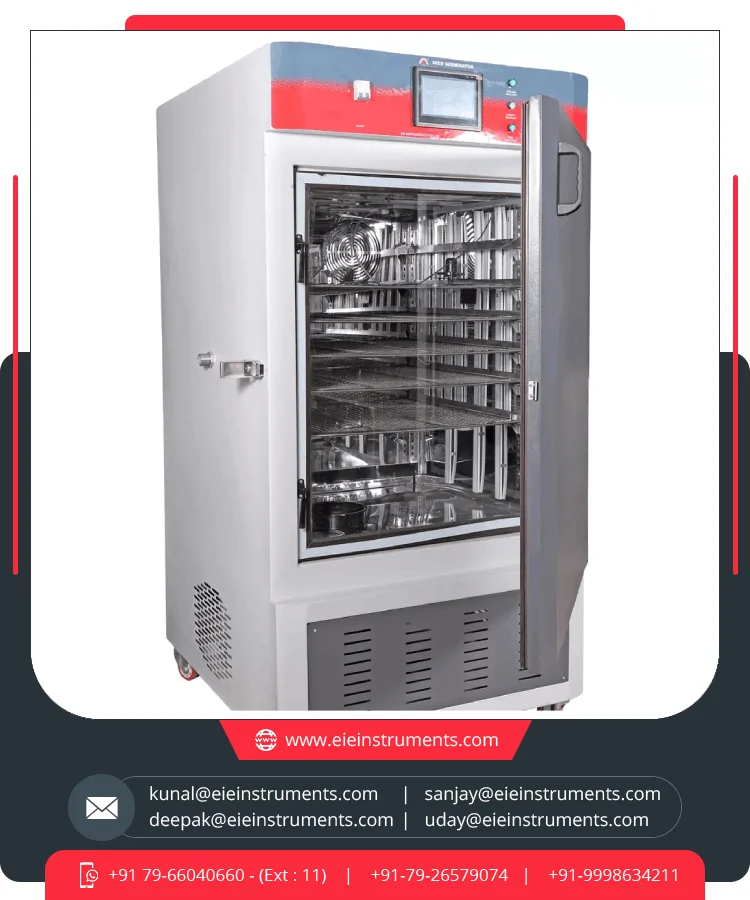

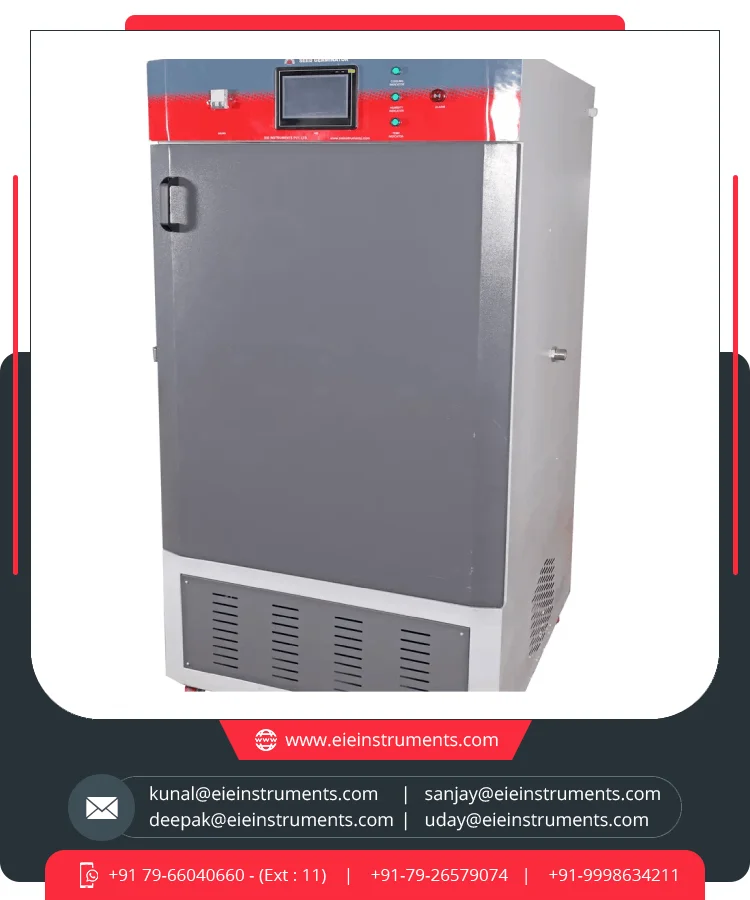

Quality Standard Artificial Climate Incubator Plant Growth Chamber Illumination Plant Growth Chamber Germination Chamber

Construction Details :

• Double wall construction


• Interior chamber is fabricated from high grade stainless steel Material S.S.304.


• Exterior body is fabricated from made Mild steel material, which is duly powder coated in attractive shades


• Full size polycarbonate sheet inner door to inspect samples without affecting the chamber temperature.


• Properties of polycarbonate sheet door (Unbreakable, Unscratchable, High temperature resistant, Robust, Air tight and Transparent)


• Outer double walled metal door with sponge type silicon gasket for airtight sealing as to avoid leakage of chamber uniformity


• User friendly and tactfully designed chamber door and locking mechanism


• Chamber illumination is accomplished by Fluorescent light with door switch.


• Electrical wiring as per CE Compliances, with individual numbering of each internal circuitry wire for ease of maintenance & Repairing


• Electric Motor of blower located at the back side of unit, which is protected with safety cover to avoid accident


• Standard motor of reputed companies such as CG, GODREJ or GE Make


• Hermetically sealed CFC Free Kirlosker/Emerson make refrigeration system with R134A refrigerant media


• Humidity system is accompanied by Non condensing type steam injection system with water level arrangement controlled through ballcock valve


• Exterior illumination with fluorescents tube lights for artificial day light and the cyclic illumination conditions are regulated by AUTOMATIC 0 to 24 HOURS Timer.


• Fitted with water Inlet, water Outlet & Over Flow Nozzle


• Cord wire duly tested and inspected with stress factor as per CE standard


• Aesthetic outer appearance and high quality


• Unit mounted on castor wheels for easy movement.

Insulation

70mm polyurethane insulation (PUF) / fiberboard to ensure better insulation and less leakage of temperature or RH from inner body to the surroundings.

Air Circulation

Temperature is maintained by a quiet running blower circulation air throughout the chamber. Forced air circulated vertically down and recirculated throughout the chamber for uniform temperature and humidity.

Humidity

Humidity created by steam injection method. The boiler tank is fitted in the back side of the chamber for better servicing, Electromagnetic switch for controlling the wet heater from burning off if water level is not adequate. Float valve provided to control water level in the boiler tank.

Heating system

Long lasting SS tubular heaters used as heating element. The stainless steel fins provided to ensure better heat transfer.

Refrigeration System

Hermetically sealed compressor CFC free compressor (134A gas) coupled with evaporation coil and condenser. Kirlosker/Emerson make refrigeration system.

Trays for sample

• Removable perforated trays are part of the standard supply.


• Strong enough to withstand heavy load of test specimens


• Such trays will also facilitate better air circulation.


• The distance between trays will be 15 to 20 centimeters.

Safety Features

• High temperature safety cut off


• Low water level boiler cut off


• Electrical overload cut off


• Time delay for compressor switch ON


• Electrical circuit breaker

Pre installation mandatory requirement : (Guarantee void in case of non compliance)

• Distilled water OR DM water continuous supply with tap for boiler input of 3/8" BSP at 3 feet height.


• Room temperature around machine preferably at 25 °C with air conditioning or a well ventilated room with exhaust fan.


• However surrounding temperature should not exceed 30 °C .


• Stabilized Input Voltage of 230 Volt, 50 Hz, 20 Amps, AC Supply. Use of Servo Controlled Stabilizer is recommended.


• Water drain line with 3/8" nozzle to be provided at floor level.

Optional Accessories At Extra Cost

• 21 CFR Compliance software with PC Connectivity to log, modify and store the generated data, To generate the Audit trail report and to plot the real time graphs of various parameters
