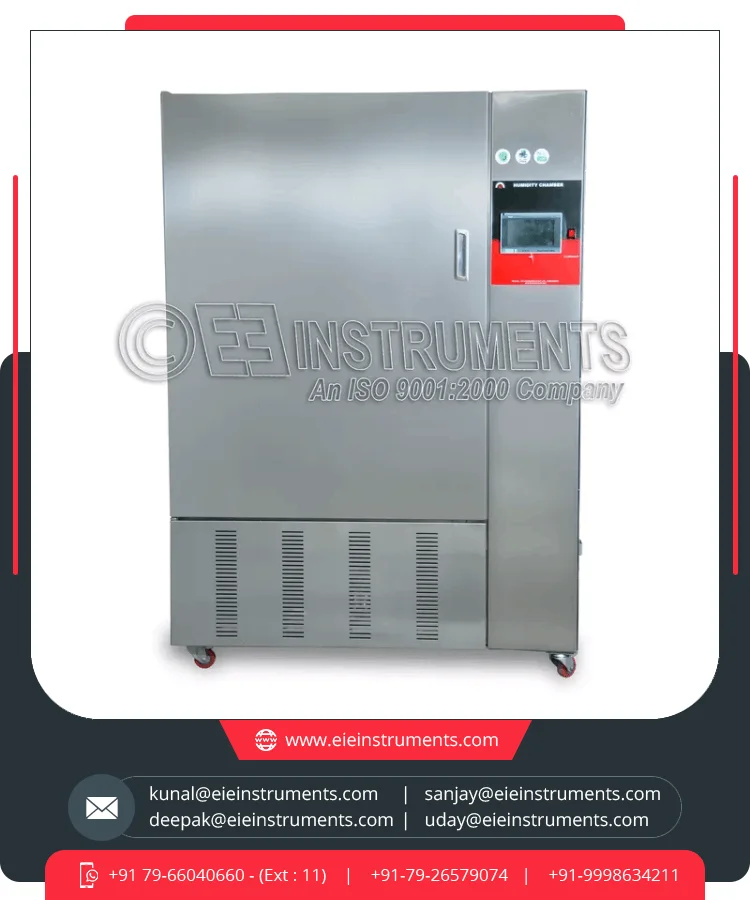

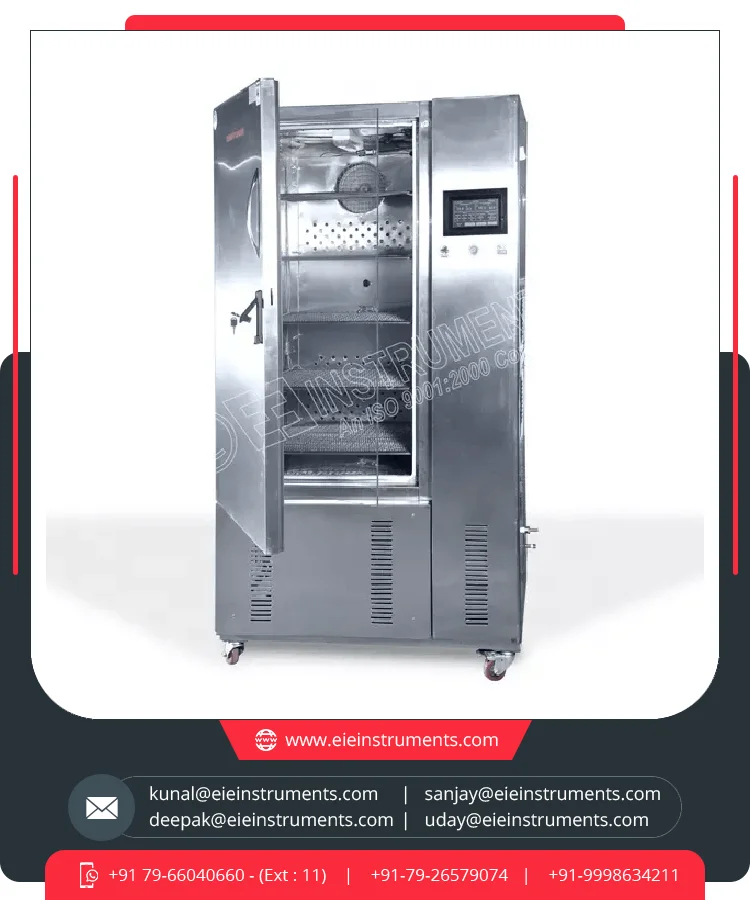

Good Quality New Stability Humidity Test Chamber Climatic Test Chamber Drug Stability Test Chamber

Salient Features

• CE Certified


• Double wall construction


• Fulfills storage conditions of 25° C - 60% RH, 40° C - 75% RH, 30° C - 65% RH, 25° C - 40% RH, 30° C - 35% RH


• Designed for testing product shelf – life, Packing and Electronic test.


• Specially designed to meet ICH, WHO & USFDA requirements.


• Full size polycarbonate sheet inner door to inspect samples without affecting the control parameters.


• Electrical wiring as per CE Compliances


• Illuminated working area


• User friendly and tactfully designed chamber door and locking mechanism


• Forced air circulation for uniform temperature and RH Distribution


• Ensures smooth air-flow pattern to improve the Temp & Humidity distribution across the chamber


• U-Shaped tubular heaters as heating element.


• Unit mounted on castor wheels for easy movement.


• Uniformity module with 4 + 4 RH & Temp Sensors (Optional)


• Password protected door access and monitoring (Optional)


• GSM module for SMS Alert (Optional)


• Serial port for PC interface with 21-CFR Compliant software (Optional software)


• Standby Humidity control system and Standby refrigeration system (Optional)

Insulation

70mm polyurethane insulation (PUF)/ fiberboard to ensure thermal loss

Humidity System

Non-condensing type Steam injection system & reservoir tank with water level arrangement with indicator.

Cooling System

Hermetically sealed compressor, which is CFC free and eco-friendly, utilizes the refrigerant (R-134A gas) to maintain chamber temperature within specified range.

Technical Specifications

• Temperature Range: 20 °C to 60 °C


• Humidity Accuracy: ± 2% RH


• Temperature Accuracy: ± 0.2 °C


• Humidity Uniformity: ± 3% RH


• Temperature Uniformity: ± 1°C


• Supply: 230V Ac, 50 Hz, Single Phase


• Humidity Range: 40% RH to 95% RH

Salient Features

• 21-CFR Compliance software with PC Communication


• Highly advanced HMI & PLC Control system


• GSM Alert through SIM Card


• Data logger with 4 temperature + 4 Humidity sensors


• Spare RH Sensor for validation purpose


• Spare PT-100 Sensor for validation purpose


• Standby Humidity System


• Standby Refrigeration System


• Biometrics Magnetic Door Access for Secured Door opening with software to maintain log


• On-Site Validation (mapping) for 24 hours on Empty, Half and Full load condition
