Product Overview

Description

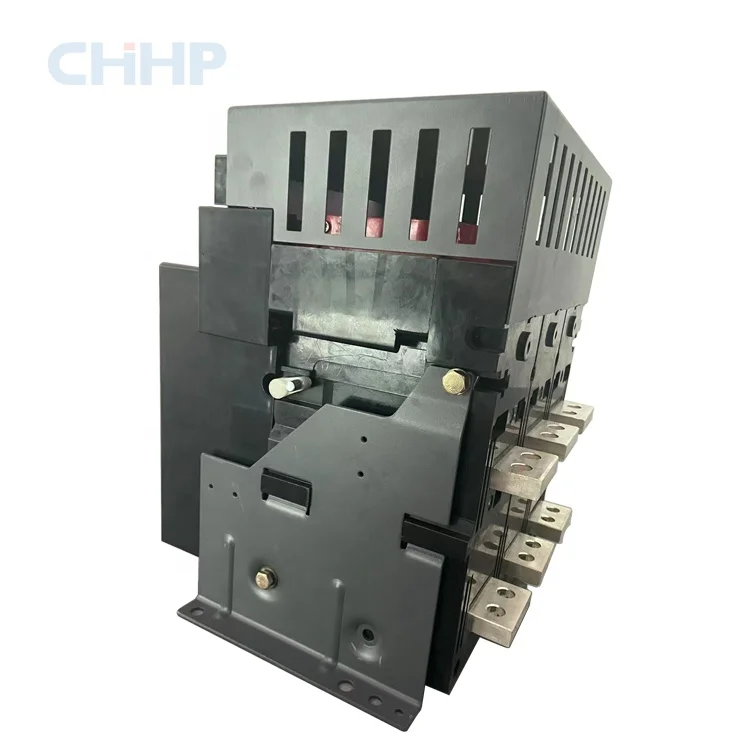

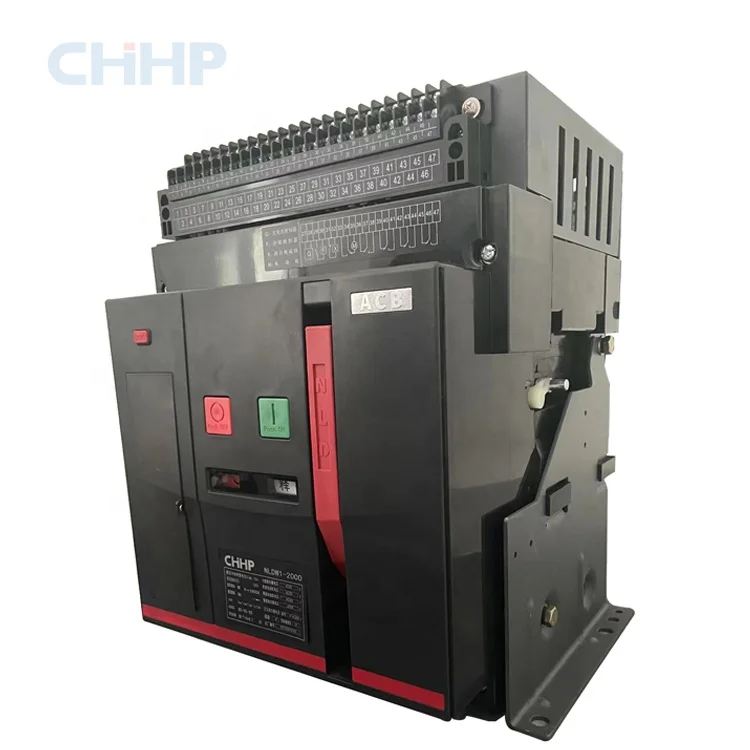

1600A 3P 4P ACB draw-out type/fixed type Air Circuit Breaker



PRODUCT DESCRIPTION



1600A 3P 4P ACB draw-out/ fixed type Air circuit breaker



1600 universal intelligent circuit breaker(hereinafter referred to as circuit breaker), applied to ac 50 hz, rated voltage 400 v, 690 v, rated current 200~1600 a power distribution network, are mainly used for distribution power and protect circuit and power equipment from overload, short circuit, under voltage, the harm of single-phase grounded fault. Under normal conditions can be used for line not frequent transformation, also can be used for infrequent motor starting and protection purposes. The circuit breaker has a variety of intelligent protection function, accurate, selective protection can improve power supply reliability and avoid unnecessary power outages.

Circuit breaker technical performance is in line with GB14048.2 "low-voltage switchgear and control equipment Part 2: circuit breaker". IEC60947-2 “low-voltage switchgear and control equipment Part 2: circuit breaker "and other standards.

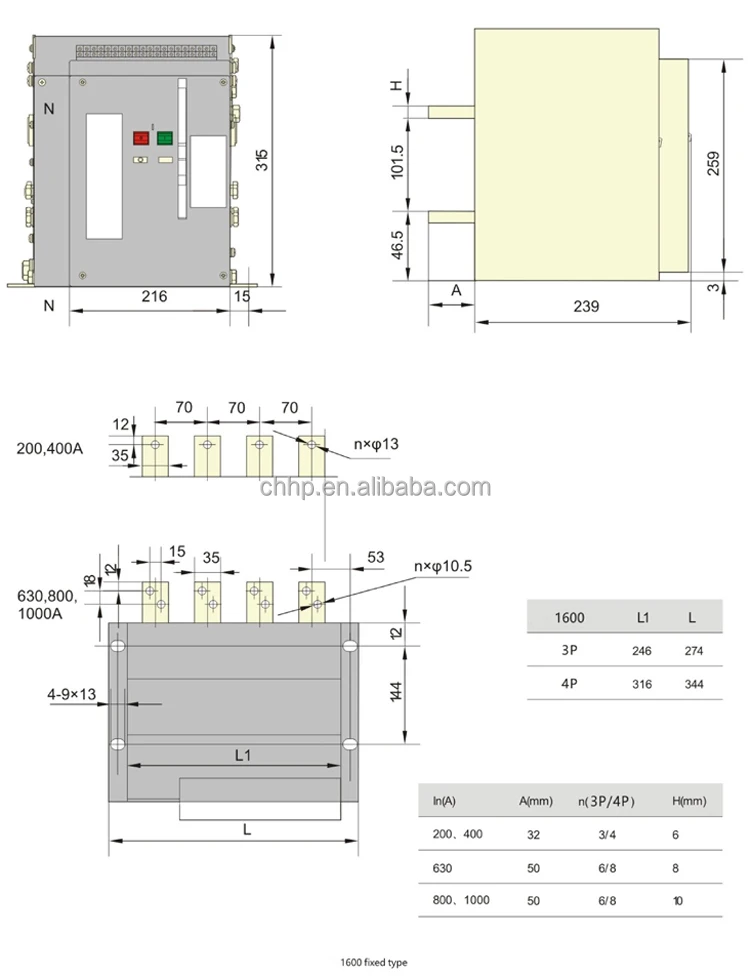

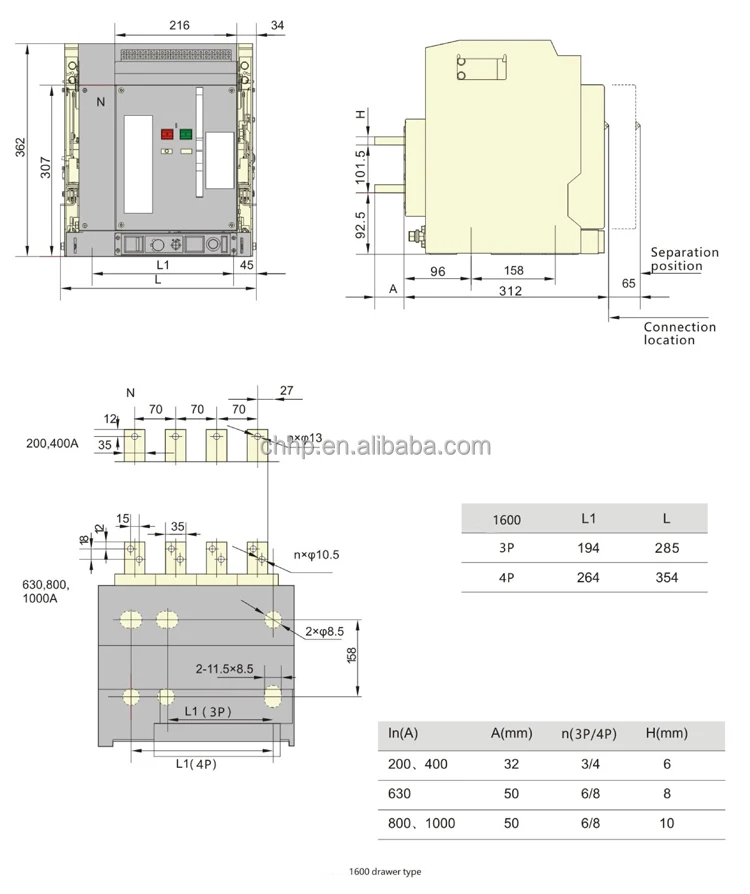

Installation dimensions and overall dimensions
