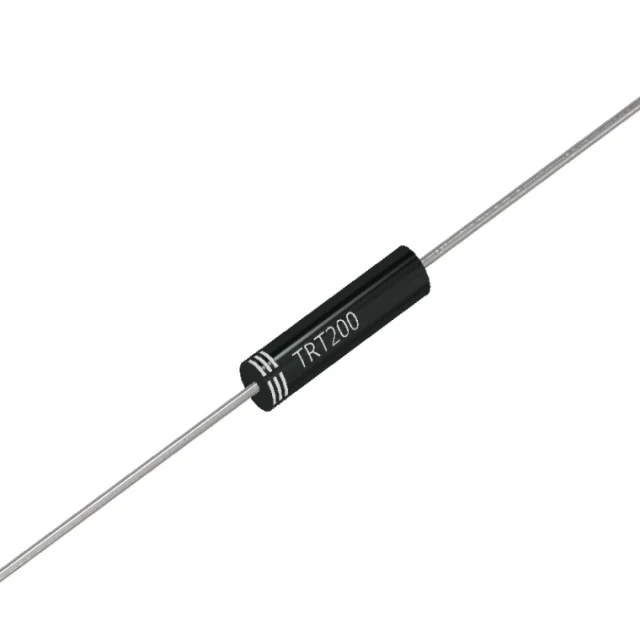

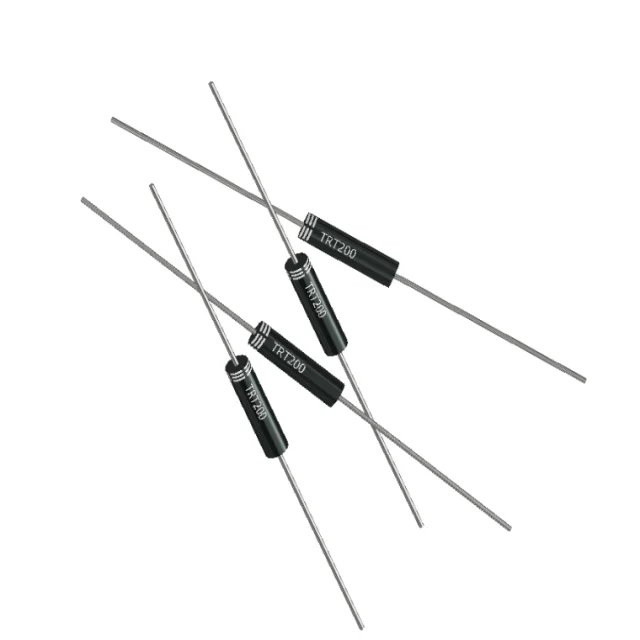

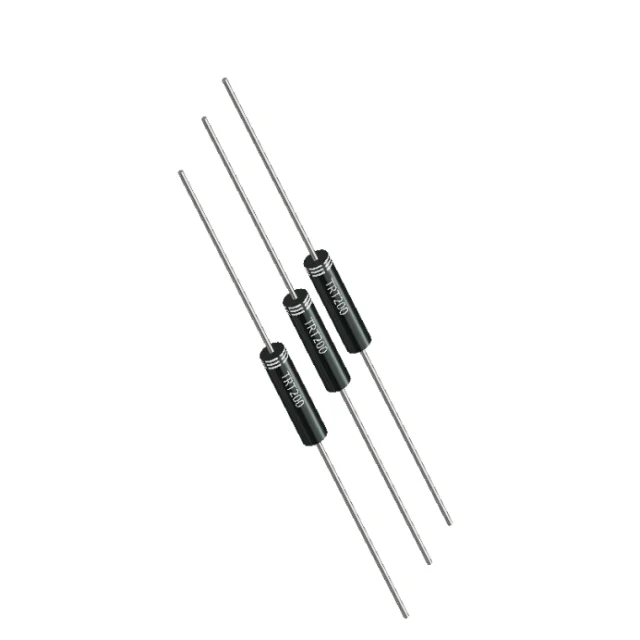

Factory Direct Supply TRT200 30mA 20KV High Voltage High Frequency Rectifier Diode
- Category: >>>
- Supplier: Yangxin Huantai Technology Co. Ltd.
Share on (11000006257487):
Product Overview
Description
Product Description
▼Fast Recovery High Voltage Diode
TRT200
Type | Repetitive peak reverse voltage | Average forward current | Surge(Non-repetitive) forward current | Peak reverse current(Ta=25°C) | Peak forward voltage | Reverse recovery time | Size |
VRRM | IF | IFSM | IRRM | VFM | trr | ||
KV | mA | A | µA | V | ns | mm | |
TRT080 | 8 | 30 | 1 | 2 | 20 | 100 | ∅3.0x8.0 |
TRT100 | 10 | 30 | 1 | 2 | 23 | 100 | ∅3.0x10.0 |
TRT120 | 12 | 30 | 1 | 2 | 25 | 100 | ∅3.0x10.0 |
TRT150 | 15 | 30 | 1 | 2 | 35 | 100 | ∅3.0x12.0 |
TRT200 | 20 | 30 | 1 | 2 | 35 | 100 | ∅3.0x12.0 |
TRT250 | 25 | 30 | 1 | 2 | 40 | 100 | ∅3.0x12.0 |
TRT300 | 30 | 30 | 1 | 2 | 45 | 100 | ∅3.0x12.0 |
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
● High surge resisitivity for CRT discharge
▼Applications
● X light Power supply
● Laser
● Voltage dubler circuit
● Microwave emission power
● Laser
● Voltage dubler circuit
● Microwave emission power
