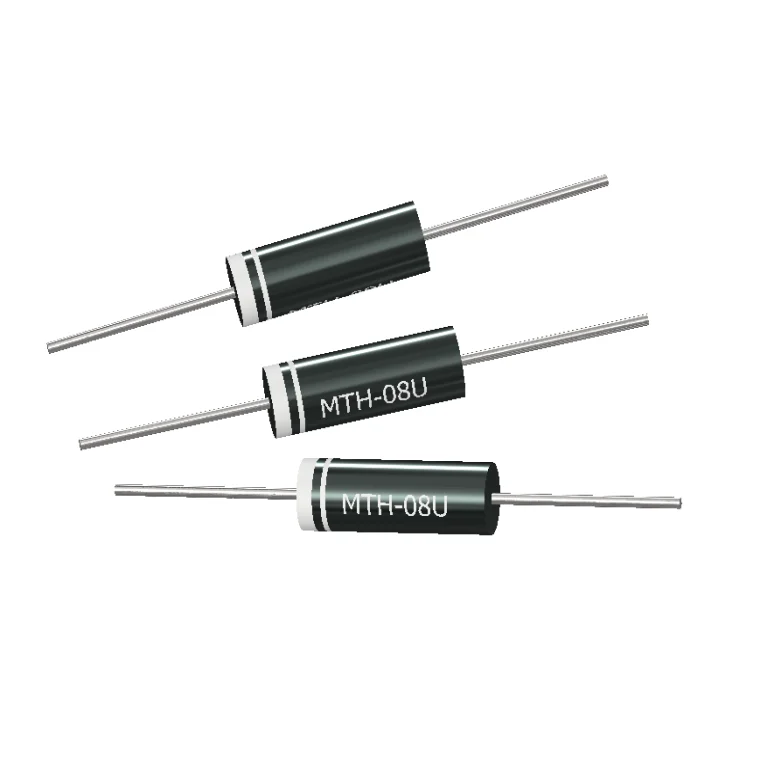

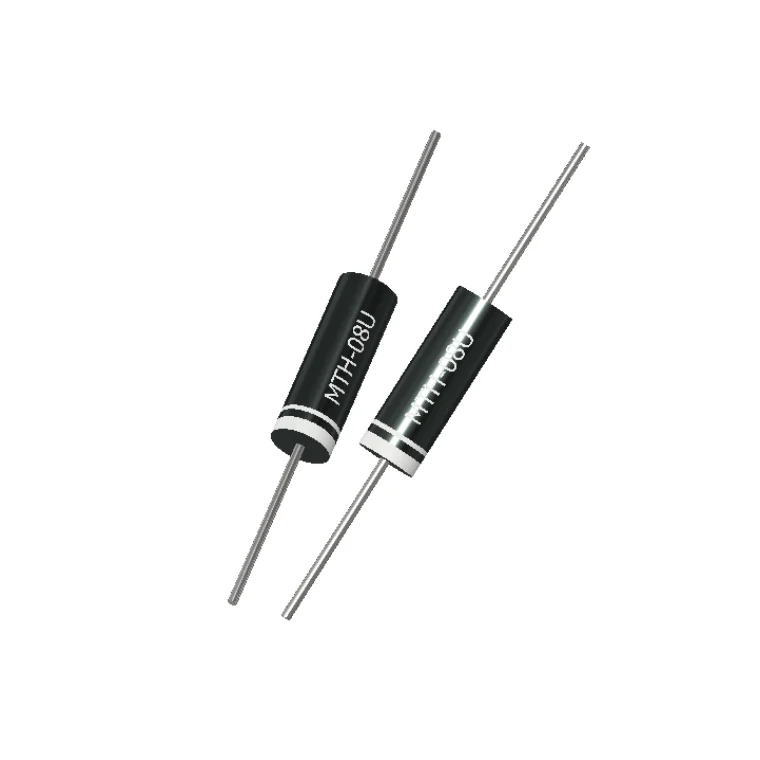

8KV 500mA 40nS MTH 08U For Medical X ray High voltage Generator High Voltage Diode replace UX FOB
- Category: >>>
- Supplier: Yangxin Huantai Technology Co. Ltd.
Share on (11000006276620):
Product Overview
Description
Product Description
▼High Voltage Diode For Medical X-ray High-voltage Generator
Maximum rating(Ta=25℃ unless otherwise noted)
Parameter | Symbol | MTH-08U | Unit | ||
Repetitive peak reverse voltage | VRRM | 8 | KV | ||
Average forward current | 60HZ half-sine wave,Resistance load, Ta≤60℃ | IF(AV) | 500 | mA | |
Surge(Non-repetitive) forward current | 60HZ half-sine wave,1cycle, Ta=25℃ | IFSM | 20 | A | |
Peak reverse current(Ta=25°C) | VRM=VRRM | IRRM1 | 0.5 | µA | |
Peak forward voltage | IFM=500mA | VFM | 12 | V | |
Reverse recovery time | TRR | 40 | nS | ||
Storage Temperature range | TSTG | -40 to 150 | ℃ | ||
Maximum Junction Temperature | TJ | 150 | ℃ | ||
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
● High surge resisitivity for CRT discharge
▼Applications
● X light Power supply
● Laser
● Voltage dubler circuit
● Microwave emission power
● Laser
● Voltage dubler circuit
● Microwave emission power
More Products
Certifications
Company Profile
Packing & Delivery
● Regular packaging or custom packaging according to customized requirements
● We will recommend the most suitable shipping method based on your order quantity
