Product Overview
Description
What is MJF ?
Multi Jet Fusion (MJF) is HP’s proprietary 3D printing process.
Due to their affordability, speed, and high resolution, multi jet fusion technology can be used for end-use, low-volume production, rapid prototyping, or as a bridge process to injection molding.
MJF allows engineers to get a feel for how parts will perform with minimal upfront costs.
Materials
Nylon 12 is a robust thermoplastic with all-around excellent physical properties and chemical resistance, ideal for functional prototypes and end-use applications.
Glass-filled nylon is reinforced with glass bead and creates parts with higher stiffness and thermal stability than standard nylon.
Material Name | Description | Shore Hardness | Elongation at Break (XY, ZX %) | Elongation at Break (XY, ZX %) |
Nylon 11 | HP 3D High Reusability PA 11 | 80D | 55%, 40% | 6 kJ/m², 5 kJ/m² |
Nylon 12 | HP 3D High Reusability PA 12 | 80D | 20%,15% | 3.6 kJ/m², 3.5 kJ/m² |
Nylon 12 Glass Filled | HP 3D High Reusability PA 12 Glass Beads (40% GB) | 82D | 10% | 3 kJ/m² |
Size and Tolerance
From prototyping to small-batch production, our global network of certified MJF 3D printing facilities will allow you to produce highly accurate parts with quality comparable to injection molding.
Capabilities | Description |
Maximum build size | 380 x 285 x 380 mm (14.9'' x 11.2'' x 14.9'') |
Standard lead time | 3 days |
Dimensional accuracy | ± 0.3% with a lower limit on ± 0.3 mm (0.012'') |
Layer thickness | 80 μm |

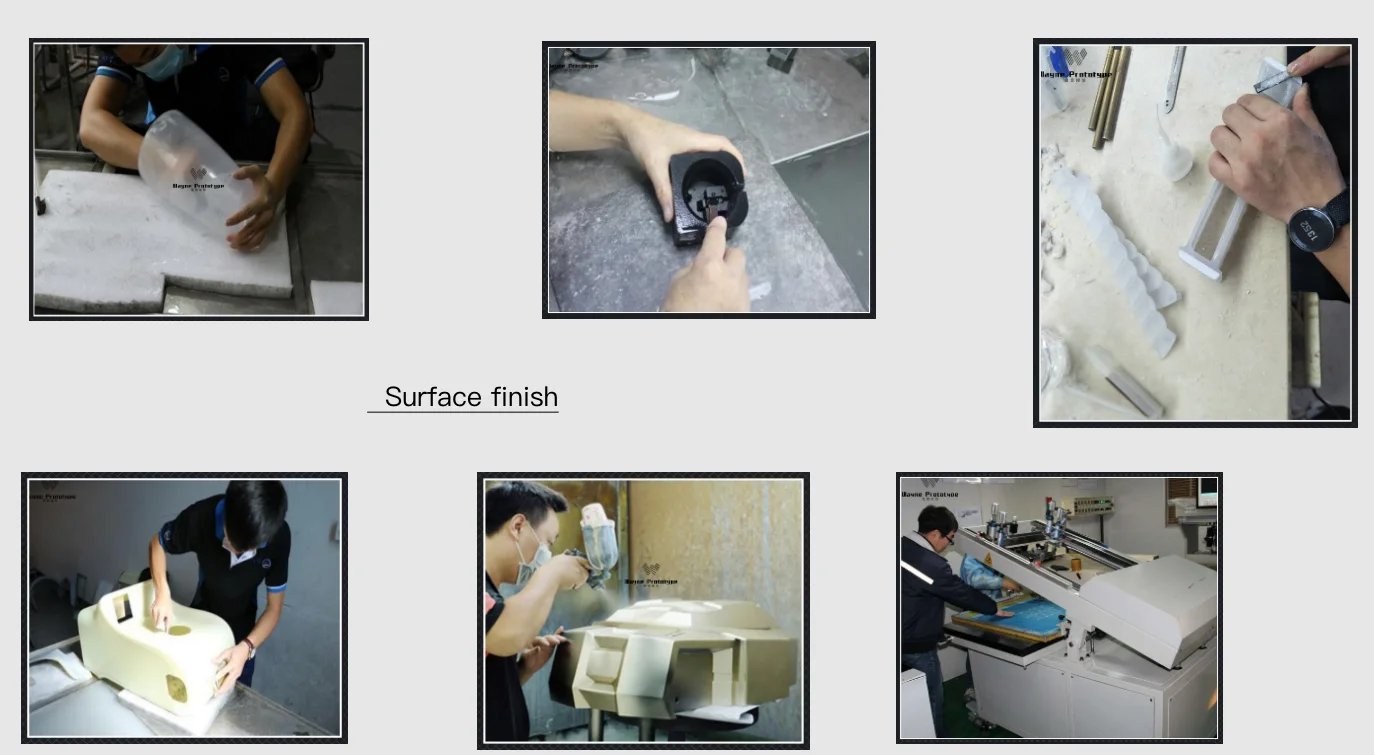

Surface Finish
Available surface finishes for MJF 3D printing
Additional post processes can be applied to improve the appearance or mechanical properties of parts produced with MJF.
Additional post processes can be applied to improve the appearance or mechanical properties of parts produced with MJF.
MJF parts with a wall thickness greater than 4 mm are watertight up to 20 bar without additional finishing.

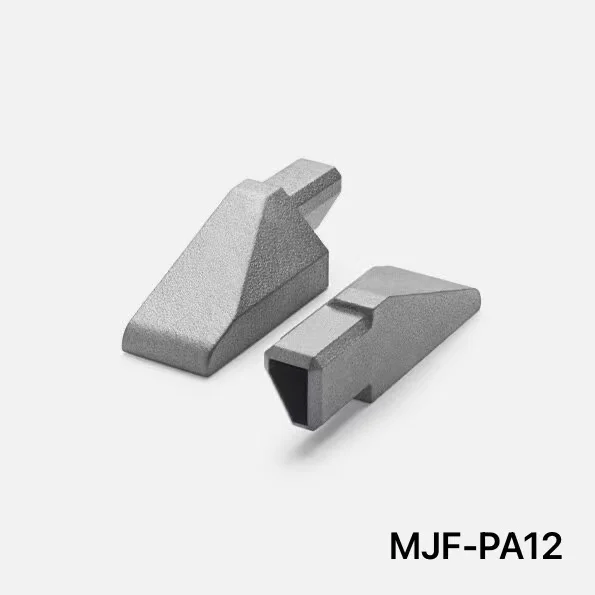

Gray
As printed MJF parts are typically gray in color and have a smooth surface, without visible layers, and a powder texture.

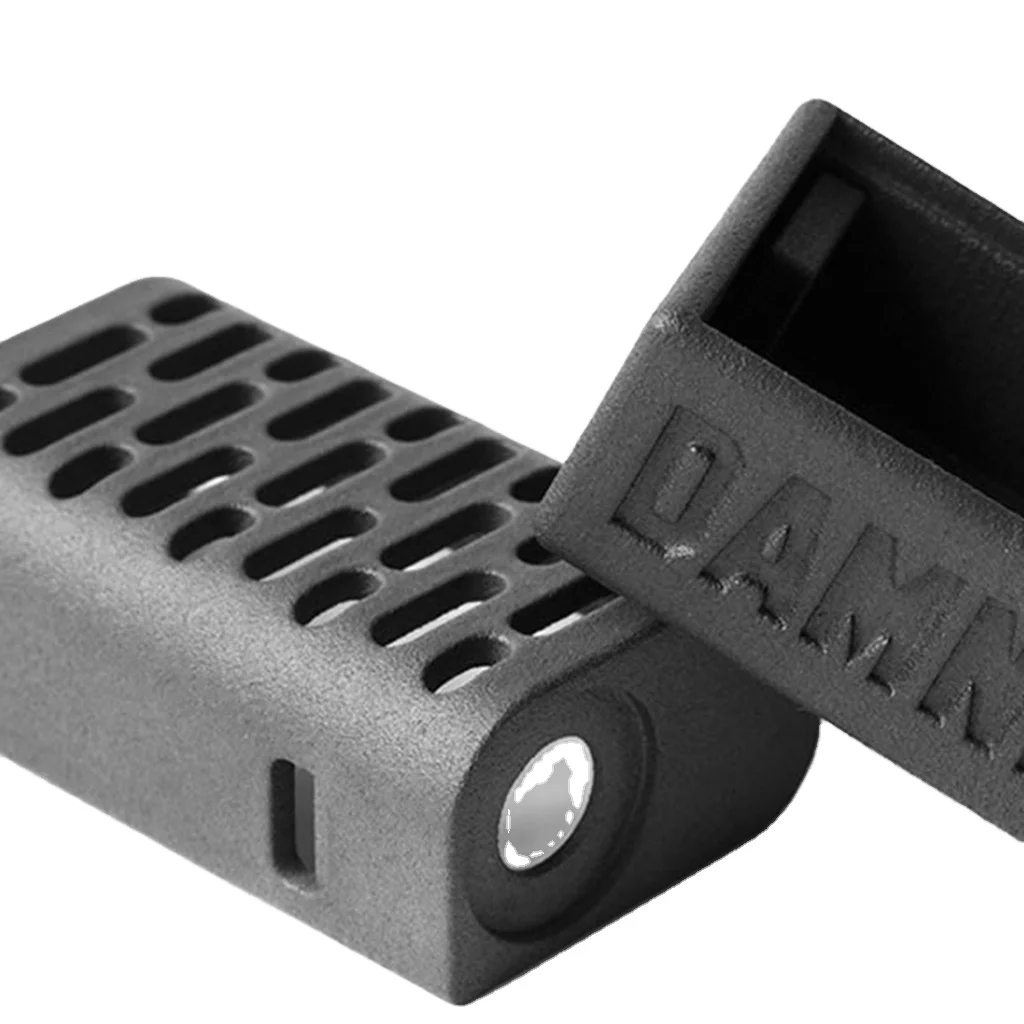

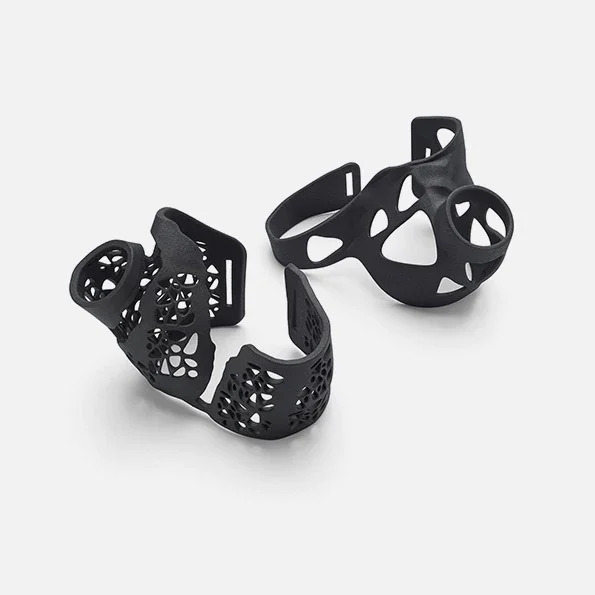

Dyed (Black)
MJF parts are dyed black by immersion in a warm color bath. The color penetration reaches a depth of about 0.5 mm and covers all surfaces.
Spray painting
MJF parts can be painted white, black or in a specified RAL or Pantone color.
Ideal MJF applications
Advantages of MJF 3D Printing Process
While there are many benefits to MJF printing, a few truly stand out. For starters, the standard build parameters are optimized for the best density. The result is that Multi Jet Fusion parts are watertight.
If you like SLS but want to produce higher quantities for small-batch production runs, Multi Jet Fusion is the way to go. MJF printers have the ability to print multiple parts simultaneously across the entire build volume means you can print parts at rates up to 10X faster than SLS or other 3D printing processes. Also, Multi Jet Fusion delivers more balanced mechanical properties across the X, Y, and Z axes compared to SLS.
If you’re interested in injection molding for your project, it’s always a good idea to get a 3D printed “test” part before making the investment in metal molds.
While there are many benefits to MJF printing, a few truly stand out. For starters, the standard build parameters are optimized for the best density. The result is that Multi Jet Fusion parts are watertight.
If you like SLS but want to produce higher quantities for small-batch production runs, Multi Jet Fusion is the way to go. MJF printers have the ability to print multiple parts simultaneously across the entire build volume means you can print parts at rates up to 10X faster than SLS or other 3D printing processes. Also, Multi Jet Fusion delivers more balanced mechanical properties across the X, Y, and Z axes compared to SLS.
If you’re interested in injection molding for your project, it’s always a good idea to get a 3D printed “test” part before making the investment in metal molds.
Functional prototyping
MJF is ideal for fabricating functional prototypes from durable, chemically resistant engineering thermoplastics.
Requirements
Strength: Medium/High
Appearance: Smooth surface
Quantity: 1 - 5 parts
Requirements
Strength: Medium/High
Appearance: Smooth surface
Quantity: 1 - 5 parts
Low-volume production
MJF is cost-competitive to injection molding for low-volume manufacturing of end-use plastics parts for quantities up to 300
units.
Requirements
Strength: Medium/High
Appearance: Injection molding-like
Quantity: 10-300 units
units.
Requirements
Strength: Medium/High
Appearance: Injection molding-like
Quantity: 10-300 units
Recommend Products

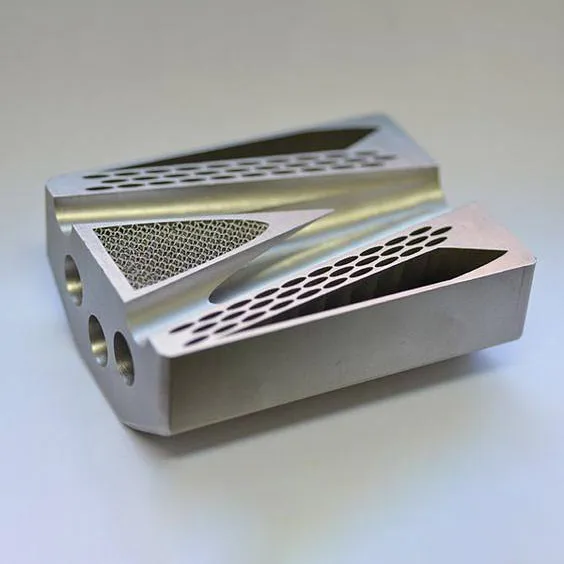

DMLS 3d printing service

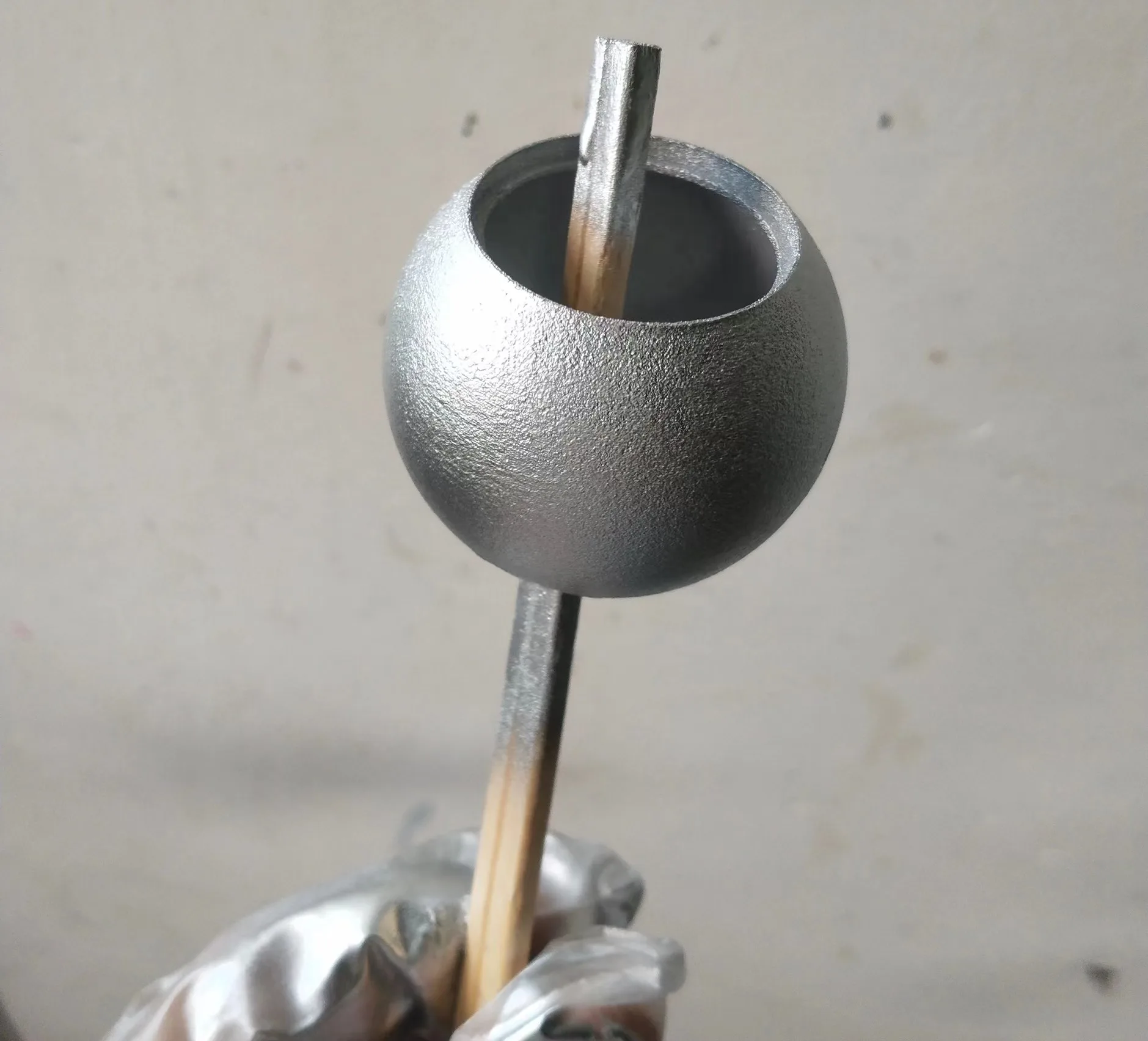

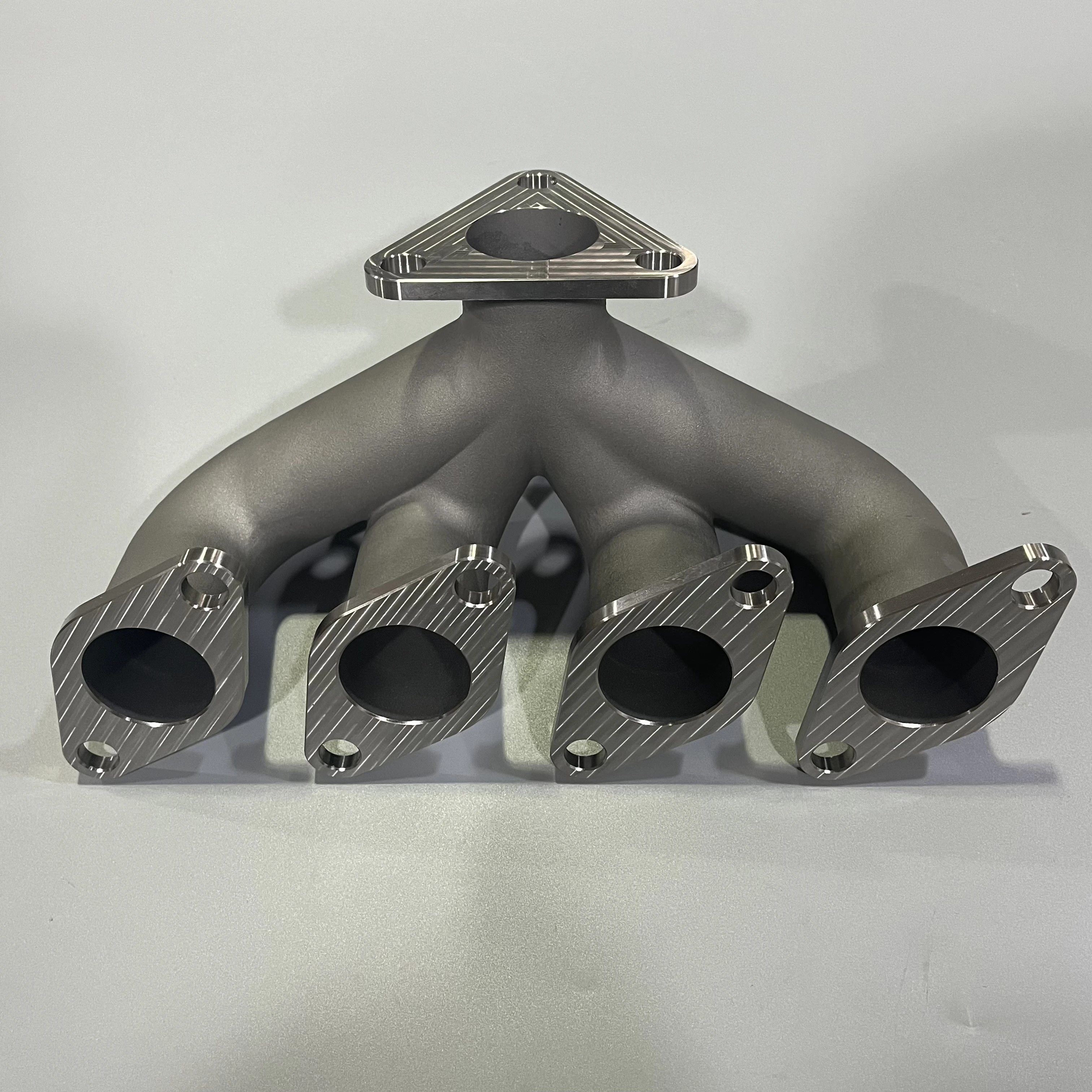

DMLS(DIRECT METAL LASER SINTERING): uses lasers to fuse powdered metals into functional prototypes and end-use parts.
Material: Titanium, Aluminium, Stainless Steel...

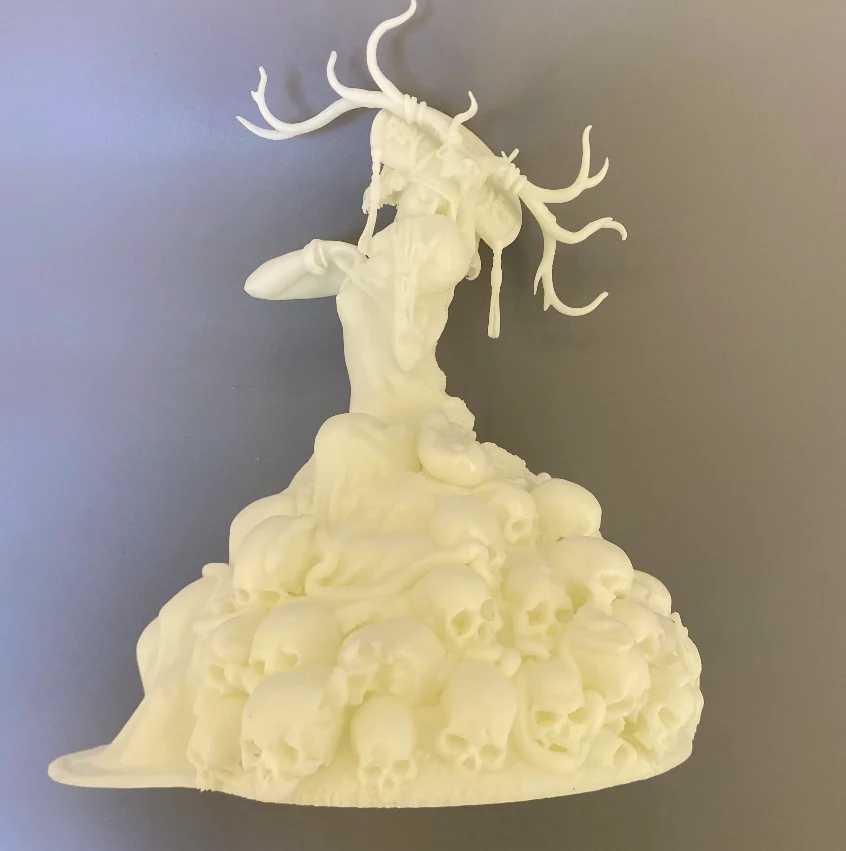

SLA 3d printing service
SLA(Stereo Lithography Apparatus): uses an ultraviolet (UV) laser to turn light-sensitive resin (a liquid material that becomes hard when ultraviolet light is shined on it) into solid 3D objects, layer by layer.
Material:Resin (ABS-Like and Acrylic-like)
Application: SLA: is very good way to make the complex structure and small parts with good tolerance and very good surface finish, can be paint in different colors.
FDM 3d printing service
FDM(Fused Deposition Modeling): is the most cheap technique, that diffuses a plastic wire into shape.
Very cheap and which is strong, but the surface is not so good, rougher than SLA parts. FDM parts have to be print with support.
Material:PLA(Polylactic Acid ), ABS(Acrylonitrile Butadiene Styrene), RUBBER(TPE / TPU), PLA+Wood, Metal PLA / Metal ABS,Carbon Fiber etc.

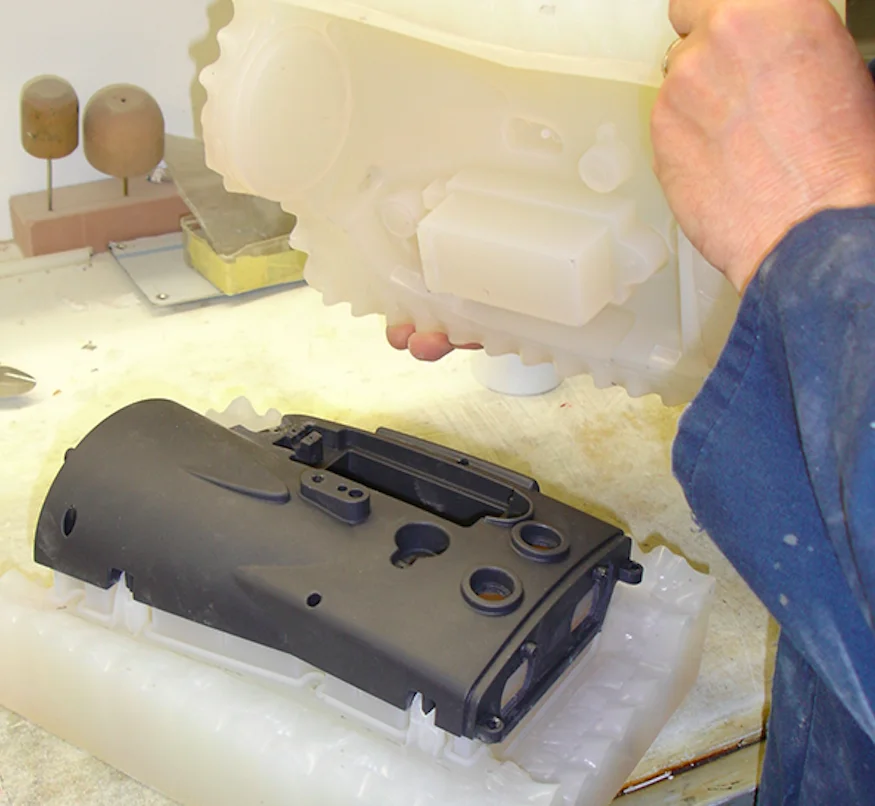

Vacuum casting service
Material: ABS, PP, PE, PC, PMMA, POM, PA, RUBBER.
Quantity: 5-100 units

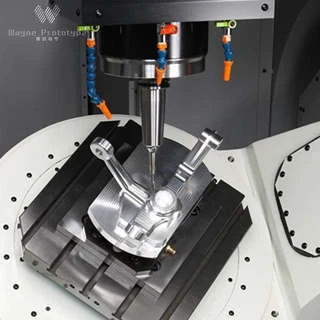

3/4/5 Axis cnc machining
Material:
Aluminum 6061
Aluminum 7075
Stainless steel 303
Stainless steel 304
Brass
Copper
Injection molding service
Material: ABS, PP, PE, PC, PMMA, POM, PA, RUBBER.
Quantity: 500 -100000 units
Quantity: 500 -100000 units
Company Profile
WayNe ProtoType
WayNe ProtoType is a Design and Engineering company from your concept stage to prototyping and fabrication of the completed product with injection molding.Our main focus is to help all the small and big sized companies to turn their dream projects into reality. We work very closely with our clients and strive to give them the best services at all times.

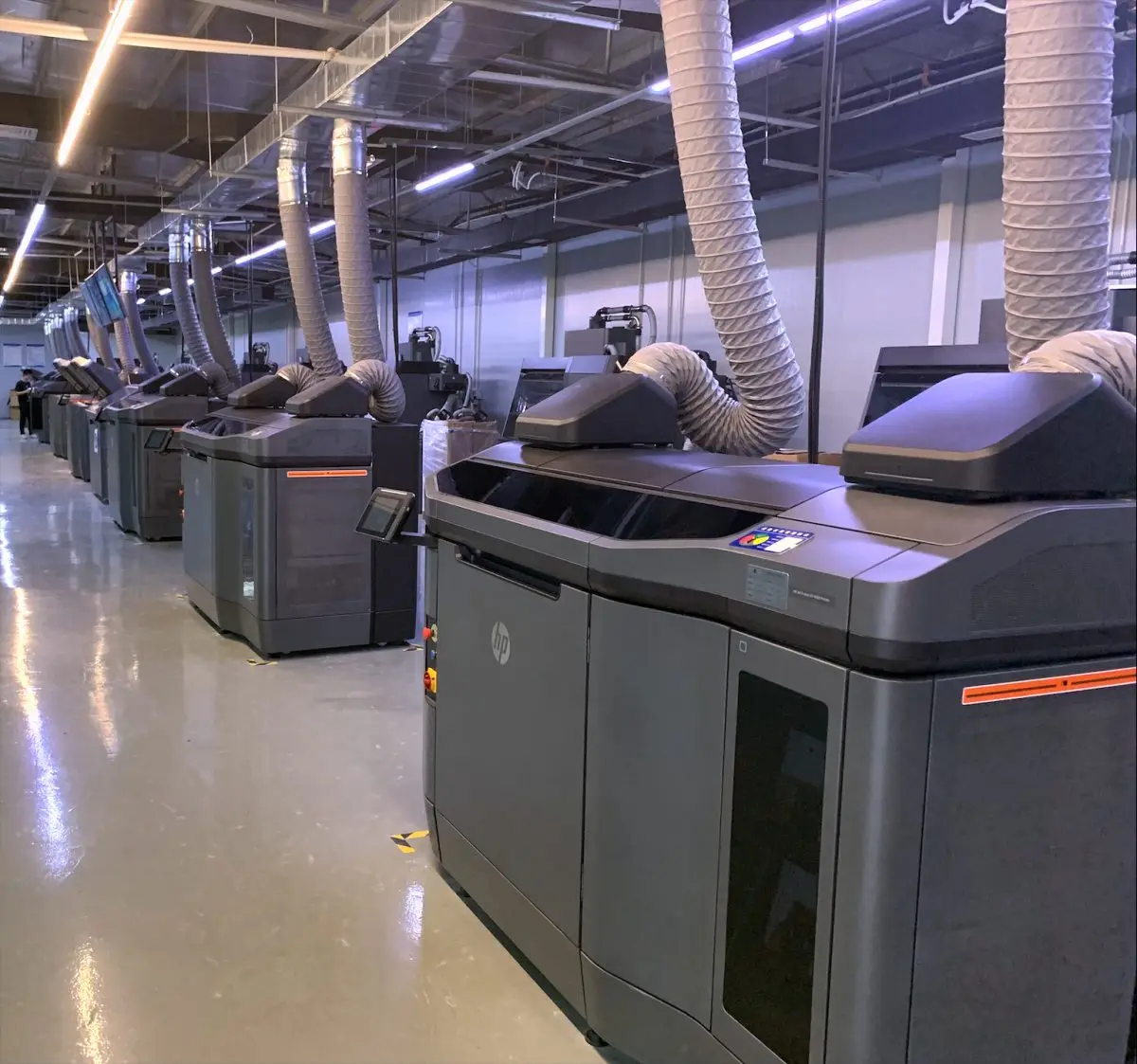

Our 3D printing equipment includes SLA SLS, HP MJF machines and metal 3D printer. With multiple years of experience and with an impressive portfolio. We are your partner in production, we process your project all the way from Zero to hero.
We make all projects possible. Getting your idea valued, designed, tested, prototyped or manufactured shouldn’t be a long and dawning process. We want to offer the future of rapid prototyping and additive manufacturing. A process that is fast, reliable, easy and supportive.
You think it, we make it !
We make this with a few things in mind: precision, timely delivery, low cost structure
Customer Photos
Packing & Delivery
Q：Where can I get product&price information?
A：sorellinachen@gmail.com
Q：What kind of production service do you provide?
A：Rapid prototyping, 3d printing service(SLA/MJF/SLM/FDM), Vacuum casting, CNC machining/milling/turning, Plastic/Rubber injection
molding, Reverse engineering service.
Q：How about the lead time?
A：abs or nylon 3d printed parts: 3-4 days.
Metal 3d printed parts: 4-5 days.
Injection mold: 4 weeks.
Mass production: About 10 days.
Q：How about your product quality?
A：· Our management and production executed strictly according to ISO9001:2008 quality System.
· We will 100% inspect the products before shipment.
· If there is quality problem, we will supply the replacement by our shipping cost.
Q：How long should we take for a quotation?
A：After receiving detail information we will quote within 2 days.
Q：What is your quotation element?
A：Drawing or Sample, Material, finish and Quantity.
Q：What is your payment term?
A：· Mould：30% prepaid, 40% after the mould finish, balance after sample approval.
· Goods：30% prepaid, balance T/T before shipment.
A：sorellinachen@gmail.com
Q：What kind of production service do you provide?
A：Rapid prototyping, 3d printing service(SLA/MJF/SLM/FDM), Vacuum casting, CNC machining/milling/turning, Plastic/Rubber injection
molding, Reverse engineering service.
Q：How about the lead time?
A：abs or nylon 3d printed parts: 3-4 days.
Metal 3d printed parts: 4-5 days.
Injection mold: 4 weeks.
Mass production: About 10 days.
Q：How about your product quality?
A：· Our management and production executed strictly according to ISO9001:2008 quality System.
· We will 100% inspect the products before shipment.
· If there is quality problem, we will supply the replacement by our shipping cost.
Q：How long should we take for a quotation?
A：After receiving detail information we will quote within 2 days.
Q：What is your quotation element?
A：Drawing or Sample, Material, finish and Quantity.
Q：What is your payment term?
A：· Mould：30% prepaid, 40% after the mould finish, balance after sample approval.
· Goods：30% prepaid, balance T/T before shipment.
