ANSI C136.41 compliant & UL Recognized Dimming Photocontrol Receptacle LC 10R/6 ansi c136.41
- Category: Electrical Supplies >>>
- Supplier: Zhejiang Qicheng Electrical Equipment Co. Ltd.
Share on (11000006319092):
Product Overview
Description
ANSI C136.41 compliant & UL Recognized Dimming Photocontrol Receptacle LC-10R/6 ansi c136.41
PRODUCT PRESENTATION

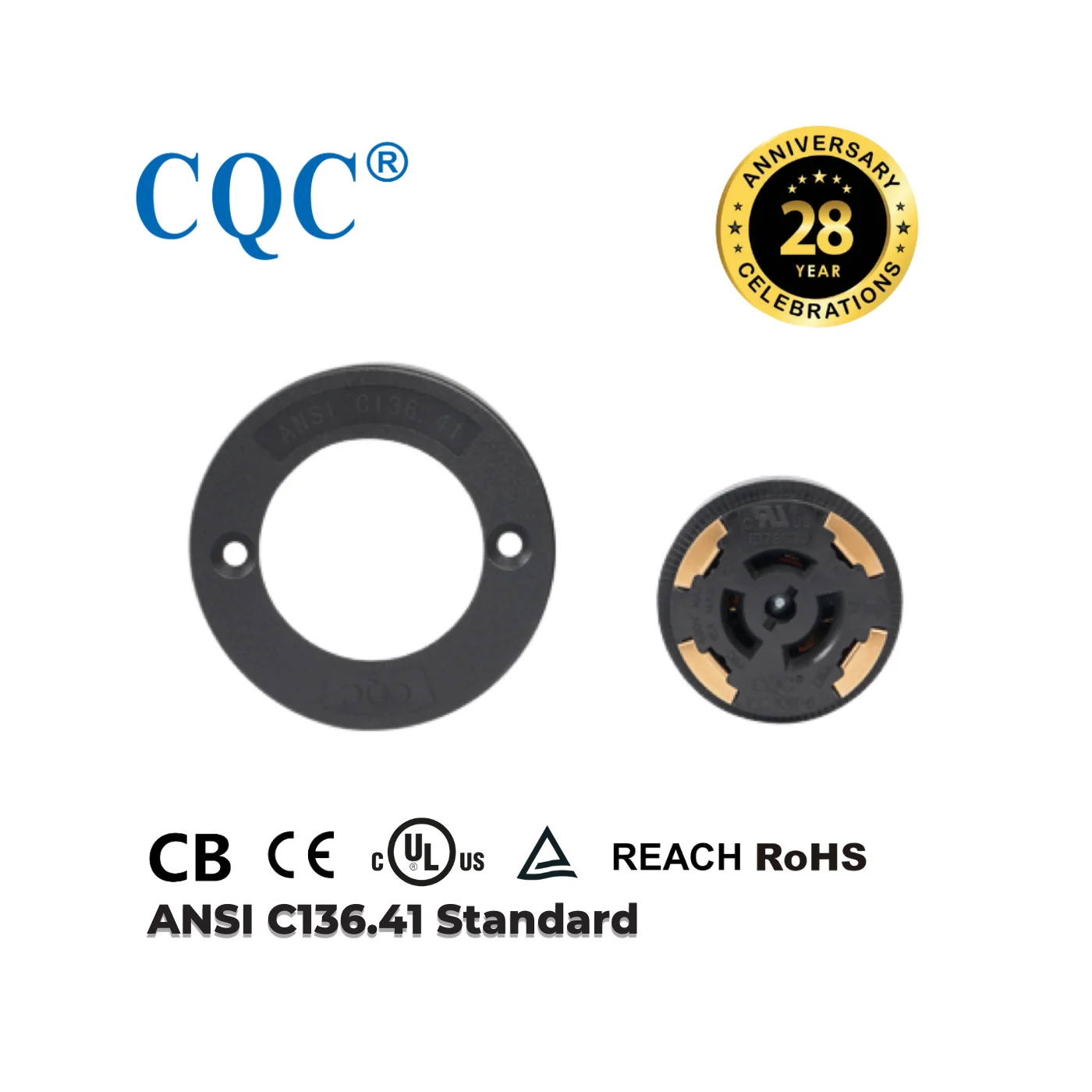

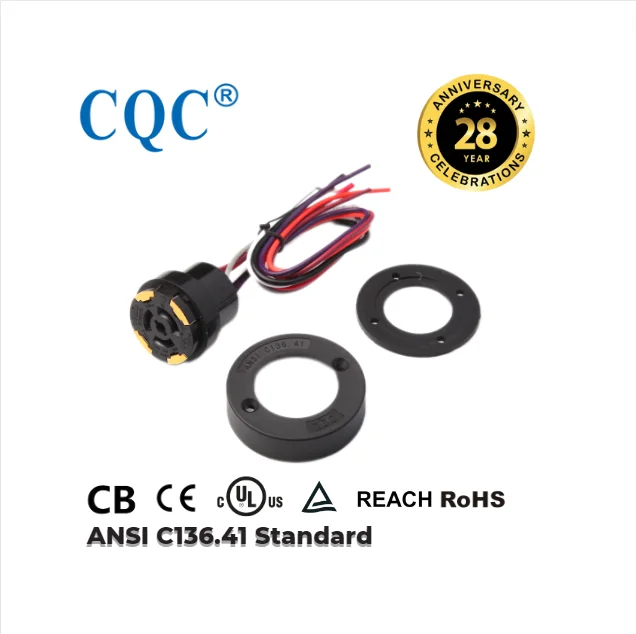

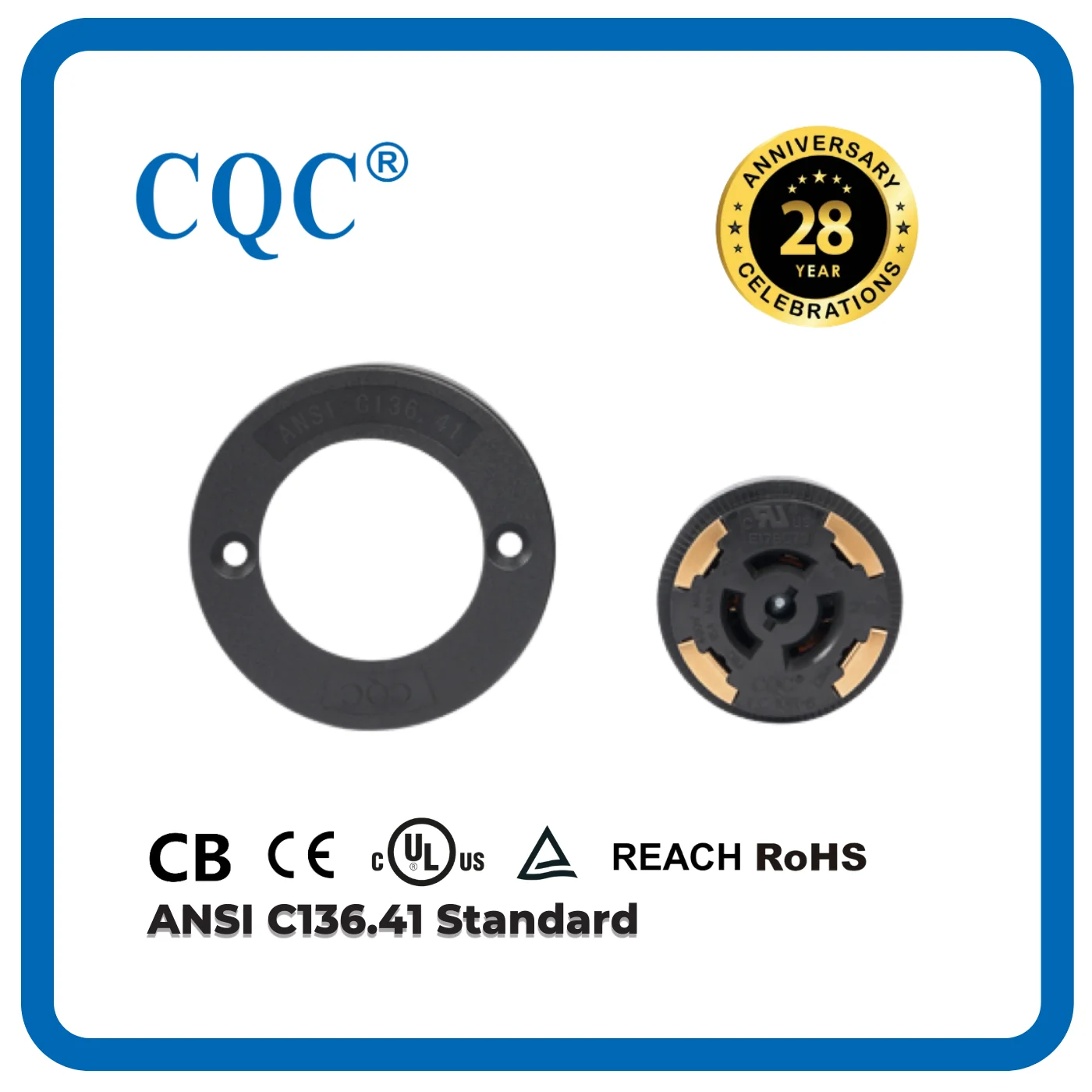

Rotatable locking type dimming Photocontrol Receptacle
The ANSI C136.41 compliant dimming receptacle and contact pads which provide an electrical and mechanical interconnection between an ANSI C136.41-2013 photocontrol and luminaire. The ANSI C136.41 compliant dimming receptacle is available with two or four dimming contacts to support either 0-30 VDC dimming methods or Digital Addressable Lighting Interface.

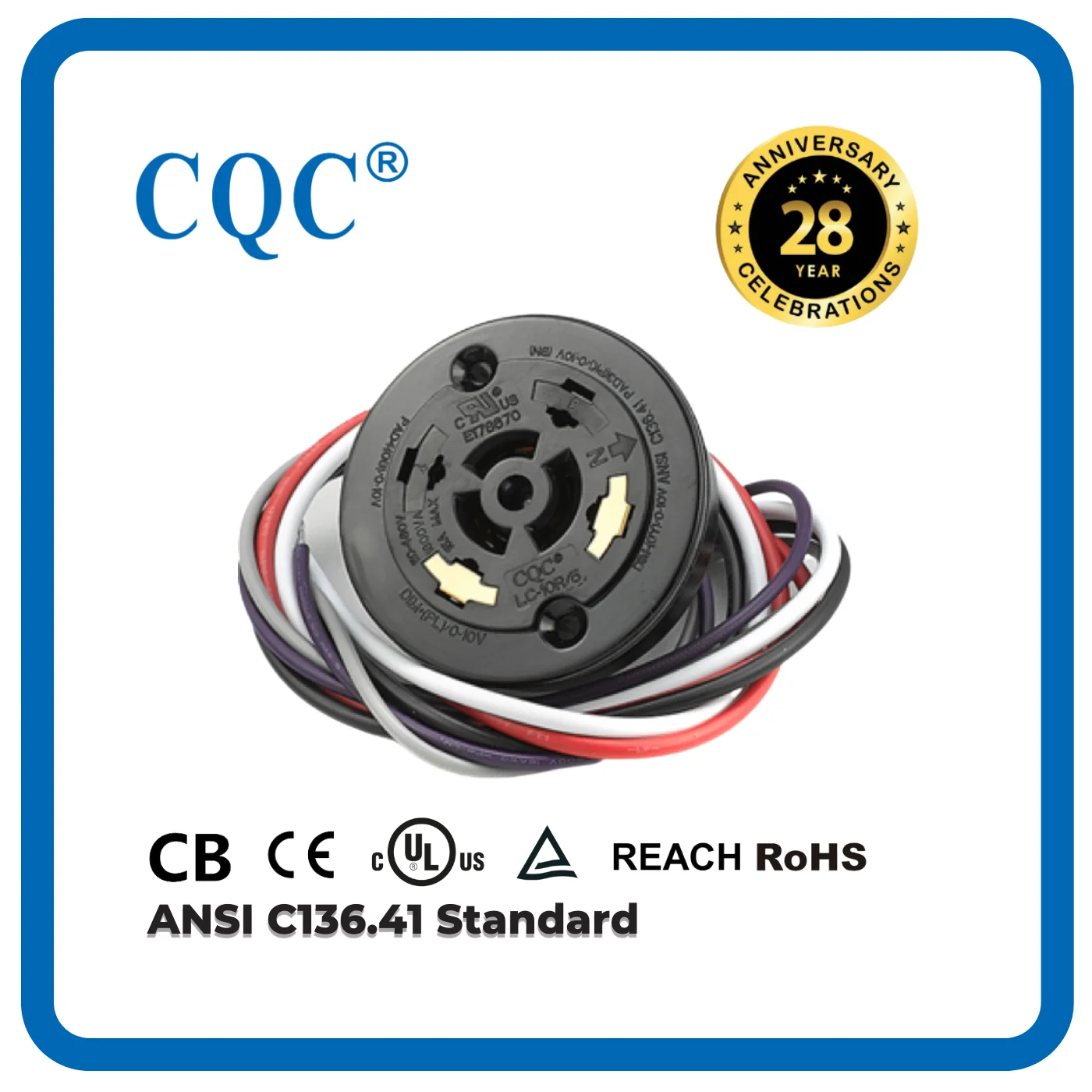

Model code : LC-10R/6 (Rotatable locking & Dimming type)
NEMA 5 pin & 7 pin
SPECIFICATIONS AND CHARACTERISTICS:Rated Load:
● Rated Voltage: 480VAC（MAX）
● Load Rated: 15A（MAX）,1000W/1800VA
● Ambient temperature：-40℃～75℃
● Material:【Main base material: DMC，Fixed ring: Nylon，Back base material: PF】
● Specification of wires:
- main wire of receptacle：14 AWG, UL1015，Lead: 300±10mm；
- signal wire：18 AWG, UL1015，Lead: 300±10mm.
● Conform to ANSI C136.41-2013 standard
● RoHS, REACH
● Load Rated: 15A（MAX）,1000W/1800VA
● Ambient temperature：-40℃～75℃
● Material:【Main base material: DMC，Fixed ring: Nylon，Back base material: PF】
● Specification of wires:
- main wire of receptacle：14 AWG, UL1015，Lead: 300±10mm；
- signal wire：18 AWG, UL1015，Lead: 300±10mm.
● Conform to ANSI C136.41-2013 standard
● RoHS, REACH
●Rated Load:
AC Main Contacts | Dimming/signal | |
Rated current | 15A, Max | 250 mA, Max (ANSI C136.41) |
Rated voltage | 480 VAC/DC, Max | 30VAC/DC, Max |
CERTIFICATIONS
Our company has obtained the ISO9001 international quality system certification (including design and manufacture) issued by TUV Germany, and other international product safety certifications, such as CB,VDE,BVQI,UL,CUL.etc.
RELATED PRODUCTS
RECOMMENDED BY SELLER

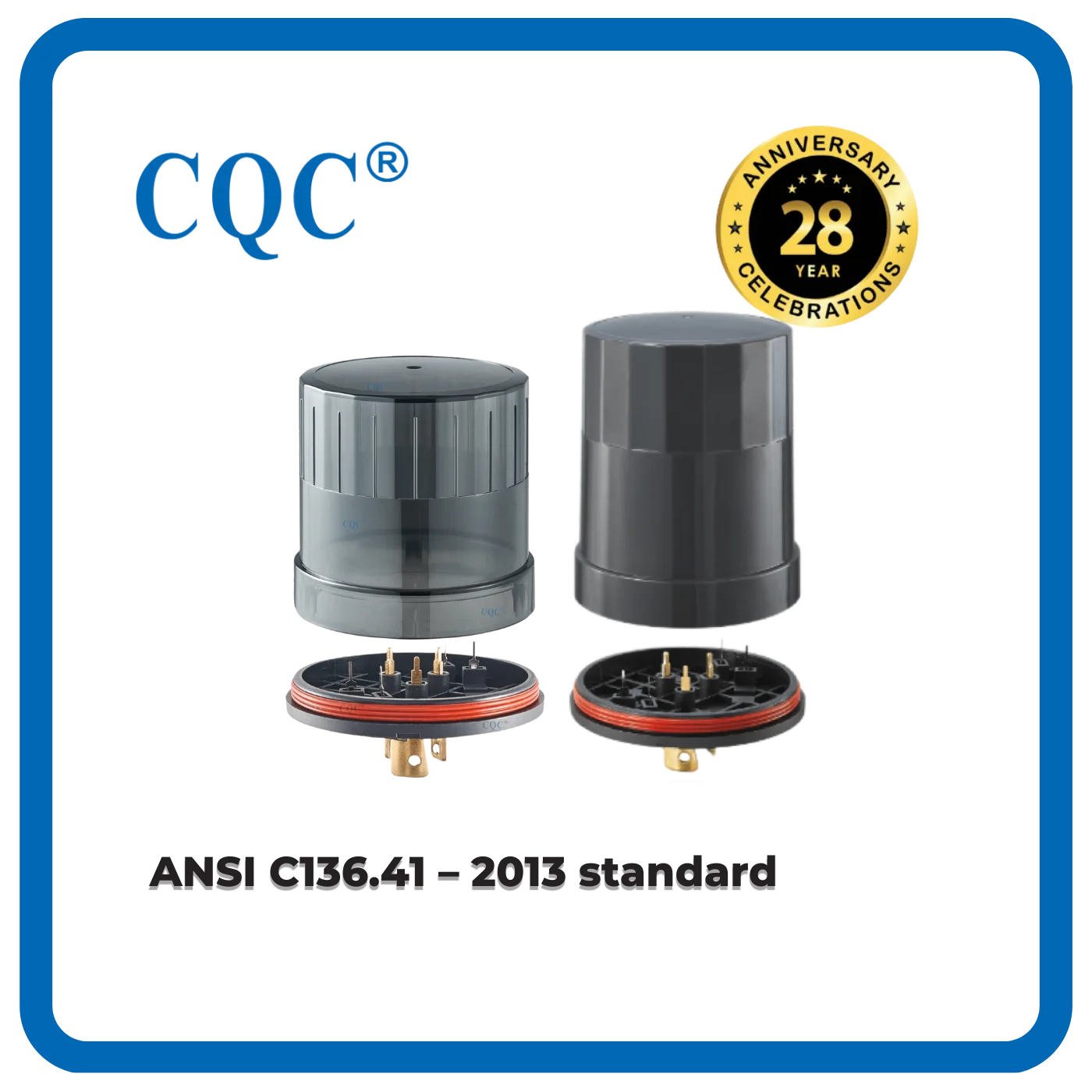

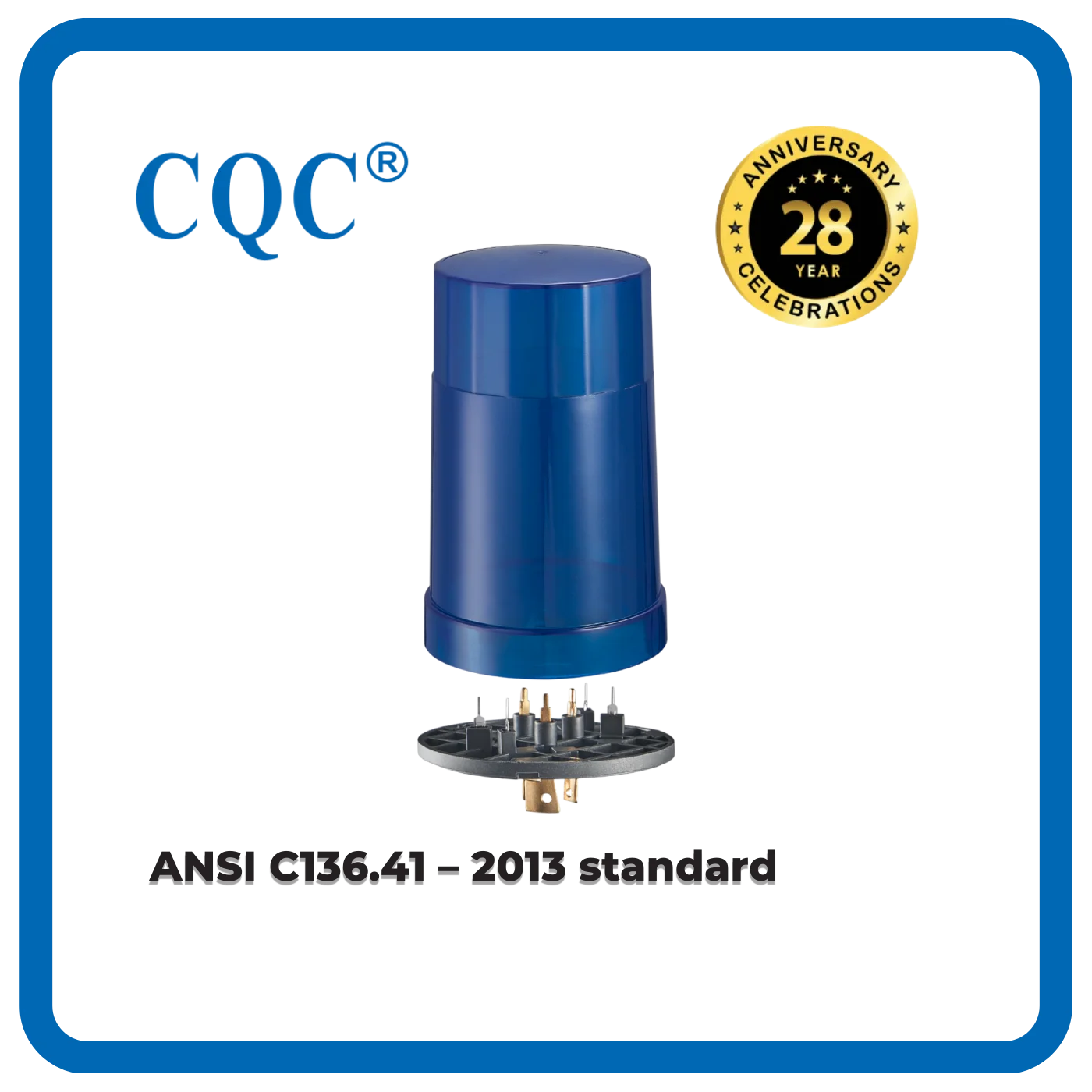

LC-10DZ LC-10DZ
LC-10/6 LC-10R/5
COMPANY INTRODUCTION
CQC/Qicheng Electrical Equipment Co.Ltd. was founded in 1994. In the year of 1998, we established our Sino-foreign joint venture Wenzhou Qicheng Distribution Electrical Equipment Co., Ltd. We are specialized in manufacturing and designing miniature circuit breaker, photo control, terminal block and the associated products. The products are exported to the middle and high end market throughout the world.
Our company has obtained the ISO9001 international quality system certification (including design and manufacture) issued by TUV Germany and has been identified as Zhejiang Small and Medium-sized Technology Enterprises, Patent Demonstration Enterprises and National Torch Major Project Implement Unit.
We are the pioneer in China obtained the internationally authoritative product safety certification of Germany VDE certificate for EU standard MCB and USA UL certificate for UL489 standard MCB.
We are also the leading company in China regarding R&D, manufacture and export of photo control. The photo control products have been UL certified as per UL773/773A and ANSI C136.10, ANSI C136.24 . ANSI C136.41 standards. Nowadays we are the photo control manufacturer who owns a long product line with multiple selections and almost all the items are UL certified.
PACKING & SHIPPING
The factory carton package pic on tray.
Also support customized package.
Our company delivers to many countries worldwide.
By air or by surface, you can choose the way you prefer.
FAQ
A: CQC is founded in 1994. With 28 years' products development and ODM/OEM, we gained our own design patent and certifications of CB, CE, UL, TUV, RoHs, REACH, etc.
Q2: How to get a quotation?
A: Please send us: Product Model, Project Technical Requirement (For Reference) and Quantity. We will quote you asap.
Q3: What is our product warranty?
A: It is about 1 year to 12 years in general depending on different product.
Q4: Hong long is the lead time?
A: In general, it takes 3 to 5 weeks. If you’re expecting a specific lead time, please contact us for customizing your lead time.
Q5: How to find and test a suitable product before purchasing?
A: Our dedicated and professional team of engineers and customer support specialist are at hand to help you choose the best solution for your project. As well as we offer a sampling service for a range of CQC products. If you’d like to know more about how to order other product samples, please contact us.
