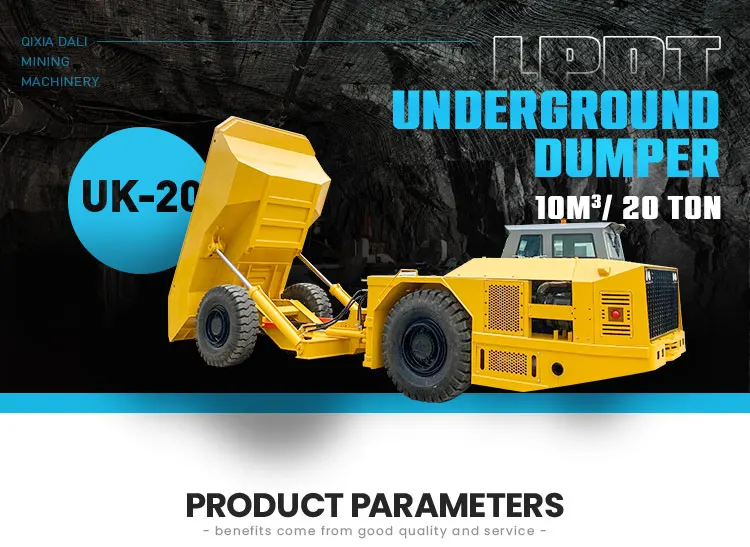

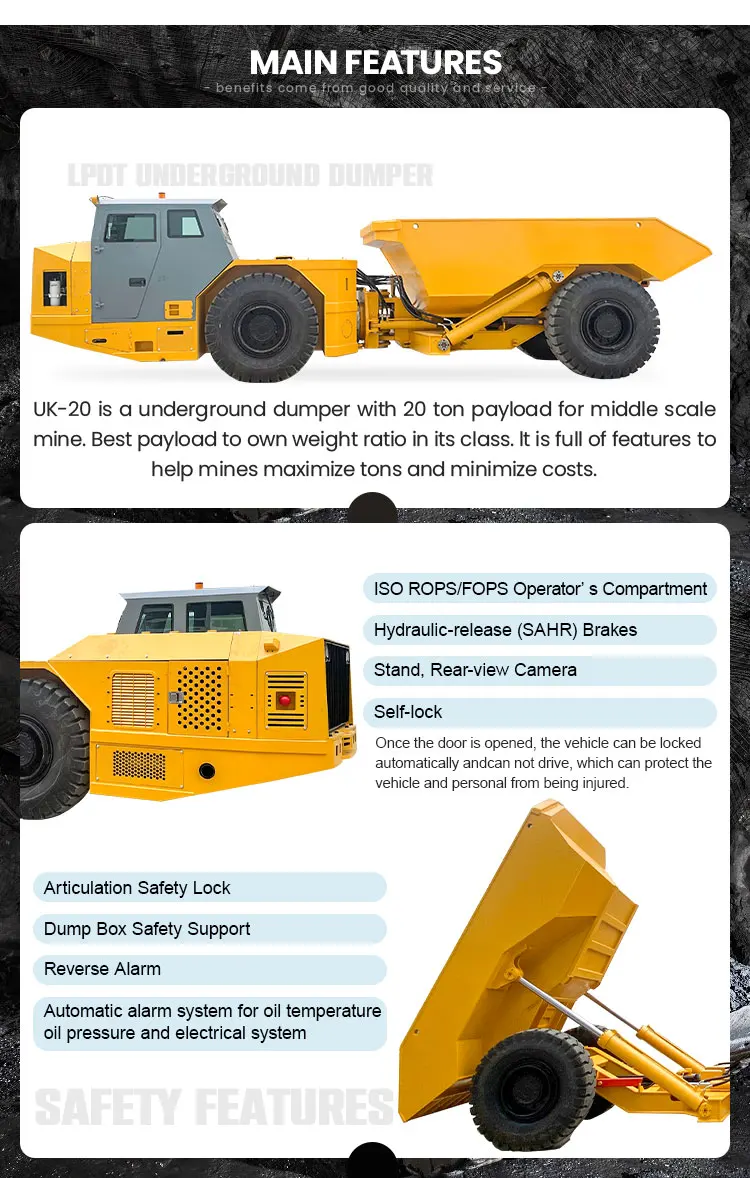

Shandong DaLi hot selling reliable operation UK 20 underground mining dump truck
- Category: Truck >>>
- Supplier: Qixia Dali Mining Machinery Co. Ltd.
Share on (11000006332686):
Product Overview
Description
Product Description
Tramming capacity | 20000 kg | Weight, empty | Operation Weight | 22500 kg |
Dump box volume | 10 m3 | Front axle | 13500 kg | |

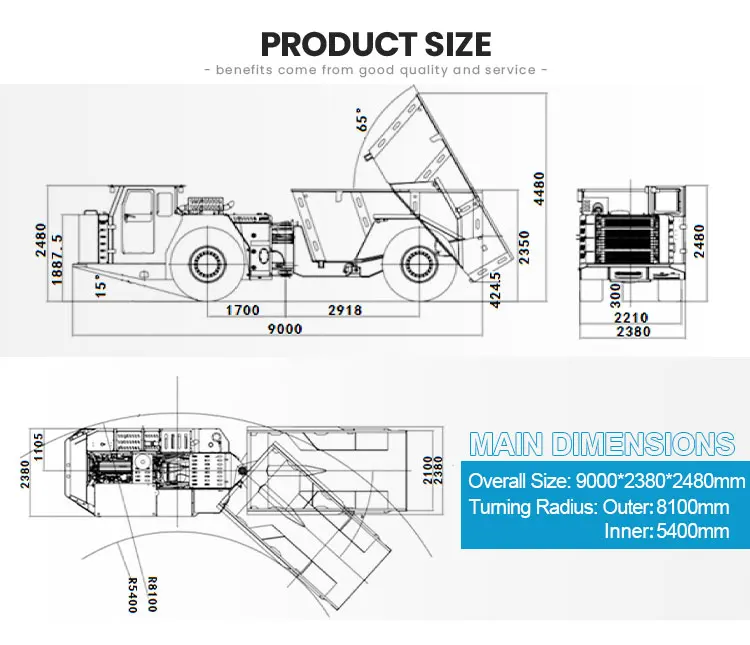

Overall Size | 9000X2380X2480 mm | Rear axle | 9000 kg | |
Box Lift Height | 4480 mm | Weight, Loaded | Fully Loaded Weight | 42500 kg |
Wheelbase | 4618 mm | Front axle | 19400 kg | |
Min. ground clearance | 300 mm | Rear axle | 23100 kg | |
Turning radius | 5400 / 8100 mm | Optional engine | CUMMINS | QSL-8.9-C300 242kw |
Turning angle | 45° | DEUTZ | BF6M1013FC 223kw | |
Dump angle | 65° | BENZ | OM926 240kw | |
Diesel engine | VOLVO TAD853VE | Converter | Brand | DANA |
Output | 235kw @ 2200rpm | Model | C5000 series | |
Max. Torque | 1310 Nm @ 1200rpm | Transmission | Brand | DANA |
Displacement | 7.7 L | Model | RT36000 | |
Emission norms | EU III, US T3 | Axle | Model | KESSLER D81 |
Air filter | Dry type, two stage | Type | Rigid planetary axle | |
Purifier | Catalytic purifier with muffler | Differential | Standard | |
Electric system | 24v | Front axle | spring applied hydraulic operated rakes. Fixed. | |
Cooling system | Water cooling | Rear axle | spring applied hydraulic operated brakes. Oscillating ± 8° | |
Number of cylinders | in-line 6 | Tire | 16.00-25 PR32 L-5S TT | |
Method of operation | 4-stroke, direct injection with intercooler | Dump Box Motion Time | Discharging time | ≤13.2s |
Fuel tank refill capacity | 350L | Box lowering time | ≤12s |
Product packaging
Recommend Products

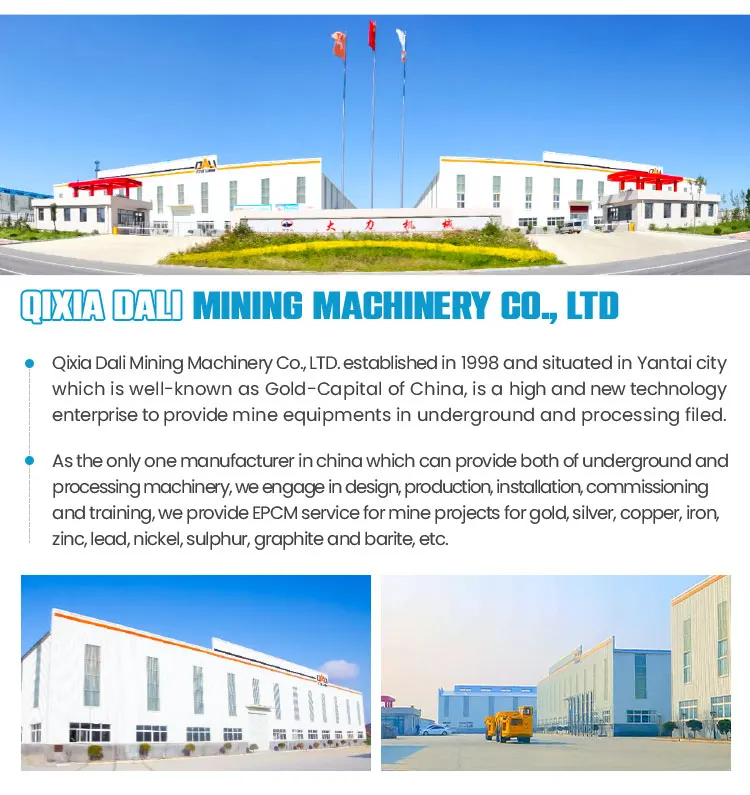

Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2001,sell to Domestic Market(50.00%),South America(20.00%),Africa(15.00%),Southeast Asia(10.00%),Northern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Underground Mine Machines,Mineral Processing Plants,Mining Machines Parts
4. why should you buy from us not from other suppliers?
We are original manufacturer, providing underground mine vehicles and mine process plants. We provide EPC service for mine process projects. There are twenty-one senior engineers of mines in our company with experiences over 10 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French,Russian
We are based in Shandong, China, start from 2001,sell to Domestic Market(50.00%),South America(20.00%),Africa(15.00%),Southeast Asia(10.00%),Northern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Underground Mine Machines,Mineral Processing Plants,Mining Machines Parts
4. why should you buy from us not from other suppliers?
We are original manufacturer, providing underground mine vehicles and mine process plants. We provide EPC service for mine process projects. There are twenty-one senior engineers of mines in our company with experiences over 10 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French,Russian
