White Knight pump PTFE and PFA Pumps

Product Overview

Description

White Knight pump



White Knight manufactures liquid delivery devices for semiconductor, solar cells, light-emitting diodes (leds), flat panel displays, electronics, and industrial applications. White Knight delivers superior performance, optimized efficiency, and simplified maintenance. Their leak-proof design provides stable, reliable and safe operation. White Knight has the best quality control and is designed and manufactured in-house.



High purity air sac pump



White Knight pneumatic dual air sac pumps can be used to manufacture semiconductors, photovoltaic solar cells, light-emitting diodes (leds), flat panel displays and electronics. High purity chemical pump PTFE and PFA liquid path. No metal, rubber O-ring, impeller or motor. Its reliable design uses a minimum of parts and works continuously without maintenance throughout its warranty. White Knight's different series of pumps operate at temperatures up to 210°C, 145°C, and 100°C, using reversing valves, proximity switches, and fiber optic controls. Economical reversing valve pumps designed for liquid circulation applications and most models also have dry beating capability.

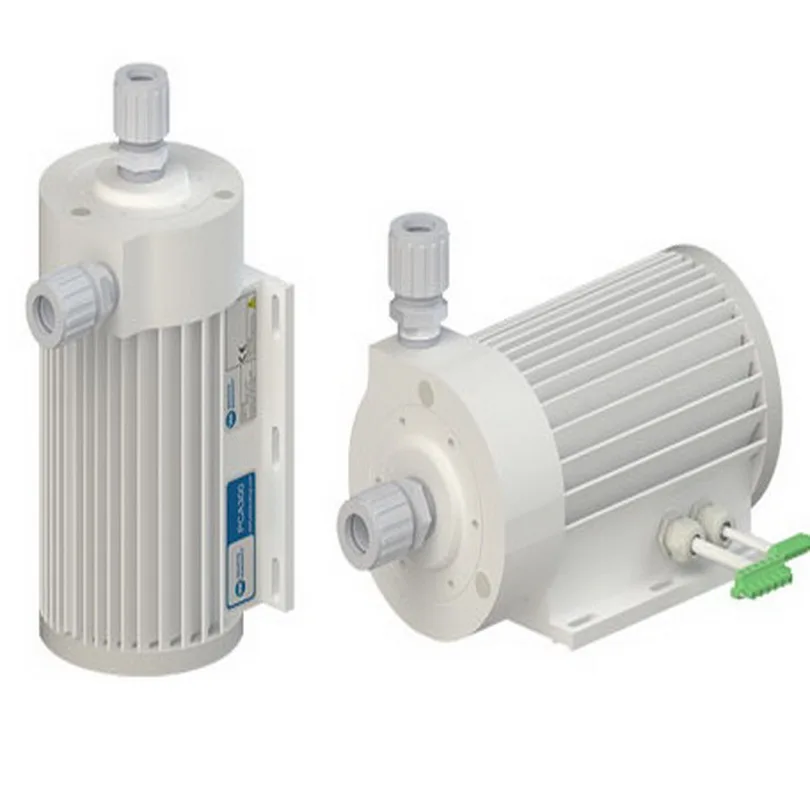

White Knight centrifugal pump



Using magnetic levitation impeller to achieve smooth continuous flow of centrifugal pump



The PCA300 pump features a separate maglev impeller with no sliding rotation. The pump provides a continuous, stable, pulsation-free flow rate. PTFE and PFA process safe liquid path is the ideal choice for ultrapure wet process applications. The pump is through the electric control impeller speed to achieve accurate control.

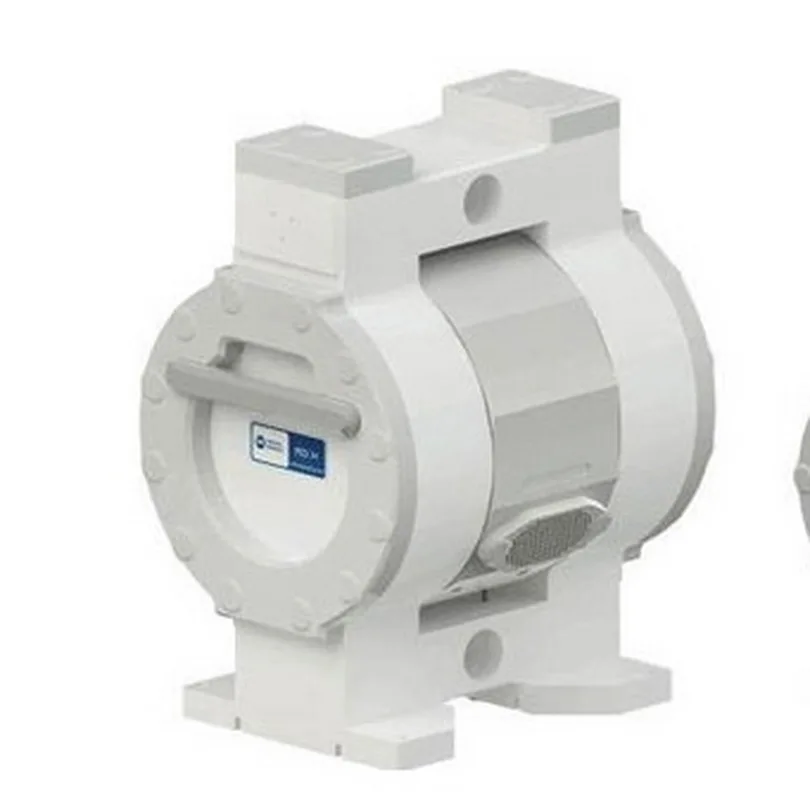

Gas driven double diaphragm pump



Pneumatic diaphragm pumps of PTFE or UHMW(PE) for chemicals and corrosive liquids



PSB series pumps



The PSB series Pneumatic Double Diaphragm (AODD) pumps feature PTFE and PFA piping for high purity chemical transport, distribution and transmission. They are capable of 95 L/min flow and 5.5 mm (80psi) air pressure. The PSB series pump is a direct modification of the old chemical delivery pump.



PSD series pumps



The PSD series Pneumatic Double Diaphragm (AODD) pumps provide superior performance, optimized efficiency, simplified maintenance and reduced noise levels. Its leak-proof and ice-resistant design provides reliability, safe maneuverability for use in corrosive or toxic liquids, viscous liquids, or slurry environments.



High purity electric metering pump and pneumatic metering pump

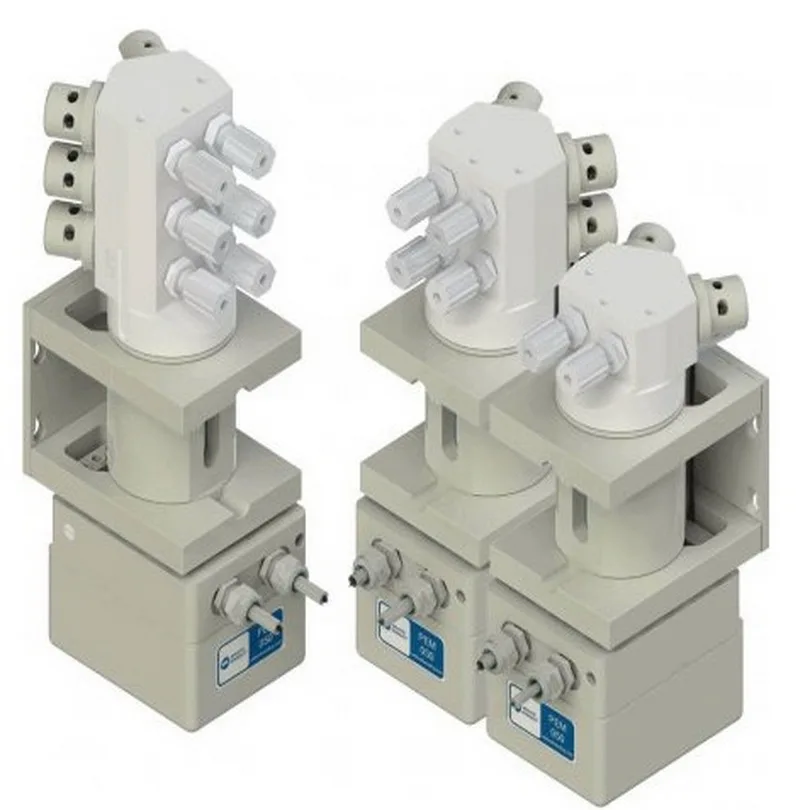

Electric metering pump



PEM050 pumps have PTFE liquid channels that accurately dispense 1 to 50 ml of corrosive liquid for replenishment, mixing, metering, and strengthening procedures. The use of PTFE movable diaphragm, high outlet pressure can be safe and reliable delivery of chemicals. Position control valves ensure accurate pulse relief, especially with check valves. PEM050 pumps are available with up to 5 outlet ports, independently controlled by programming system ÷ logic.

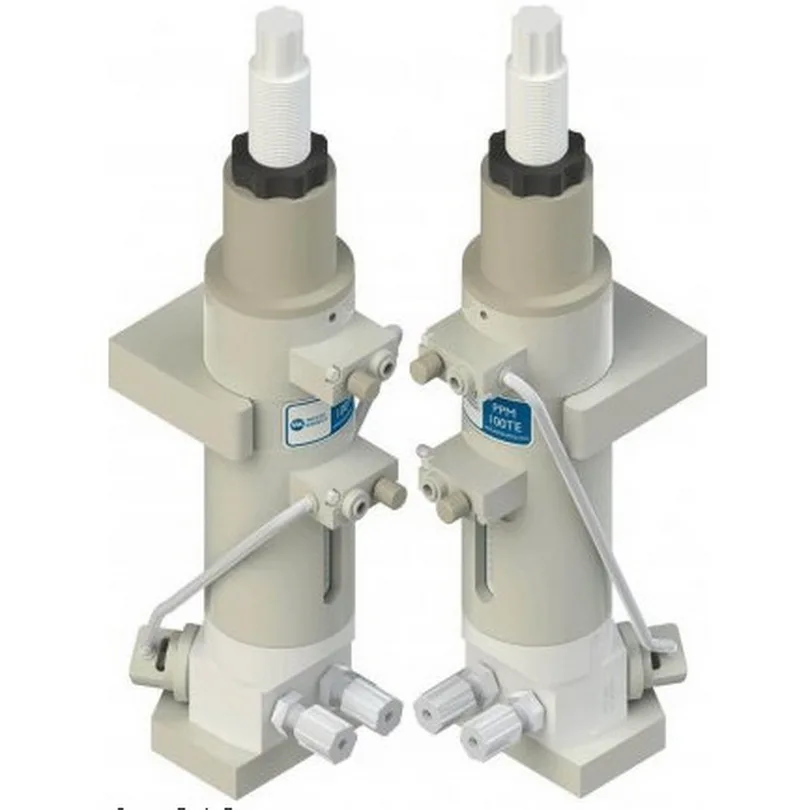

Pneumatic metering pump



The PPM100 pneumatic metering pump accurately distributes 100 ml of high purity chemicals in the PTFE liquid loop. It enables the rolling diaphragm to have maximum exhaust pressure capability. Position control valve to slow pulse, especially with check valve to ensure accuracy.

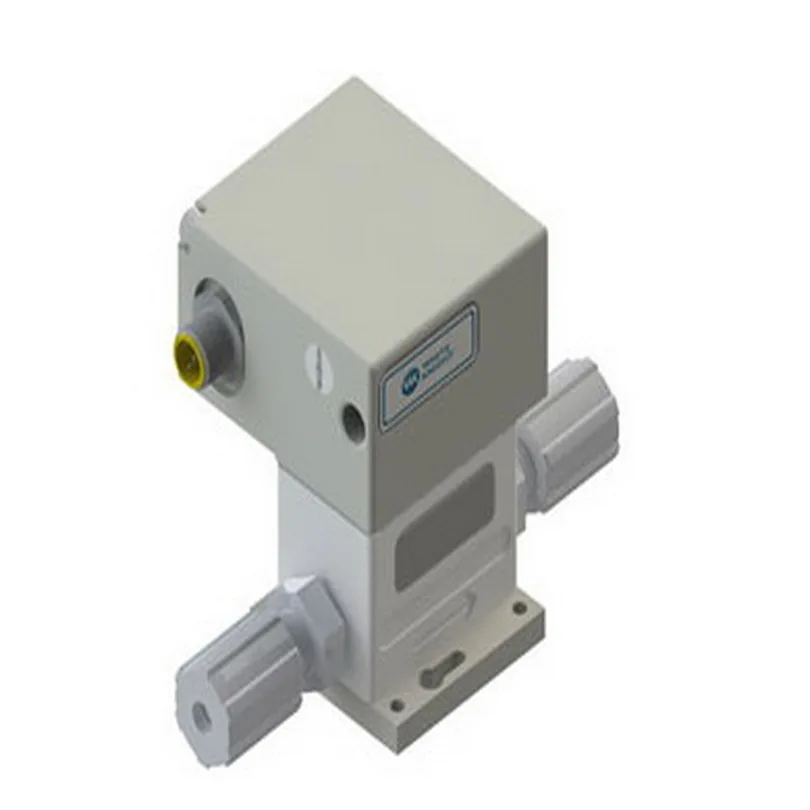

High purity micro pump



PTFE and PFA fluid lines for low flow chemical processes



The White Knight PPMC micro pump makes liquid contact parts of PTFE and PFA possible for use in high purity chemicals. The pump is capable of achieving a flow rate of 300 ml/min and a flow pressure of 160 psi. Features solenoid valves that control each suction and discharge.



White Knight pressure regulating valve



PTFE pneumatic pressure regulating valve



White Knight's pressure regulator provides remote testing capability to maintain system pressure on high-purity chemical circulation loops and systems with multiple tool drops or release points. Path of all PTFE and PFA solution. The highest is 100°C and 7 kg. It can precisely reduce the pulse in the system. Pressure regulating valves are allowed in 1/2 3/4 and 1 inch models - depending on joint size and pipe OD. The flow through or inside diameter of the pipe is 1/8 inch less than the connection size.



White Knight gas-liquid separator



White Knight's gas-liquid separator reduces bubbles in chemical delivery and wafer processing systems. The gas-liquid separator can change the rising flow rate and slow down the flow rate of the fluid, making the bubble rise in the cavity. They feature an inner diameter of 4 inches, providing greater surface area during gas-liquid separation. White Knight's unique mortise and groove seal technology is the most reliable and reusable. They have configurable interface connections and mortise seal. The liquid level sensor can be installed.



White Knight filter housing



FHA series filter housing



The filter housing in White Knight's double - and four-shell cups can be operated in parallel or serial (online) using any type of filter. They combine compact construction, superior control, and high flow performance. PTFE and PFA enclosures do not contain any metal parts and liquid lines do not need to be disconnected when replacing the filter core



FHU series filter housing



The FHU Series filter housing is the ideal solution for high purity and liquid supply at temperatures up to 210°C. It can fit all sizes of filters safely and reliably. They combine high flow performance with double backlogged seals to prevent leaks. PTFE and PFA enclosures do not contain any metal parts and liquid lines do not need to be disconnected when replacing the filter core.



Shanghai Yuke sells White Knight pumps, providing air pumps, centrifugal pumps, pneumatic double diaphragm pumps, electric metering pumps, pneumatic metering pumps, pressure regulating valves and gas-liquid separators.
