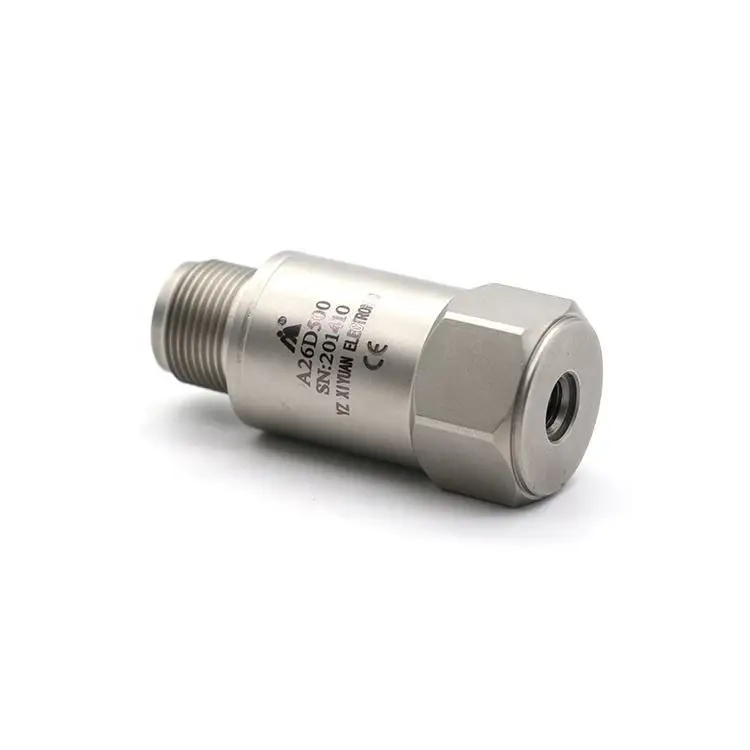

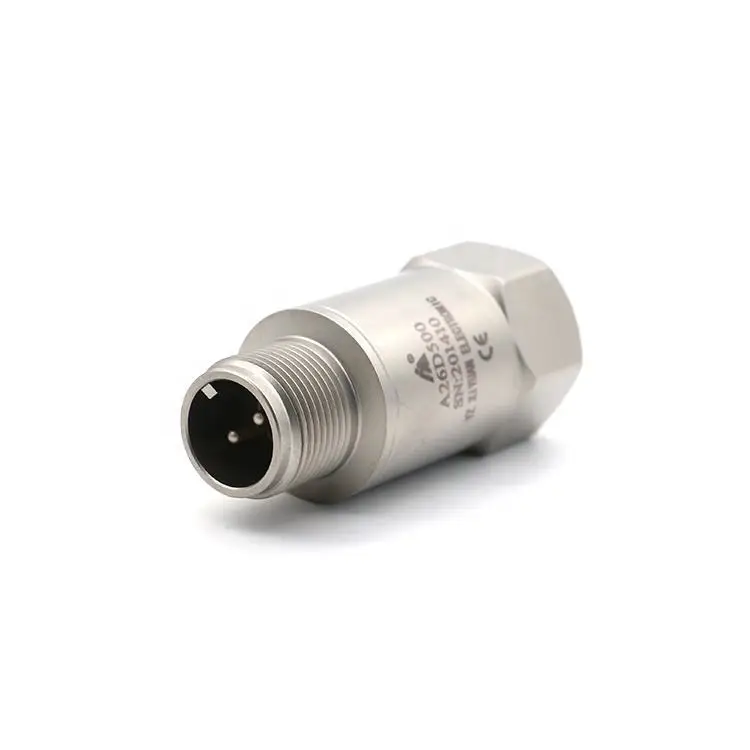

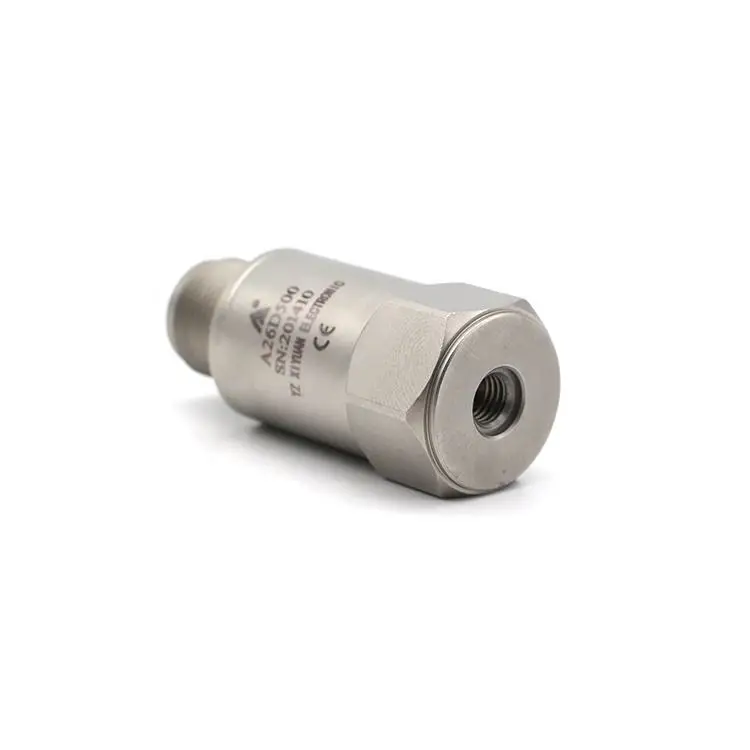

New arrival 304 Stainless Steel Encapsulation industrial piezo electric vibration acceleration sensors
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (11000006348671):
Product Overview
Description
Product Description
Characteristic:
1. Giganostatic uses the positive piezoelectric effect of piezoelectric materials.
2. Static IEPE is installed to isolate 2-core low-impedance voltage output.
3. Vibration isolation floating, industrial site monitoring, strong anti-interference.
2. Static IEPE is installed to isolate 2-core low-impedance voltage output.
3. Vibration isolation floating, industrial site monitoring, strong anti-interference.
Specification:
Dynamic Properties | ||
Rang（peak） | ±10g | |
Sensitivity(25℃) | 500mv/g (160HZ) | |
Amplitude Non-linearity | ±1% | |
Frequency Response (±10%) | 0.5～5,000Hz | |
Frequency Response (±3dB) | 0.2～10,000Hz | |
Transverse Sensitivity Ratio | ≤5% | |
Electrical Properties | ||
Driving Voltage | 18VDC～28VDC (current source) | |
Constant current source excitation（mA） | 2～10mA | |
Output Impedance | ＜100 Ω | |
Full range output（peek） | ±5V | |
Noise (rms) | ＜80μV | |
Bias voltage | +10～+14V | |
Install Ground Insulation | ≥10^8Ω | |
Environment Properties | ||
Operation Temp | -40℃～+120℃ | |
Shock Resistance(peak) | ±1000 g | |
Temperature Response | Attached Temperature Curve | |
Physics Properties | ||
Structural Style | Cutting | |
Shell Material | 304 Stainless Steel | |
Output Mode | 5/8-24 two-core socket | |
Installation | 1/4-28 | |
Piezoelectric Materials | PZT-5 | |
Protection Class | IP65 | |
Weight | ～90g | |
Accessory | ||
Erection Bolt | 1/4-28 turn M6 | |
Cable | MIL Two-core connection cablex3m | |
Product Display
Size
Connecting Cable
Temperature Curve
Typical Frequency Response Curve
PRODUCT DISPLAY
Product Categories
Company Profile
Certifications

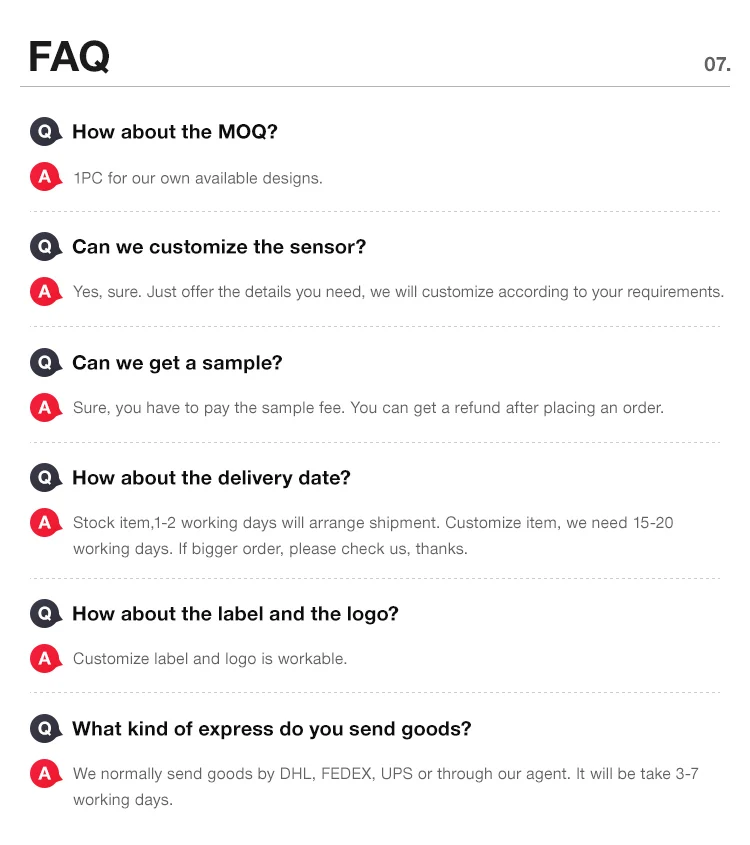

FAQ
