FEATURES

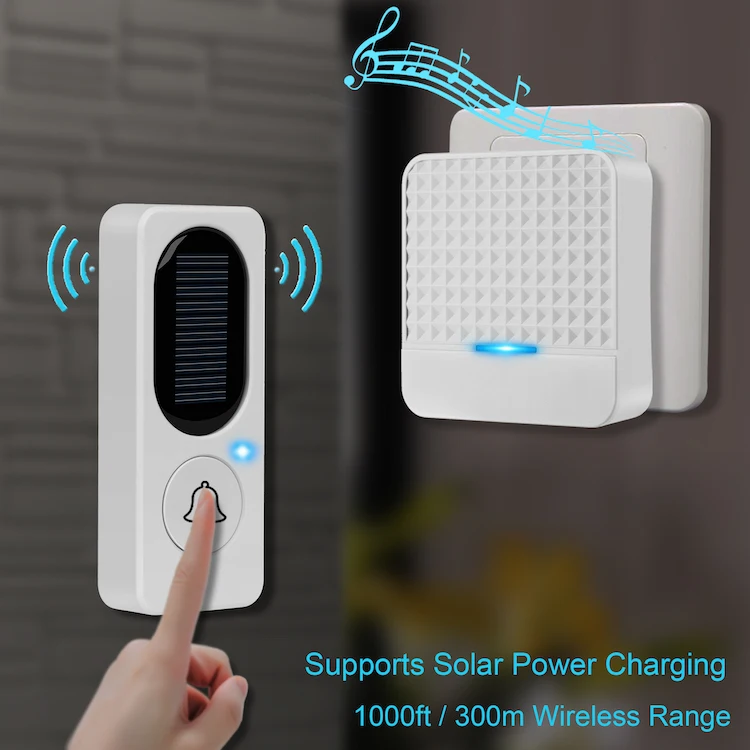

1. Transmitter powered by solar energy

2. Built-in battery to store solar power for use at night

3. Long distance operation of up to 1000 feet

4. 52 different chimes available

5. 4-level adjustable sound volume

6. Both transmitter and receiver are expandable

HOW TO USE

1. Transmitter

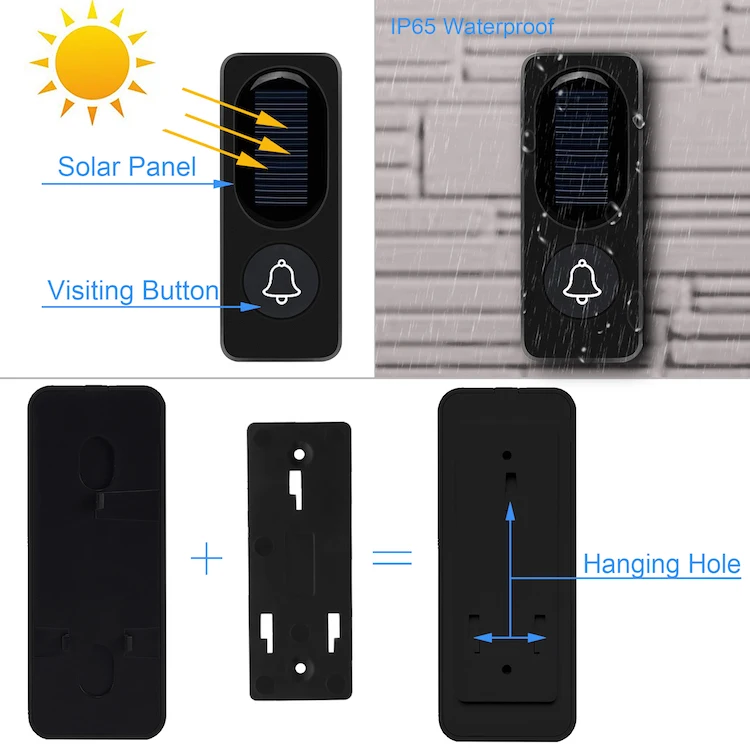

Fix the base onto the wall/door via 3M tape or 2 bolts above height of 1.3ft (0.4m) and then insert the transmitter into the base. Please don’t fix it onto metal door/window, which will lead to poor signal.

2. Receiver

Plug it into socket and it will pair with the transmitter automatically. (Only applied to the original kit)

3. Operation Range

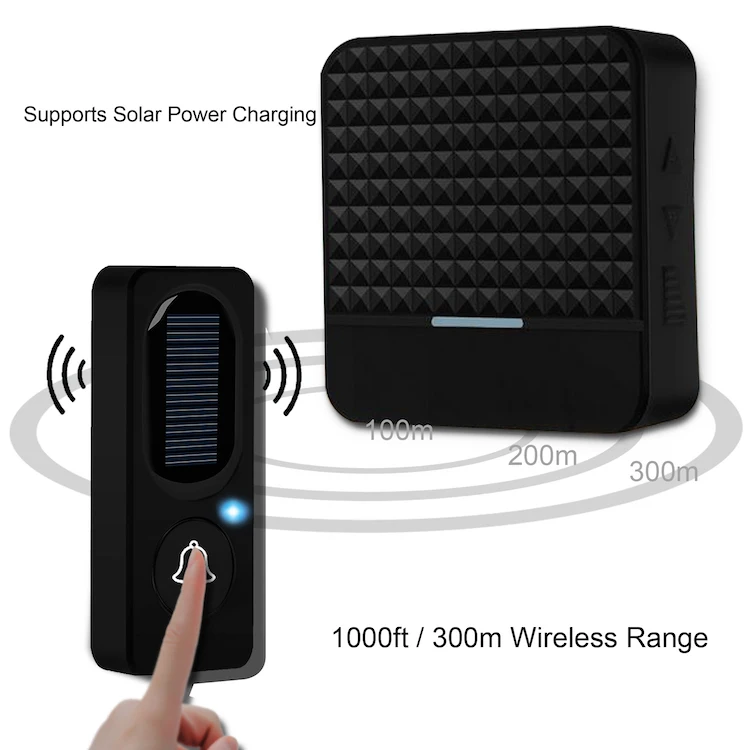

Theoretical operation range is up to 1000ft (300m), which may be influenced by walls, metal obstacles and devices using radiofrequency like pc, microwave oven and television.

4. Change Chimes

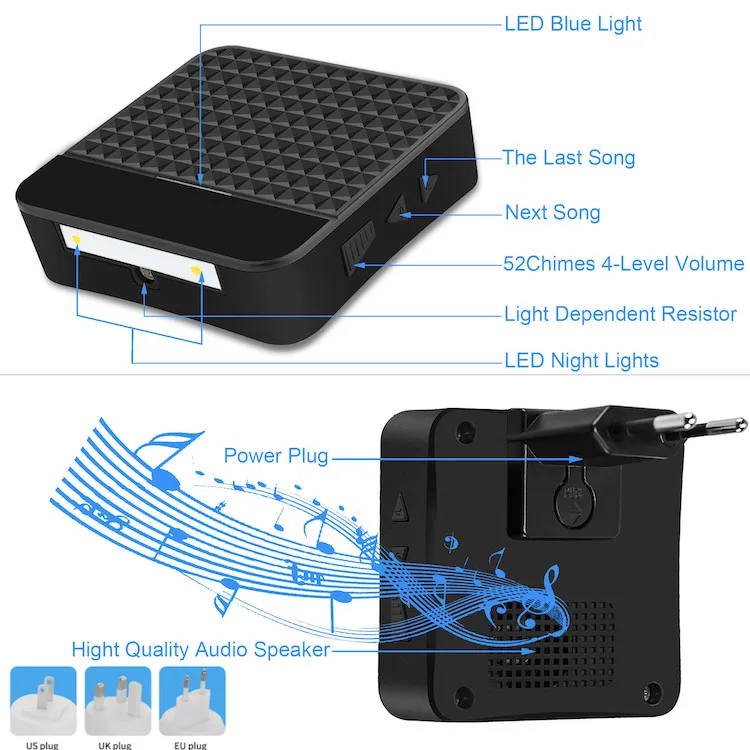

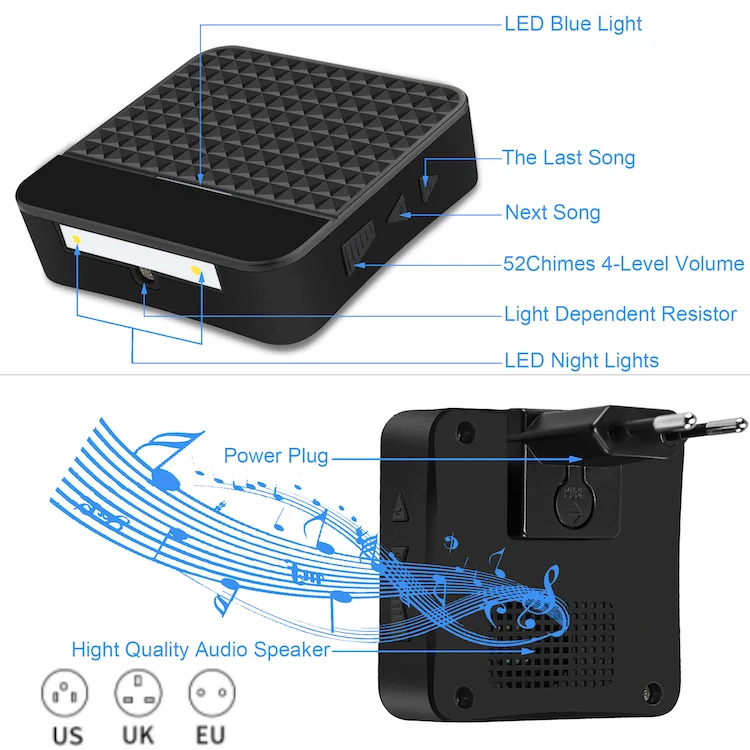

Press the side triangle buttons (up/down) of the receiver until you find your favorite chime. Blue led light will flash for each chime. Long press the volume button until the blue led light keeps on (not flashing), and then press button of the transmitter to memorize the chosen chime.

5. Add Transmitter or Receiver

Plug the receiver into socket and then press the volume button for 6 seconds until the blue led light keeps on. Press the transmitter button and then the receiver blue led light will flash, which means pair is done. One receiver could be matched with several transmitters, vice versa.

SPECIFICATION

[Receiver]

Working Voltage: 90-260V

Standby Current: 10mA

Working Current: 60mA

Working Frequency: 433MHz

Volume: 20-80dB

[Transmitter]

Solar Cell: 5.5V 25mA 0.13W

Working Current: 12mA

Reaction Time: 0.5s

Working Range: up to 1000 feet

Q&A

A. Doorbell does not ring

Reason 1: Receiver isn’t plugged in

Solution 1: Plug it into socket

Reason 2: Transmitter and receiver are not paired successfully

Solution 2: Re-pair

B. Short operation range

Reason 1: Metal obstacles, heavy walls and radiofrequency weaken signal

Solution 1: Keep the doorbell kit away from them
