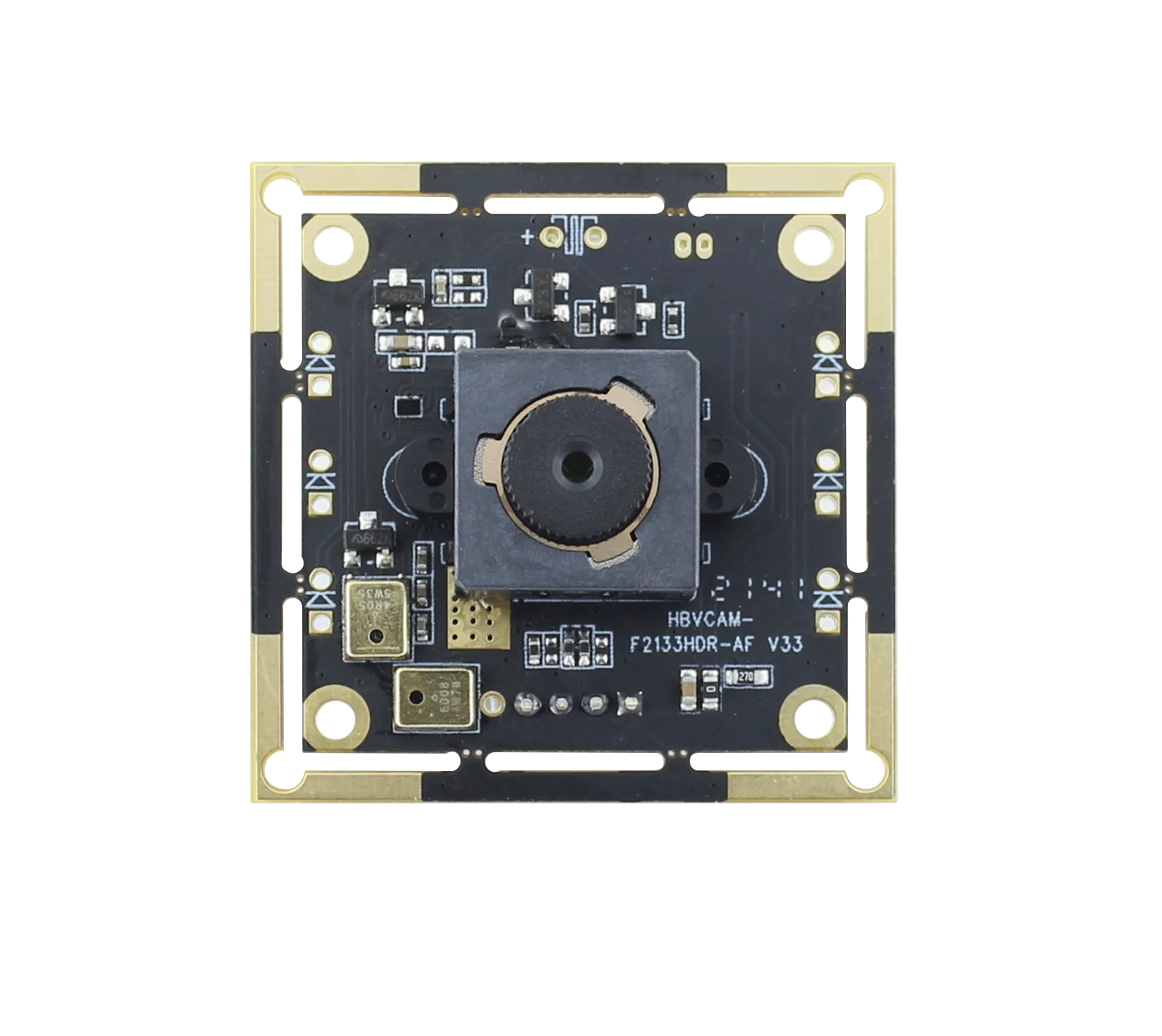

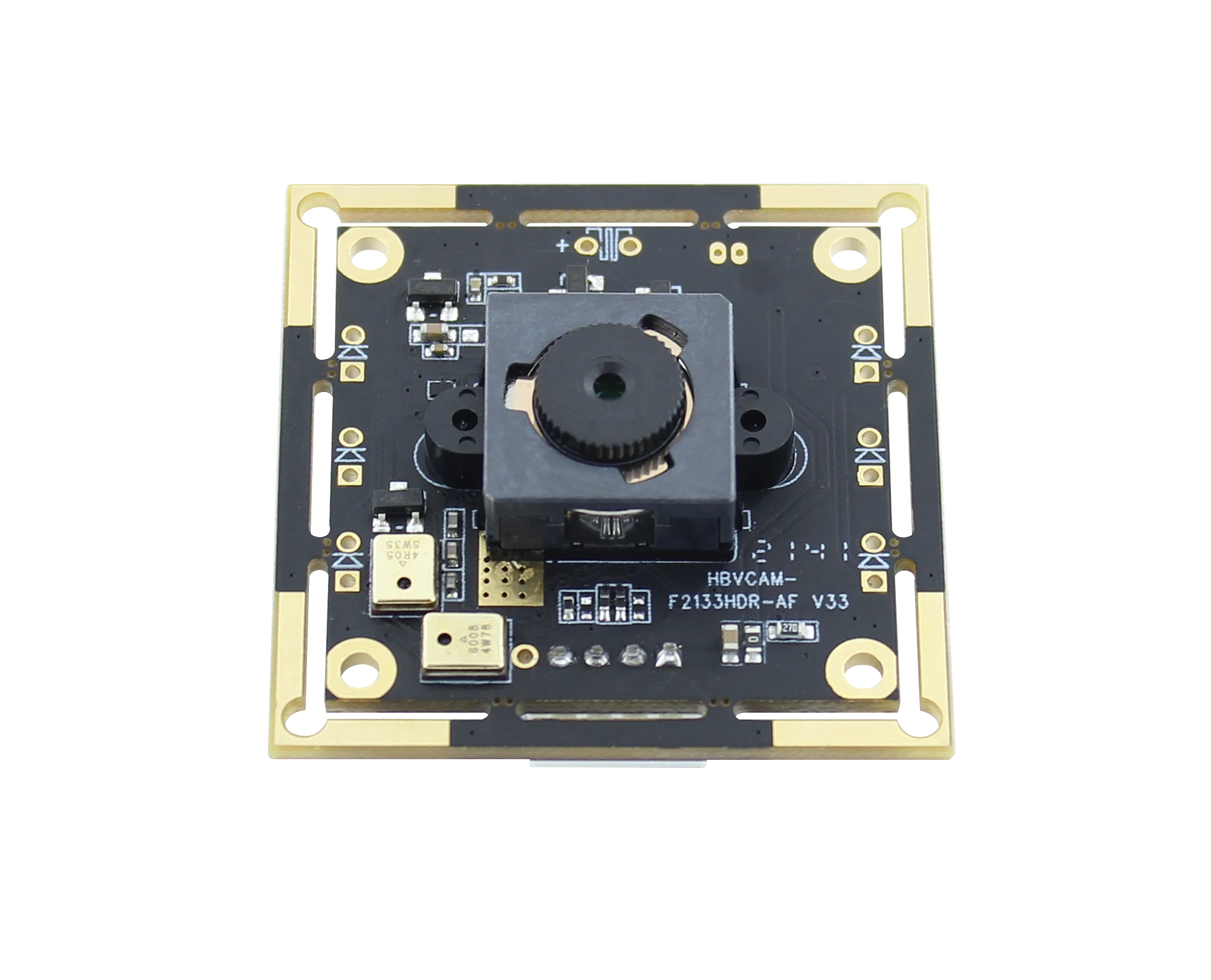

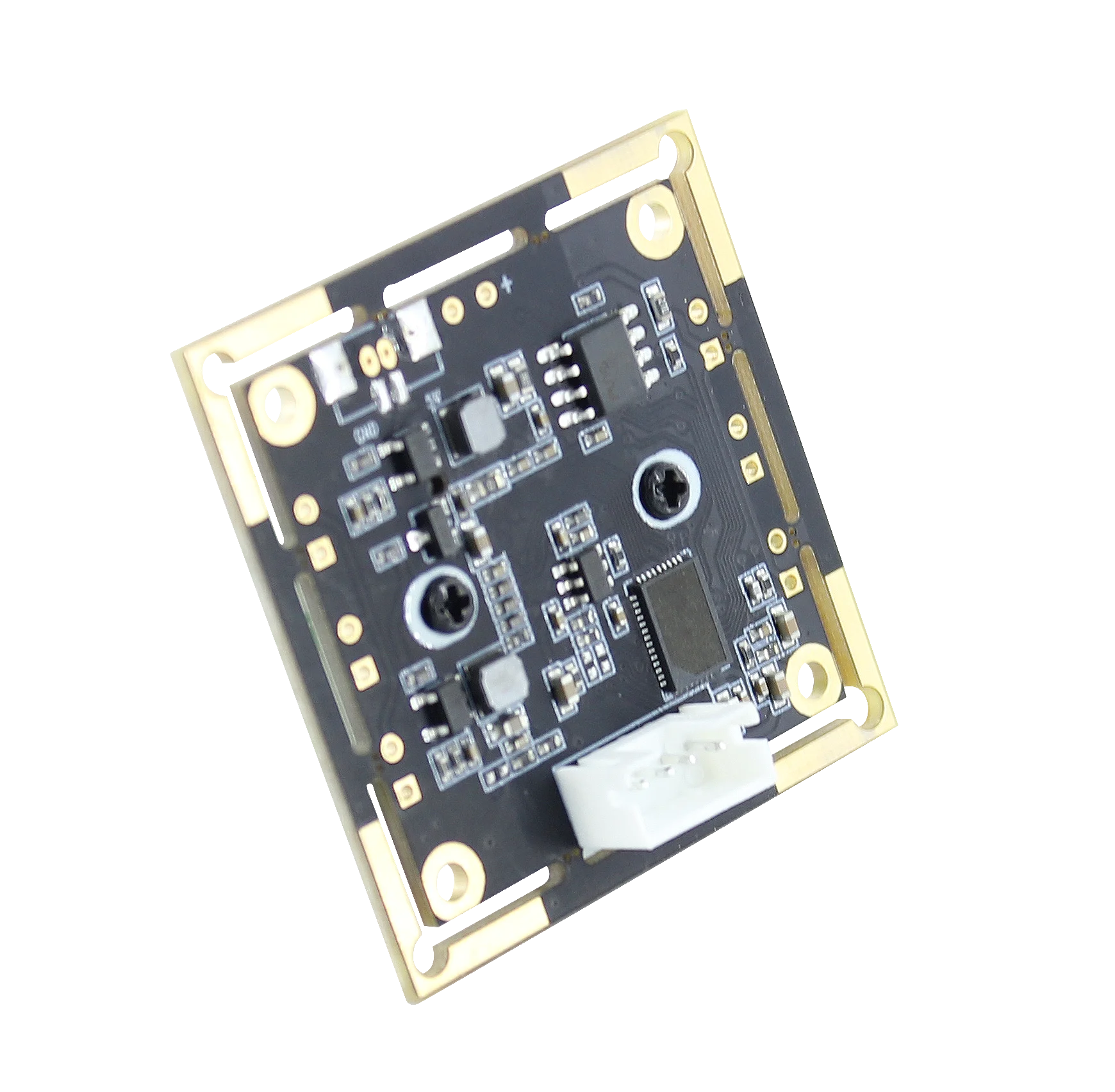

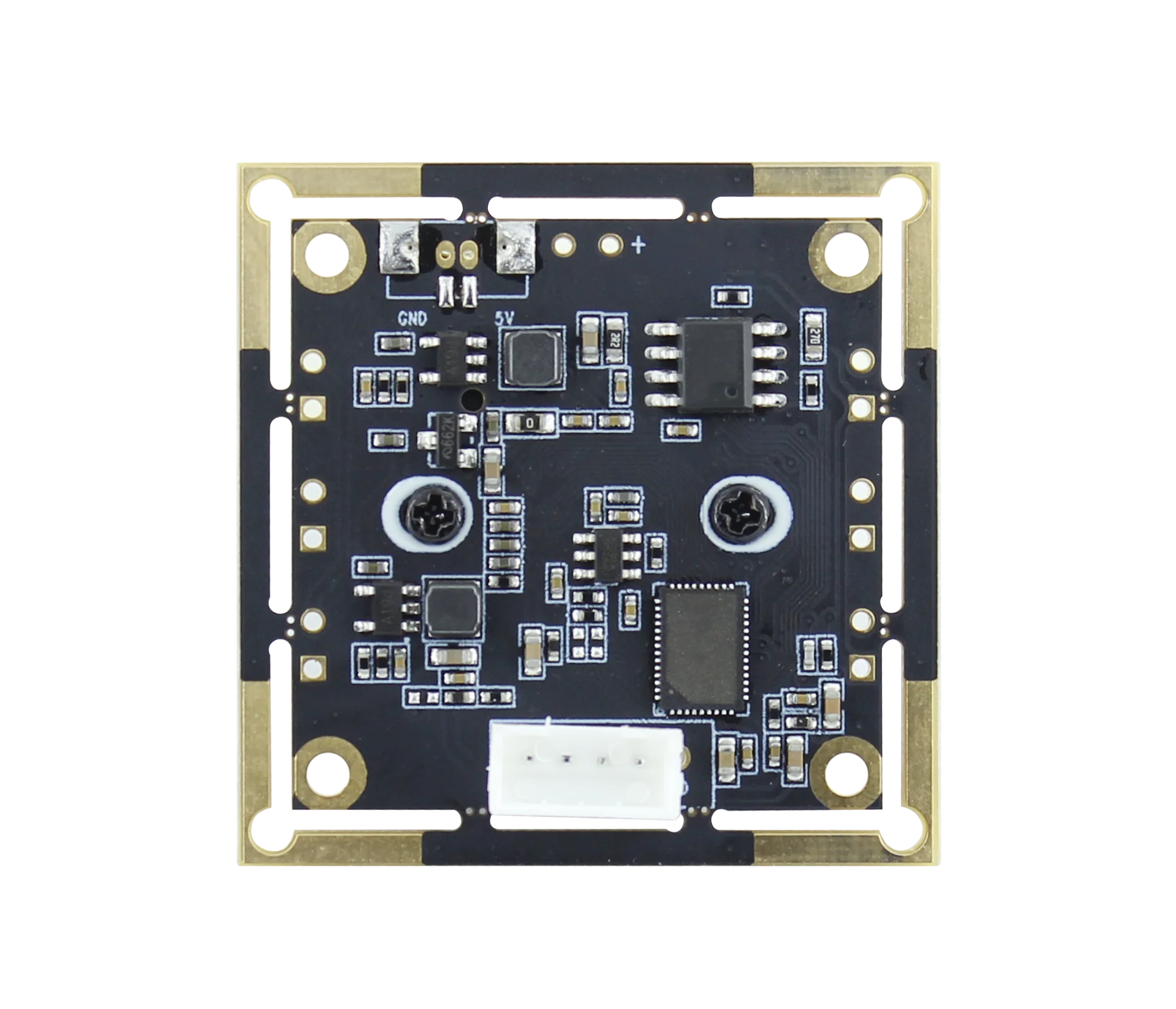

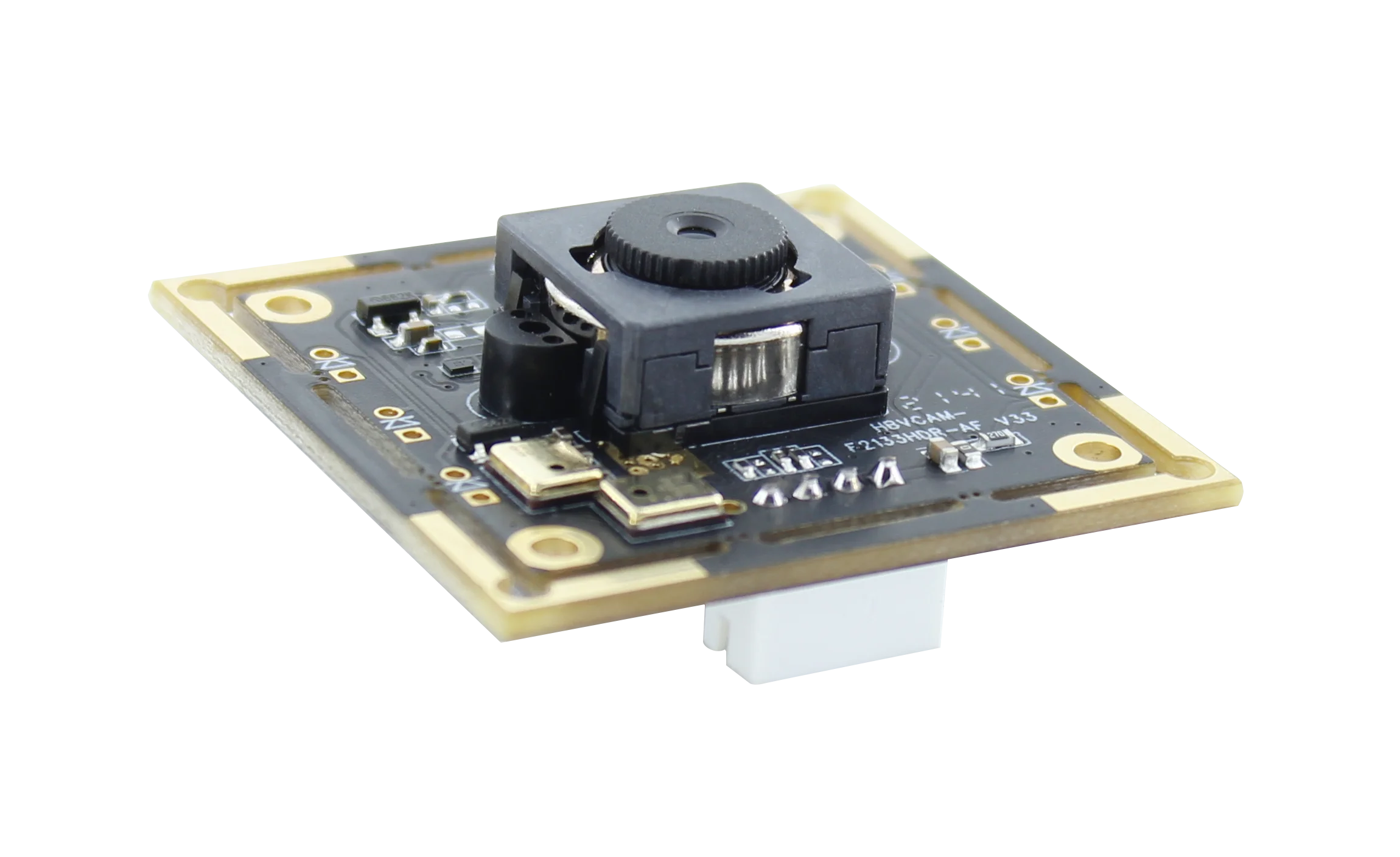

High Speed 30Fps 2Mp Hd Backlight Portrait Built In Autofocus Camera Module Apply To Computer Advertising Machine

Product Overview

Description

Product Name	2 MP industrial computer, advertising machine, equipment embedded built-in auto focus camera module
Module No.	HBVCAM-F2133HDR-AF V22

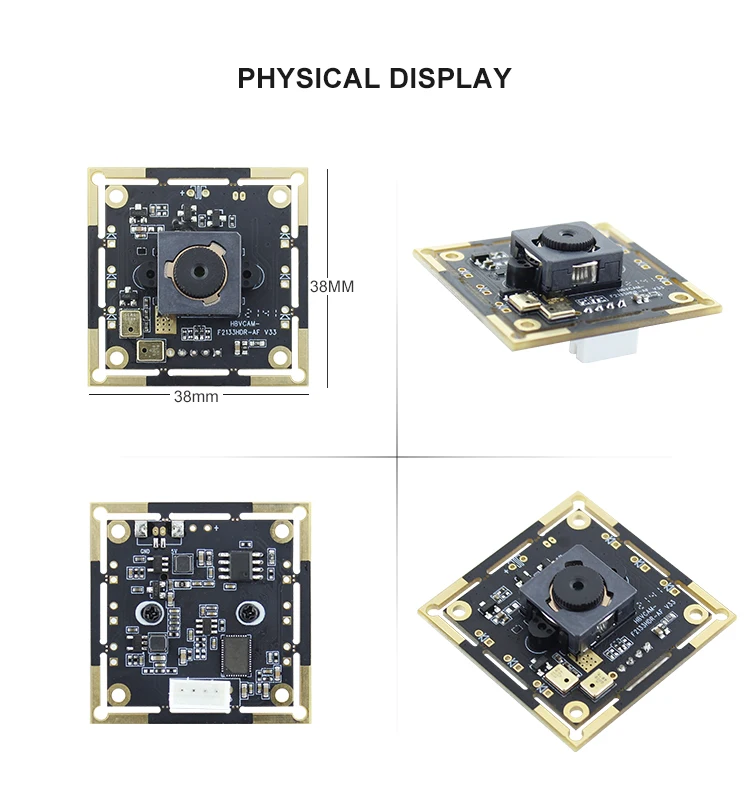

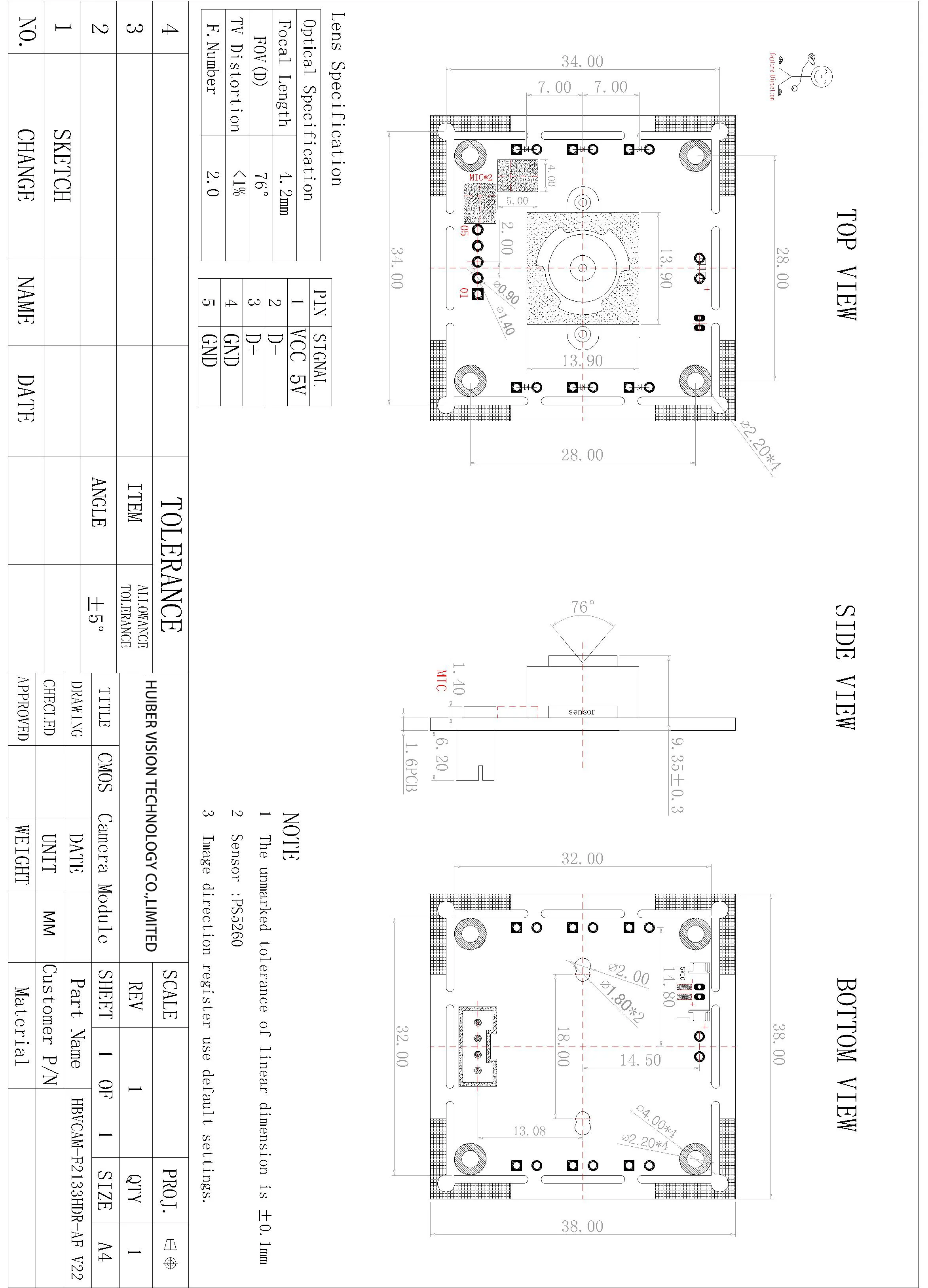

Module Size	38mm × 38mm × 9.0mm±0.3MM
Features	1.with double digital silicon wheat   2.with a large motor automatic focus   3.backlight portrait, recognition class effect is better   4.can add welding 6 plug-in lights (can be infrared white light) can be made on the map light off map can also be photosensitive control
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	640mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5260 (1/2.7” )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4700mV /(lux-sec)
Pixel Size	3.0µm x 3.0µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 30FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	46 db
Max Dynamic Range	83 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	6P
F/No	2.0
EFL	4.2mm
FOV	76°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH



1.Are you camera module manufaurer?

Yes, we are a professional usb camera module manufacturer and our compnay was established in 2013

year



2. Do you supply OEM/ODM service?

Yes, we can supply OEM/ODM service, we also can customize the camera module according to your

requirement.



3. Do you provide samples?What's the MOQ?

Samples are provided, but not free.Some of our products provide a drop shipping service, and some

products have a minimum order of 100 /500pieces



4. How to guarantee quality?

Always a pre-production sample before mass production,and final inspection and test before shipment



5: How to pay for order ?

you can pay by TT, Paypal, Escrow, Western Union



6. Does the camera module can work with Windows/Android/Linux system?

Usually the camera can work with Windows system with free driver, it is a play and plug camera

module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to

be tested whether work with Android and Linux system.



7.Does the camera support OTG?

Most of our usb cameras support OTG function



8.Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,

ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
