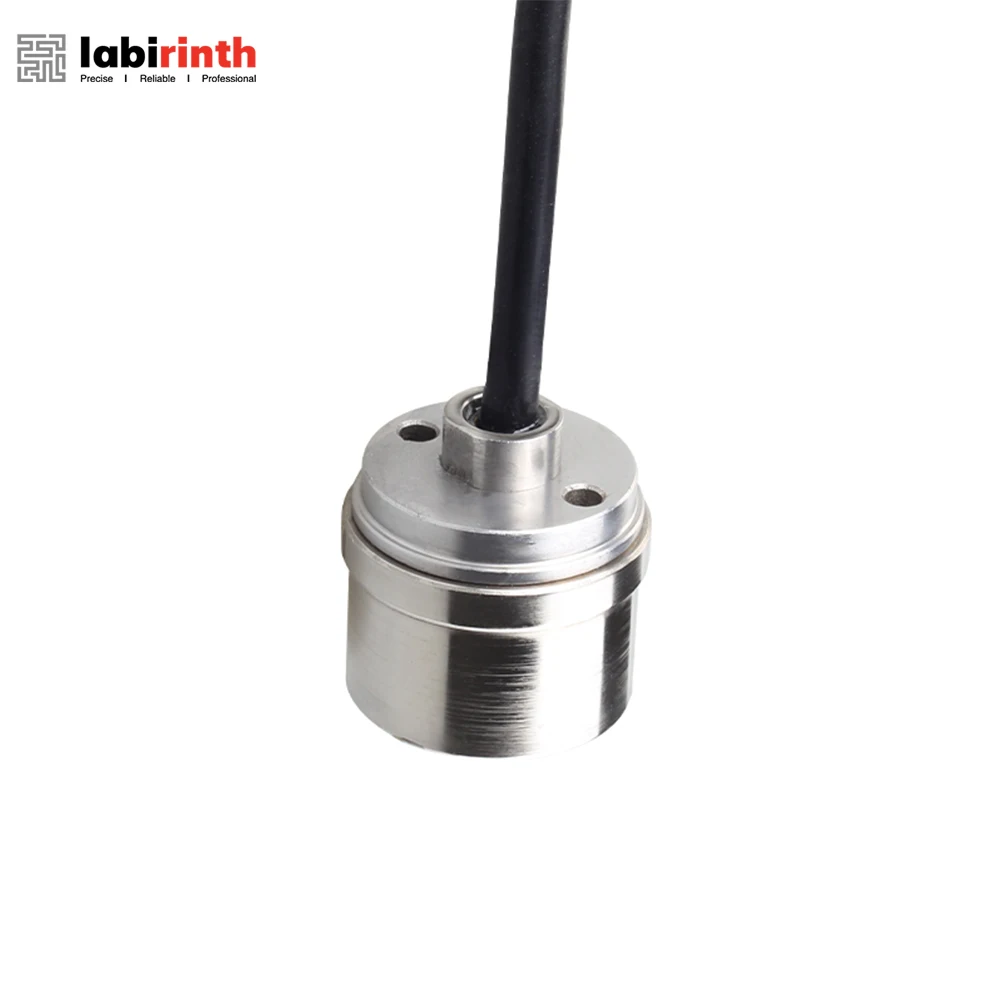

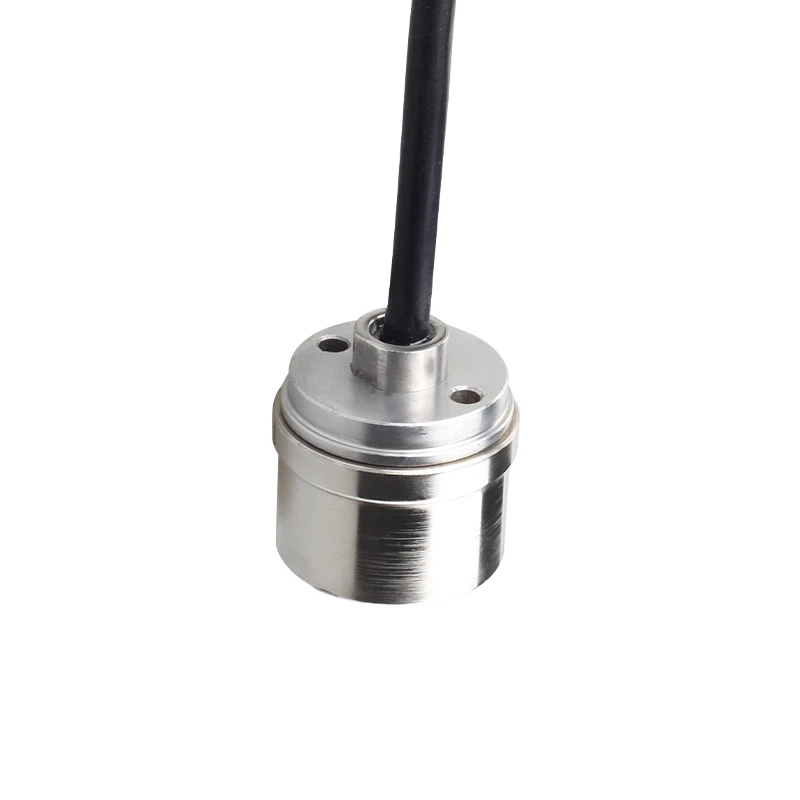

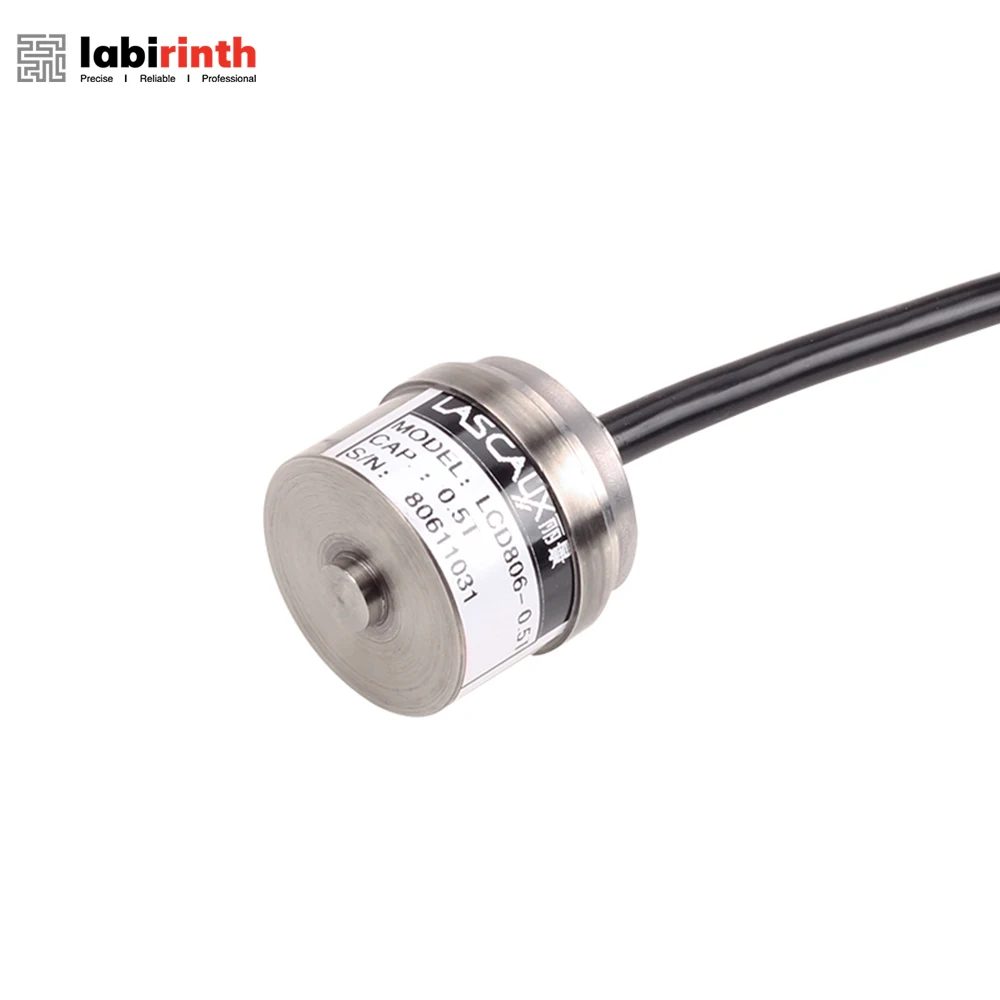

0.5t to 3t Micro Sensor LCD806 Force Transducer Low Profile Disk Load Cell
- Category: >>>
- Supplier: Lascaux Microelectronic Device (tianjin) Co. Ltd.
Share on (11000006359491):
Product Overview
Description

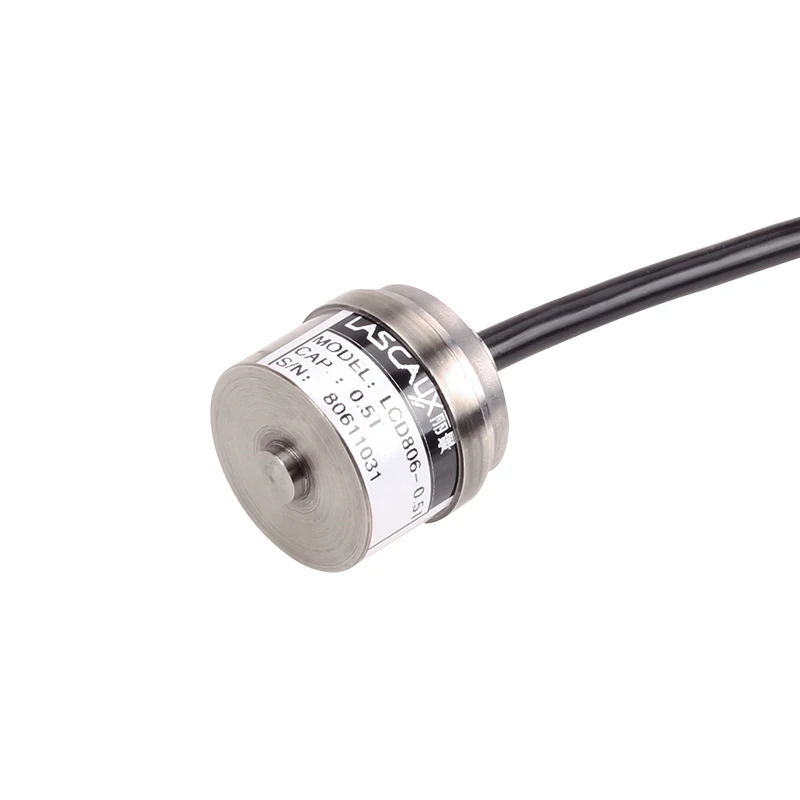

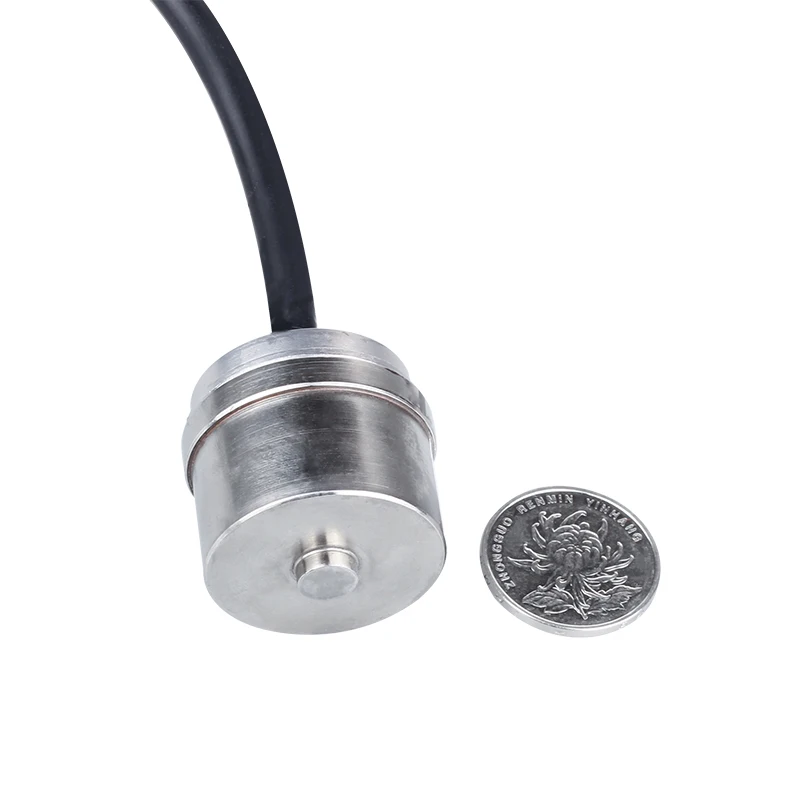

LCD806 Force Transducer
● Alloy Steel Material Structure
● Compact Structure, Easy to Install
● High Precision,High Accuracy
● Compact Structure, Easy to Install
● High Precision,High Accuracy
LCD806 Force Transducer
Description:
2. Compact structure, easy to install
3. High comprehensive precision, high stability
4. Measure the compression
5. Delicate structure, low profile
6. Stainless steel material
7. High temperature resistance Applications

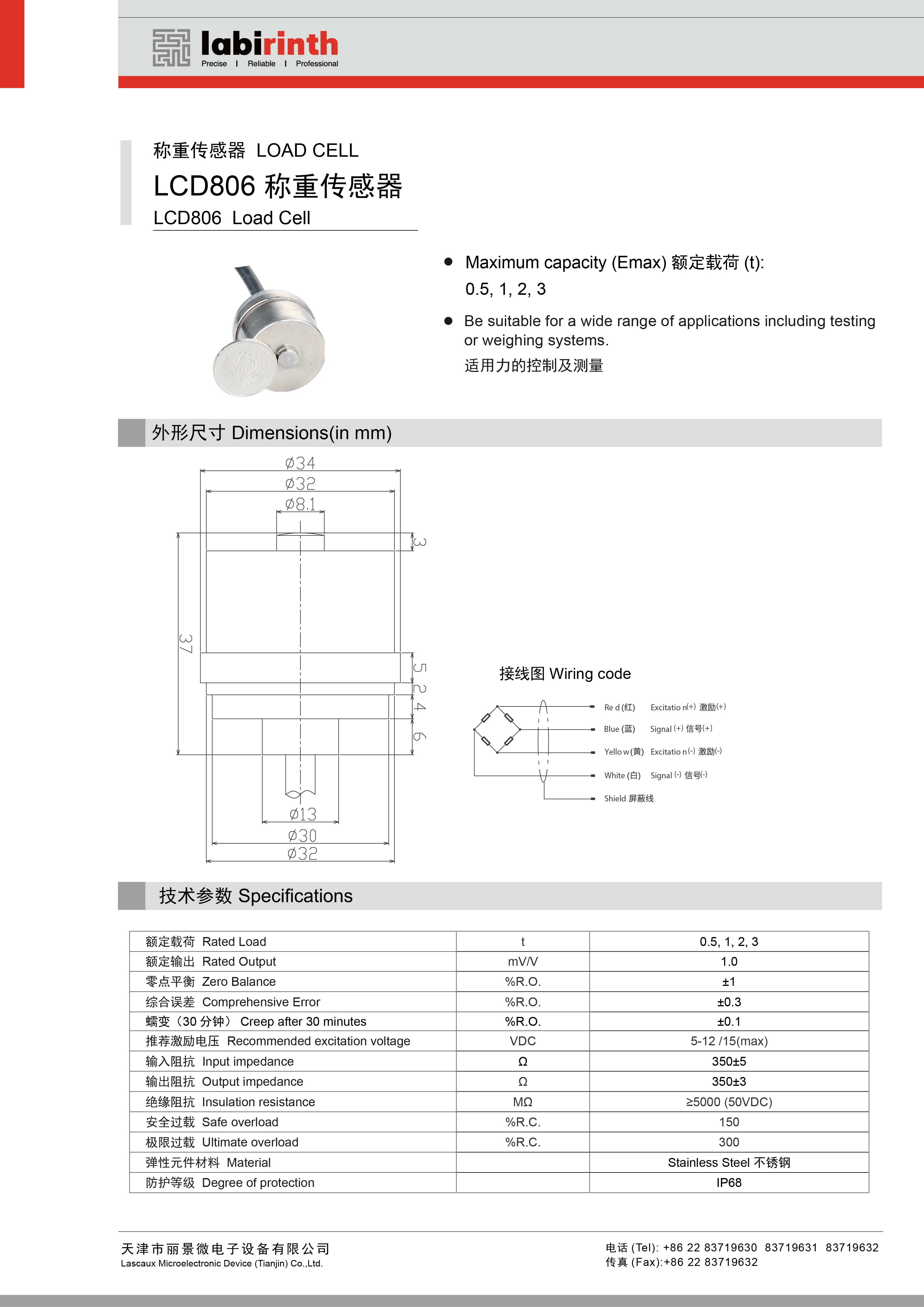

Specifications: | ||||
Rated Load | t | 0.5,1,2,3 | ||
Rated Output | mV/V | 1.0 | ||
Zero Balance | %R.O. | ±1 | ||
Creep after 30 minutes | %R.O. | ±0.1 | ||
Comprehensive Error | %R.O. | ±0.3 | ||
Compensated Temp. Range | ℃ | -10~+40 | ||
Operating Temp. Range | ℃ | -20~+70 | ||
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.1 | ||
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.1 | ||
Recommended Excitation Voltage | VDC | 5-12 | ||
Input impedance | Ω | 350±5 | ||
Output impedance | Ω | 350±3 | ||
Insulation resistance | MΩ | ≥5000（50VDC） | ||
Safe Overload | %R.C. | 150 | ||
Ultimate Overload | %R.C. | 300 | ||
Material | Stainless Steel | |||
Degree of protection | IP68 | |||

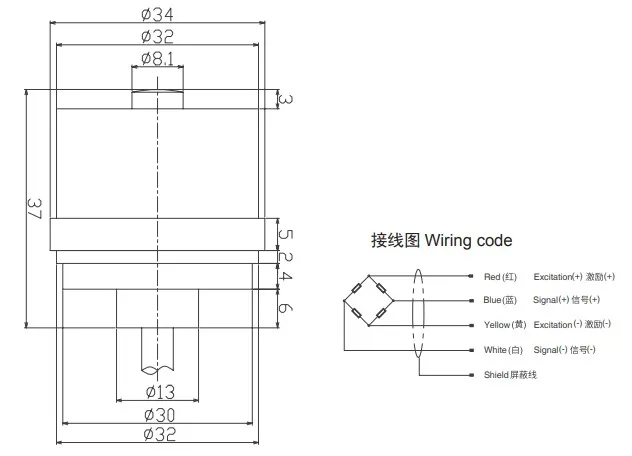

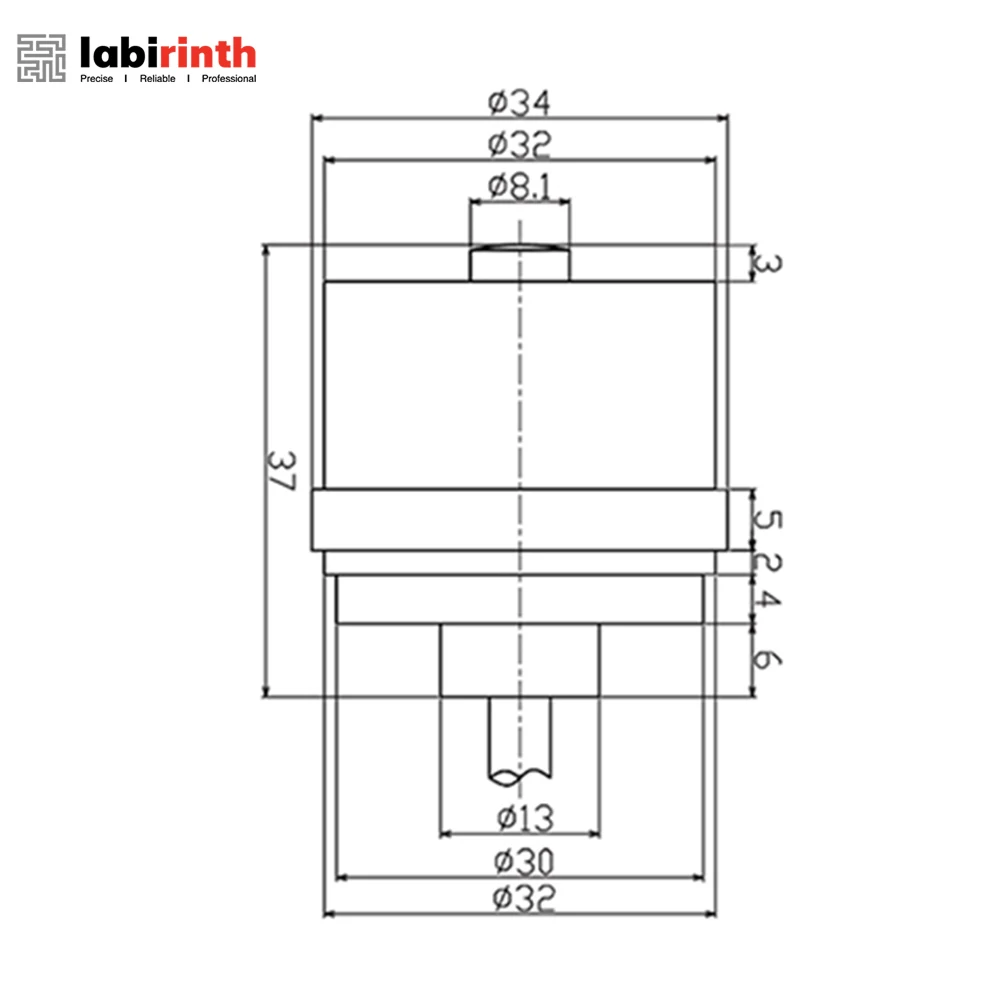

Dimension（in mm）& Capacity & Wiring Code： | ||||
Applications:
Be suitable for a wide range of applications including testing or weighing systems.
Be suitable for a wide range of applications including testing or weighing systems.
