TESmart 4x4 HDMI Matrix HDCP 4 Port LAN with IR Remote Control 4K@30Hz Matrix Switcher
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (11000006368041):
Product Overview
Description
Product Description

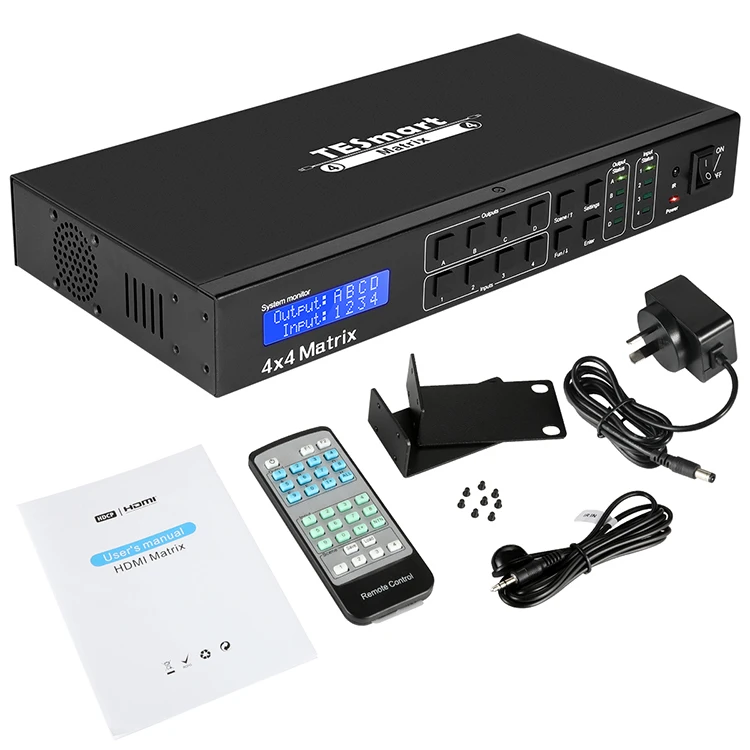

4x4 HDMI Matrix.
This 4x4 HDMI matrix routes 4 Ultra HD sources to 4 4K Ultra HD displays with HDMI inputs.
Each source can be routed to any display using the front-panel buttons or the IR Remote Control.
The matrix can also be controlled via RS-232 or LAN port.
With smart EDID management, make it compatible with most of the HDMI source and sink devices.
Features.
✔Max. resolution up to 3840*2160@30Hz.

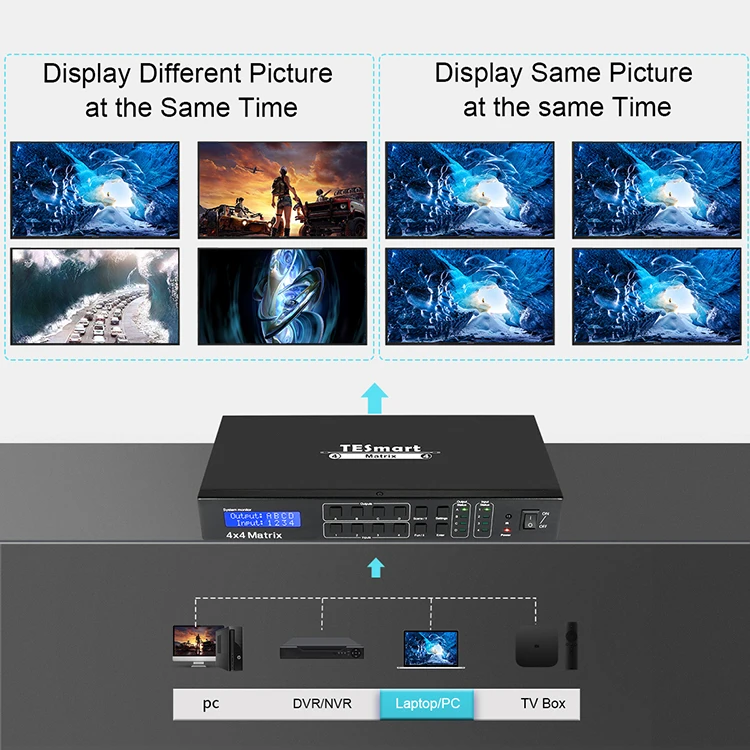

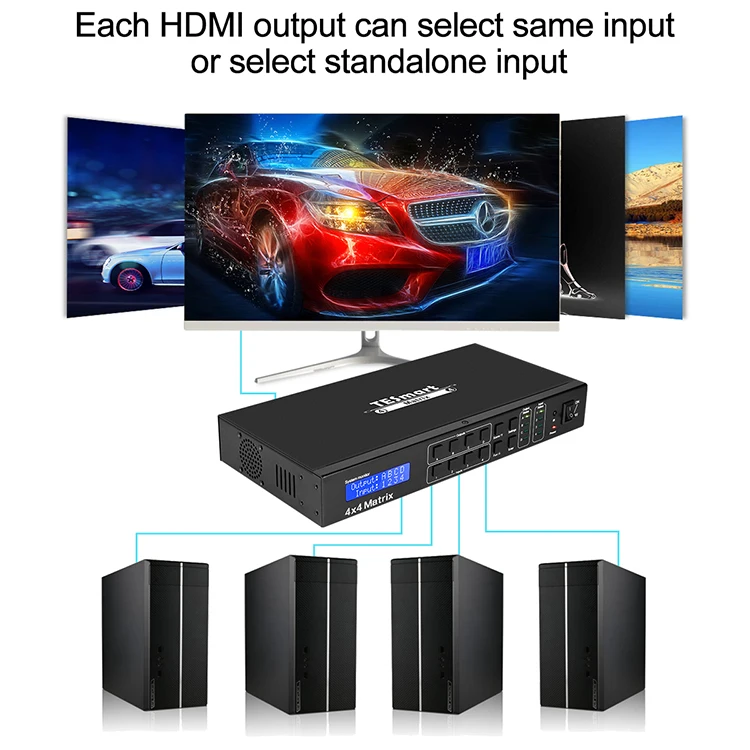

✔Each HDMI output can share same input or select standalone input.

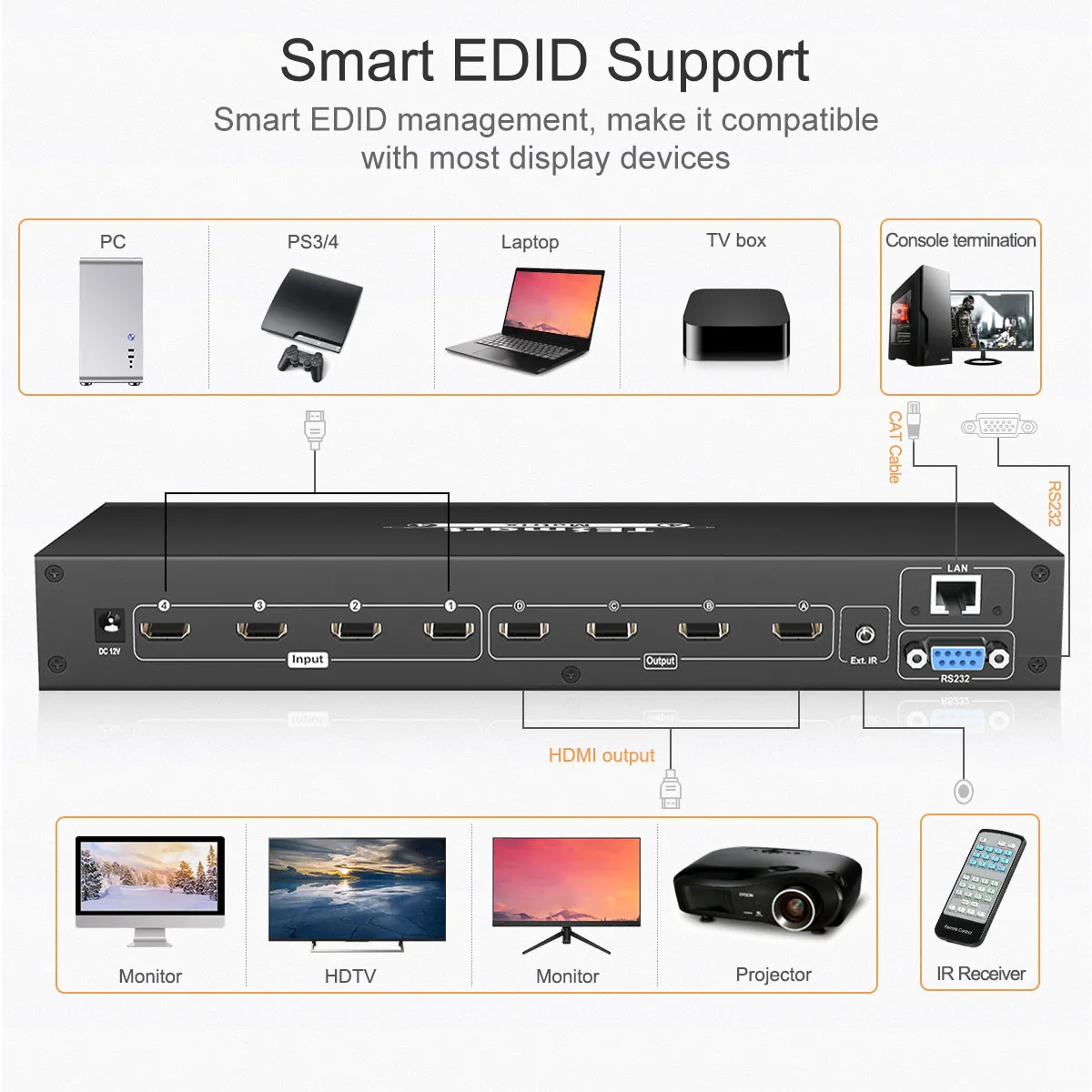

✔Smart EDID management, make it compatible with most display devices.

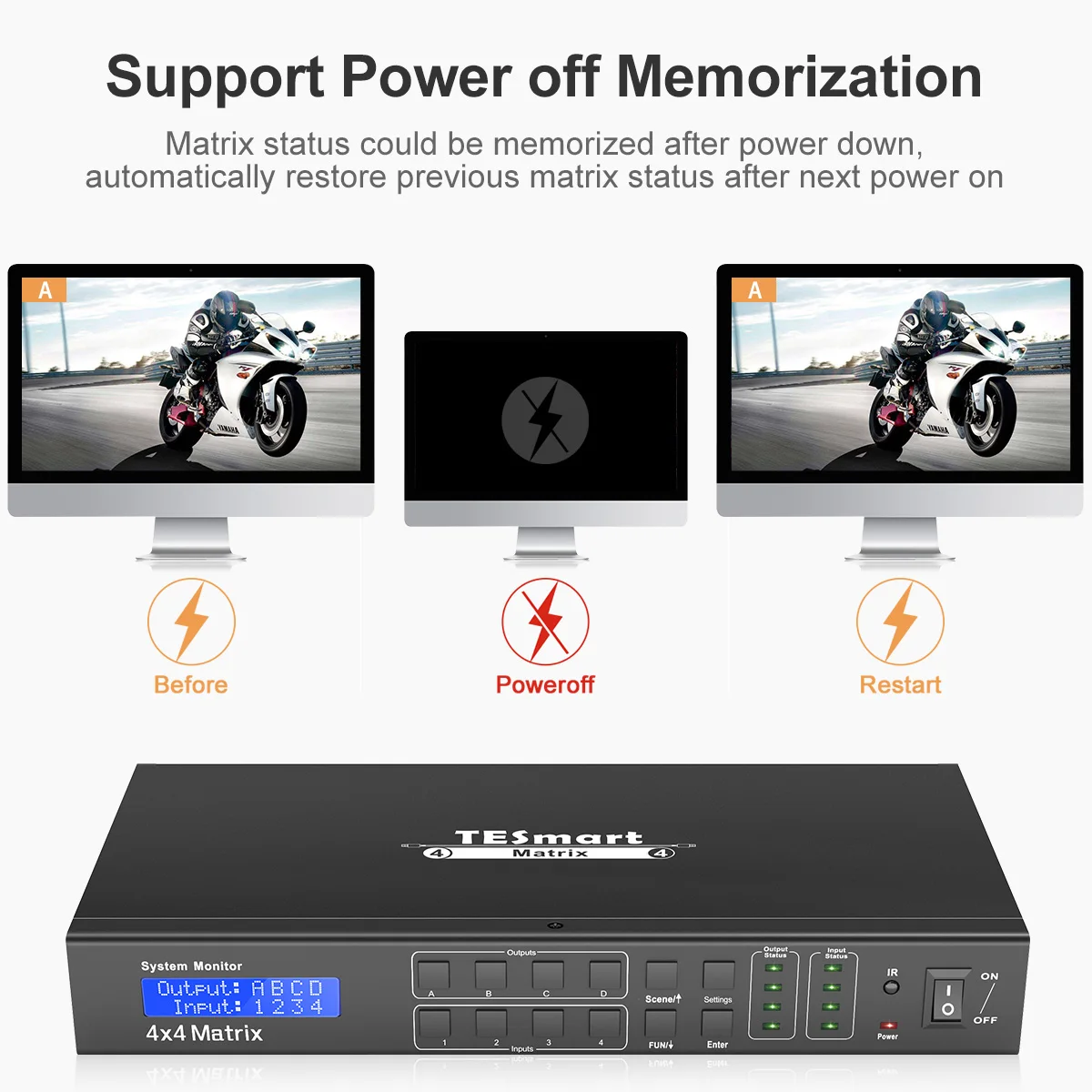

✔Matrix status could be memorized after power down, automatically restoreprevious matrix status after next power on.

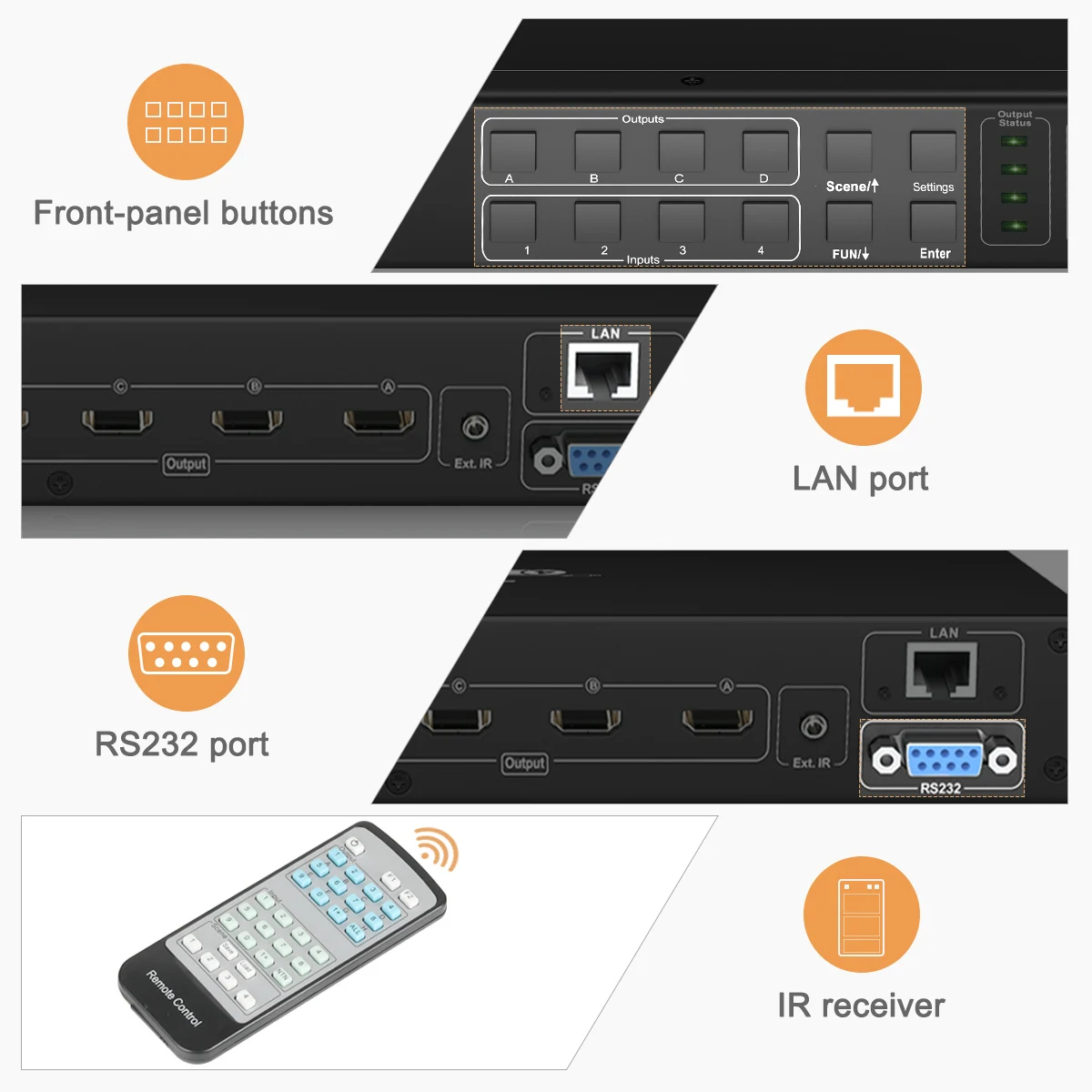

✔Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port).
✔Easy to view connection status via LCD display.

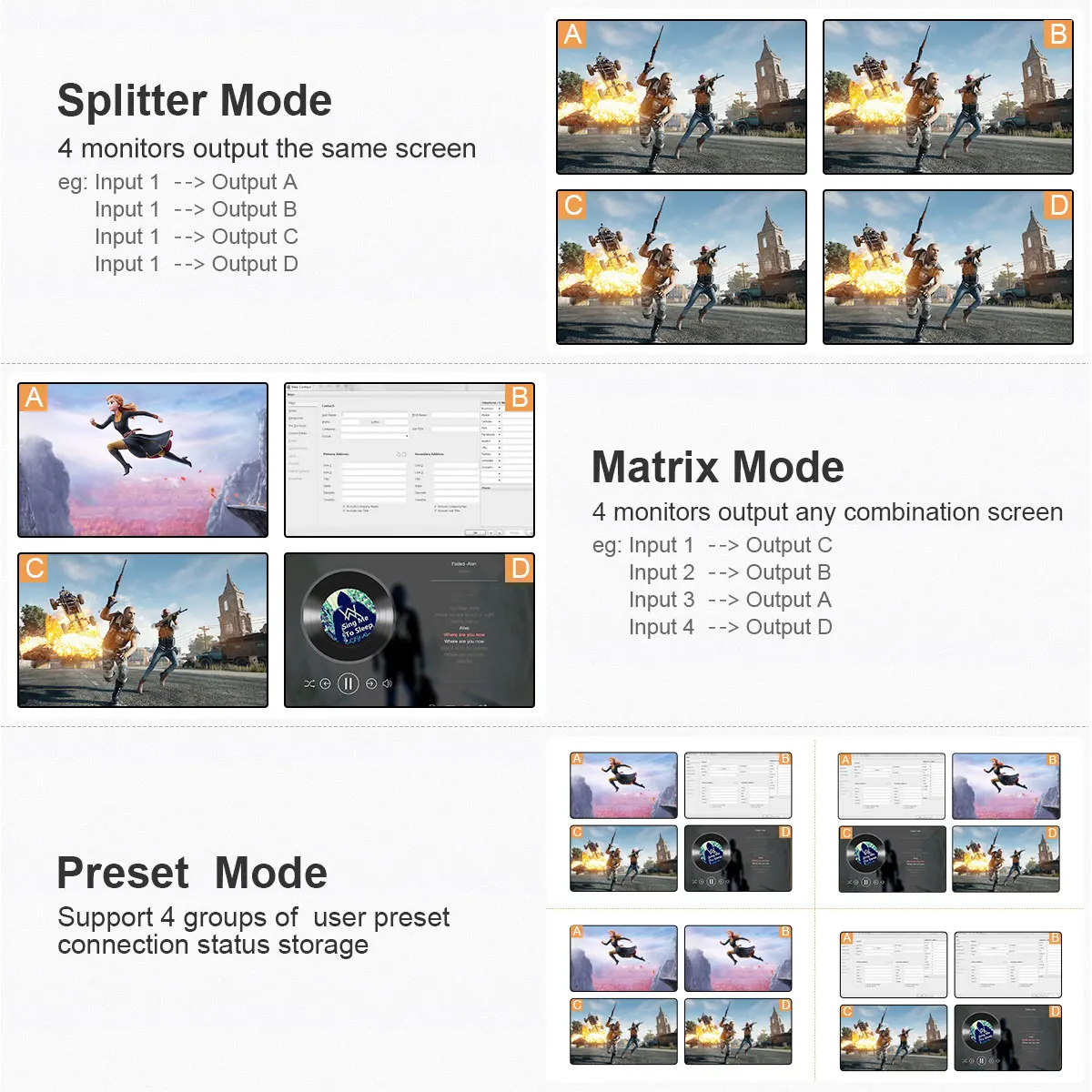

✔Supports 4 configurable user preset connections.
✔Support Rack mount installation.
✔Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
✔HDCP1.4 compliant.
✔Smart EDID management, make it compatible with most display devices.
✔Matrix status could be memorized after power down, automatically restoreprevious matrix status after next power on.
✔Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port).
✔Easy to view connection status via LCD display.
✔Supports 4 configurable user preset connections.
✔Support Rack mount installation.
✔Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
✔HDCP1.4 compliant.
Specification
HMA0404B40 | 4x4 HDMI Matrix | ||||
Port selection | Front panel buttons | Yes | |||
Console commands | RS232 / IP | ||||
IR remote control | Yes | ||||
LCD Display | 16x2 characters | ||||
Smart EDID | Yes | ||||
Resolution | Up to 3840x2160@30Hz/ 1080P 3D 60Hz | ||||
Data rate | 10.2 Gbps | ||||
Input | 4*HDMI Type A | ||||
Output | 4*HDMI Type A | ||||
ESD protection | Human body model - ±8kV (Air-gap discharge) | ||||
Chasing material | Metal | ||||
Product Dimensions | 308(L) x 150 (W) x 44.5 (H) mm | ||||
Item Weight | 2000 g | ||||
Power supply | DC 12V 2A | ||||
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | ||||
Operating Humidity | 10 to 90% RH | ||||
