24 hours monitoring Online ultrasonic wall thickness test machine for plastic pipe

Share on (11000006401082):


Price:$13,300.00

Quantity:


Product Overview

Description



Product Description

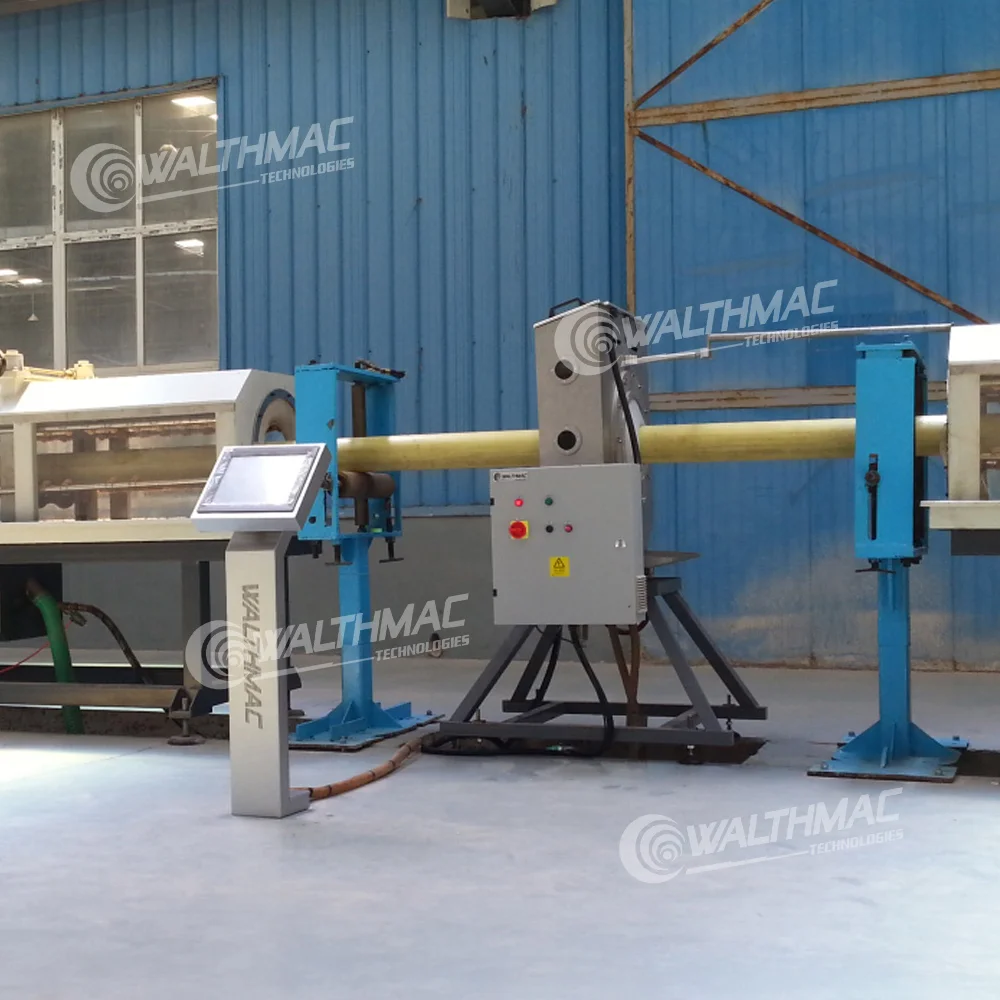

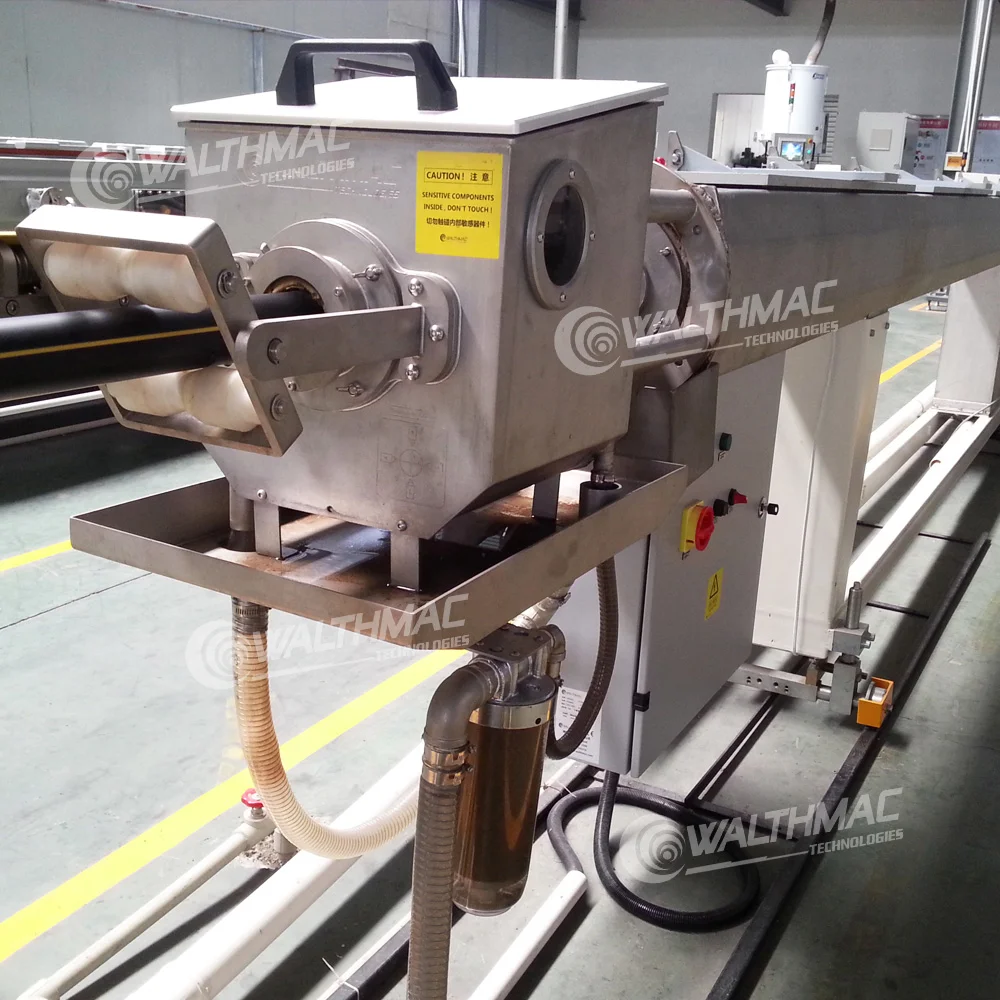

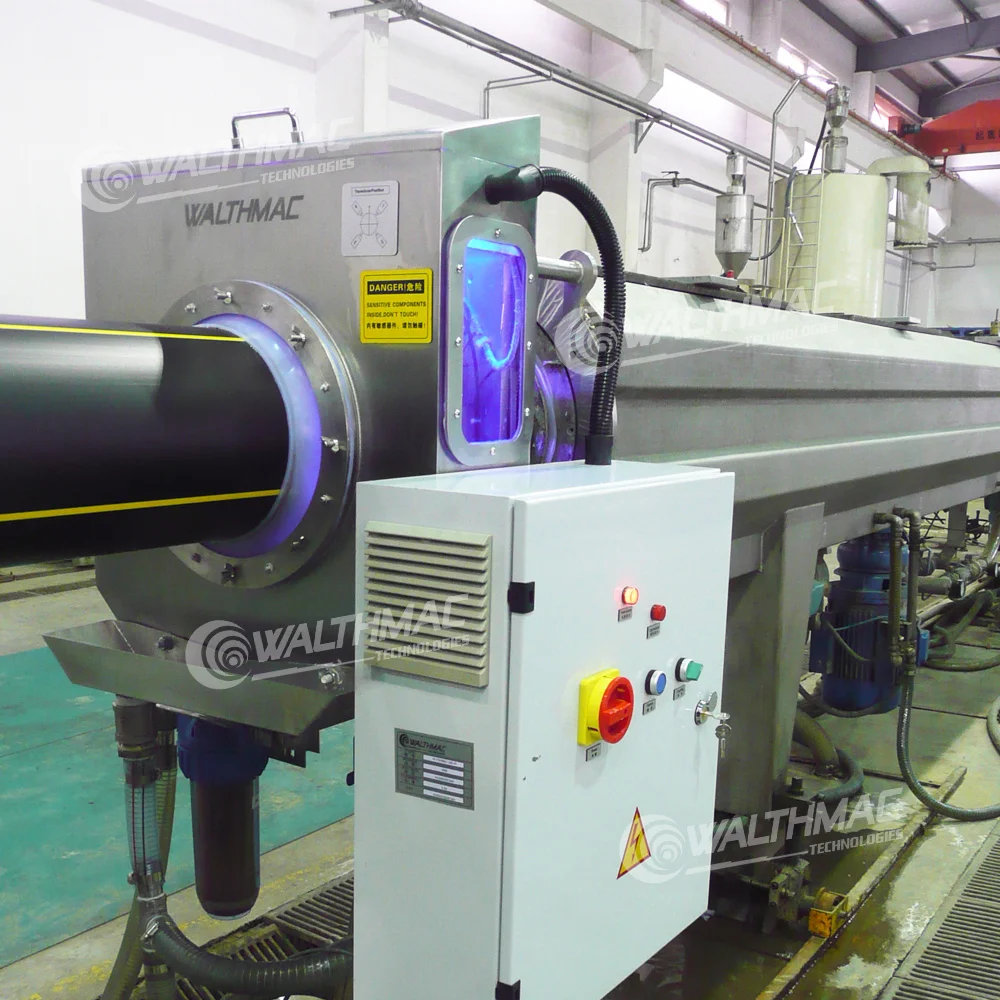

Online Ultrasonic thickness measuring system for plastic pipe

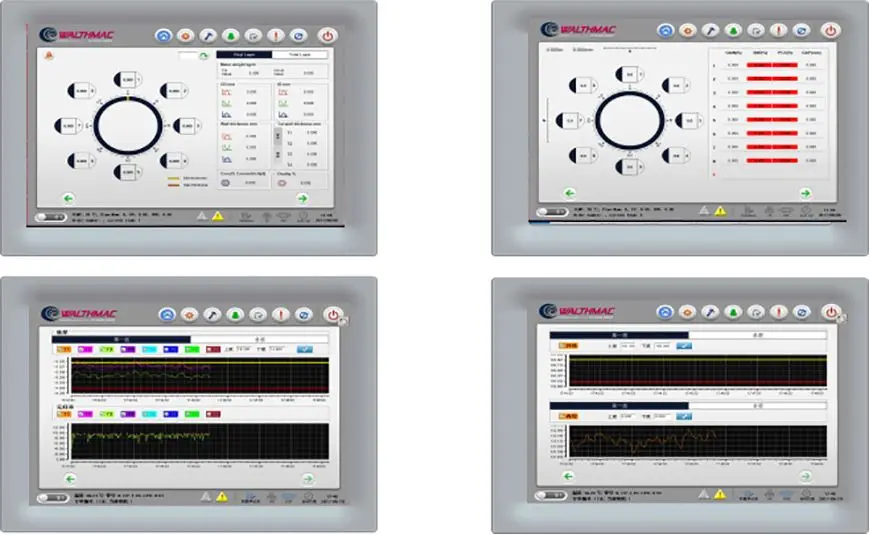

WalthMac ultramac series online ultrasonic thickness test machine is a real-time monitoring system for plastic pipe quality control. The system includes word-class ultrasound sensors and data processing software and hardware, which can realize online measurement of multiple geometric dimensions such as wall thickness.


Benefits


100% Screened out the unqualified pipes from production line, improve product quality level.
Shorten the start-up time and reduce rejection ratio
Full production record back up function, easy traceability in future
Auto-generating pipe quality statistics report. Significantly enhance quality control capability



Specification


item
Ultramac630-8T
Control unit
Walthmac DATASE 1000R utrasonic measurement control ysstem
Display unit
12''/15''/21'' true color of touch screen (optional)
Max measurin precision
0.001mm
OD measuring range
250-630mm
Brand Name
Walthmac
Power consumption
<30W (+display power)
Operation voltage
AC 220V
The application for material
Plastic pipe, rubber pipe
The appliaction
Gas pipe,water pipe,car catheter,medical catheter,ocean pipe etc


Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Especially for large equipment such as the online Ultrasonic thickness test machine, we will thicken the boards.


Company Profile




Founded in 2009, Mianyang Walthmac Measurement & Control Technology Co., Ltd. is a national high-tech enterprise that pursues the product design concept of "product is the art". The company specializes in online measurement and control related automatic measurement and control equipment for plastics, food, pharmaceutical and other processing industries. Among them, many products such as plastic pipe online thickness measurement system and Gravimetric controlling system are in the leading position in the industry. The products are integrated and used by many high-end plastic equipment manufacturers in China as standard equipment.

The company integrates R&D, design, production, sales and service, and has a number of patent certificates. The products have passed many international certifications and have strong technical strength. In the past five years, the market share of domestic gas pipeline thickness measurement system has exceeded 60%, and the products are exported to Europe, Southeast Asia, Middle East, Australia, Africa, America and many other countries and regions.

After years developing and growthy, we've established a strong and experienced services team both on techology & trade who can stretch out thoughout the world and winned quite good reputations in the field. We always stick to the world-class standard on every aspect and sincerely wish having the opportunity to serve you!

Company Location:3rd Floor, Building 11, Innovation Base, Fucheng District, Mianyang City, China

After-Sales:+86-816-2976162 Overseas Sales:+86-816-2976161
Mobile: +86 13420955314 / 19880211605


FAQ


1. Does your product have a warranty? How long is the warranty period?
Yes, 12 months after commissioning and start up, but no longer than 15 months after factory delivery date
2. How long is the lead time?
Approx.40 days after receipt of down payment, (National public holiday shall be excluded )
3. How do you guarantee the quality?
Always final Inspection before shipment, and send the equipment normal operation video to the customer for confirmation.
4. How to solve the technical problems?
We have one professional technicians team who can solve problems remotely or on-site.
