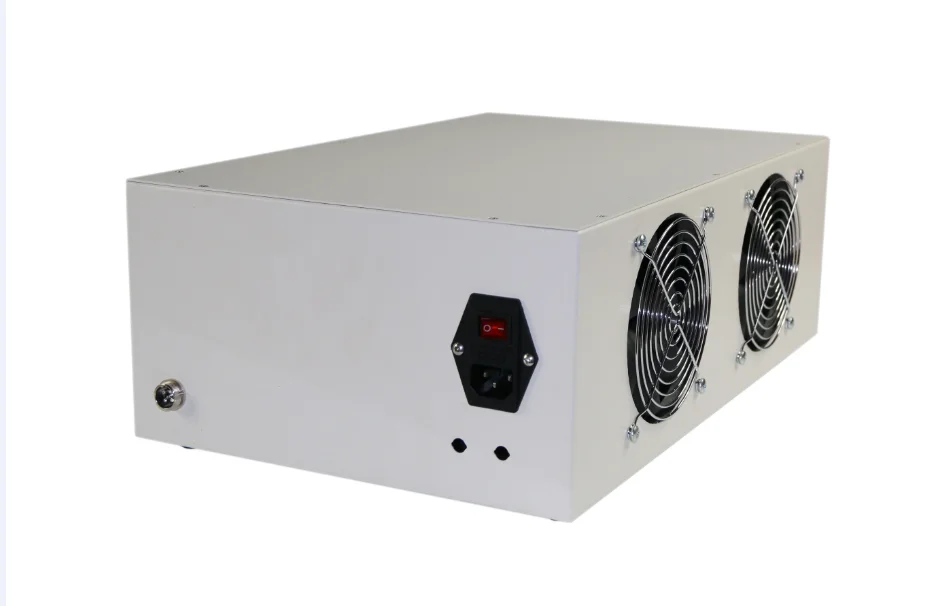

ZKE tech Ebc b20h capacity tester 12 72V 20A Lead Acid Lifepo4 Lithium ion battery pack calb eve catl lifepo4 discharge tester
- Category: >>>
- Supplier: Shenzhen Eel Battery Co. Ltd.
Share on (11000006401932):
Product Overview
Description
Product Parameters
EBC-B20H is a battery capacity tester for 12V-72V range of battery capacity test, built-in discharge load resistance, support external battery pack charger, automatic switching charge and discharge, support the computer drawing the curve online .
Power supply: AC100-240V
Voltage setting: 9.00-88.00V, the minimum step 0.01V
Current setting: Discharge: 0.10-20.00A Minimum step 0.01A ( 12V up to 10A )
Test mode: DSC-CC: discharge current is constant, The voltage is automatically stopped when the voltage is below the set termination voltage
CHG-CV: charged by an external charger, the current is automatically stopped when the current is less than the set termination current
Voltage test: 0.10-89.00V, accuracy to 0.01V, error ±0.5%
Current test: 0.10-20.00A, accuracy to 0.01A, error ± 0.5%
Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
> 100Ah, the resolution 0.1Ah

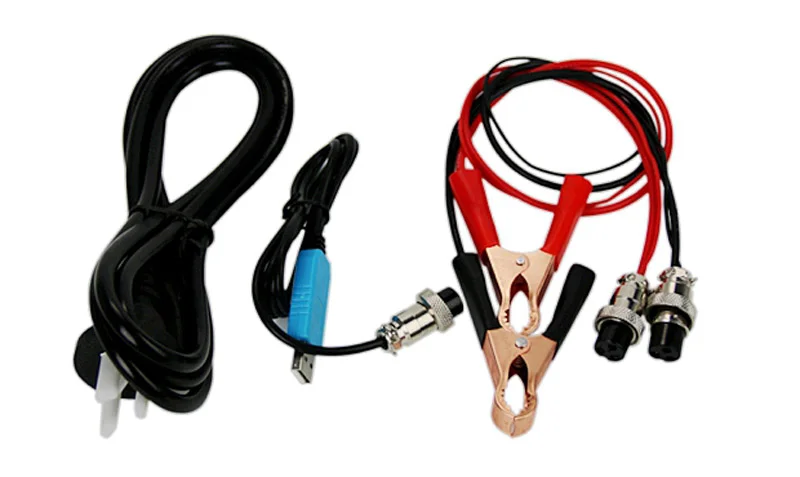

Connection: four-wire detection, voltage and current channel separate wiring, to ensure measurement accuracy
LCD display: voltage, current, capacity, time so on test data
Computer Online:dedicated USB to TTL serial port (Mini USB port, not an ordinary USB cable) computer control, curve plotting,calibration benchmarking, firmware upgrade, cycle charge/discharge etc.
Power supply: AC100-240V
Voltage setting: 9.00-88.00V, the minimum step 0.01V
Current setting: Discharge: 0.10-20.00A Minimum step 0.01A ( 12V up to 10A )
Test mode: DSC-CC: discharge current is constant, The voltage is automatically stopped when the voltage is below the set termination voltage
CHG-CV: charged by an external charger, the current is automatically stopped when the current is less than the set termination current
Voltage test: 0.10-89.00V, accuracy to 0.01V, error ±0.5%
Current test: 0.10-20.00A, accuracy to 0.01A, error ± 0.5%
Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
> 100Ah, the resolution 0.1Ah
Connection: four-wire detection, voltage and current channel separate wiring, to ensure measurement accuracy
LCD display: voltage, current, capacity, time so on test data
Computer Online:dedicated USB to TTL serial port (Mini USB port, not an ordinary USB cable) computer control, curve plotting,calibration benchmarking, firmware upgrade, cycle charge/discharge etc.
Power supply | Voltage setting | Current setting |
AC110-220V | 9.00-88.00V | Discharge: 0.10-20.00A |

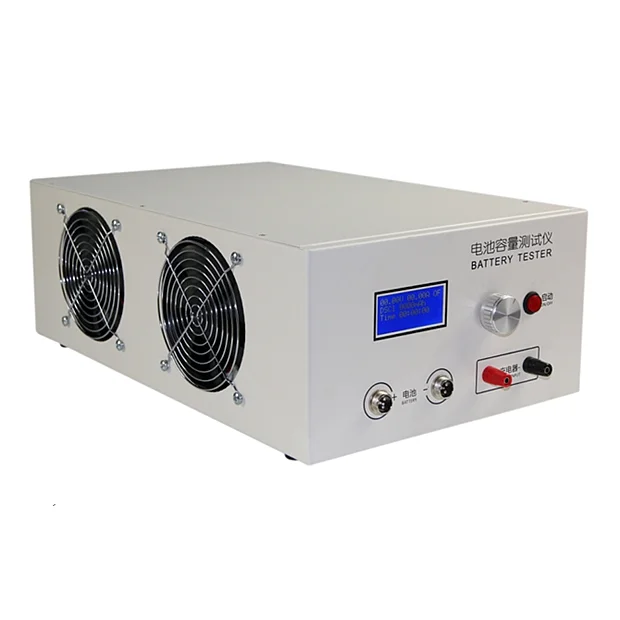

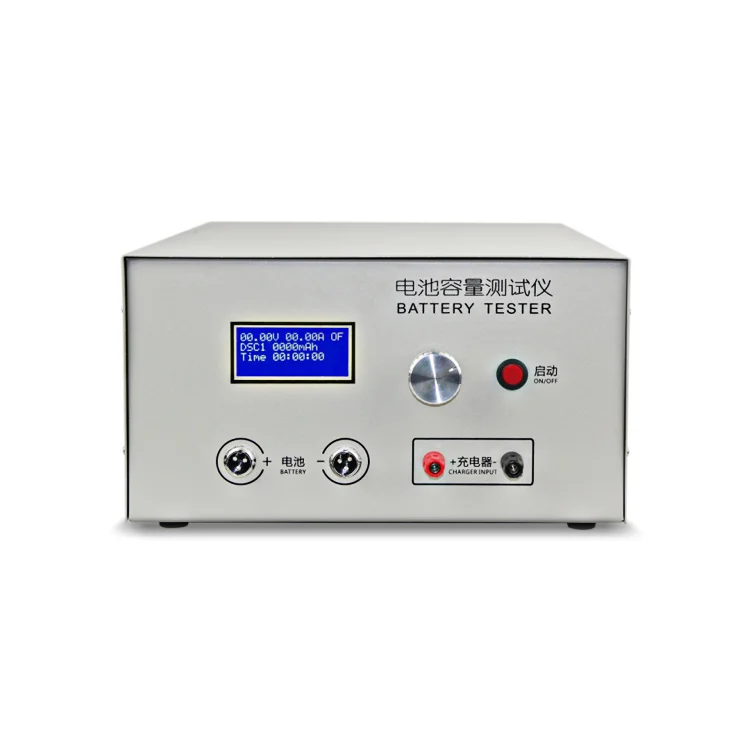

Product Display

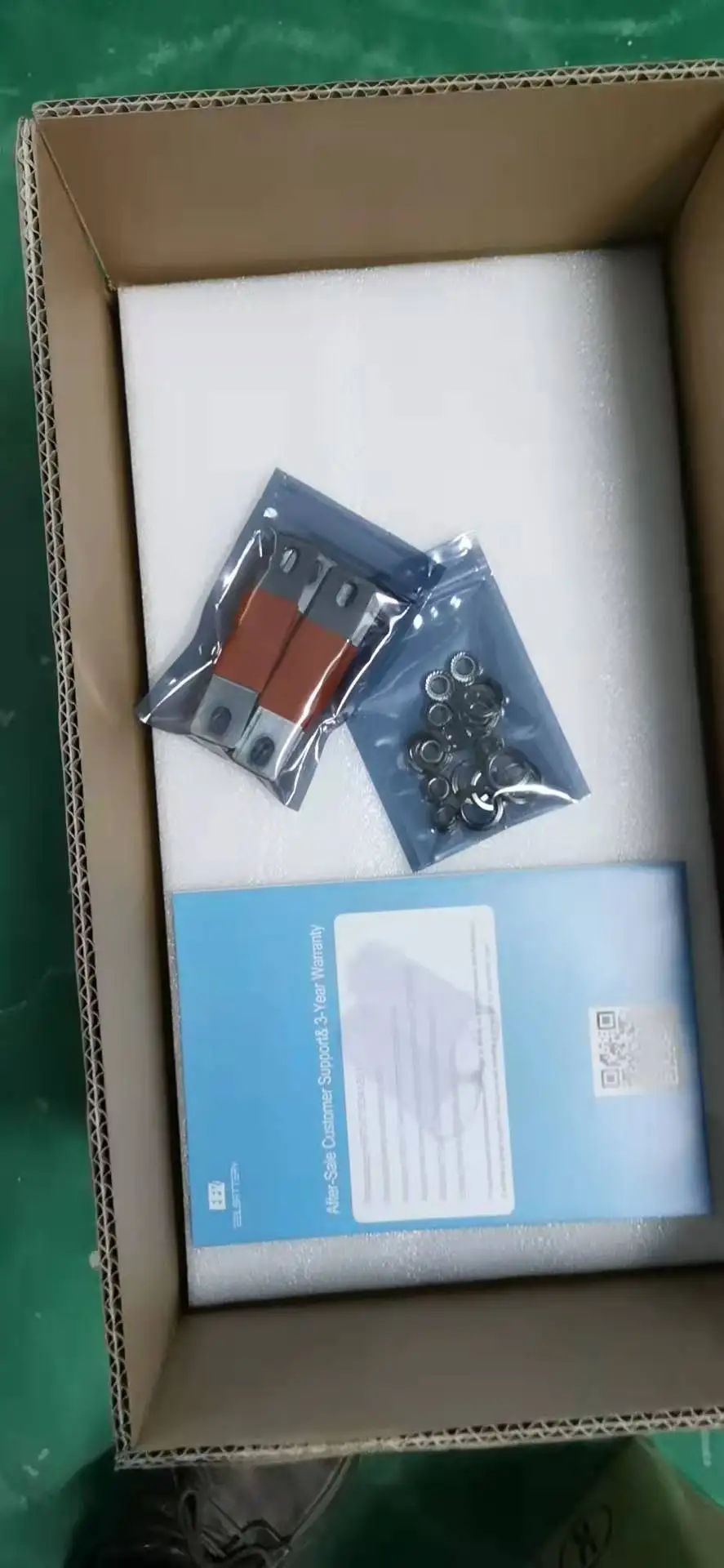

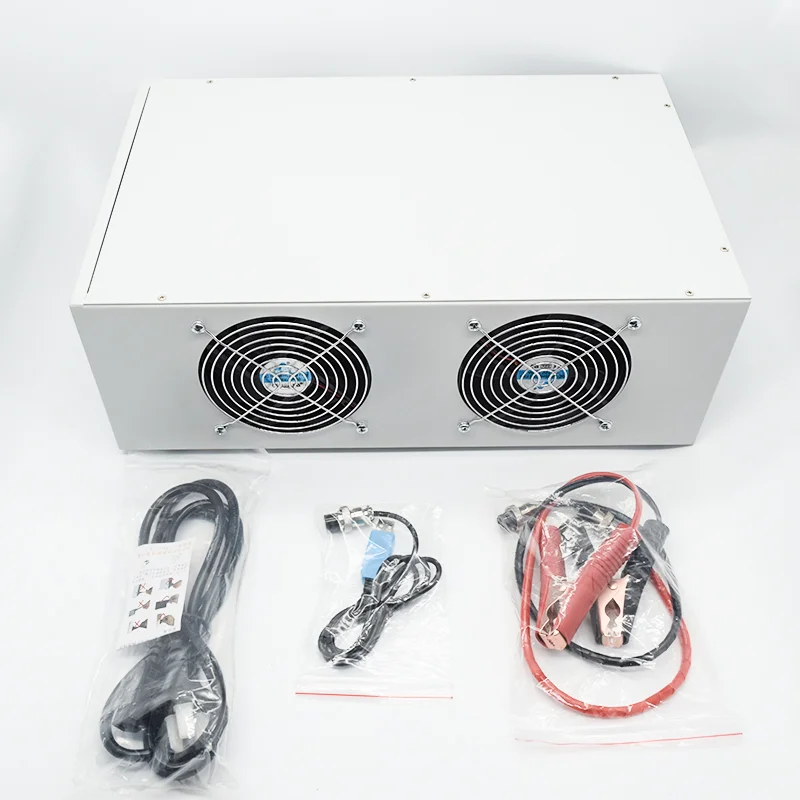

Packing & Shipping
Company Profile
Shenzhen EEL Battery CO.,Ltd is a specialized company which dedicated to R&D,production and marketing of LiFePO4 battery pack,18650 lithium battery pack,ebike battery,LiFePO4 cell,li-ion polymer battery products.After 10years of rapid development,EEL has accumulated core technology and comprehensive solution for power battery products,meanwhile we have obtained the approval and praise of customers from all over the world.Most of our battery models have MSDS,UN38.3,CE,UL1642 certificates.Depending on professional R&D engineers,enthusiastic sales team and reliable after-sales service,our battery products are widely used in the field of off-grid solar power system,solar street light,RV,electric vehicles,golf cart,power tool,backup power,medical
device. Our goal is to provide competitive,safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.Believe in us,EEL will be your trustworthy partner in battery business!
Certificates

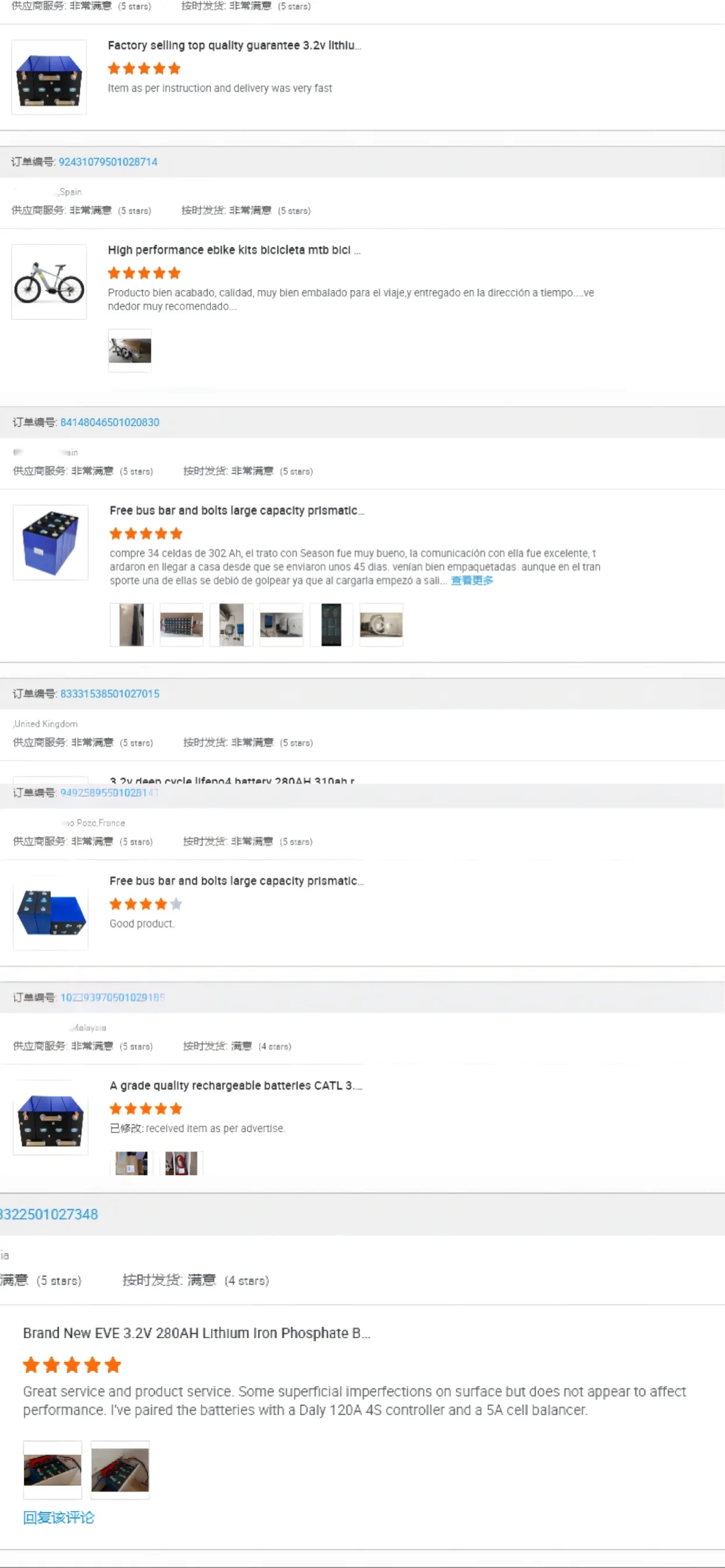

Customers Feedback
