Enjoy Extended Swimming Seasons with Advanced Pool Heat Pumps
- Category: Heat Pump Water Heaters >>>
- Supplier: Sichuan Great Technology Co. Ltd.
Share on (11000006403970):
Product Overview
Description
,

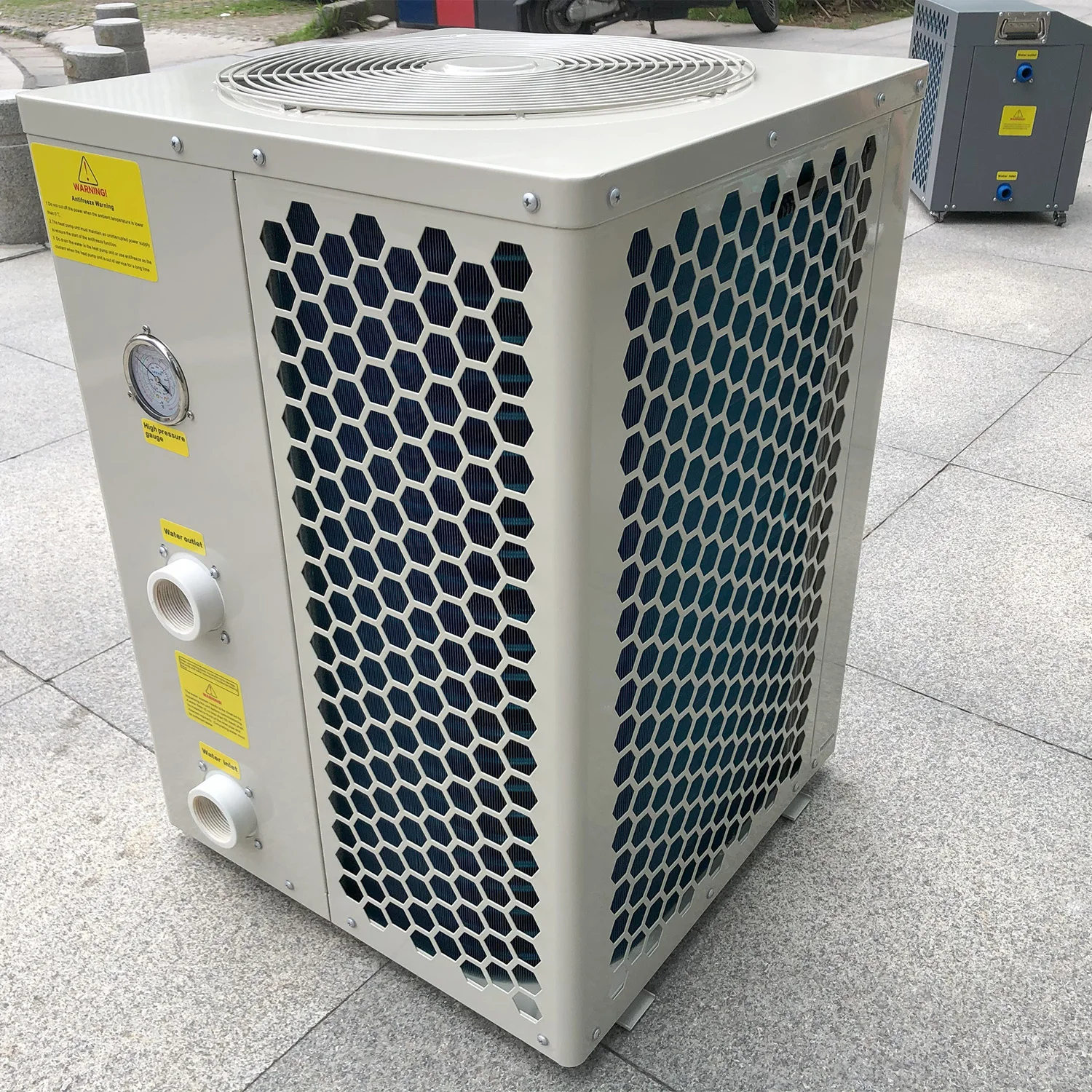

| Air source swimming pool heat pump unit | ||
| Model | KFXY-010UMI | |
| Heating mode | / | Circulating |
| Ambient temp. range | ℃ | -7~43 |
| Rated heating capacity | kW | 9.5 |
| Rated power input | kW | 1.98 |
| COP | W/W | 4.8 |
| Max. working current | A | 17 |
| Power supply | / | 220 1N~ 60Hz |
| IP code | / | IPX4 |
| Refrigerant | / | R410A |
| Compressor QTY | tower | 1 |
| Max. water outlet temperature | ℃ | 40 |
| Water side heat exchanger type | Titanium tube heat exchanger +PVC shell | |

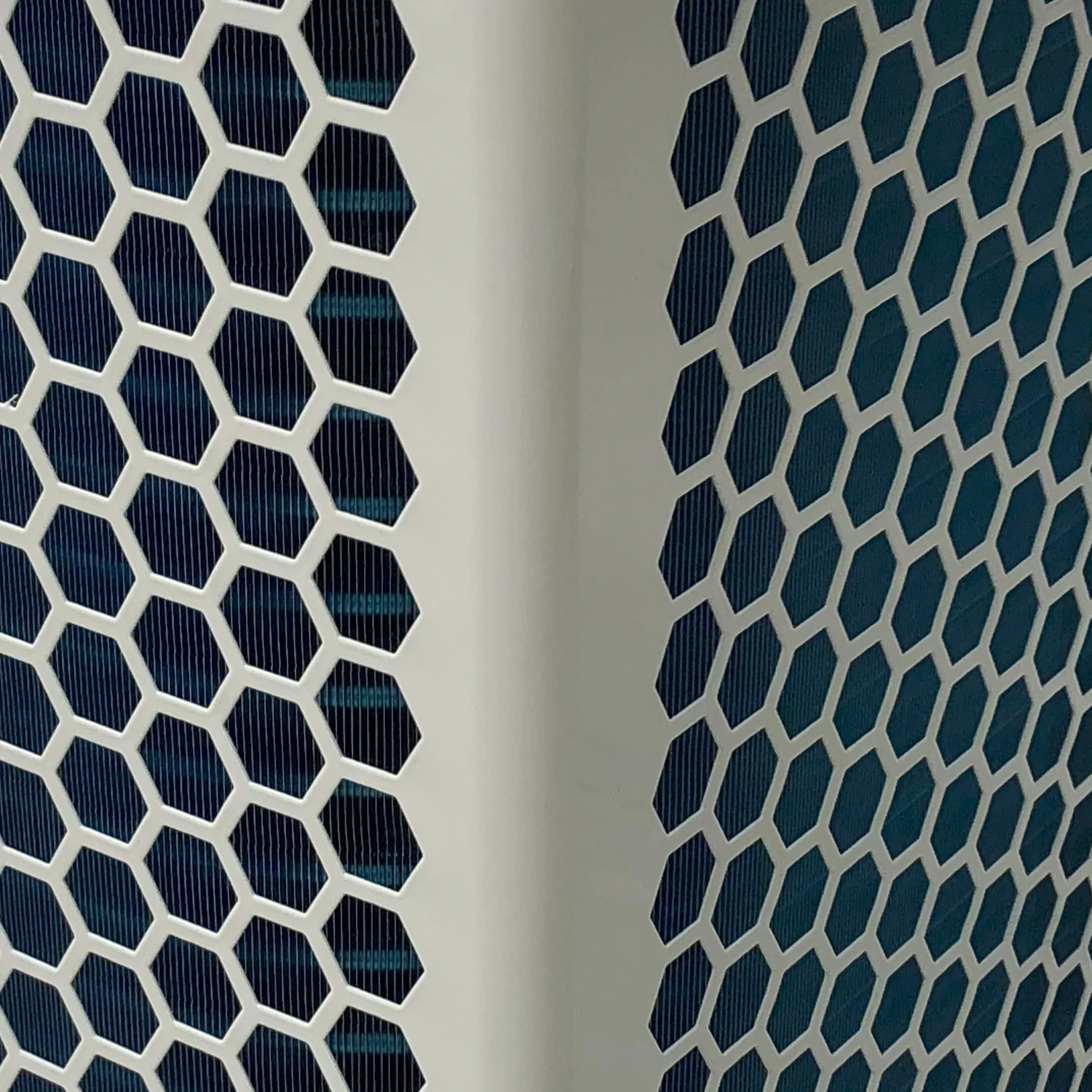

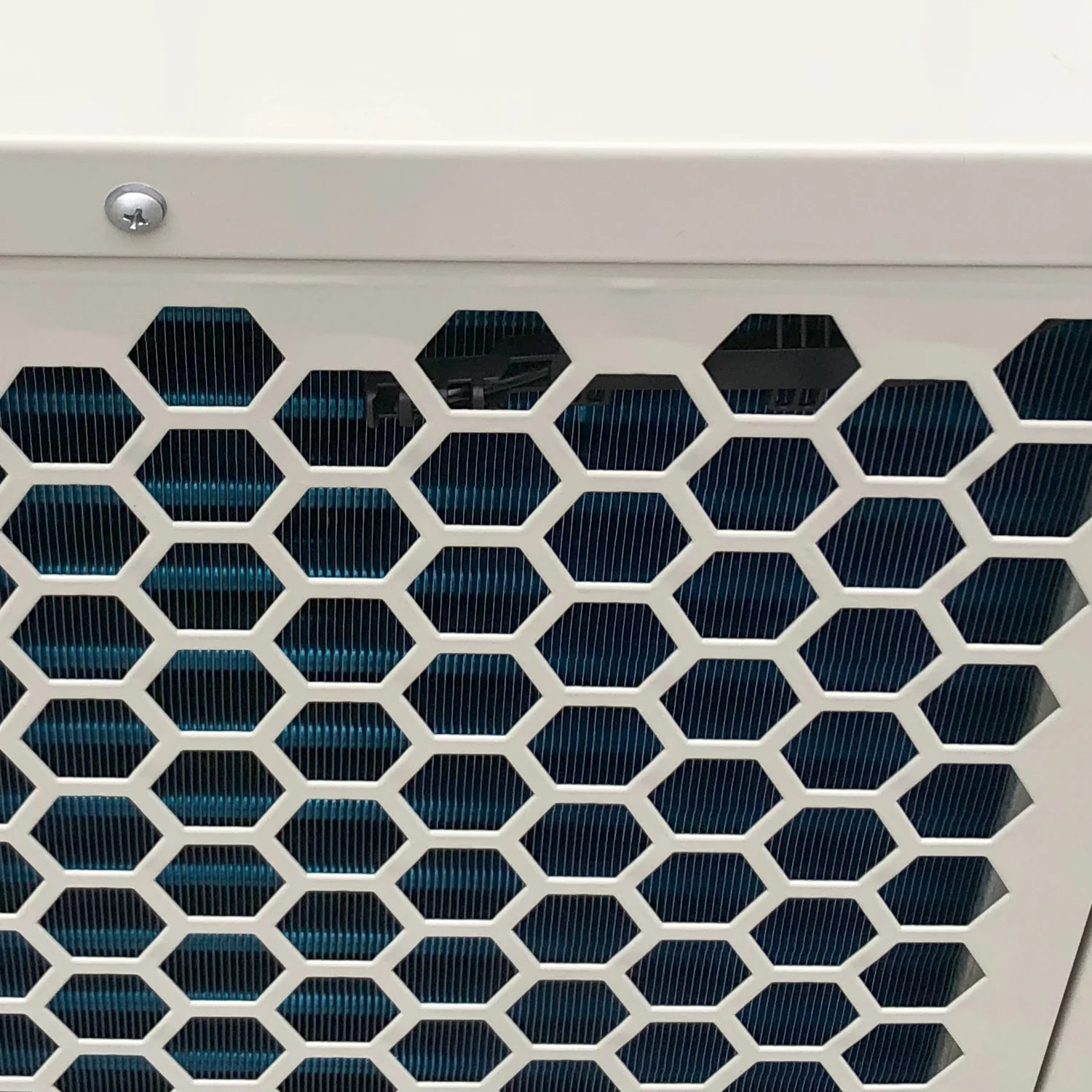

| Air side heat exchanger type | Copper tube fin heat exchanger | |

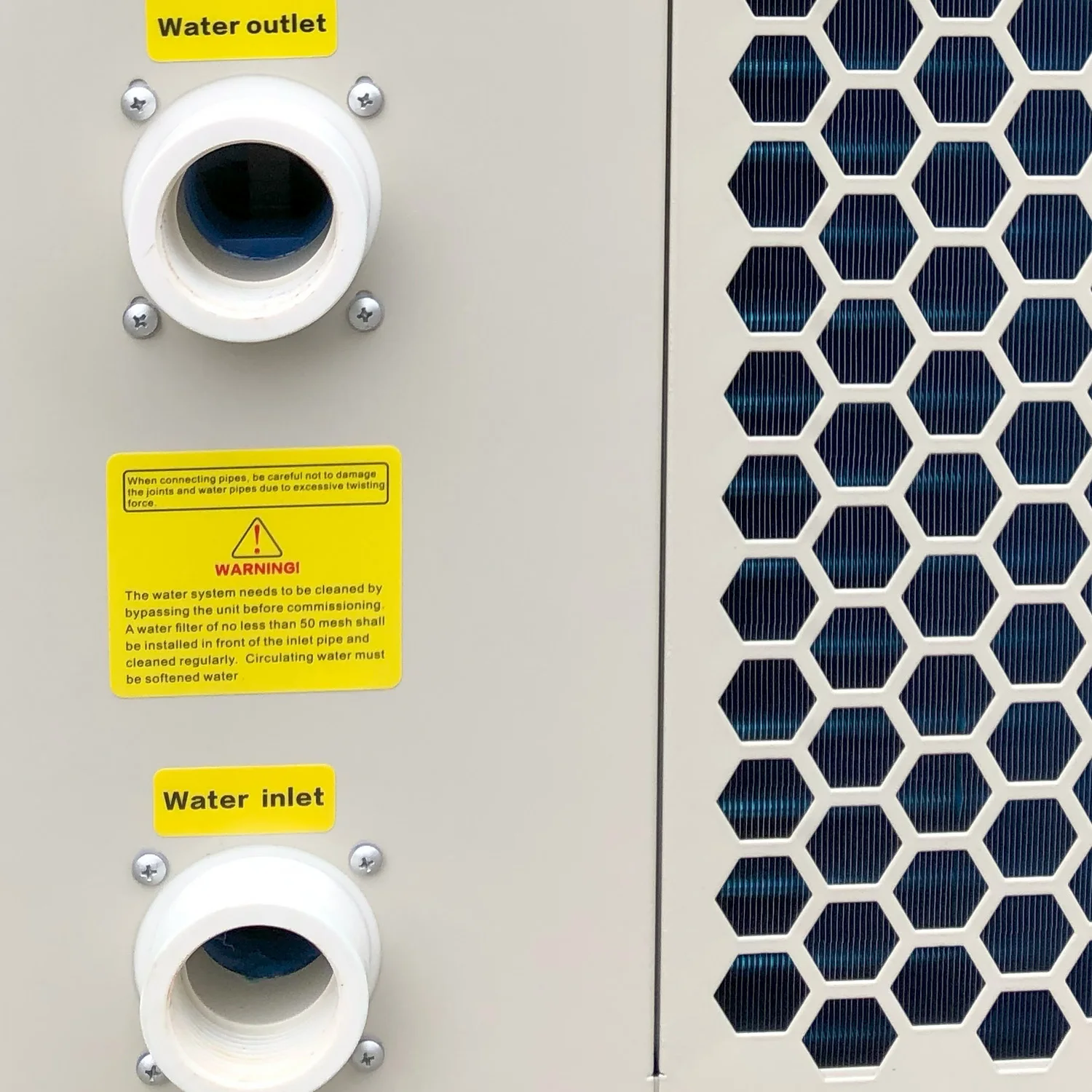

| Circulating waterpipe nozzle | inch | G1.5”Internal thread |
| Water flow | m³/h | 4.1 |
| Air out type | Vertical | |
| Fan QTY | tower | 1 |
| Noise | dB(A) | 58 |
Packing Dimension (W*D*H) | mm | 485×485×690 |
| N.W. | kg | 52 |
| Running weight | kg | 60 |
| Remarks: 1. Test conditions: a). Rated Heating: DB 26°C/Relative humidity 70%, inlet water temperature 26°C, outlet water temperature 28°C. b). Rated Cooling: DB 35°C/Relative humidity 70%, inlet water temperature 28°C, outlet water temperature 26°C. 2. Due to product improvement, above datas are subject to change without priop notice, please take the rating plate as standard. 3. This water heat pump system is only suitable for city water that meets the national standard, such as ground water, well water, etc., which is not covered by the warranty. If the water quality is poor, please install a filter and water processor. | ||
