Automatic t shirt cutting Digital cloth fabric cnc knife cutting machine
Product Description

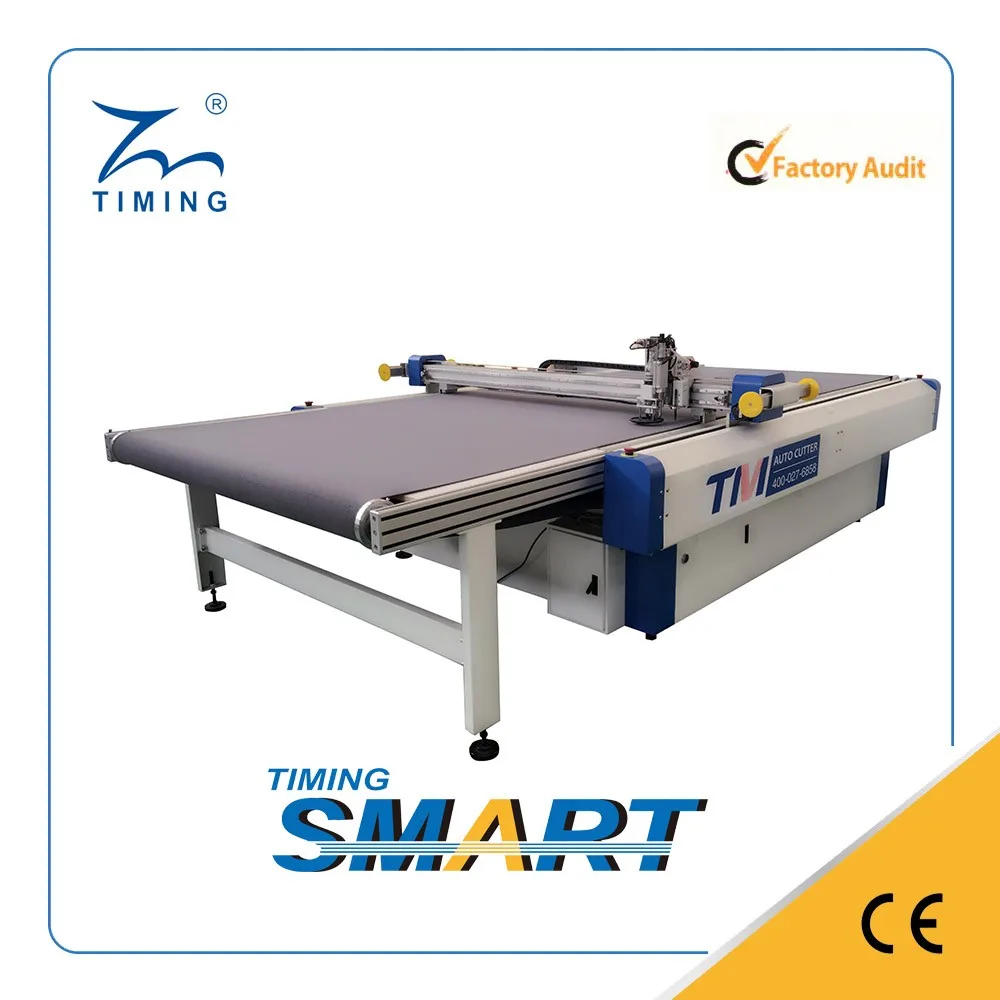

TMSC-2516 is the latest TIMING single-ply cutting machine with unique performances, it’s the best solution for single layer(low thickness) cutting, particularly suitable for small batch productions, such as samples or prototypes, is the right answer from natural woven fiber to technical textile and composites, from apparel to upholstery, from automotive to luggage & bags. As a fast and compact single-ply cutter this system persuades with fast positioning and cutting speed besides of extremely short plunge time.
Product videos:
Features
* High performance, maximum precision, minimal maintenance
* Interactive Industrial Computer, easy to operate
* Multi - tools cutting head (round/oscillating knife for cutting, marking, punching for I / V notches)
* Modular and customized loading and unloading conveyor belt
* Strong machine body, guarantee smooth operation and long life time
* Dynamic vacuum system, managed by digital inverter
* Inside vacuum pump, noiseless and hold material firmly
* Auto diagnosis system
* Imported brand electronics(Omron, HELU)
Technical parameters
TM2516-S(fixed model) | TM2516-F(auto feeding) | |
Cutting size | 2500mm*1600mm | 2500mm*1600mm |
Machine dimension | 3400mm*2400mm | 4350mm*2400mm |
Customized length range | 800mm ~5000mm | |
Customized width range | 800mm ~2600mm | |
Cutting speed | Max. 1500mm/s | |
Tool configuration | round knife, vibration knife, marking pen, punch die | |
Driving motor | servo motor | |
Vibration velocity | Max. 18000 RPM | |
Material fixed method | Vacuum adsorption | |
Data format | DXF,PLT,HPGL | |
Air pressure, flow | 0.55MPa 100L/min | |
Vacuum pump power | 7.5KW/9KW | |
Working voltage/ frequency | AC220V ± 22V, 50Hz ± 1Hz | |
Vacuum pump working voltage/ frequency | AC380V ± 38V, 50Hz ± 1Hz | |
Work environment | Temperature 0~ 40℃ humidity 20% ~ 80% | |

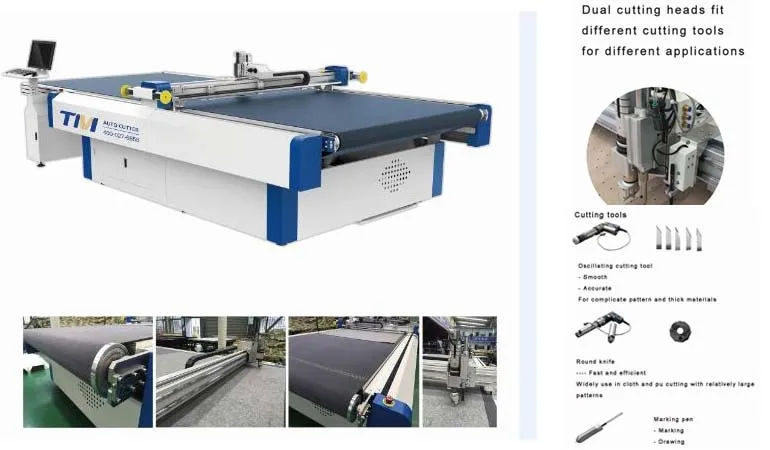

Machine parts
Application
Company Information
Packaging & Shipping
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, our factory is located in Wuhan city, Hubei province ,China
2. How many years does your factory work on the cutter?
We have been working on motion control system since 2004, started auto cutter development and research in 2012
3.What languages are supported?
English/Vietnamese/Romanian and Chinese in menu
If other language in need, contact your sales window for details.
4.What about the warranty?
12 months from the date of installation.
5.Should I prepare a computer?
One computer (DELL/LENOVO optional) in pack, no need to pay extra.
6. How thick your machine can cut?
Up to 9cm after compressed by vacuum.
There are 3cm,5cm,7cm,9cm models available, choose the right model according to material graphic marker nesting/yield and factory plan.
7.Will you send engineer for installation and training at overseas factory? What’s the cost?
Yes, we will send engineer(s) for the cutter installation and training. NO labor cost, but round tickets and accommodations should be organized by the customer.
