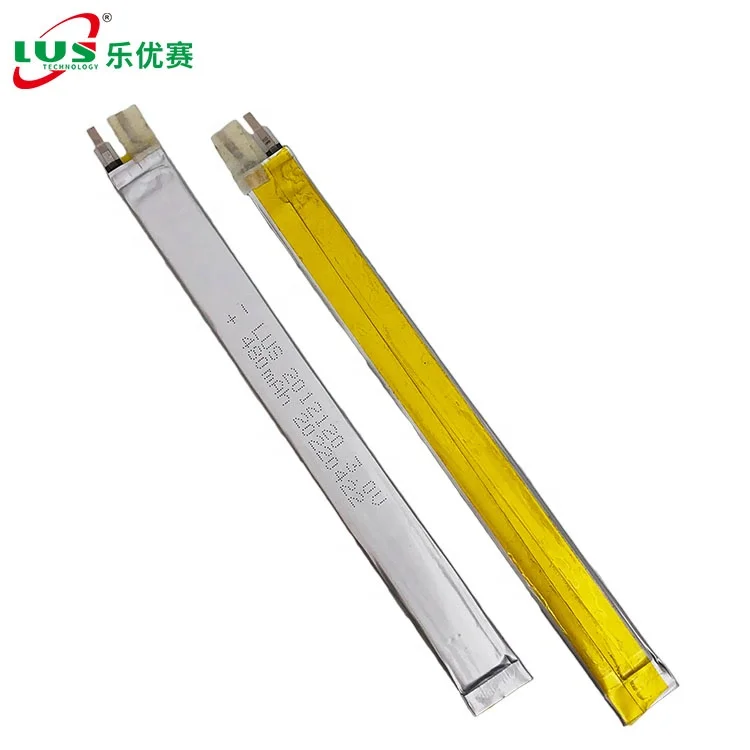

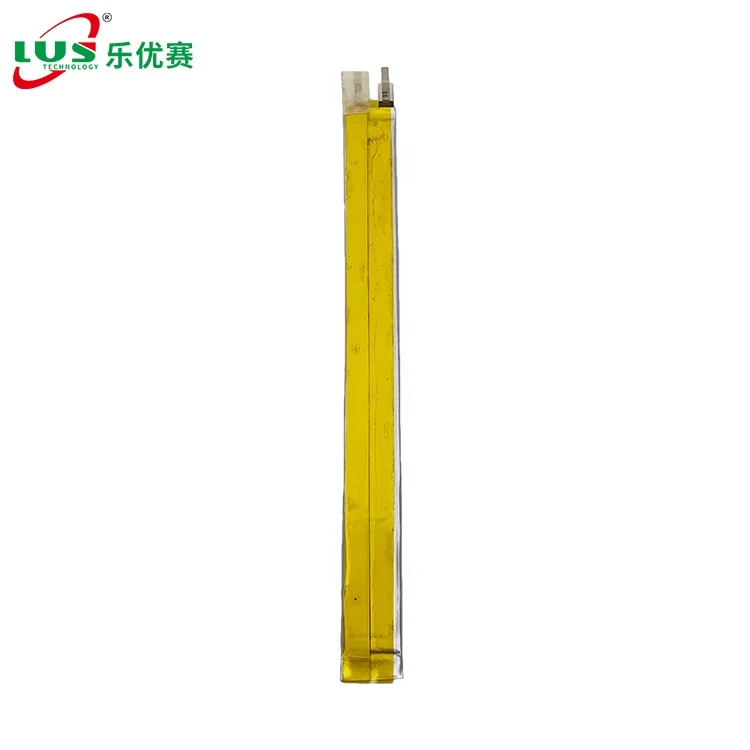

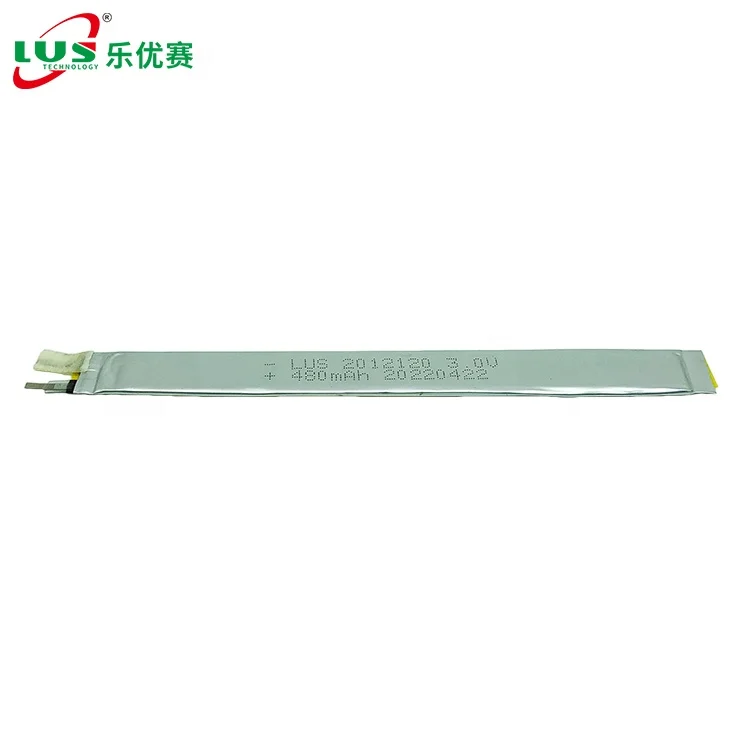

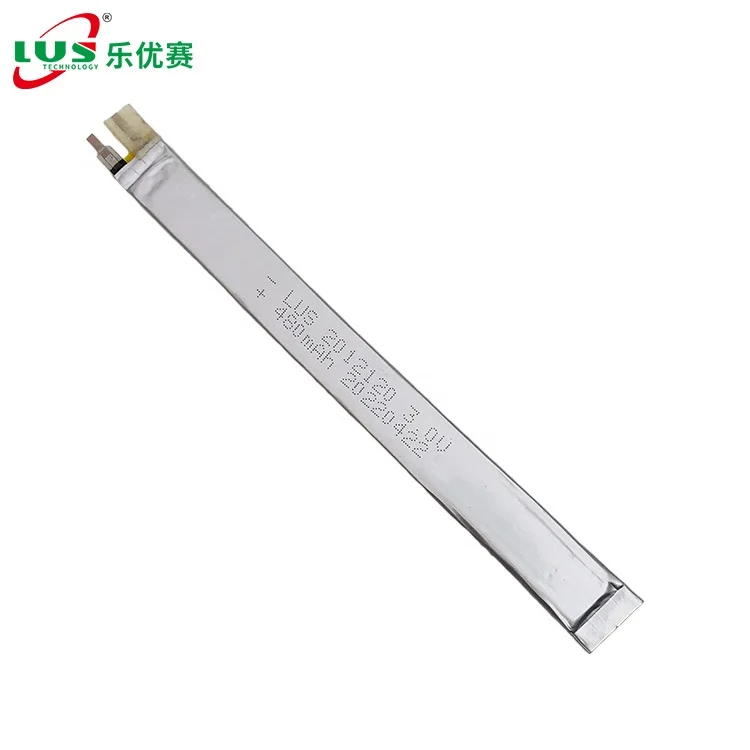

super narrow limno2 pouch cell CP2012120 3.0V 480mah CP2012120 Flat Battery For Smoke Alarm
- Category: >>>
- Supplier: Shenzhen Lus Technology Co. Ltd.
Share on (11000006408097):
Product Overview
Description

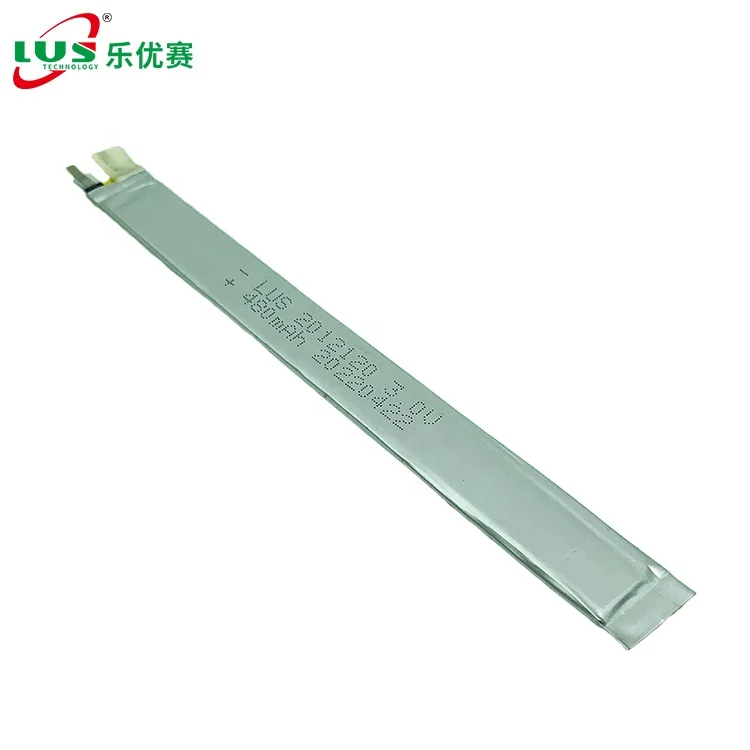

super narrow limno2 pouch cell CP2012120 3.0V 480mah CP2012120 Flat Battery For Smoke Alarm
About ultra thin cell battery
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.

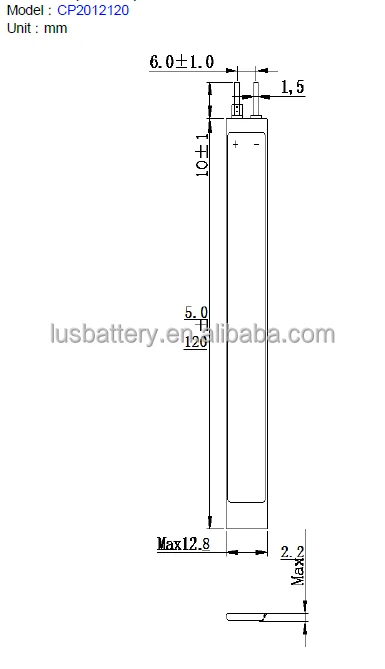

Data sheets:
| Type | Lithium Battery Soft Packed |
| Model | CP2012120/CP2012125 |
| Voltage | 3.0V |
| Capacity for single cell | 480mah |
| Max Continuous Discharge Current | 50mA |
| Max Pulse Discharge Current | 80mA |
| Dimension | 2.3*12.8*125mm |
| Self discharge rate | 2% per year |
| Terminals | Can be customized |
| Self life | 10 years |
| OEM and ODM | Welcome |
| Shipment | AIR/SEA/EXPRESS |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
Quality control
Thin cell Feature
Thin cell list
| Model | Maximum Appearance dimensions (mm) | Weight (g) | Rated voltage (v) | Rated Capacity (mAh) | Standard Discharge Current (mA) | Max.Current (mA) | |
| Continuous | Pulse | ||||||
| CP042922 | 0.45×29×22 | 0.4 | 3.0 | 15 | 0.5 | 10 | 20 |
| CP042345 | 0.45×23×45 | 0.8 | 3.0 | 30 | 0.5 | 20 | 35 |
| CP104848 | 1.2×49×49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5×29×29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP153030 | 1.6×31×31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6×51×51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0×12×125 | 5.5 | 3.0 | 400 | 1.0 | 100 | 200 |
| CP202850 | 2.2×28.5×50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4×41×36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4×31×46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3×45×49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8×51×46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8×46×59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2×51×51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2×18×21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2×20×23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2×51×51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5×18×29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2×26×26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2×25×42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2×38×43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2×47×45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2×51×51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2×21×27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2×18×26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8×39×70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8×39×109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0×20×60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7×25×35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2×38×43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
Thin Cell Advantage
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time.
Welcome for any customized.
Thanks.

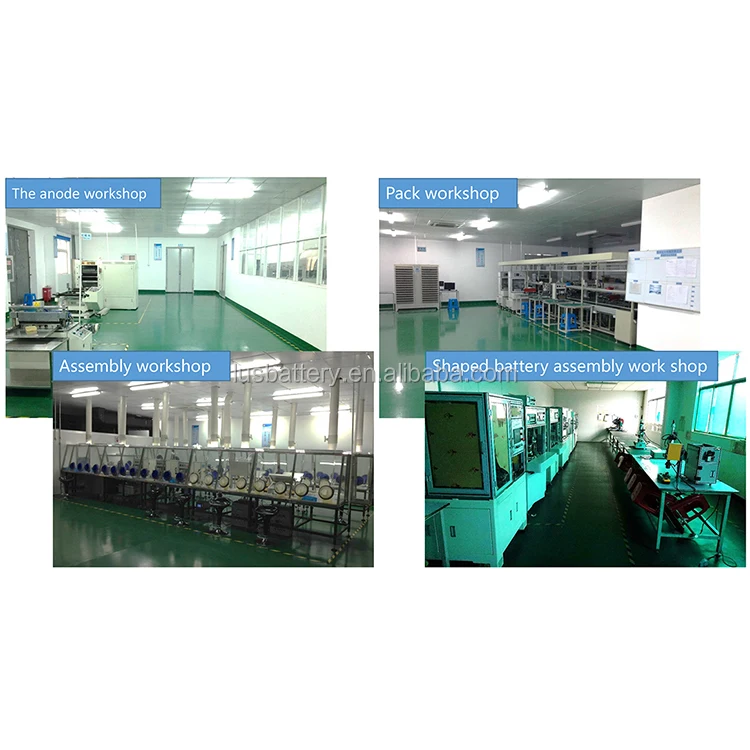

Work Shop:
FAQ
1.Could you tell me your main product?
Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargeable battery.
2.What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item
3.Could we do our logo customized ?
Re:Yes,we could do your printing and also accept original design service.
4.What is sample Date?
Re: we will send out within 1 week after details confirmation.
5.What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days
6.Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.
7.What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.
8.Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.
9.Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
