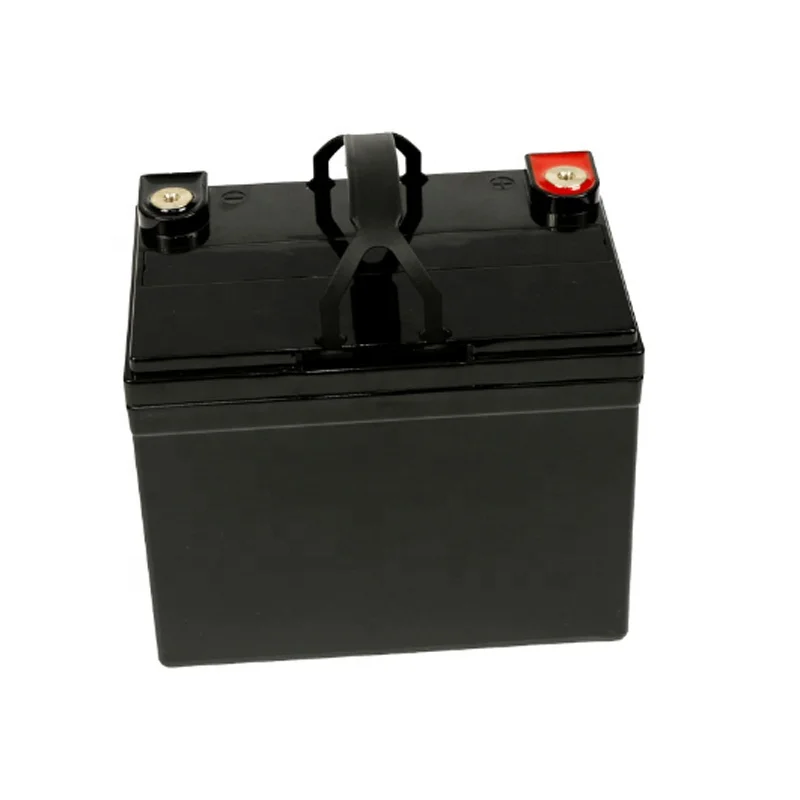

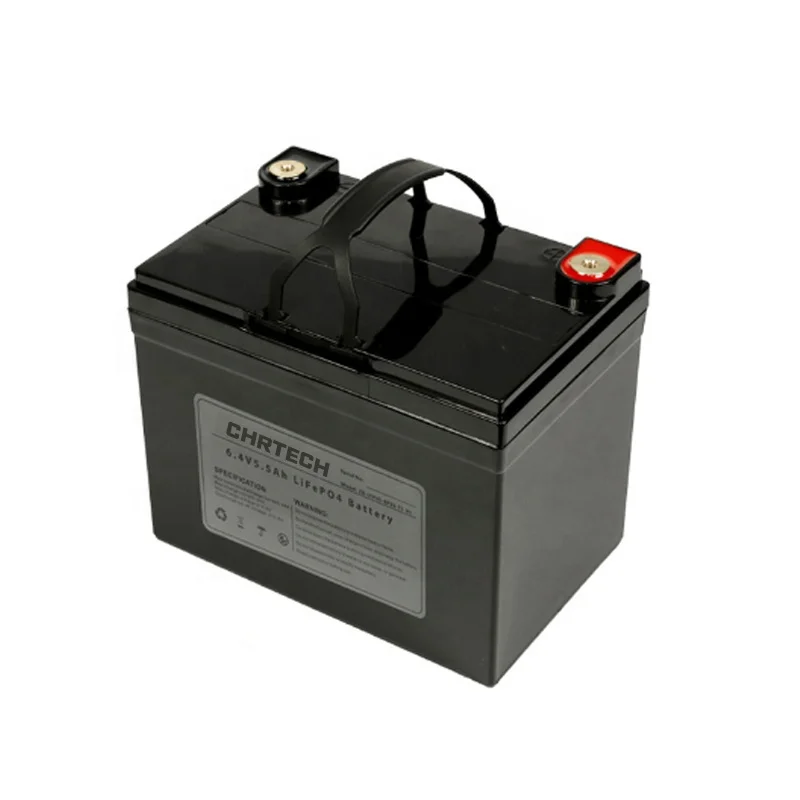

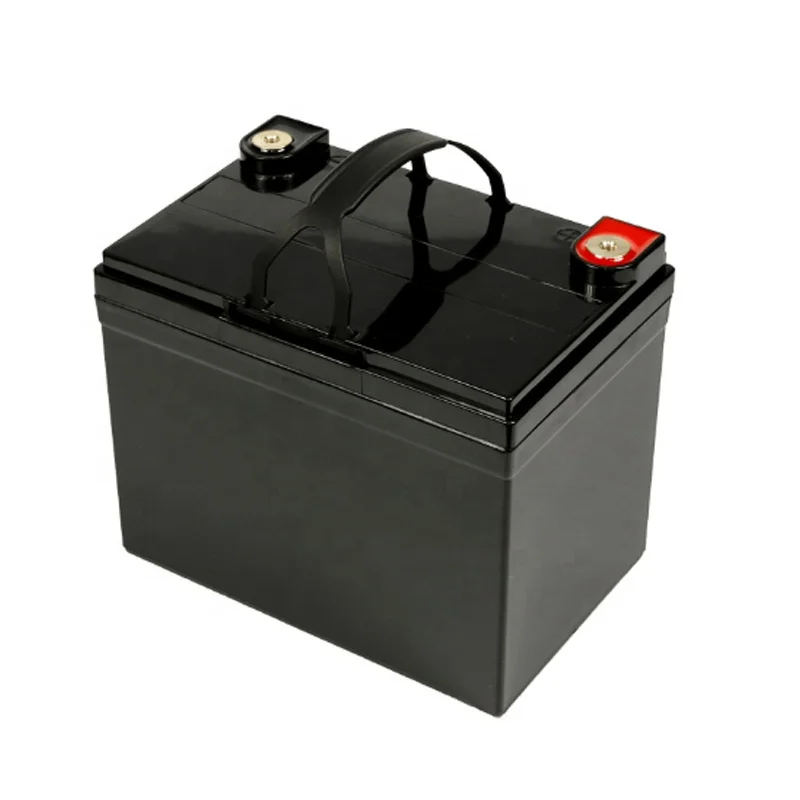

New Arrival Lithium ion 12V 12.8V 45Ah Battery Pack LifePO4 batterie au for Home Solar Energy Storage System motorcycle
- Category: >>>
- Supplier: Shenzhen CHR Technology Co. Ltd.
Share on (11000006411388):
Product Overview
Description
Products Description
Electrical Characteristics | Nominal Voltage | 12V/12.8V | ||||
Nominal Capacity | 5Ah-600Ah | |||||
Energy | 1280Wh | |||||
Internal Resistance | ≤50mΩ | |||||
Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |||||
Self Discharge | ≤3.5% per month at 25℃ | |||||
Max.Charging Voltage | 14.0~14.6V | |||||
Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and changed continuously with constant voltage of 14.6V until the current was no more than 0.02C | |||||
Charging Current | 50A | |||||
Max.Charging Current | 50A | |||||
Discharging Current | 100A | |||||
Max. Continuous Current | 100A | |||||
Max.Pulse Current | 200A(<3S） | |||||
Discharging Cut-off Voltage | 10V | |||||
Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |||||
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |||||
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |||||
Water Dust Resistance | IP56 | |||||
Structure | Cell & Format | 26650;32700&4S3P;4S4P;4S5P;4S10P;4S9P;4S17P;4S25P;4S34P | ||||
Casing | Plastic | |||||
Dimension(L*W*H*TH) | Customized | |||||
Package Dimension | Customized | |||||
Weight | Customized | |||||

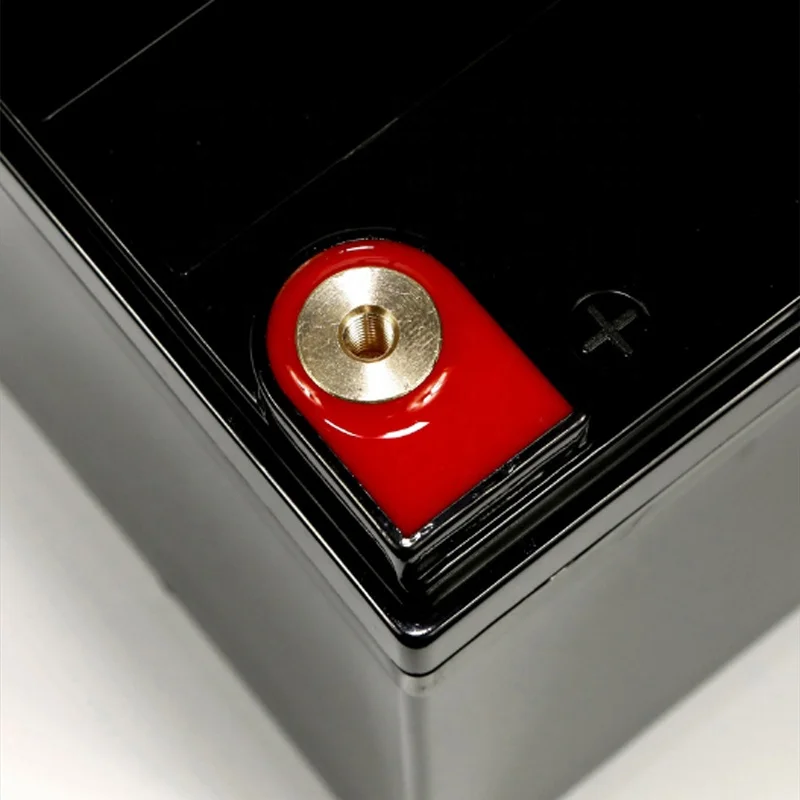

Terminal | F2/M5/M6/M8 | |||||
