Deep cycle Lifepo4 Solar Panel System Battery Energy Storage Battery Pack 3.2V Lipo4 Battery
- Category: >>>
- Supplier: Shandong Huigor International Trading Co. Ltd.
Share on (11000006418608):
Product Overview
Description
1. Specification
Item | Specification | ||
Capacity | Nominal capacity | 3600mAh | |
Min. capacity | 3550mAh | ||
Alternating internal resistance | Max. | 20mΩ | |
Nominal voltage | 3.2V | ||
Standard charge condition | Current | 0.5C(1800mA) | |
Voltage | 3.65V | ||
Cut-off current | 72mA (0.02C) | ||
Max. charging current | 1C | ||
Standard discharge condition | Current | 0.5C(1800mA) | |
Cut-off voltage | 2.5V | ||
Max. continuous discharging current | 3C | ||
Max. pulse discharging current | 18A(5s) | ||
Working temperature | Charge | 0~55℃ | |
Discharge | -20~75℃ | ||
Storage Temperature | 1 month | -20~60℃ | |
3 months | -20~40℃ | ||
12 months | -20~20℃ | ||
Weight | <=87g | ||
Dimension | Height | 65.2mm | |
Diameter | 26.2mm | ||
Appearance | No rupture, no scratch, no deformation, no stain, no electrolyte leakage etc. | ||

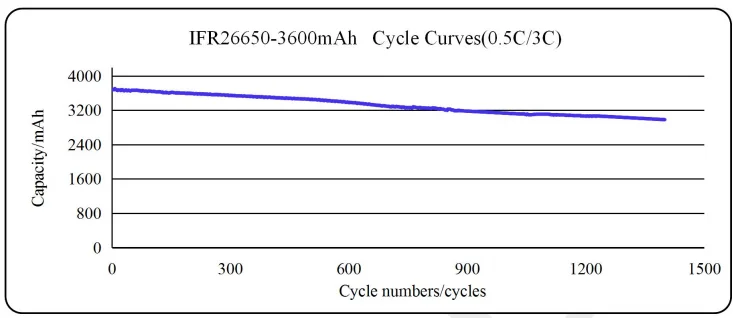

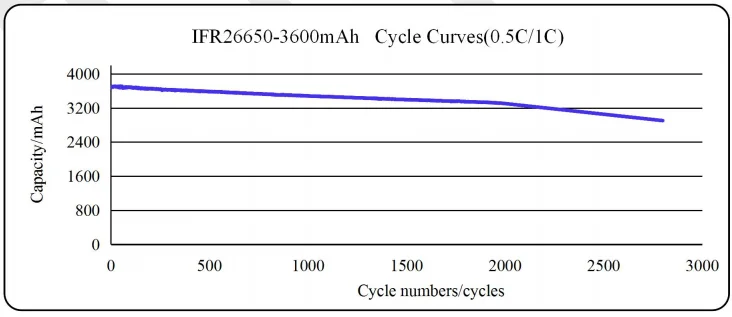

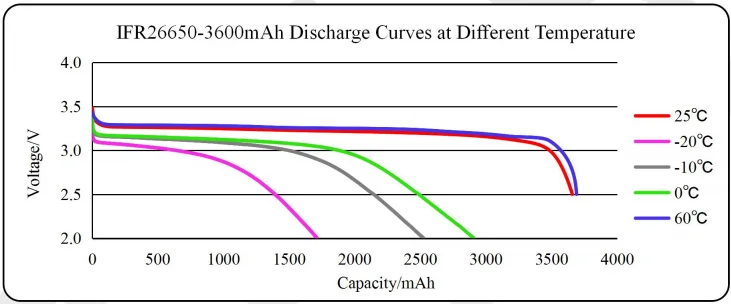

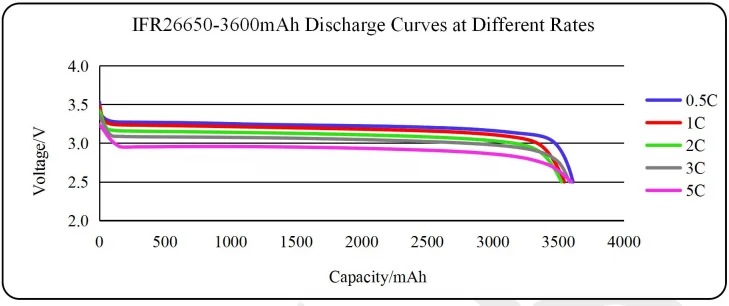

2. Performance Curve
3. Packaging

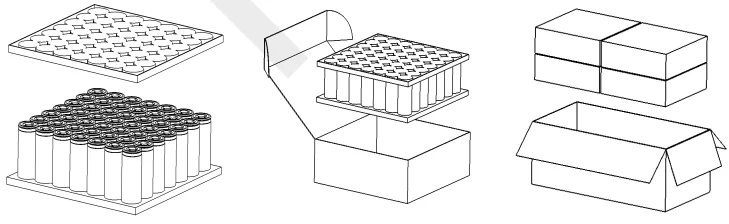

Cells packing: 49 cells per box, 4 boxes per box, 196 cells in total, outer box size: 455*232*172mm
The cells packing case shall be marked with the product name, model, nominal voltage, quantity, gross etc.
4. Certificate
Cell Workshop
Pack Workshop
